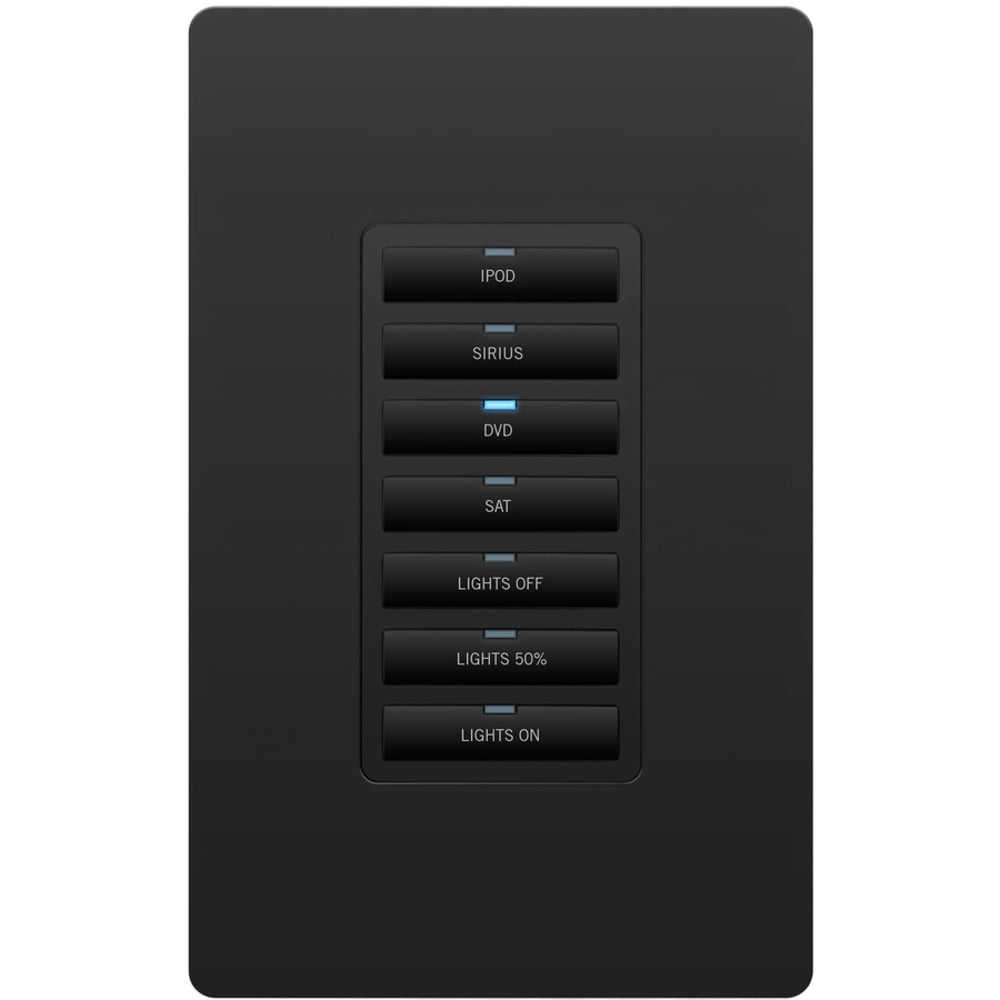

AMX FG565-13-BL-00 Hpx-U400-R-Met-7E, Metreau 7-Button Ethernet Keypad Ramp Mount Kit

AMX FG565-13-BL-00 Hpx-U400-R-Met-7E, Metreau 7-Button Ethernet Keypad Ramp Mount Kit

SoundPro Item: 40350 | Part Number: FG565-13-BL-00

$531.00
$531.00 $531.00
Your Price Sold out
MSRP: $531.00 | MAP: $531.00

Usually ships in 5-7 business days

  • Connects via Standard Protocols (Ethernet) - Simplifies cabling and installation by minimizing cable runs
  • Standard Configuration - Standard buttons include 1-9, 0, ENTER, SAVE, and +/-
  • Blue LEDs Glow to Indicate Button Selection - Improves usability by confirming the user's selection
  • Bottom Button Can Act as Single or Two Buttons - Provides added flexibility to the configuration
Log in or register for YOUR best price

The HPX-U400-R-MET-7E module is a Metreau 7-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort® chassis at an angle to improve usability.

Common Applications

Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.

View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG565-13-BL-00
Brand Name
AMX
Product Line
Metreau
Product Model
HPX-U400-R-MET-7E
Product Name
Metreau 7-Button Ethernet Keypad Ramp Kit
Product Type
A/V Control Panel
Miscellaneous
Additional Information
Dimensions 4 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units) POWER PoE: PoE (Power over Ethernet), 802.3af, class 0 Power Connector: (1) RJ-45 Ethernet Connector, 10/100 POWER SUPPLY External, Required: POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included ETHERNET Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100 ENVIRONMENTAL Temperature (Operating): 32° to 104° F (0° to 40° C) Humidity (Relative): 5% to 85%, non-condensing Note: Intended for indoor use only FRONT PANEL COMPONENTS Pushbuttons available in a variety of field replaceable pre-printed buttons Blue LEDs indicate activity REAR PANEL COMPONENTS (1) RJ-45 Ethernet Connector, 10/100 (2) 8-pin, 0.100" (2.54 mm) IDC-type male header
Application/Usage
Boardroom
Conference Room
Meeting Room
Auditorium
Compatibility
AMX HydraPort Chassis
