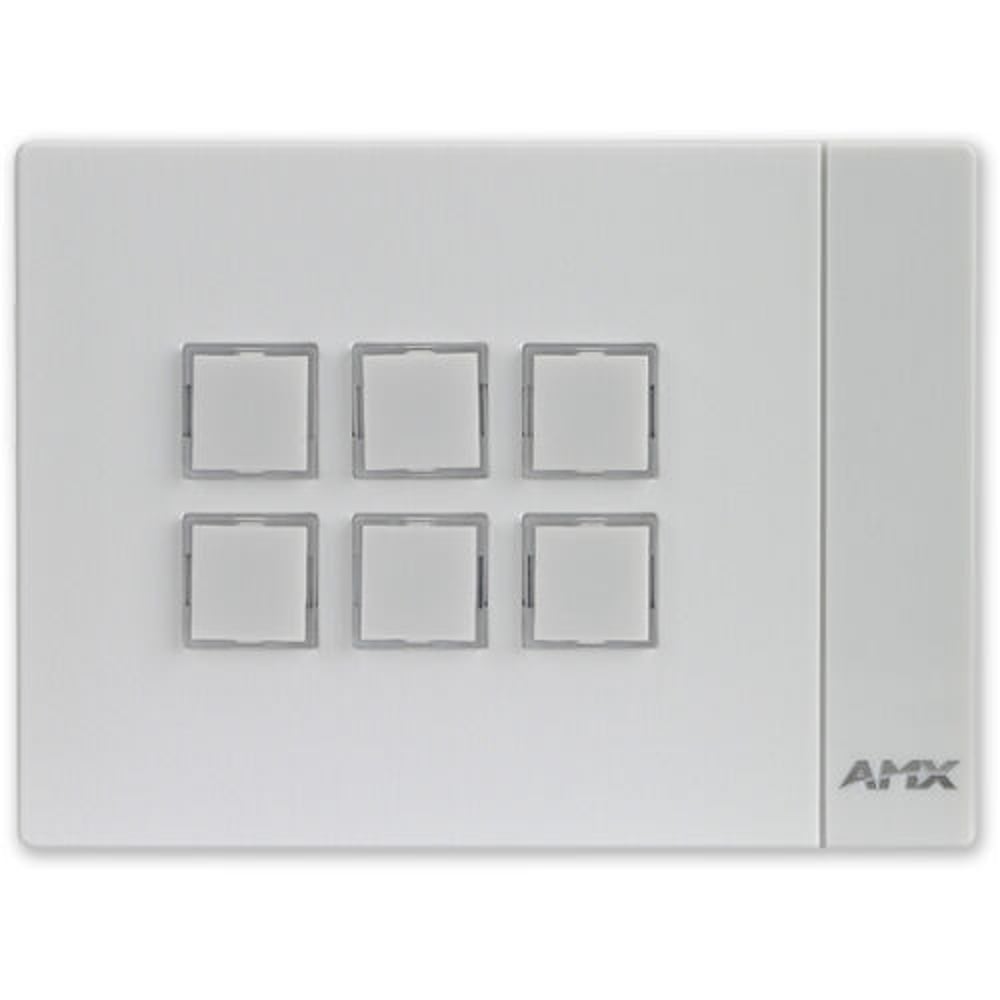

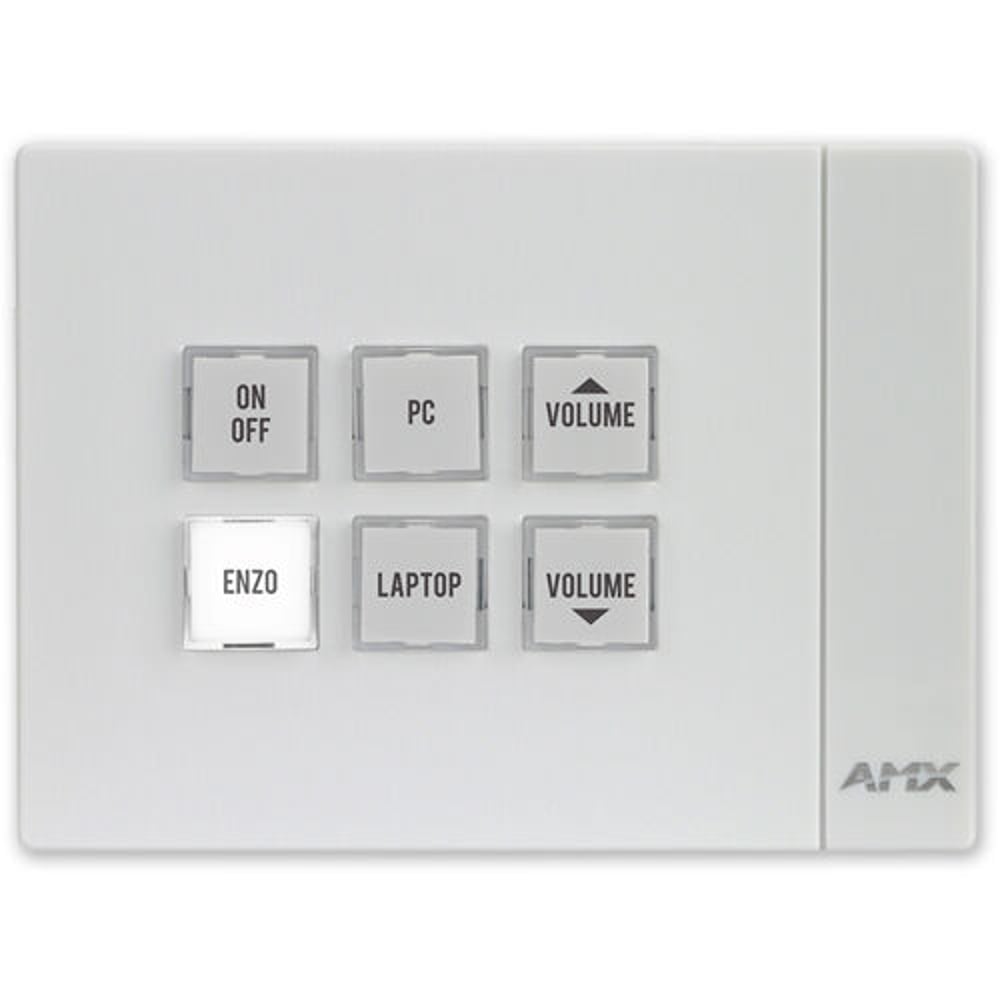

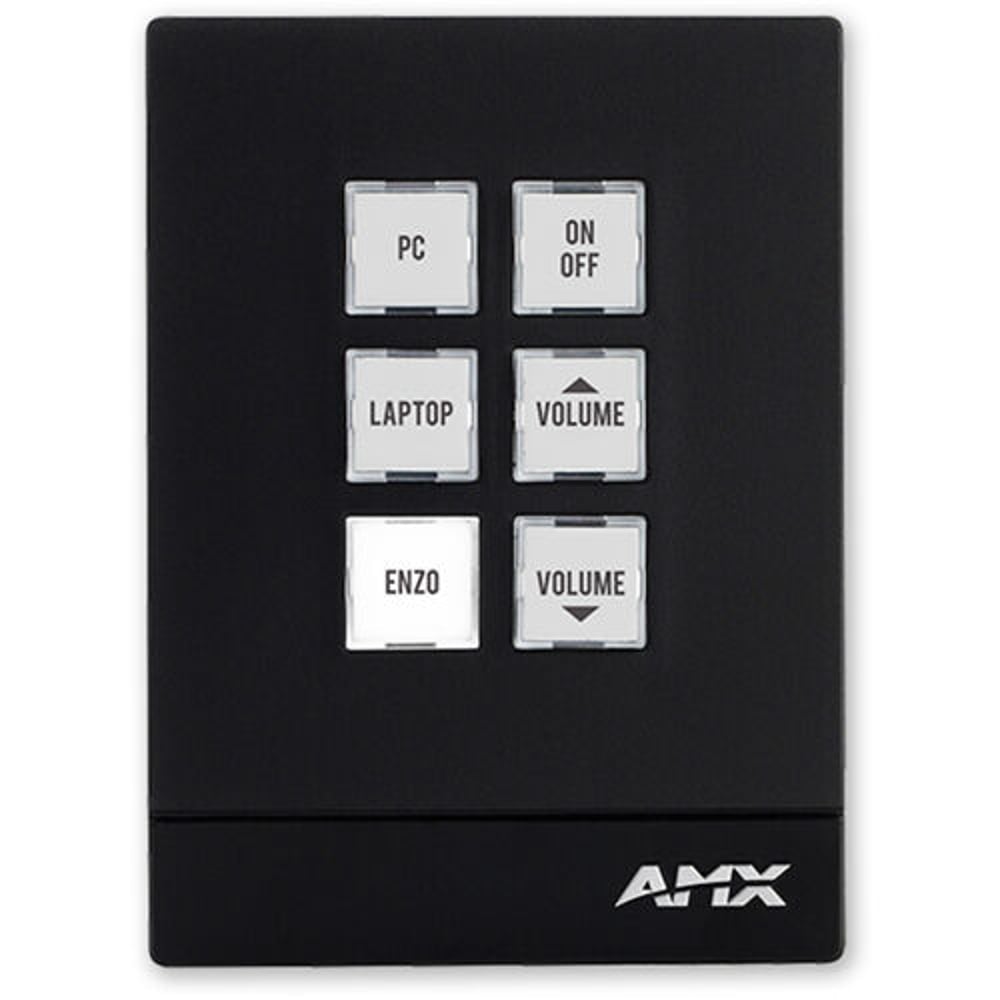

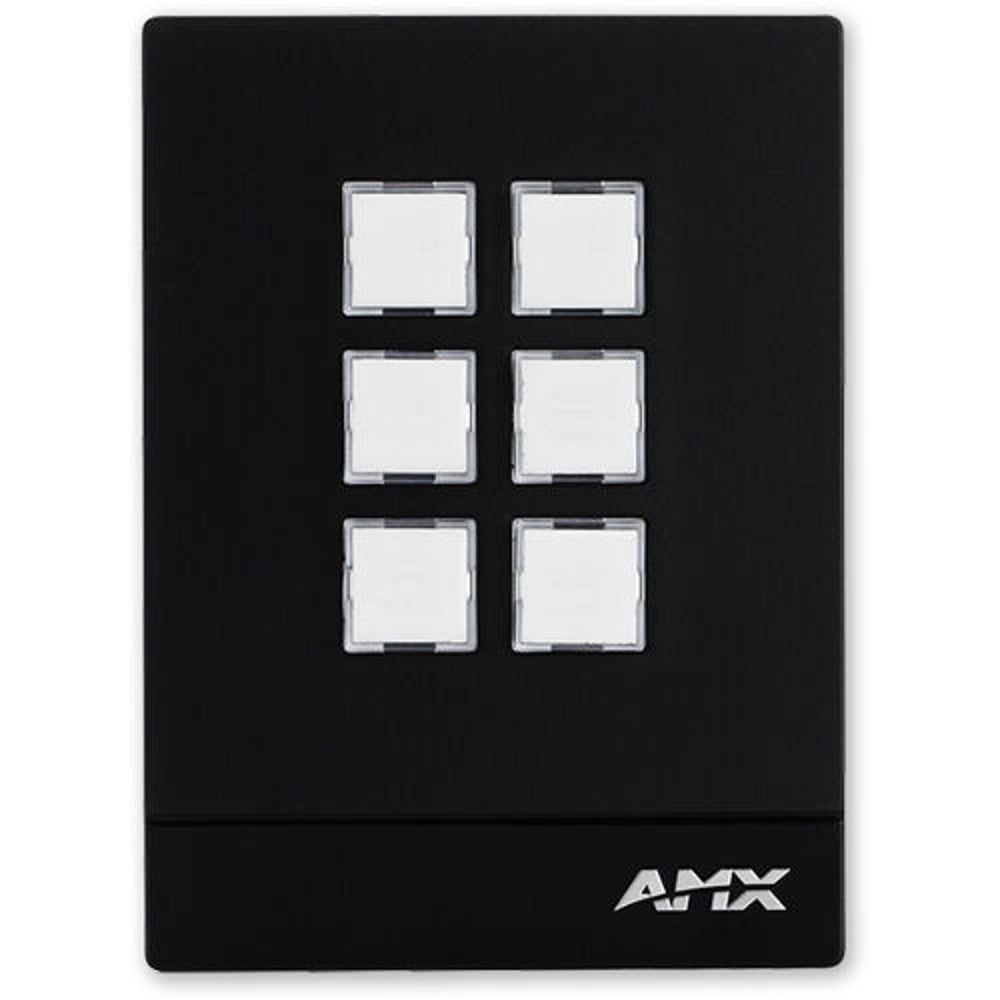

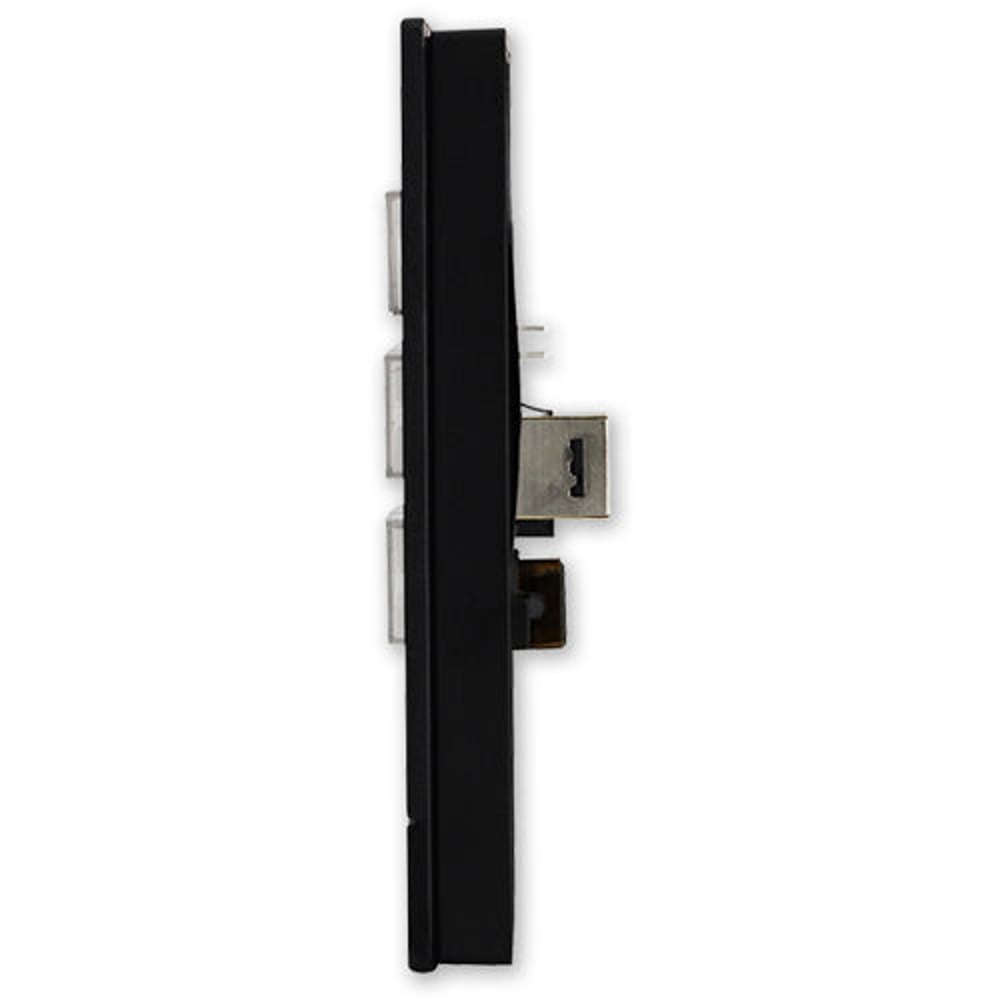

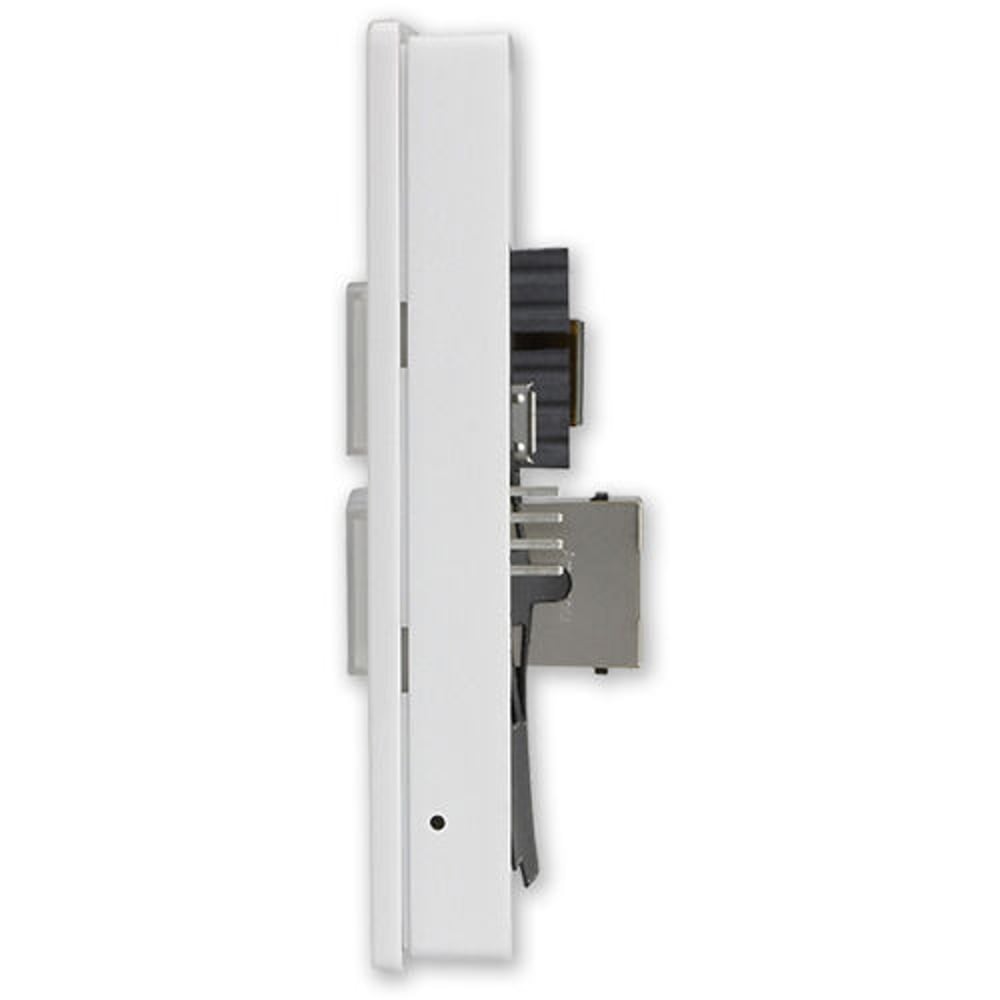

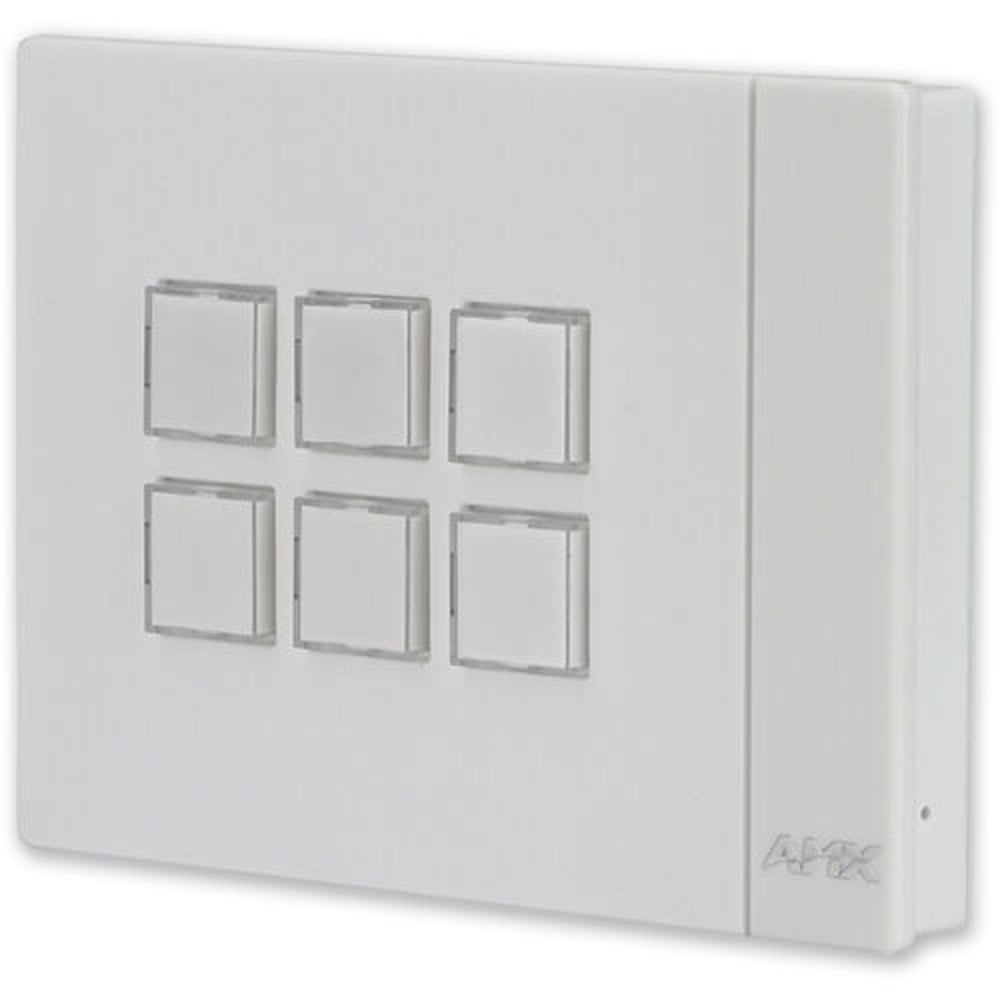

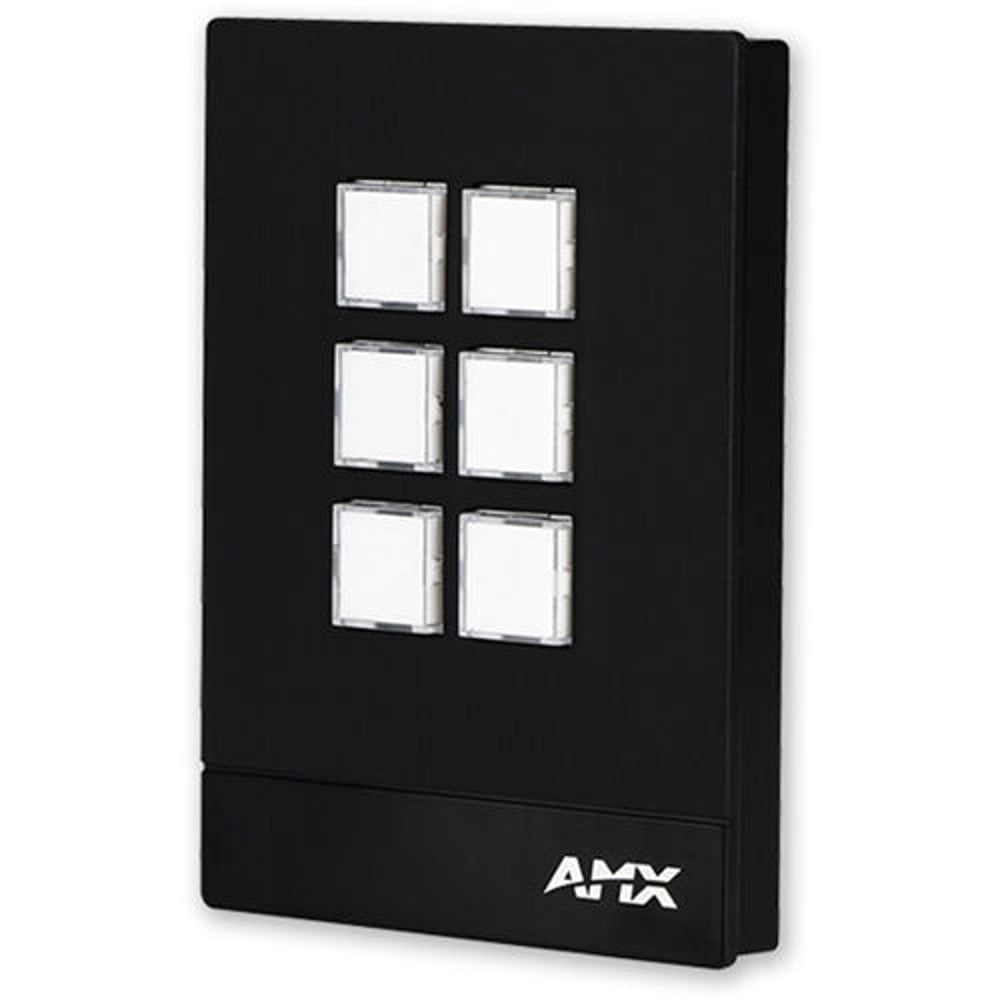

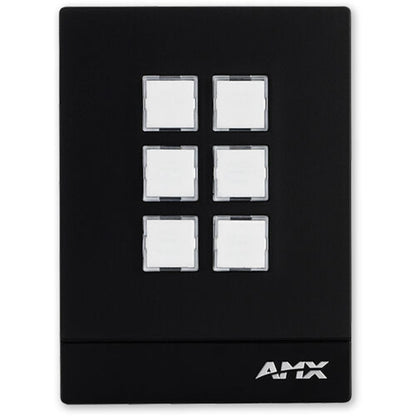

AMX FG5793-06P-W Mkp-106 6 Button Massio Keypad

AMX FG5793-06P-W Mkp-106 6 Button Massio Keypad

SoundPro Item: 40453 | Part Number: FG5793-06P-W

$605.00
$605.00 $605.00
Your Price Sold out
MSRP: $605.00 | MAP: $605.00

Usually ships in 5-7 business days

  • Product Color: White
  • Form Factor: Gang Box Mount
  • Height: 4.7"
  • Width: 3.4"
  • Depth: 0.5"
  • Weight (Approximate): 3.88 oz
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS
  • Environmental Certification: WEEE
Log in or register for YOUR best price

The MKP-106 / 6-Button Massio Keypad is a keypad-only version of the MCP-106 Massio ControlPad. The MKP-106 provides sleek Massio styling in any room, serving as a second user interface or as a primary UI in spaces that already contain a separate controller. The MKP-106 includes large, easy-to-read buttons in a stylish design that makes it simple for users to manage complex tasks with a single button press during meetings or classes. The Keypad connects to the controller via Ethernet, which simplifies installation and connectivity.

COMMON APPLICATION

  • Ideal for small spaces utilizing NetLinx control, providing the ability to utilize customized code and additional ports of NetLinx masters, while maintaining a consistent user experience as the RPM-enabled Massio ControlPads.
  • Perfect for Massio rooms requiring a second user interface in the same form factor to act as a slave keypad to the Massio ControlPad.
  • Consistent Massio Aesthetics & Form Factor - Provides consistent look-and-feel in existing installations with Massio, with the same models and sizes as the Massio ControlPads
  • Massio Styling in Customized Rooms - Provides Massio-style UI in rooms that require a separate controller
  • Connects Via Standard Protocols (PoE) - Simplifies cabling and installation by minimizing cable runs and eliminates the need for power at the keypad location
View full details

Specifications

'General Information
Manufacturer
AMX
Manufacturer Part Number
FG5793-06P-W
Brand Name
AMX
Product Line
Massio
Product Model
MKP-106P-WH
Product Name
6-Button Massio Keypad (US, UK, EU)
Product Type
A/V Control Panel
Physical Characteristics
Color
White
Form Factor
Gang Box Mount
Miscellaneous
Additional Information

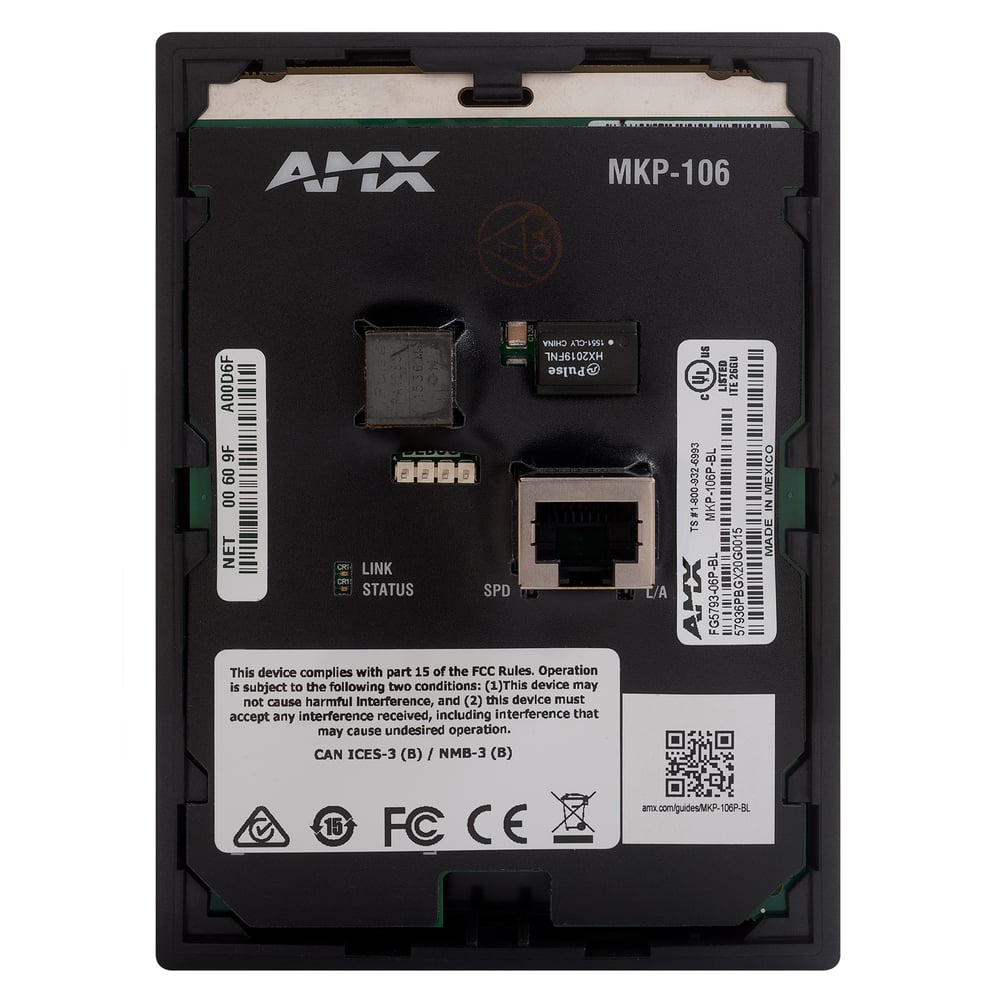

POWER CONSUMPTION Typical: 4.5 Watts Voltage, DC (Typical): PoE (37V-57V) Voltage DC Range: 37 V-57 V per 802.3af spec Power Connector: (1) RJ-45 Ethernet POWER SUPPLY External, Required: Any POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included ENVIRONMENTAL Temperature (Operating): 32° F to 122° F (0° C to 50° C) Temperature (Storage): 14° F to 140° F (-10° C to 60°C) Humidity (Operating): 5% to 85% RH ETHERNET Ethernet Connection: (1) 10/100; Port provides TCP/IP communication. This is an Auto MDI/MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information. CONTROL PORTS & INDICATORS Program Port: (1) USB Mini-B, USB ID Pushbutton: Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode MEMORY Flash: 4 GB Memory Card: 4 GB SD DDRAM: 256 MB REGULATORY COMPLIANCE FCC CFR Title 47 Part 15 CE EN 55022 CE EN 55024 CE EN 60950-1 IEC 60950-1 UL 60950-1 C-Tick CISPR 22 IC CISPR 22 VCCI CISPR 22 RoHS WEEE
Green Compliant
Yes
Green Compliance Certificate/Authority
WEEE
RoHS
