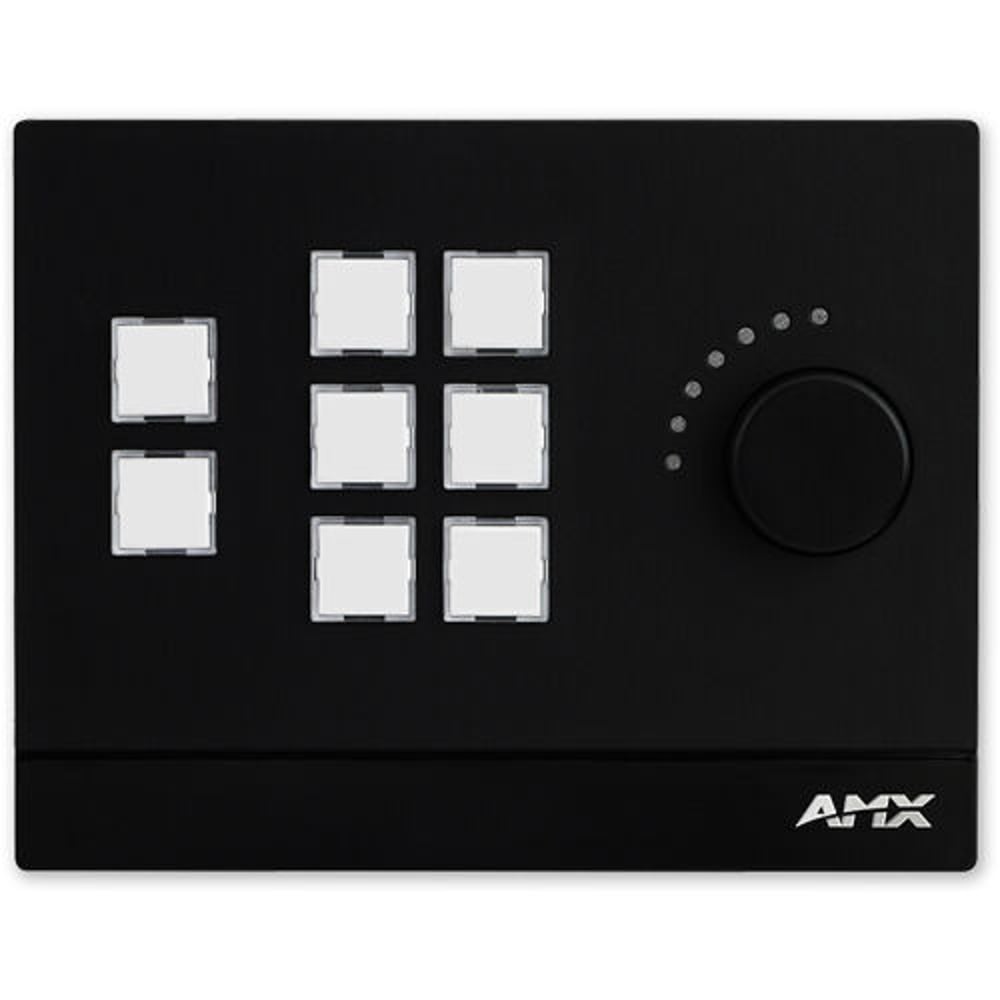

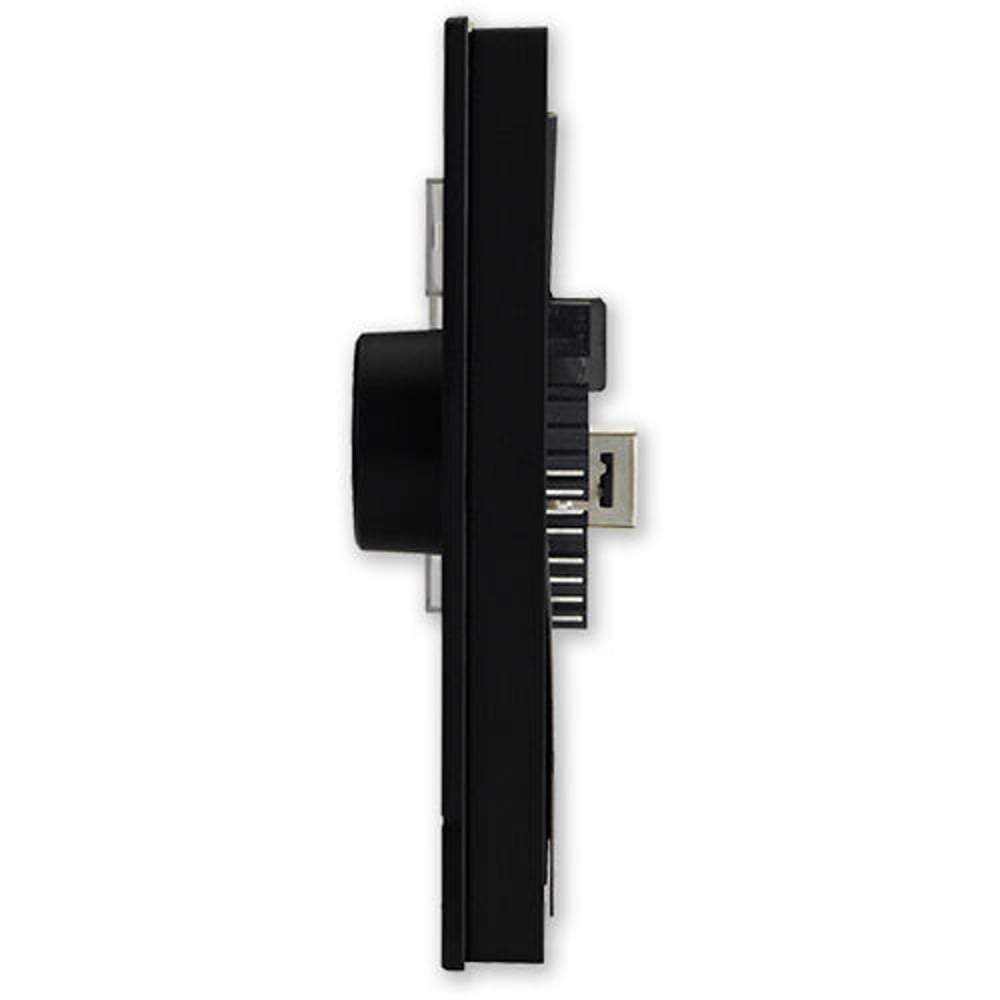

AMX FG5793-08L-BL Mkp-108 8 Button Massio Keypad With Knob

AMX FG5793-08L-BL Mkp-108 8 Button Massio Keypad With Knob

SoundPro Item: 132644 | Part Number: FG5793-08L-BL

$727.00
$727.00 $727.00
Your Price Sold out
MSRP: $727.00 | MAP: $727.00

Usually ships in 5-7 business days

  • Connectivity Technology: Wired
  • Product Color: Black
  • Form Factor: Gang Box Mount
  • Height: 4.7"
  • Width: 6"
  • Depth: 1"
  • Weight (Approximate): 6.70 oz
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS
  • Environmental Certification: WEEE
Log in or register for YOUR best price

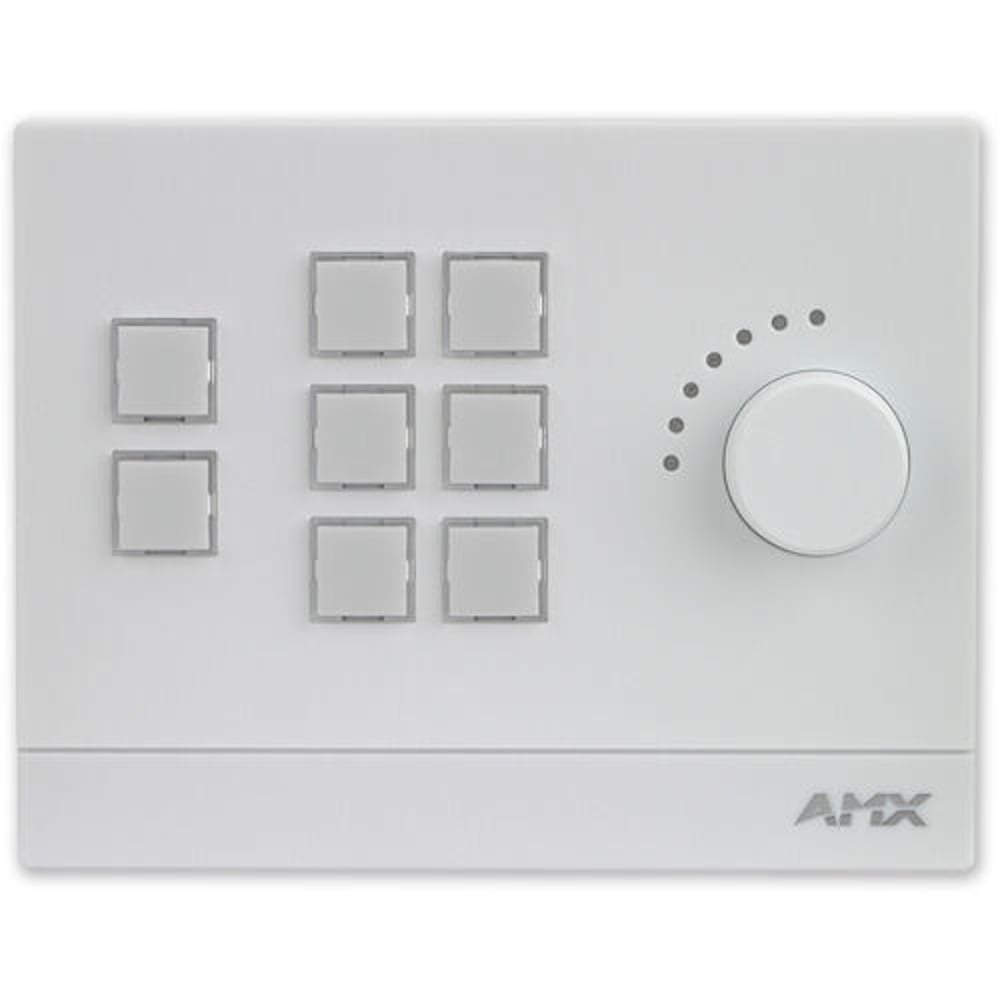

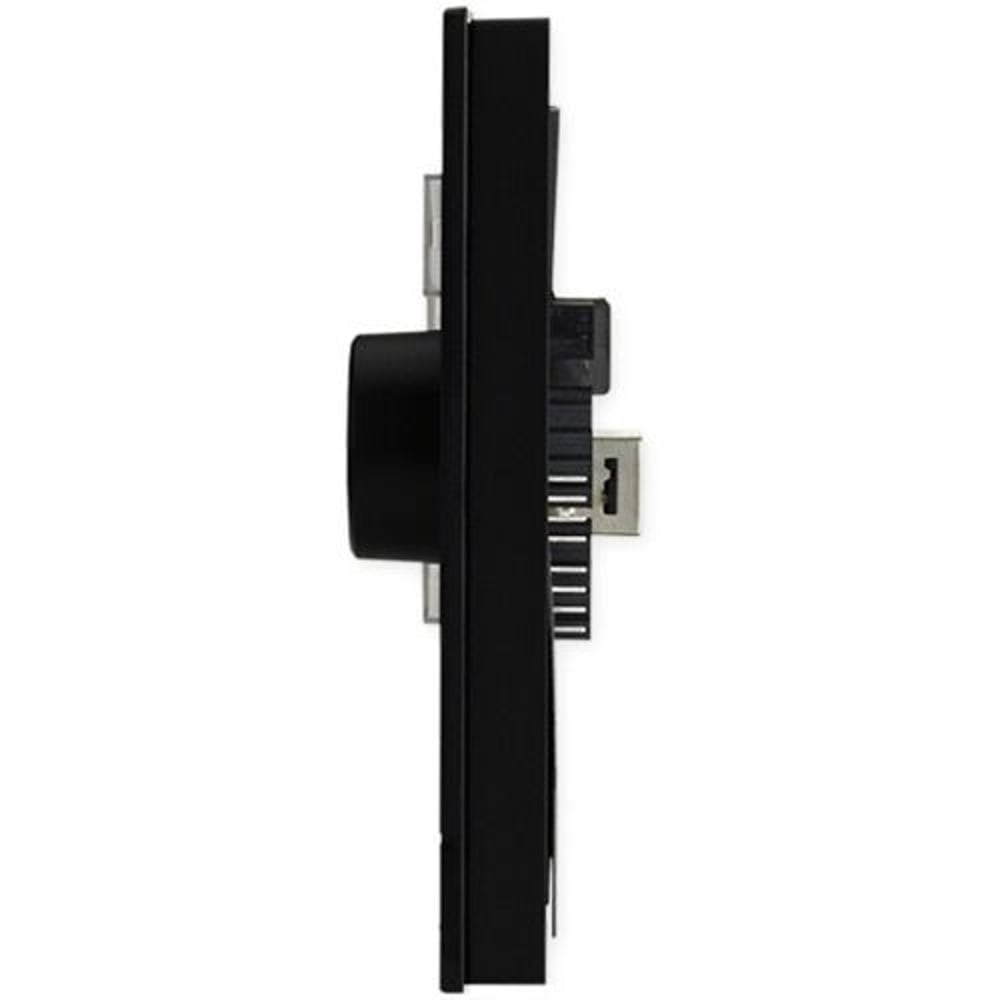

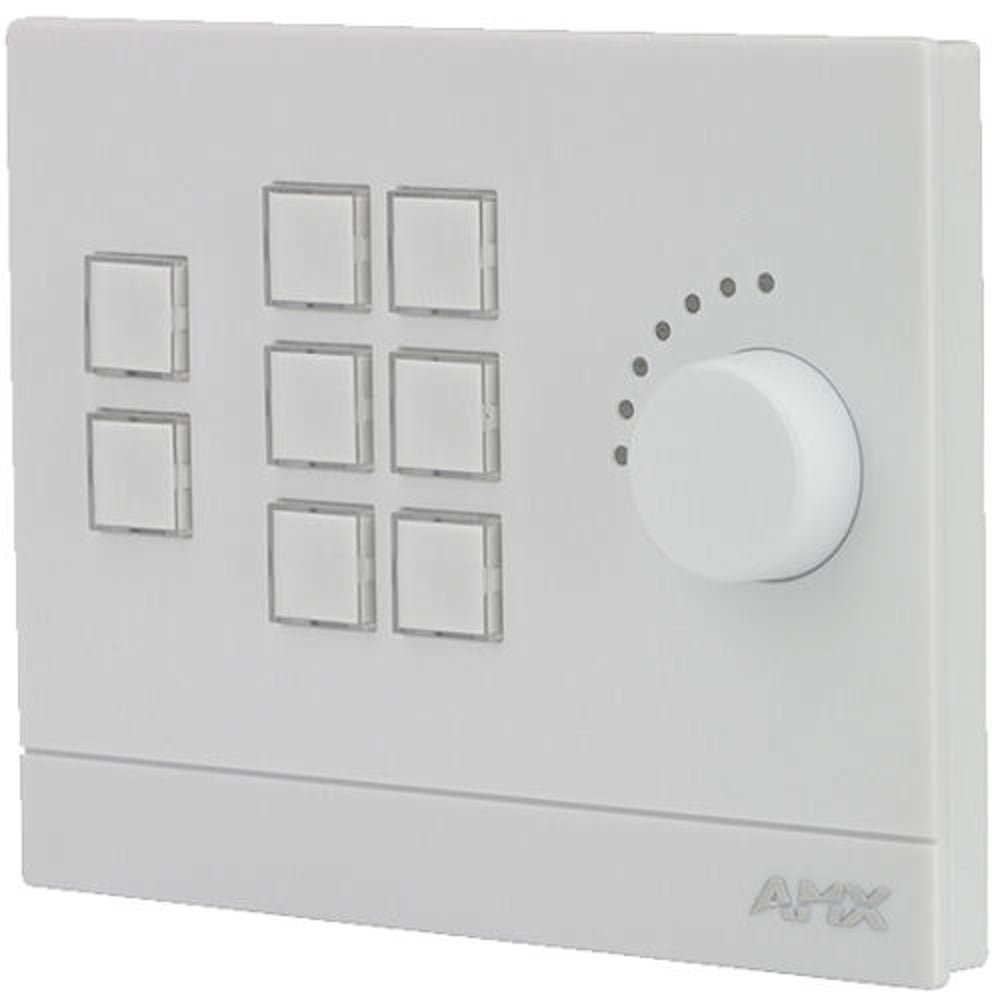

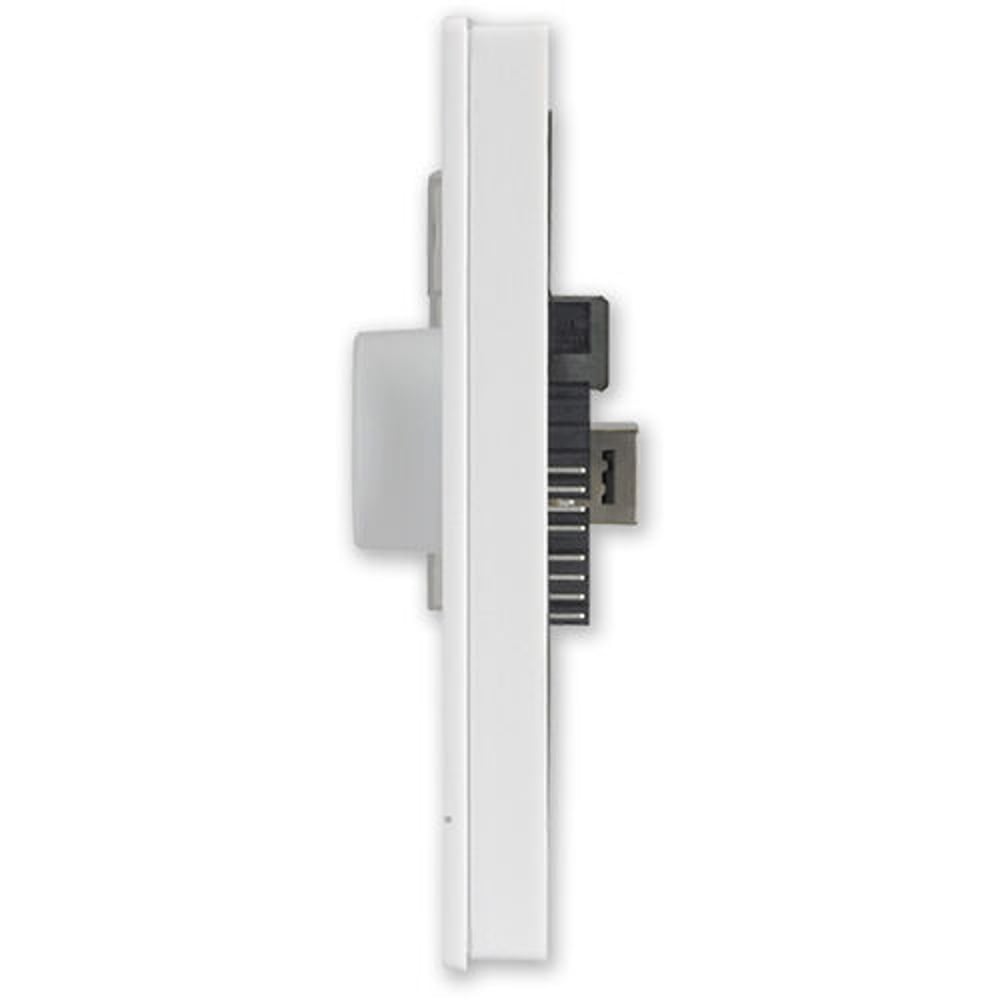

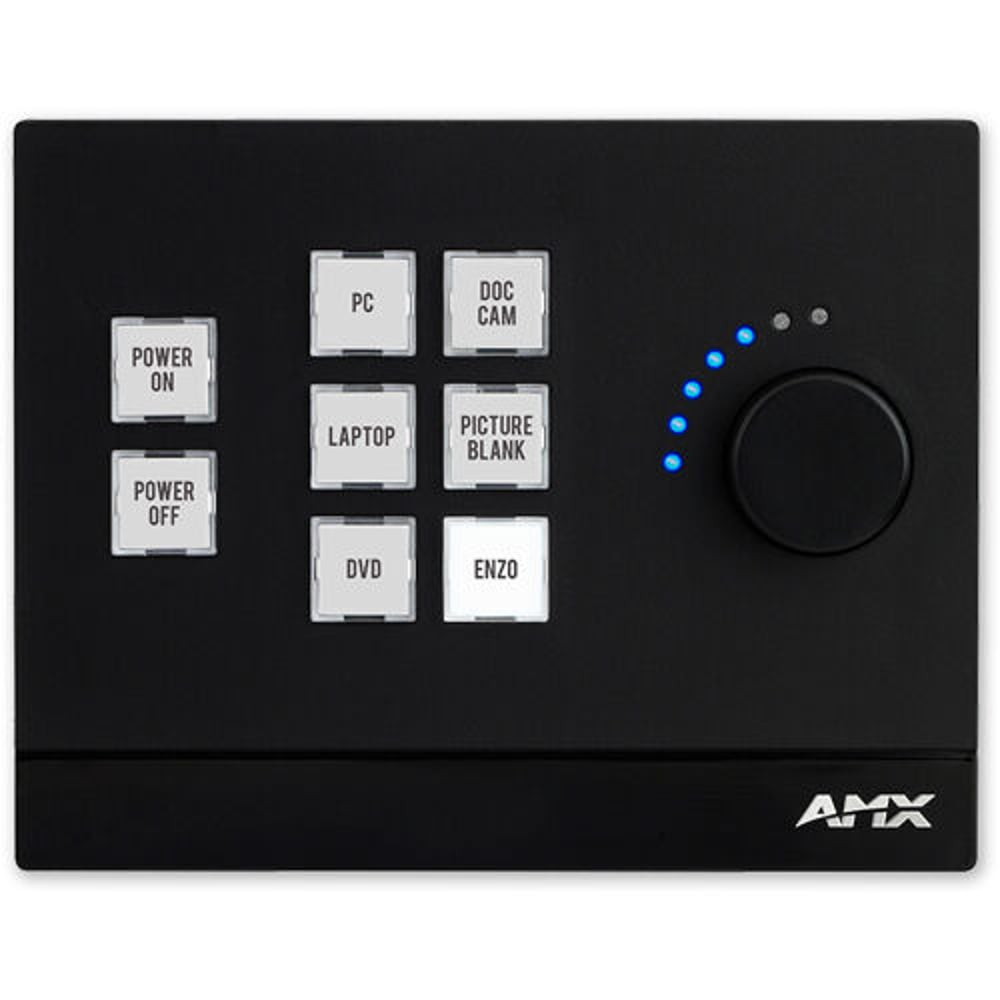

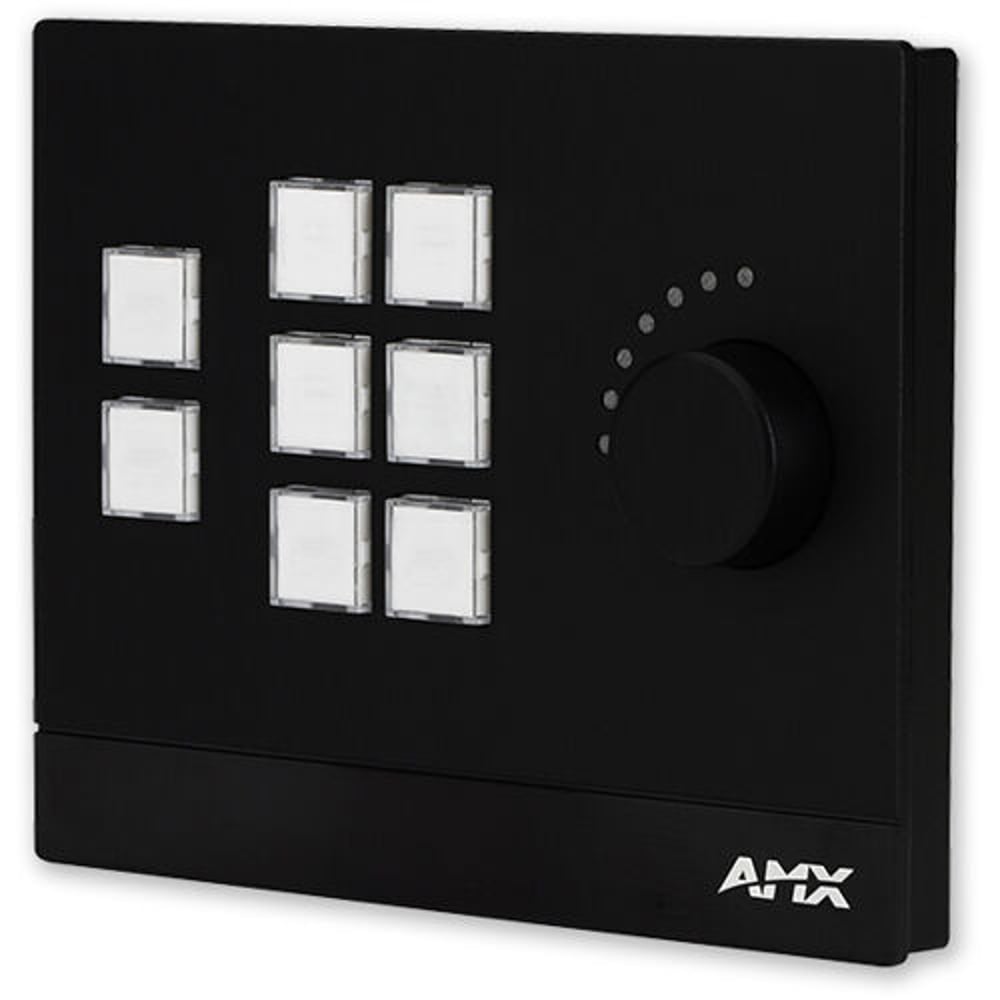

AMX 8-Button Massio Keypad is the keypad-only version of the MCP-108 Massio ControlPad with a knob. It consists of large buttons that can be read easily, and a responsive dial/ knob in an excellent design. The stylish design of this keypad allows users to easily manage the tasks with a single button press during meetings or conferences just by sitting at the conference table. Thus, this keypad can be utilized in Massio rooms that require a second user interface in the same form factor, or small spaces utilizing NetLinx Control.

View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG5793-08L-BL
Brand Name
AMX
Product Line
Massio
Product Model
MKP-108L-BL
Product Name
8-Button Massio Keypad With Knob
Product Type
A/V Control Panel
Technical Information
Connectivity Technology
Wired
Physical Characteristics
Color
Black
Form Factor
Gang Box Mount
Miscellaneous
Additional Information

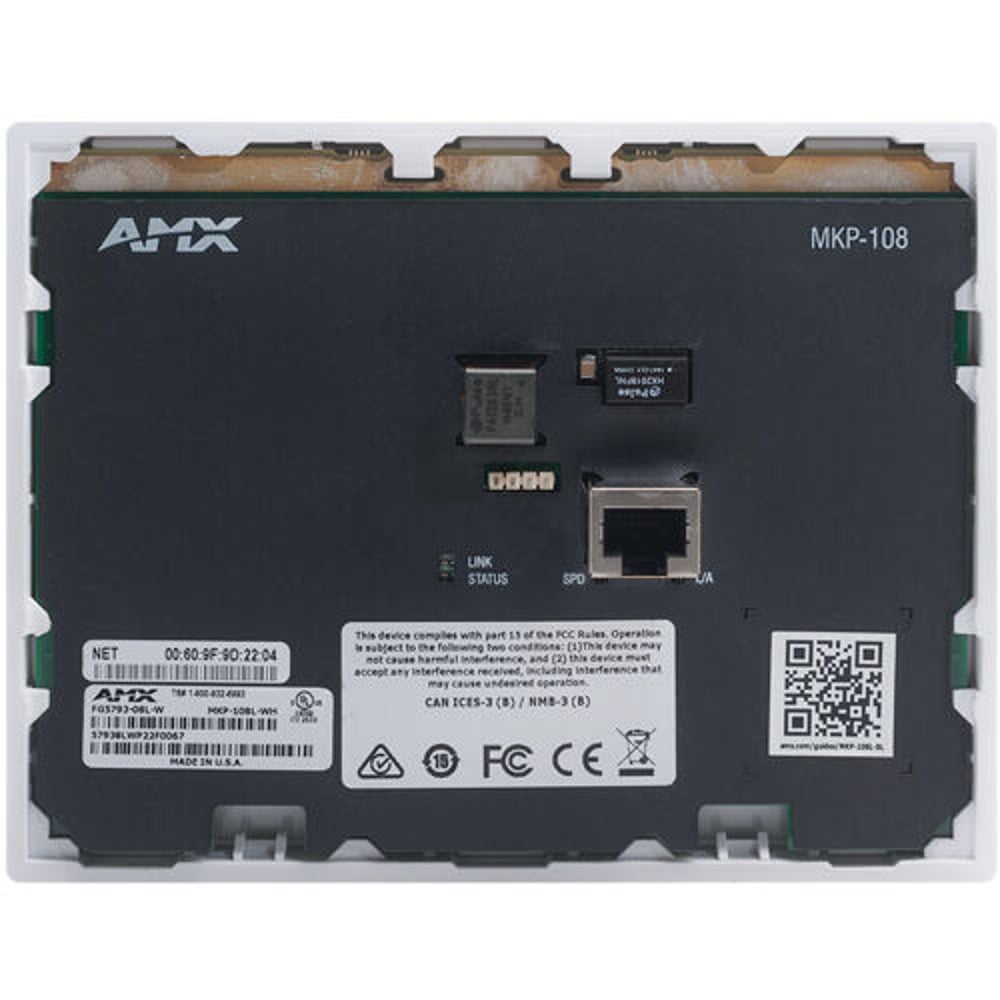

POWER CONSUMPTION Typical: 5 W Voltage, DC (Typical): PoE (37V-57V) Voltage DC Range: 37 V-57 V per 802.3af spec Power Connector: (1) RJ-45 Ethernet POWER SUPPLY External, Required. Any POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included ENVIRONMENTAL Temperature (Operating): 32° F to 122° F (0° C to 50° C) Temperature (Storage): 14° F to 140° F (-10° C to 60°C) Humidity (Operating): 5% to 85% RH ETHERNET (1) 10/100; Port provides TCP/IP communication. This is an Auto MDI/MDI-X enabled port, which allows you to use either straight-through or crossover Ethernet cables. The Ethernet Port LEDs show communication activity, connection status, speeds, and mode information. CONTROL PORTS & INDICATORS Program Port: (1) USB Mini-B, USB ID Pushbutton: Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode MEMORY Flash: 4 GB Memory Card: 4 GB SD DDRAM: 256 MB REGULATORY COMPLIANCE FCC CFR Title 47 Part 15 CE EN 55022 CE EN 55024 CE EN 60950-1 IEC 60950-1 UL 60950-1 C-Tick CISPR 22 IC CISPR 22 VCCI CISPR 22 RoHS WEEE
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
