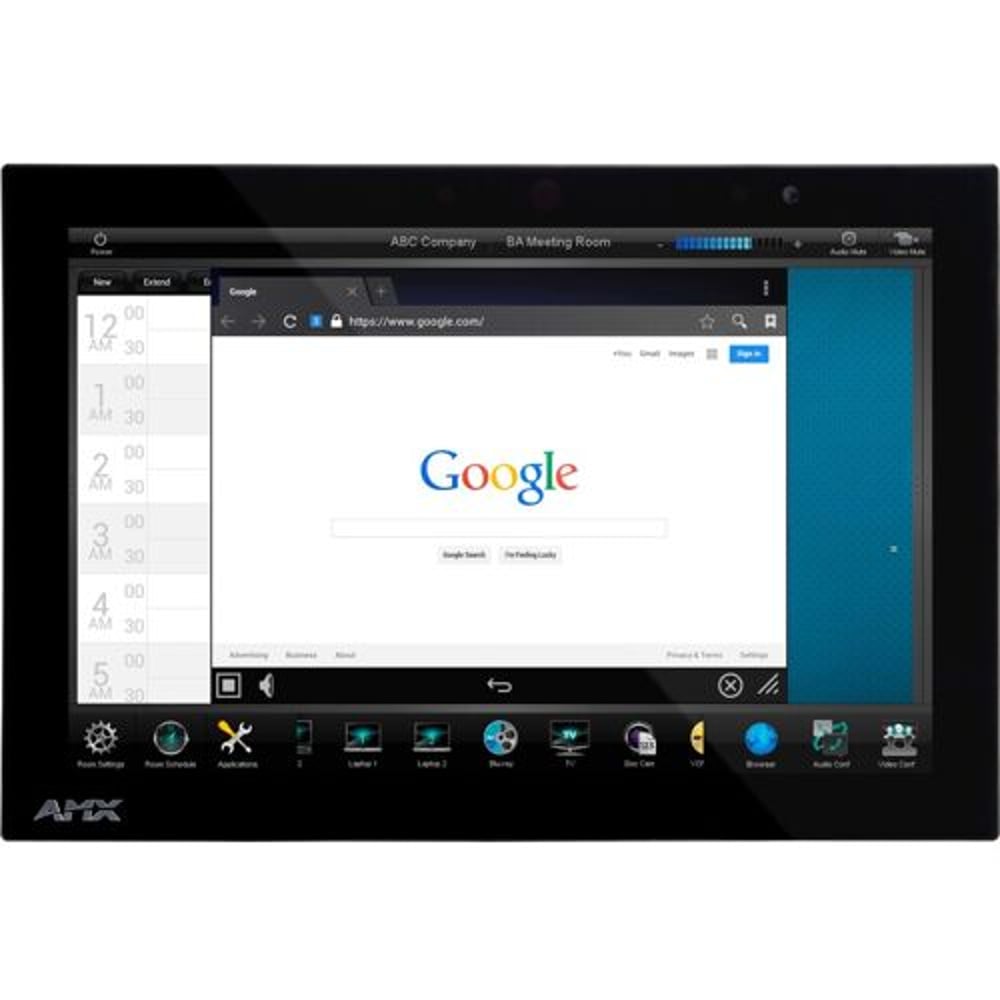

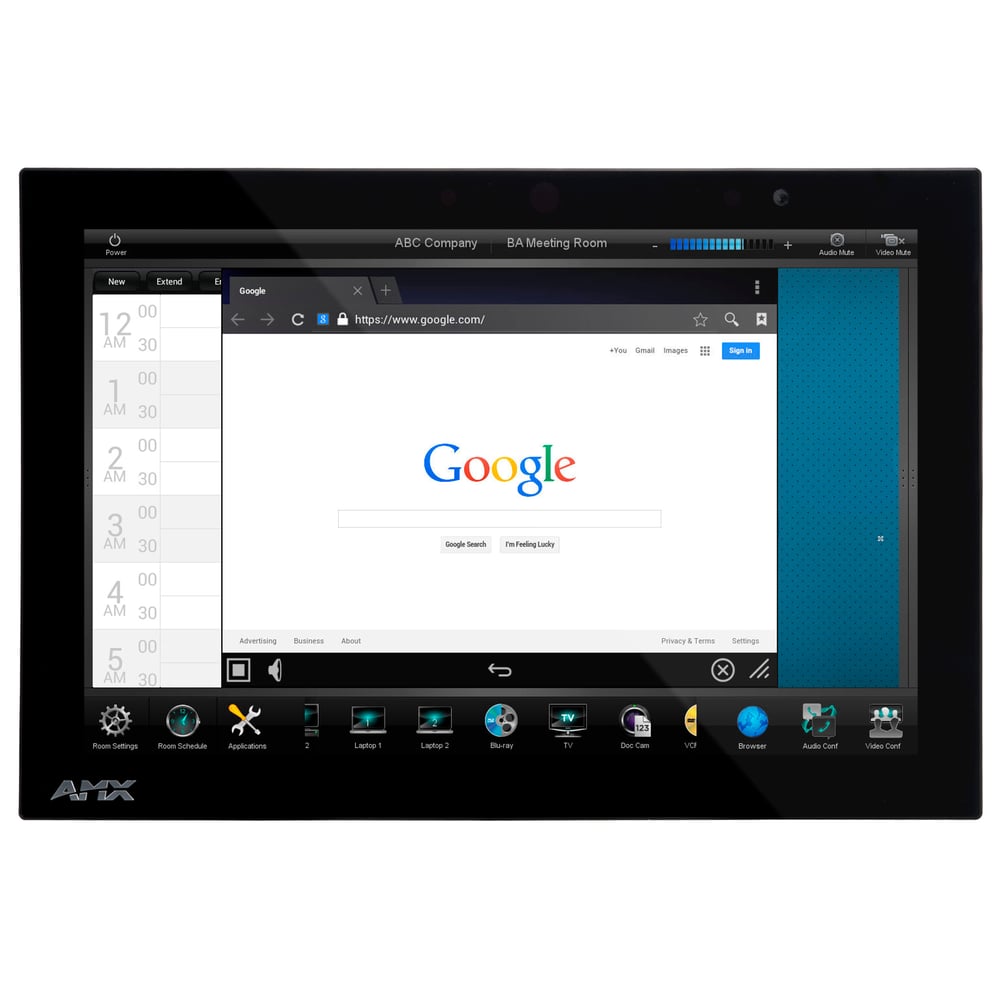

AMX FG5968-48 Mxd-1001-P 10.1" Modero X Series G5 Widescreen Portrait Wall Mount

AMX FG5968-48 Mxd-1001-P 10.1" Modero X Series G5 Widescreen Portrait Wall Mount

SoundPro Item: 40488 | Part Number: FG5968-48

$1,125.00
$6,950.00 $1,125.00
Your Price Sold out
MSRP: $6,950.00 | MAP: $1,125.00

Usually ships in 5-7 business days

  • Form Factor: Wall Mountable
  • Height: 9.9"
  • Width: 6.7"
  • Depth: 2.6"
  • Weight (Approximate): 2 lb
  • Application/Usage: Conference Room
  • Application/Usage: Auditorium
  • Application/Usage: Boardroom
  • Environmentally Friendly: Yes
  • Environmental Certification: WEEE
  • Environmental Certification: RoHS
  • Country of Origin: Mexico
  • Limited Warranty: 3 Year
Log in or register for YOUR best price

The most elegant interface designed specifically for dedicated room control has been significantly enhanced to include a new G5 Graphic Engine to provide even faster and smoother animations and transitions, and we quadrupled the processing power with a new Quad Core Processor. This new generation of touch panels is built for usability offering edge-to-edge capacitive touch glass with multi-touch capabilities. It features advanced technology empowering users to operate AV equipment seamlessly, while providing the ultimate in audio and video quality. The distinctive appearance will complement even the most sophisticated meeting facilities and homes. With a lightning fast processor, brilliant graphics and enhanced capabilities, the Modero X Series is the control surface that simply delivers more.

View full details

Specifications

'General Information
Manufacturer
AMX
Manufacturer Part Number
FG5968-48
Brand Name
AMX
Product Line
Modero X
Product Series
G5
Product Model
MXD-1001-P
Product Name
MXD-1001-P, Portrait Wall Mount Touch Panel
Product Type
A/V Control Panel
Physical Characteristics
Form Factor
Wall Mountable
Height
9.9"
Width
6.7"
Depth
2.6"
Weight (Approximate)
2 lb
Miscellaneous
Package Contents
MXD-1001-P, Portrait Wall Mount Touch Panel MXA-USB-C, USB Port Cover Kit, Modero X Series Touch Panel MXA-CLK, Modero X/S Series Cleaning Kit
Additional Information
TOUCH SCREEN DISPLAY Display Type: TFT Active Matrix Color LCD with In-plane Switching Technology (IPS) Display Size (WH) Landscape: 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm) diagonal Portrait: 6.7" x 9.9" (170 mm x 252 mm), 12.0" (304 mm) diagonal Viewable Area (WH) Landscape: 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm) diagonal Portrait: 5.3" x 8.5" (136 mm x 217 mm), 10.1" (257mm) diagonal Resolution Landscape: 1280x800 Portrait: 800x1280 Aspect Ratio Landscape: 16:9 Portrait: 9:16 Brightness: 400 cd/m2 Contrast Ratio: 700:1 Color Depth: 16.7M colors Illumination: LED Touch Overlay: Projected capacitive, multi-touch support, 3 simultaneous max VIEWING ANGLE Vertical: ± 89° Horizontal: ± 89° MEMORY SDRAM: 2 GB Flash: 16 GB Maximum Project Size: 12 GB flash, available for apps and touch panel files VIDEO Supported Video Codecs: MPEG-2-TS: MPEG-2 Main Profile@High Level up to 720p at 25 fps (decode only) MPEG-2-TS: H.264 High Profile@Layer 4, AAC-LC up to 720p at 25 fps (encode/decode) MJPEG up to 720p at 25 fps (decode only) Supported Video Transport Streams: MPEG-TS for MPEG2 and H.264; HTTP for MJPEG Max Number of Active Video Streams: One decode plus one encode Video Conferencing: Panel-to-panel and video chat* AUDIO Microphone: -42 dB ±3 dB sensitivity FET microphone Speakers: 4 ohm, 2 Watt, 300 Hz cutoff frequency Supported Audio Codecs: MP2 Layer I and II, MP3 (8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz) AAC-LC (8 kHz, 96 kHz) G.711 with µLaw (VoIP* encode/decode at 8 kHz) Audio Output: USB Audio out USB port (head/hand set support)* File Formats: WAV, MP3 (as part of touch panel file only - no USB storage) Intercom*: Full Duplex VoIP, SIP v2.0 GRAPHICS ENGINE AMX G5: G5 enhanced feature set supporting multi-touch and gestures, scrolling, transitions, applications - See TPD5 Operations Guide for more information EMBEDDED APPLICATIONS Viewer Applications*: PDF, JPEG, BMP, PNG, TIFF, GIF Remote Management: VNC Server Video Conferencing: Skype Audio Conferencing: Audio (Full Duplex Intercom*) FRONT PANEL COMPONENTS Light Sensor: Photosensitive light detector for automatic adjustment of the panel brightness Proximity Detector: Max range = ~3', typ range = ~1', FOV = ~10 degrees Camera: HD 720p camera for video conferencing/video chat support LED: Camera active indicator Sleep Button: Sleep button to activate sleep mode and powering off. Also provides access to setup pages (can be disabled) CONNECTIONS Ethernet: 10/100 port, RJ-45 connector through cable extension USB: (2) USB host 2.0, Type A ports (1) Micro-USB device port (currently not in use) Power: PoE (Power over Ethernet), 802.3af, class 3
Application/Usage
Conference Room
Auditorium
Boardroom
Green Compliant
Yes
Green Compliance Certificate/Authority
WEEE
RoHS
Country of Origin
Mexico
Warranty
Limited Warranty
3 Year
