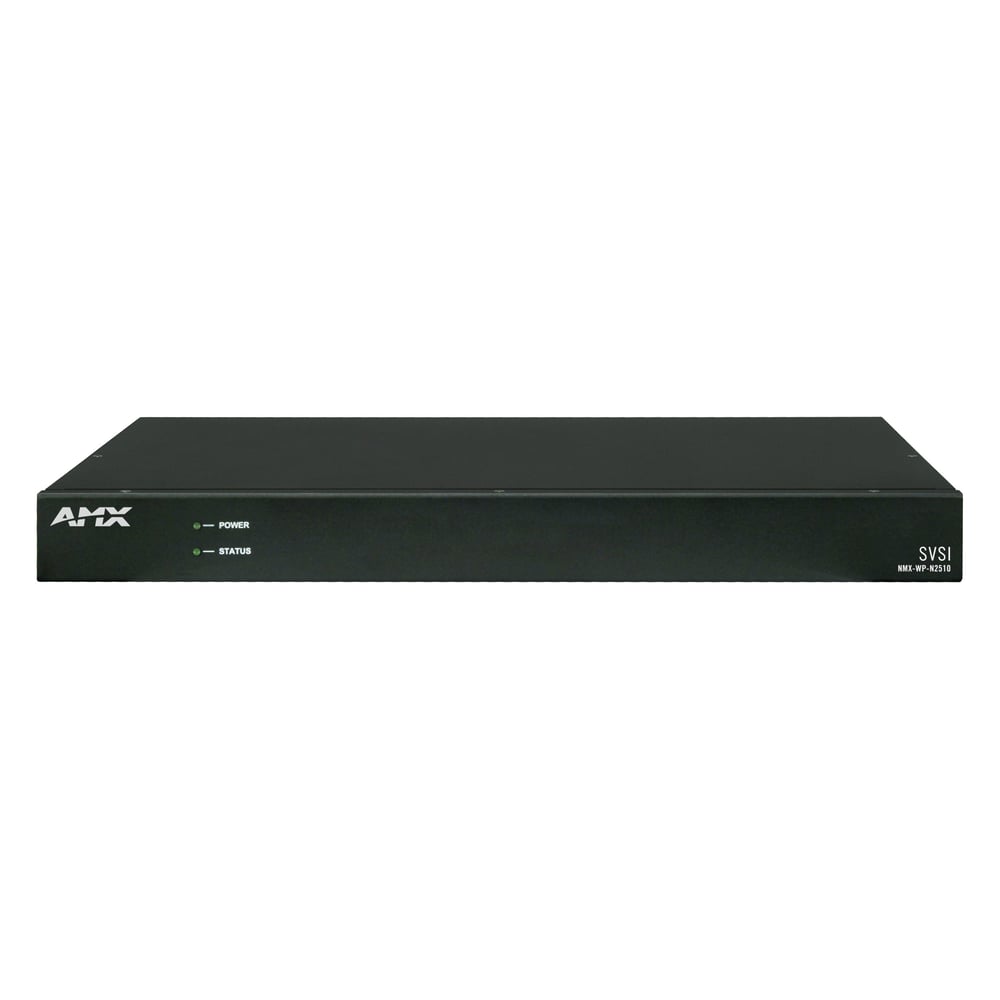

AMX FGN2510 Nmx-Wp-N2510 N-Series Windowing Processor, 4X1

AMX FGN2510 Nmx-Wp-N2510 N-Series Windowing Processor, 4X1

SoundPro Item: 40800 | Part Number: FGN2510

$7,086.00
$7,086.00 $7,086.00
Your Price Sold out
MSRP: $7,086.00 | MAP: $7,086.00

Usually ships in 5-7 business days

  • Functions: Video Encoding
  • Maximum Resolution: 1920 x 1080
  • Network (RJ-45): Yes
  • Form Factor: Rack-mountable
  • Height: 1.8"
  • Width: 17.3"
  • Depth: 12"
  • Weight (Approximate): 7.15 lb
  • Environmentally Friendly: Yes
  • Environmental Certification: WEEE
  • Country of Origin: United States
Log in or register for YOUR best price
The NMX-WP-N2510 Windowing Processor functions with the N-Series family of Video over IP Encoders and Decoders and are capable of handling multiple real-time HD streams with no video input or output connectors - using only a single network port. This is a fundamental shift in the way ProAV technologies have traditionally addressed windowing, but one that increases capability and flexibility while reducing installation and support costs.

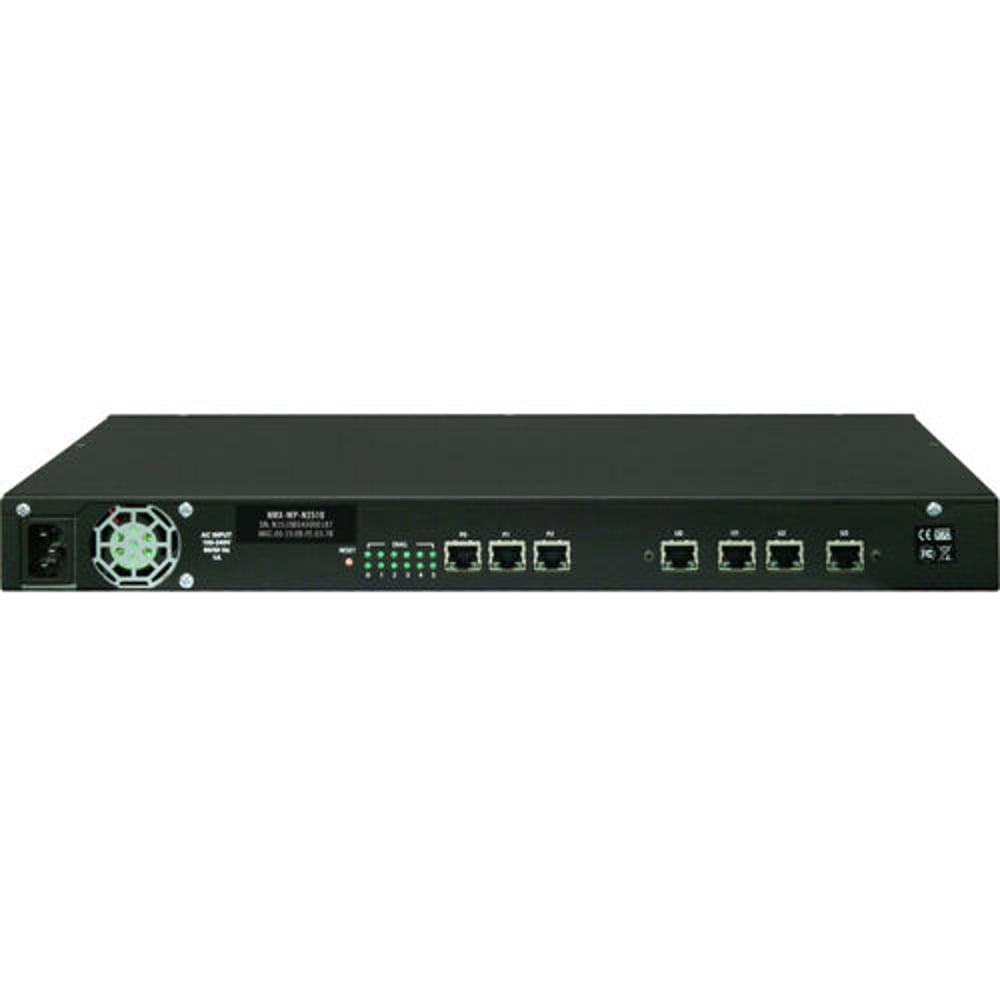

The N-Series Windowing Processor is a 1RU rack-mount appliance that connects to an SVSI video over ip network and accepts any four video streams as input. Each input can be cropped, scaled, and positioned according to stored presets (such as quad, window-in-window, 3+1, etc) or in any user-defined configuration. The combined output video stream is then routed to one or more displays at HD 1080p or CG 1600x1200 resolution. It functions as a 4x1 windowing processor and can be stacked to give 7x1, 10x1, 13x1, 16x1, or higher capability. A single connection to the network provides access to all available SVSI video streams for window selection and for output of the combined stream.

FEATURES

  • Retrofit Capable - Easily retrofits to an existing SVSi video network.
  • Up to 4 Video Streams - Accepts up to four independent video streams in addition to user-defined static backgrounds.
  • Built-In Web Interface - Easy-to-use, built-in web browser interface provides pallets to manipulate each 'window' stream: Crop, scale and position in seconds.
  • 4x1 Windowing + Stacking - 4x1 windowing with stacking capability.
  • HD Output - HD 1080p or CG 1600x1200 resolution output.
  • Audio Matrix Switch - Built-in audio matrix switch allows selection of any audio stream for Windowing Processor output.
View full details

Specifications

'General Information
Manufacturer
AMX
Manufacturer Part Number
FGN2510
Brand Name
AMX
Product Model
NMX-WP-N2510
Product Name
N-Series Windowing Processor, 4x1
Product Type
Video Encoder
Additional Product Specifications
Full Product Specifications
Click to view
Technical Information
Functions
Video Encoding
Maximum Resolution
1920 x 1080
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Form Factor
Rack-mountable
Miscellaneous
Package Contents
N-Series Windowing Processor, 4x1 Mounting Ears
Environmentally Friendly
Yes
Environmental Certification
WEEE
