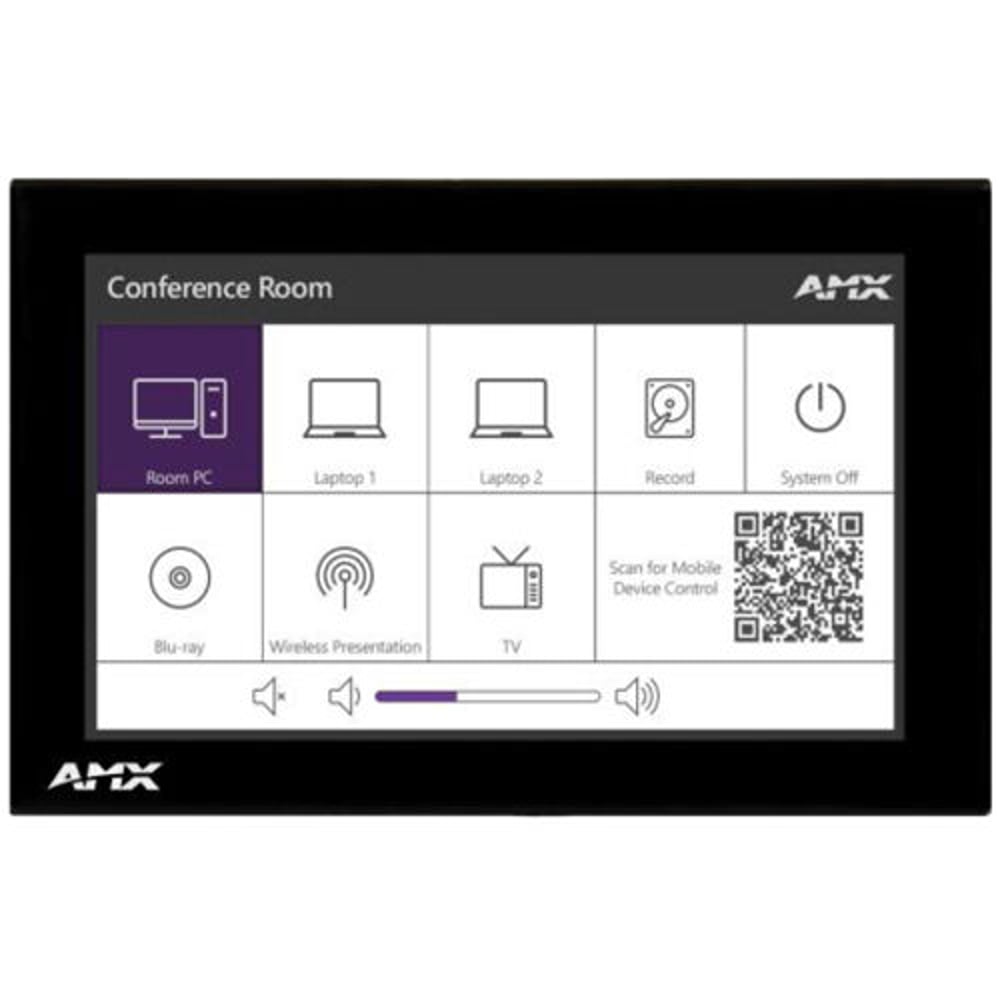

AMX FGN8307-SD Nt-Sd-701 7" N-Touch Wall Mount Touch

AMX FGN8307-SD Nt-Sd-701 7" N-Touch Wall Mount Touch

SoundPro Item: 40817 | Part Number: FGN8307-SD

$450.00
$2,340.00 $450.00
Your Price Sold out
MSRP: $2,340.00 | MAP: $450.00

Usually ships in 5-7 business days

  • Easily Control SVSI Systems - Select which stream is playing, start and stop recordings, or change windowing presets from an elegant user interface on the table or wall.
  • Control and User Interface in One - Control network-based devices directly from the touch panel - no additional equipment is required.
  • Built-In Design Tools - Design and program the user interface directly on the unit using only a web browser.
  • Scripting Made Simple - Build simple scripts using drop-down menus, and expand them with all the flexibility offered by a full programming language.
  • Versatile Mounting Options- Install a Wall Mount panel using the included back-box, or use an accessory Mount Kit to mount the panel to glass, standard single- and dual-gang boxes, or equipment racks
  • Application/Usage: Conference Room
  • Application/Usage: Classroom
  • Environmentally Friendly: Yes
  • Environmental Certification: WEEE
  • Environmental Certification: RoHS
  • Country of Origin: Mexico
Log in or register for YOUR best price

The NT-SD-701 and NT-ST-701 N-Touch Panels allow you to easily add a control interface to your SVSI system. Each touch panel combines a high-quality user interface and controller into a single unit, enabling user control of SVSI devices in conference rooms, classrooms, and other types of spaces. With a generous selection of mounting options, the NT-SD-701 can be placed on any flat surface (including glass) inside a conference room or classroom. Key features include control of network-based devices, a brilliant 24-color depth, and PoE connectivity - all at an economical price point. This touch panel is ideal for any application requiring intuitive control of network connected video steams and devices.

View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FGN8307-SD
Brand Name
AMX
Product Model
NT-SD-701
Product Name
7" N-Touch Wall Mount Touch Panel
Product Type
A/V Control Panel
Physical Characteristics
Form Factor
Wall Mountable
Miscellaneous
Package Contents
7" N-Touch Wall Mount Touch Panel Wall Mounting Template Backbox, Wall Mount, 7"
Additional Information
TOUCH SCREEN DISPLAY Display Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide Viewing Angle Technology Display Size (WH): 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonal Viewable Area (WH): 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonal Resolution (WH): 1024x600 Aspect Ratio (WH): 16:9 Brightness: 400 cd/m2 Contrast Ratio: 800:1 Color Depth: 16.7M colors Illumination: LED Touch Overlay: Resistive Viewing Angle: 89°/89°/89°/89° (Up/Down/Left/Right) MEMORY SDRAM: 512 MB Flash: 4 GB Maximum Project Size: 1 GB flash available to user COMMUNICATIONS ETHERNET: 10/100 port, RJ-45 connector. Supported IP and IP-Based Protocols: UDP, TCP, DHCP, HTTP, HTTPS USB: (1) USB host 2.0, Type A port: future use AUDIO Microphone: -42dB ± 3dB sensitivity FET microphone Speakers: 4 ohm, 1.5 Watt, 500Hz cutoff frequency GRAPHICS ENGINE SVSI N-Touch: The UI Engine is the SVSI N-Touch technology, based on HTML5 and Javascript FRONT PANEL COMPONENTS Top Button: Use top button for factory restoration Red/Green LEDs: Programmable LEDs on left and right side. CONNECTIONS Ethernet: 10/100 port, RJ-45 connector USB: (1) USB host 2.0, Type A port Power: PoE (Power over Ethernet), 802.3af, class 0 ENVIRONMENTAL Temperature (Operating): 32° F to 104° F (0° C to 40° C) Temperature (Storage): 4° F to 140° F (20° C to 60° C) Humidity (Operating): 20% to 85% RH Humidity (Storage): 5% to 85% RH Power ("Heat") Dissipation On: 27.3 BTU/hr Standby: 10.9 BTU/hr
Application/Usage
Conference Room
Classroom
Environmentally Friendly
Yes
Environmental Certification
WEEE
RoHS
Country of Origin
Mexico
