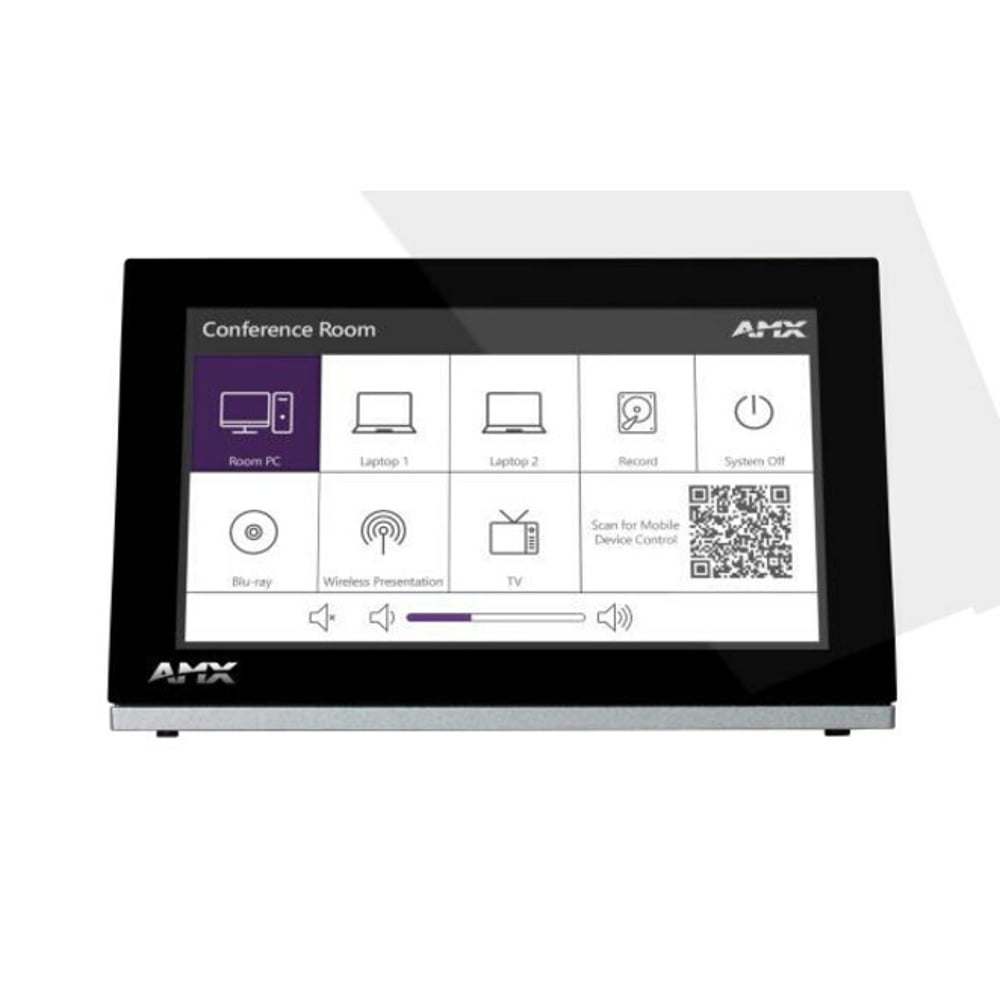

AMX FGN8307-ST 7" N-Touch Tabletop Touch Panel

AMX FGN8307-ST 7" N-Touch Tabletop Touch Panel

SoundPro Item: 40818 | Part Number: FGN8307-ST

$2,456.00
$2,456.00 $2,456.00
Your Price Sold out
MSRP: $2,456.00 | MAP: $2,456.00

Usually ships in 5-7 business days

Log in or register for YOUR best price
The NT-ST-701 is ideal for any application requiring intuitive control of network connected video streams and devices. For example, in a meeting room or classroom the user can select and switch video streams to the display, and in an operations center the user can change the video wall layout.
  • Easily Control SVSI Systems - Select which stream is playing, start and stop recordings, or change windowing presets from an elegant user interface on the table or wall.
  • Control and User Interface in One - Control network-based devices directly from the touch panel - no additional equipment is required.
  • Built-In Design Tools - Design and program the user interface directly on the unit using only a web browser.
  • Scripting Made Simple - Build simple scripts using drop-down menus, and expand them with all the flexibility offered by a full programming language.
  • Secure Table Mounting Option - Our beautifully styled secure mounting plate attaches to the Modero S tabletop touch panels and secures with under-table tamper resistant bolts making it virtually theft proof.
  • Optional Kensington Mount - If it's not possible or desirable to mount the touch panel to the table, the secure plate can also be used in conjunction with a Kensington Lock.
View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FGN8307-ST
Brand Name
AMX
Product Line
N-Touch
Product Model
NT-ST-701
Product Name
7" N-Touch Tabletop Touch Panel
Product Type
A/V Control Panel
Technical Information
Connectivity Technology
Wired
Physical Characteristics
Form Factor
Tabletop
Miscellaneous
Package Contents
7" N-Touch Tabletop Touch Panel MXA-USB-C, USB Port Cover Kit, Modero X Series Touch Panel Cat5e Ethernet Cable, Flat Black UTP CAT.5E Snap In Coupler, Black
Additional Information
TOUCH SCREEN DISPLAYDisplay Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide Viewing Angle TechnologyDisplay Size (WH): 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm) diagonalViewable Area (WH): 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm) diagonalResolution (WH): 1024x600Aspect Ratio (WH): 16:9Brightness: 400 cd/m2Contrast Ratio: 800:1Color Depth: 16.7M colorsIllumination: LEDTouch Overlay: ResistiveViewing Angle: 89°/89°/89°/89° (Up/Down/Left/Right)MEMORYSDRAM: 512 MBFlash: 4 GBMaximum Project Size: 1 GB flash available to userCOMMUNICATIONSETHERNET: 10/100 port, RJ-45 connector. Supported IP and IP-Based Protocols: UDP, TCP, DHCP, HTTP, HTTPSUSB: (1) USB host 2.0, Type A port: future useAUDIOMicrophone: -42dB ± 3dB sensitivity FET microphoneSpeakers: 4 ohm, 1.5 Watt, 500Hz cutoff frequencyGRAPHICS ENGINESVSI N-Touch: The UI Engine is the SVSI N-Touch technology, based on HTML5 and JavascriptCONNECTIONSEthernet: 10/100 port, RJ-45 connectorUSB: (1) USB host 2.0, Type A portPower: PoE (Power over Ethernet), 802.3af, class 0
Application/Usage
Conference Room
Classroom
Meeting Room
Country of Origin
Mexico
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
