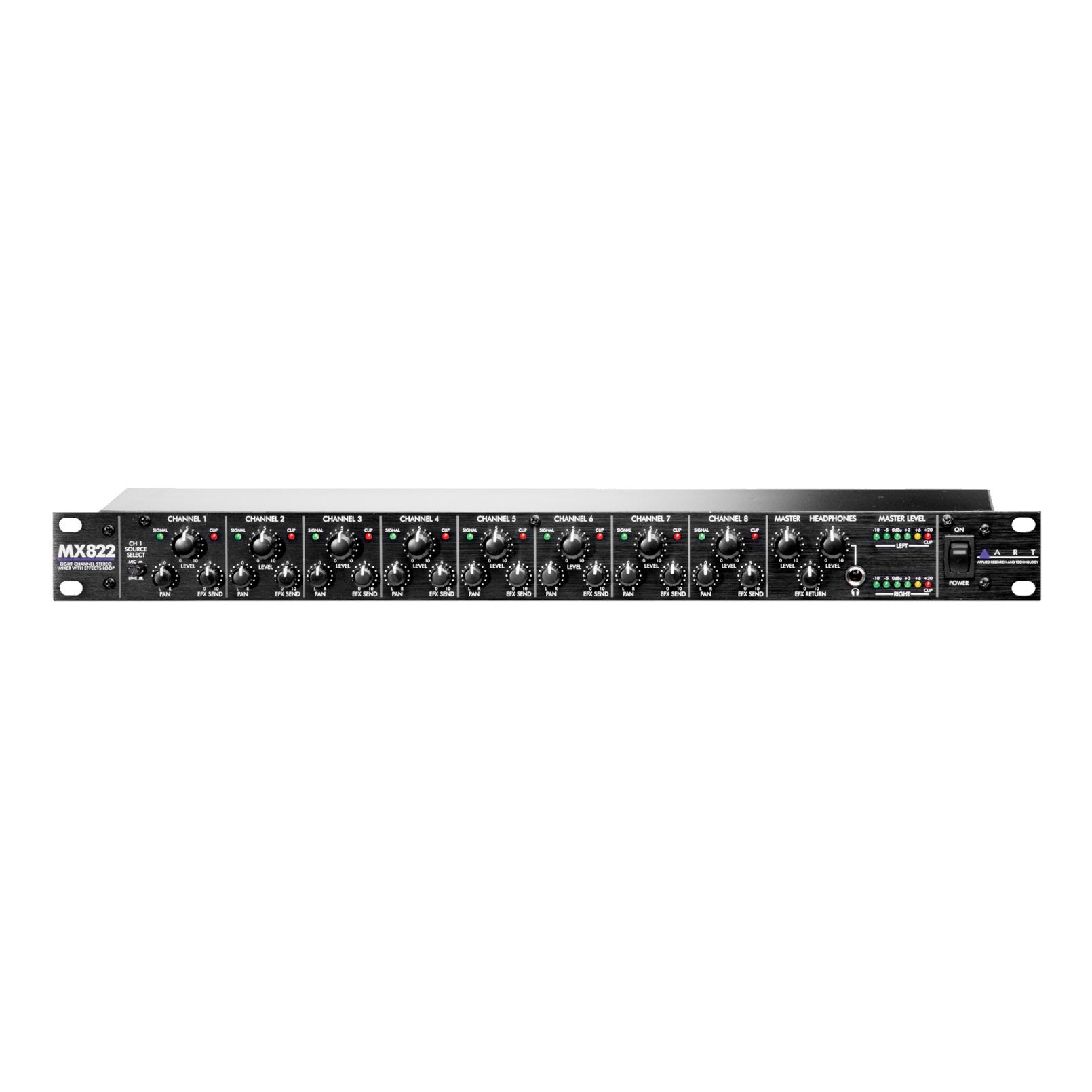

• ART MX822 8-Channel Stereo Mic / Line Mixer

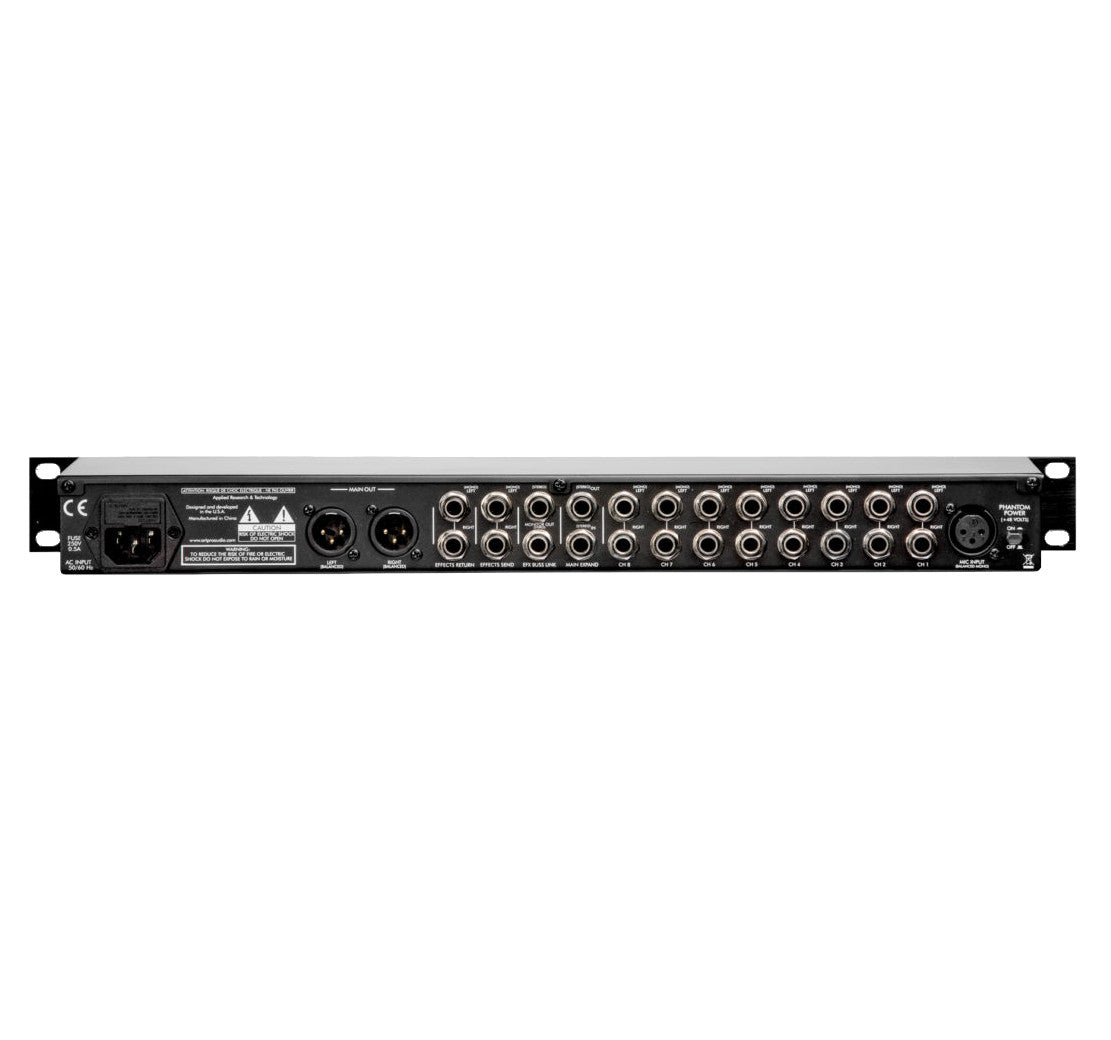

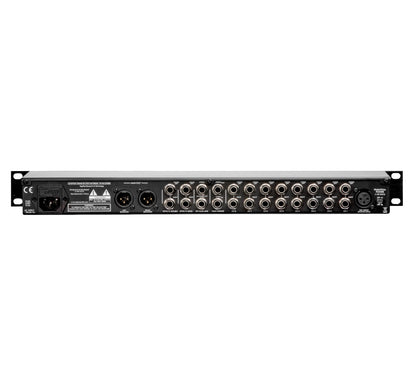

  • ART MX822 8-Channel Stereo Mic / Line Mixer back
1 2

ART MX822 8-Channel Stereo Mic/Line Mixer

ART MX822 8-Channel Stereo Mic/Line Mixer

SoundPro Item: 119512 | Part Number: MX822

$279.99
$399.99 $279.99
Your Price Sold out
MSRP: $399.99 | MAP: $279.99

Usually ships in 5-7 business days

  • Eight stereo/mono input channels with individual level, pan and effects send controls
  • External effects loop with independent send and return controls
  • Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for output monitoring
  • Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
  • Switchable low noise +48V phantom power for microphone input
  • Separate green and red LED signal and clip indicators for each input channel
  • Six level left and right main output metering including clip indicators
  • Balanced left and right XLR main outputs
  • Multiple units may be chained together for additional inputs
  • Rugged 1U rack mount steel case
Log in or register for YOUR best price

The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

View full details
  • Input Connections
    • XLR-F balanced (MIC)
    • 1/4″ TRS unbalanced (Ch1-Ch8, Effects Return)
    • 1/4″ TRS stereo unbalanced (EFX Buss, Main Expand)
  • Output Connections
    • XLR-M balanced (Main)
    • 1/4″ TRS unbalanced (Effectss Send)
    • 1/4″ TRS stereo unbalanced (Monitor, Main Expand, Headphone)
  • Input Impedance 1kΩ (MIC), 5k Ω (Ch1-Ch8)
  • Output Impedance <1kΩ (Main, balanced), <25 Ω (Headphone)
  • Total Harmonic Distortion <0.01% @ 1kHz
  • Signal to Noise Ratio > 90dB typical (Ref 0dBu)
  • Maximum Input Level -19dBu (MIC), +24dBu (Ch1-8)
  • Maximum Output Level +24dBu (Main), +18dBu (Monitor, Effects Send)
  • Maximum Gain+60dB (MIC), +14dB (Ch1-8)
  • Phantom PowerSwitch Selectable, +48V DC, filtered, current limited
  • Power Requirements
    • USA – 95 to 125 VAC, 50-60 Hz
    • Export units configured for country of destination
  • Dimensions (HxWxD)1.75x19x6″ (44.5x483x152mm)
  • Weight6.5 lbs (2.95 kg)
