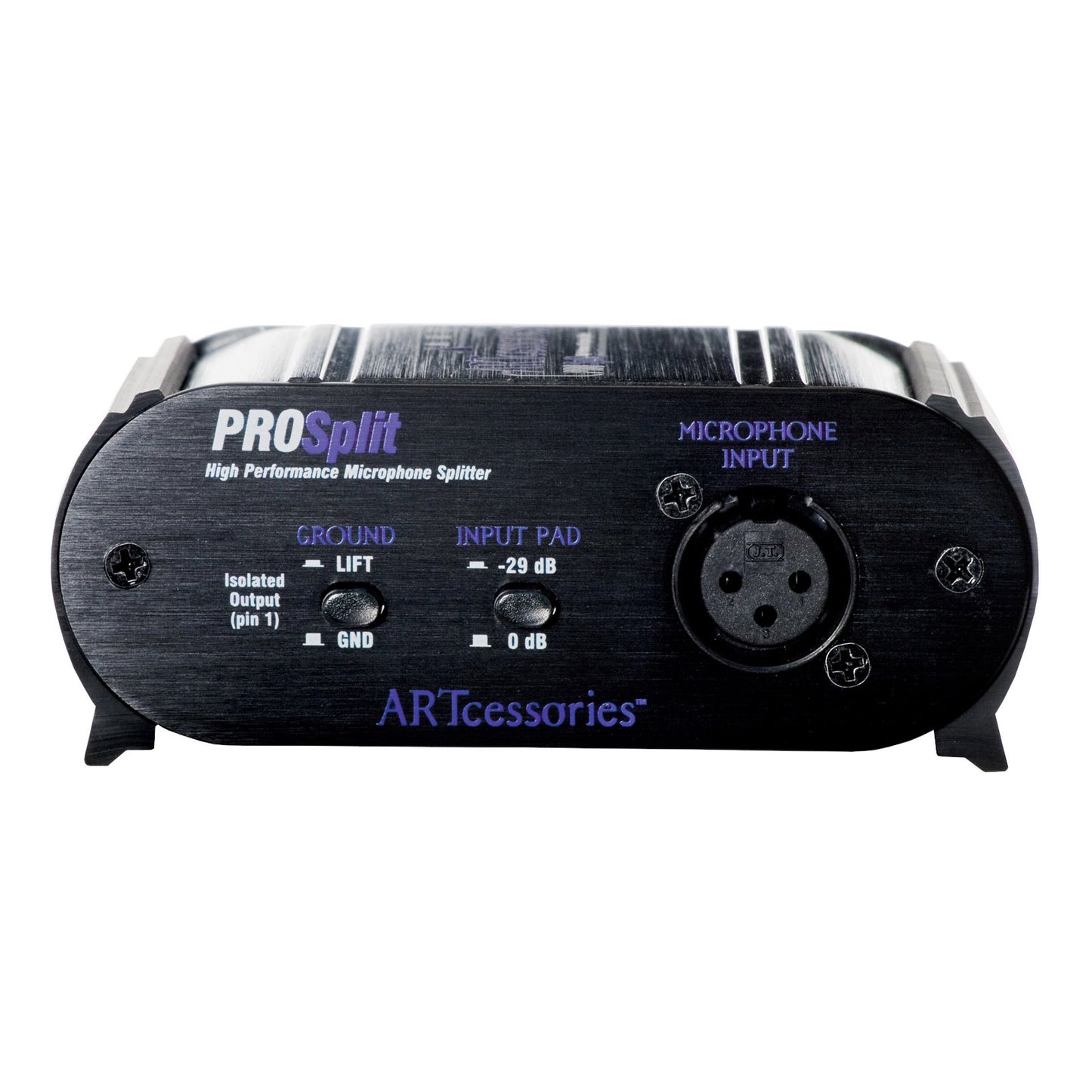

• ART PROSPLIT Transformer Isolated Mic Splitter

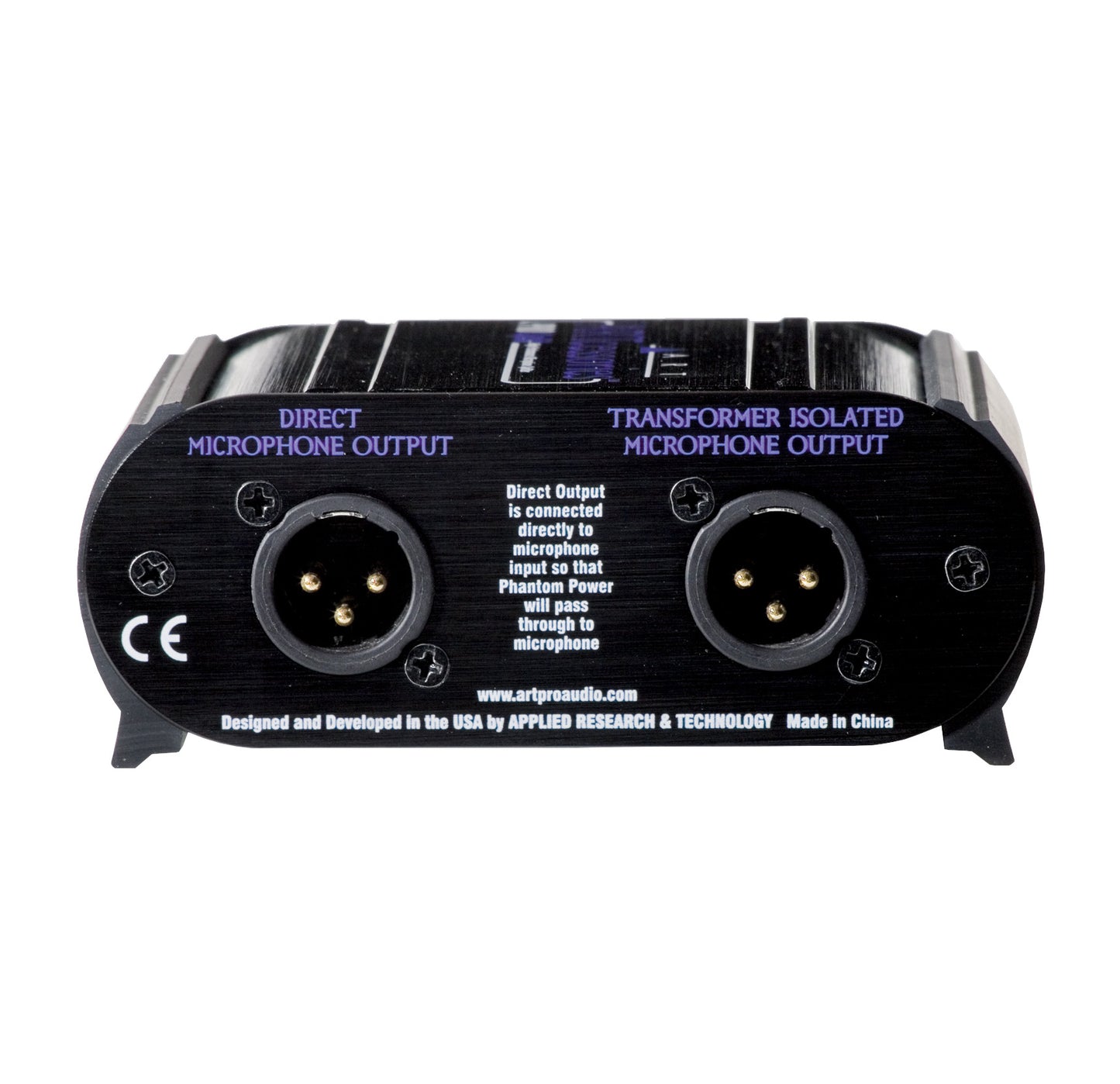

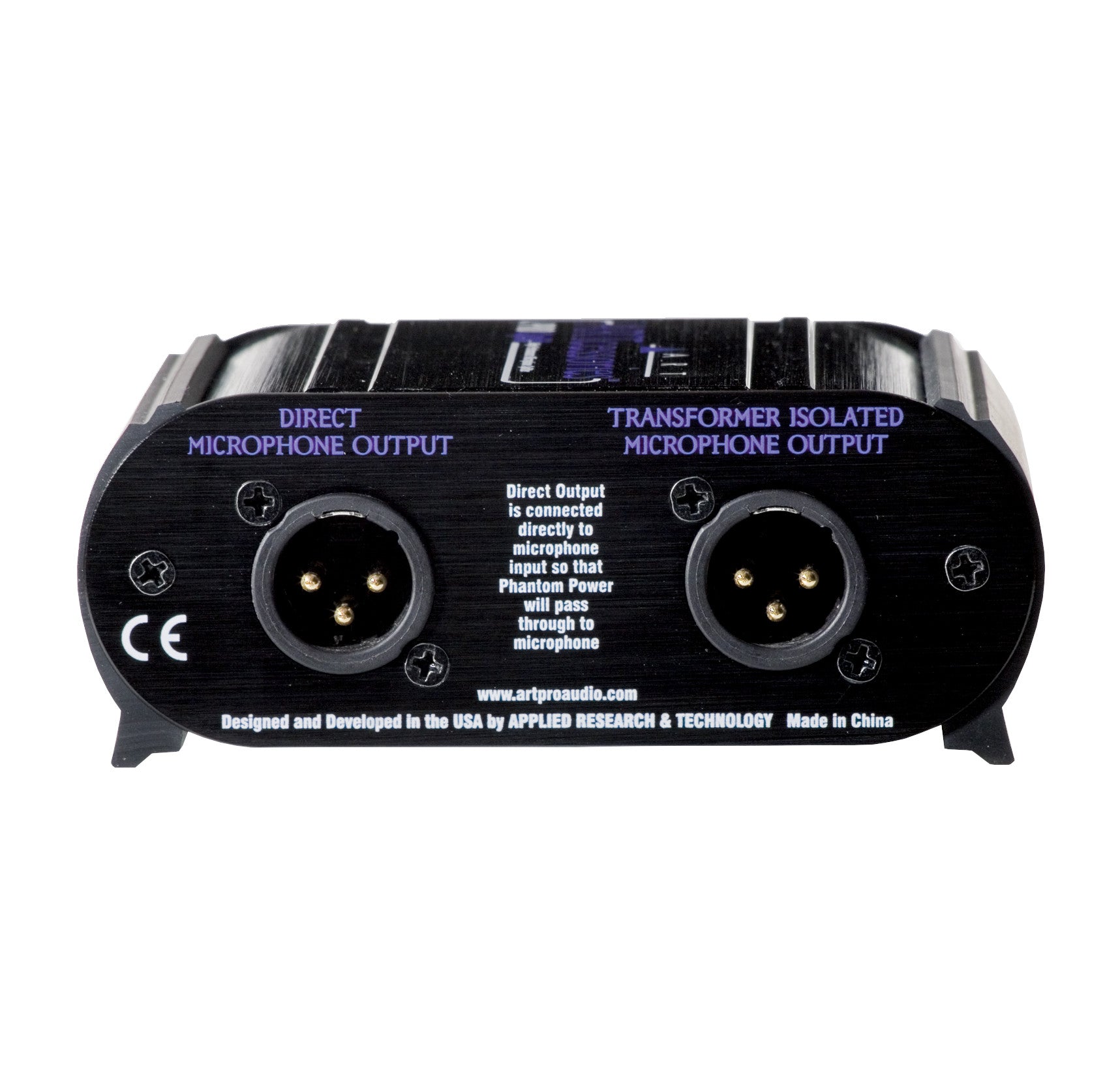

  • ART PROSPLIT Transformer Isolated Mic Splitter back
1 2

ART PROSPLIT Transformer Isolated Mic Splitter

ART PROSPLIT Transformer Isolated Mic Splitter

SoundPro Item: 119534 | Part Number: PROSPLIT

$89.99
$142.99 $89.99
Your Price Sold out
MSRP: $142.99 | MAP: $89.99

Usually ships in 5-7 business days

  • One direct output
  • One transformer isolated output
  • Ground-lift switch on isolated output reduces ground loop noise
  • 20 Hz to 20kHz frequency response
  • THD ranges from 0.002% - 0.26%
  • Phase shift under 10 degrees
Log in or register for YOUR best price

The ProSplit provides one direct output and one transformer isolated output from a single microphone. Applications include sending the direct output to the main or Front-of-House mixer, with the second isolated output being sent to a monitor or recording mixer. The direct output passes phantom power from the main mixer to the microphone for use with condenser microphones.

The ProSplit includes a ground-lift switch on the isolated output to reduce noise due to ground loops between connected equipment. For versatility the ProSplit also features an attenuator pad switch on the input that can be used to alternately connect a pre-amplified (line-level) signal to the two microphone-level ProSplit outputs.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
1.85x4.6x3.5″ (47x117x9mm)
Electrical
Ouput Impedance
<255 Ω @ 1kHz (Typical output load impedance is 1k Ω)
Maximum Input Level for 1% THD
-1.4dBu @ 20Hz/+3.5dBu @ 30Hz / +9.4dBu @ 50Hz
Audio
Frequency Response
20Hz to 20kHz, ±0.25dB @ -15dBu -3dB@approx.165Hz
Total Harmonic Distortion
<0.26% from 20Hz to 20kHz, -15dBu input, <0.1% from 45Hz to 20kHz, -15dBu input, 0.002% Typical @ 1kHz, -15dBu input
Input Impedance
>1.1k Ω @ 1kHz (Typical driving source impedance is 150 Ω)
Maximum Input Level
-1.4dBu @ 20Hz/+3.5dBu
Shipping
Weight
0.9 lbs (0.4 kg)
General
Phase Shift
<10 degrees @ 20kHz (Ref, 1kHz)
Insertion Loss
Approximately 2dB @ 1kHz
Notes
All measurements made from the TRANSFORMER ISOLATED MICROPHONE OUTPUT with PAD SWITCH out (off) and 150 Ω balanced source feeding MICROPHONE INPUT and 1k Ω load connedcted to TRANSFORMER ISOLATED MICROPHONE OUTPUT to simulate a typical “real world” microphone and mic preamplifier. 0dBu = 0.775VRM
Audio Performance
CMRR
>105dB @ 60Hz / >80dB @ 3kHz
