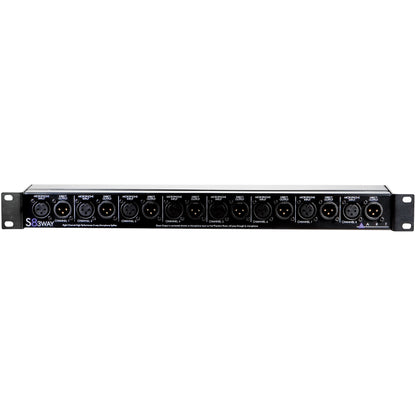

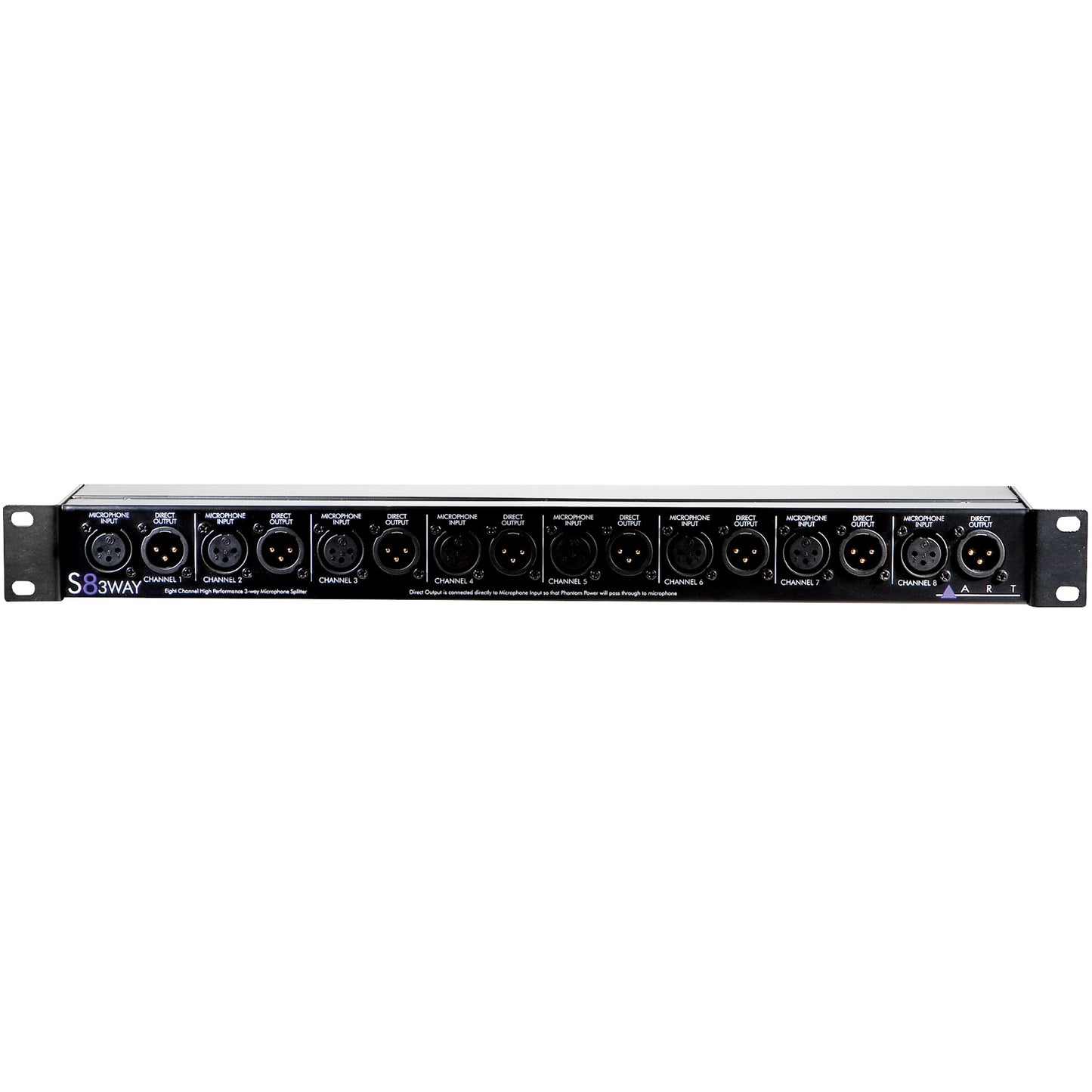

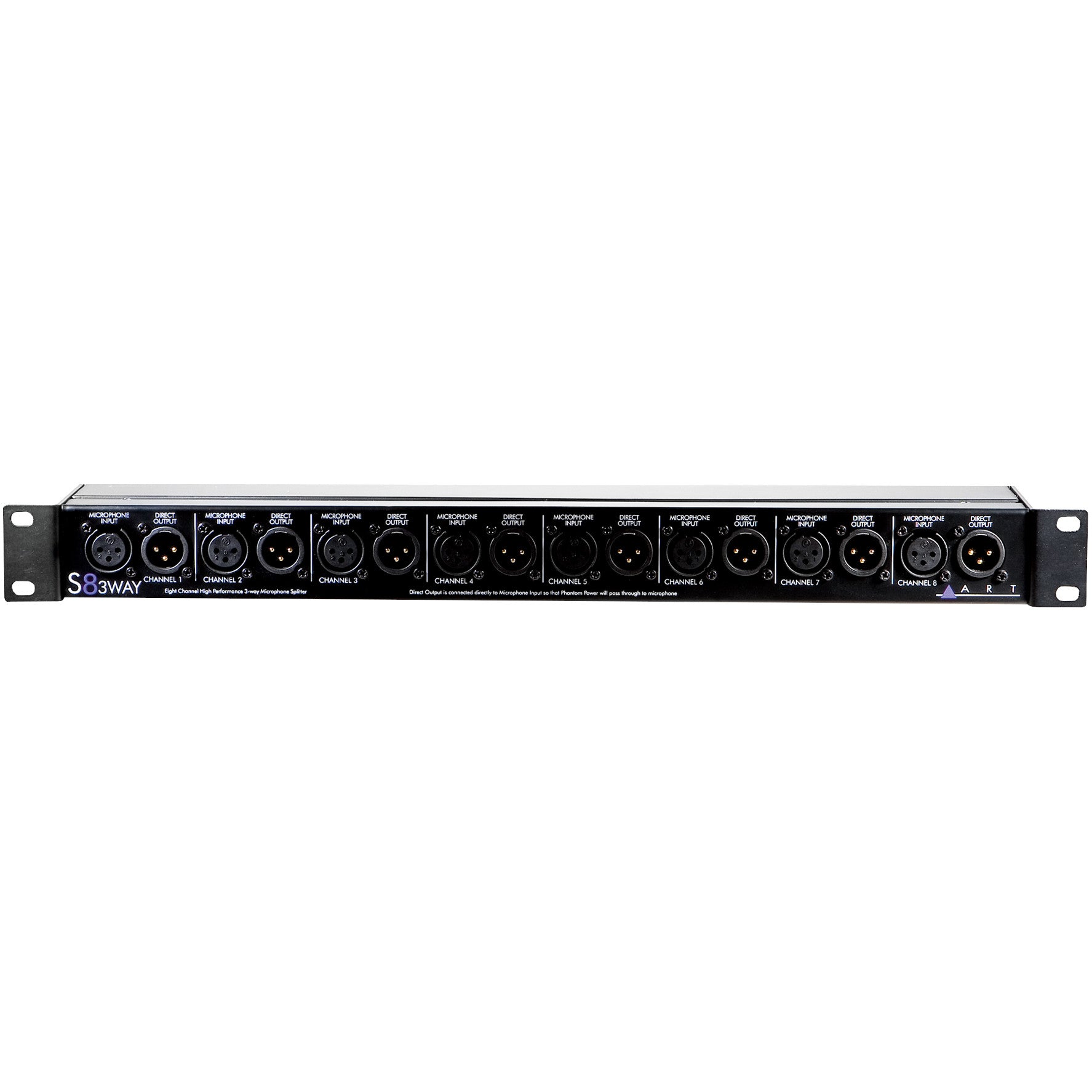

• ART S8-3WAY 8-Channel Mic Splitter

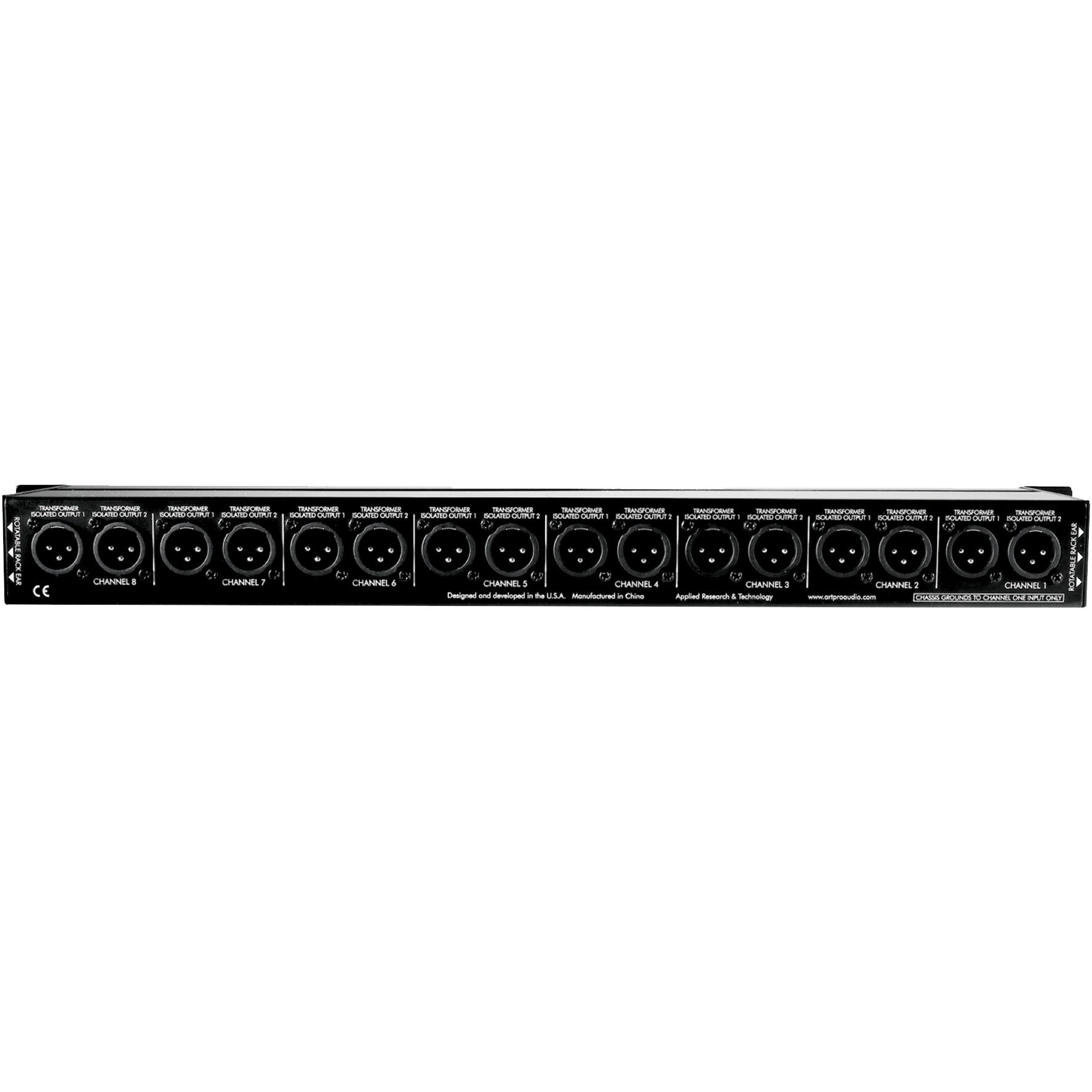

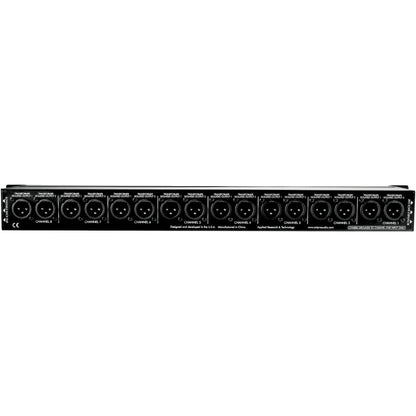

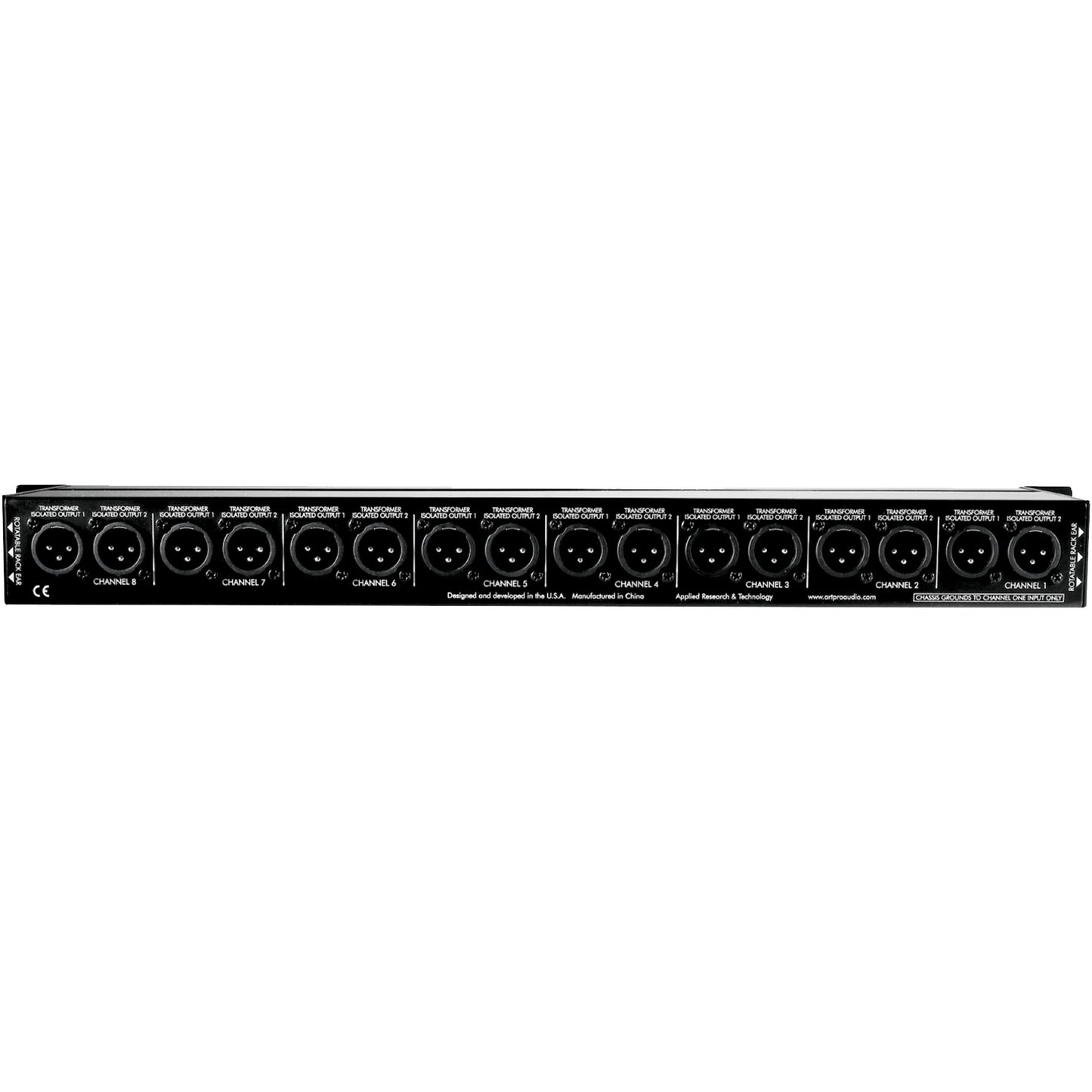

  • ART S8-3WAY 8-Channel Mic Splitter back
1 2

ART S8-3WAY 8-Channel Mic Splitter

ART S8-3WAY 8-Channel Mic Splitter

SoundPro Item: 87939 | Part Number: ARTS8-3WAY

$369.99
$599.99 $369.99
Your Price Sold out
MSRP: $599.99 | MAP: $369.99

Usually ships in 5-7 business days

  • High-quality passive interface
  • 8 high-performance transformers
  • One (1) direct and two (2) transformer isolated output per channel
  • Balanced XLR input and 3 balanced XLR per channel
  • Extremely wide frequency response
  • Extremely low voltage insertion loss
  • Reversible rack ears for added system flexibility
  • Live Sound
  • Permanent/Fixed install
  • Studio applications
Log in or register for YOUR best price

ART’s S8-3WAY 8-Channel Mic Splitter is for live sound, recording, and broadcasting where mic/XLR balanced line level input signals go to multiple mix locations. Each channel provides one XLR input, one XLR direct output with two additional transformer isolated XLR outputs for a total of 3 balanced outputs from each single microphone input signal.

Typical uses would include sending 8 direct signals through the S8-3WAY to a main Front-of-house mixer, with additional feeds going to a monitor mix station while transformer balanced isolated feeds are sent to remote recording desk or used for a broadcast feed.

The ART S8-3WAY features the same high-quality musical sounding transformers used in the popular ART S8, and is housed in a standard 1U space rack-mountable steel chassis designed for years of reliable operation.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
1.75x19x3.75” (44.5x482.6x95mm)
Electrical
THD + NOISE
Less than 0.26% from 20 Hz to 20K Hz at –15 dBu input, Less than 0.1% from 45 Hz to 20K Hz at –15 dBu input, 0.002% Typical at 1K Hz, –15 dBu input
Voltage Insertion Loss
Approximately 2 dB at 1K Hz
Max Input Level for 1% THD
-1.4 dBu at 20 Hz, +3.5 dBu at 30 Hz, +9.4 dBu at 50 Hz
Audio
Frequency Response
20 Hz to 20K Hz, ±0.25 dB @ -15 dBu, -3 dB at approximately 165K Hz
Input Impedance
Greater than 1.1K Ohms at 1K Hz (Typical driving source impedance is 150 Ohms)
Output Impedance
Less than 255 Ohms at 1K Hz (Typical output load impedance is 1K Ohms)
Shipping
Weight
3.75 lbs. (1.7 kg)
General
Phase Response
Less than 10 degrees at 20K Hz (ref. 1K Hz)
Common Mode Rejection Ratio
Greater than 105 dB @ 60 Hz, Greater than 80 dB @ 3K Hz
Ref
0 dBu = 0.775 VRMS
