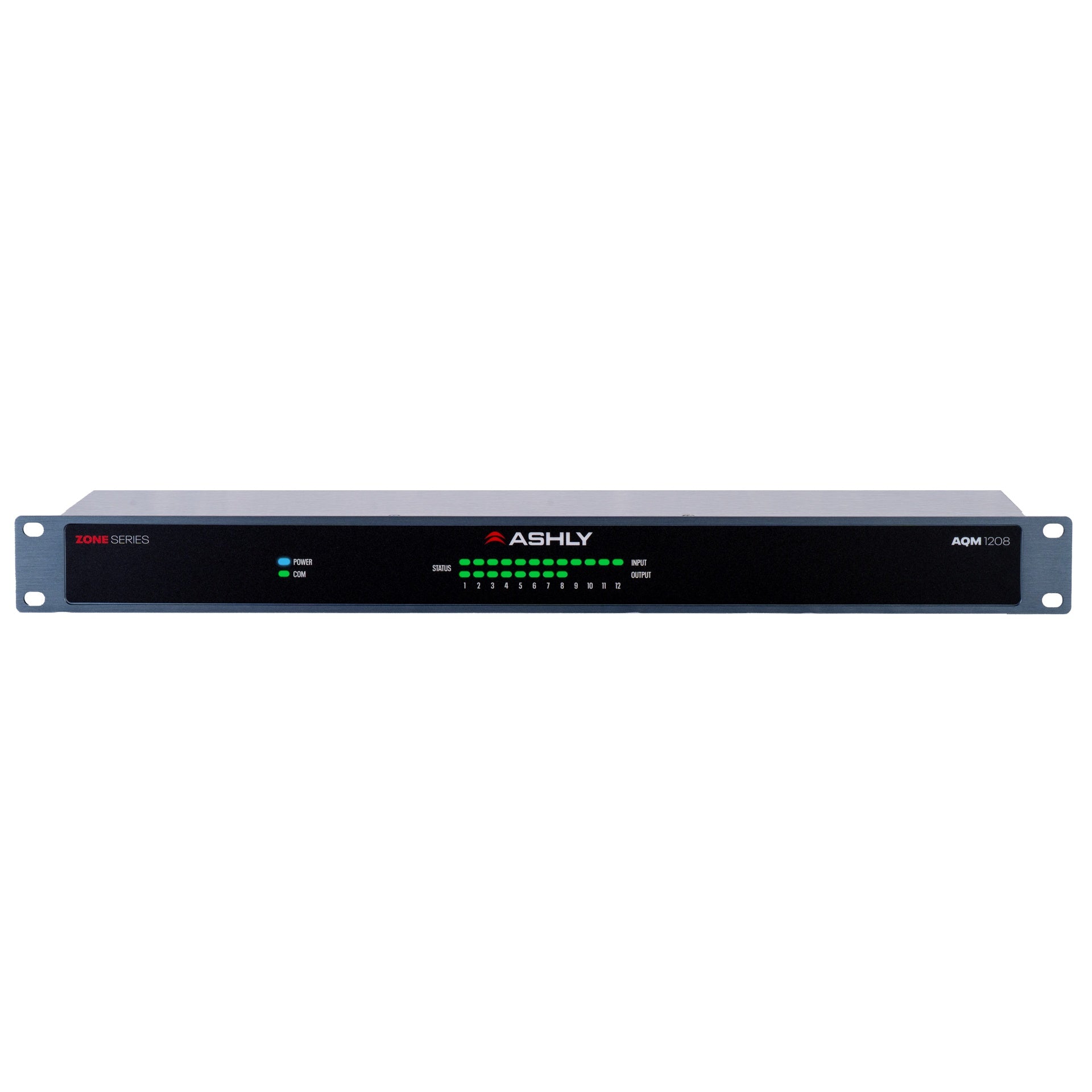

Ashly AQM1208 12x8 Networked DSP Audio Processor with Mic/Line Inputs

Ashly AQM1208 12x8 Networked DSP Audio Processor with Mic/Line Inputs

SoundPro Item: 142718 | Part Number: AQM1208

$1,499.00
$1,874.00 $1,499.00
Your Price Sold out
MSRP: $1,874.00 | MAP: $1,499.00

Usually ships in 5-7 business days

  • Gain, Remote Gain & DVCA Gain
  • Dynamics: Compressor, Leveler, Limiter & Gate
  • Multi-priority Ducking Matrix
  • EQ:10-band Parametric, HPF/LPF
  • Universal 2, 3 & 4-way X-Over
  • FIR Filters
  • Delay, Speaker Delay
  • Auto-Mixing
  • Ambient Noise Control
  • Tools: Meter, Signal Generator
  • Comprehensive Event Scheduler
Log in or register for YOUR best price

The AQM1208 is designed as an advanced, stand-alone zone mixer to be used with external amplification, offering the power & flexibility needed to handle just about any situation. The AQM1208 connects to any browser-enabled device via LAN and Internet from virtually anywhere in the world, allowing convenient remote access for configuration and troubleshooting.  Based on the AquaControl DSP engine first introduced in the mXa1502, the AQM1208 includes a comprehensive library of DSP functions presented in a versatile, yet intuitive UI that doesn’t require a college level course to learn.  The AQM1208’s 12 Input by 8 Output configuration meets the requirements for a host of mic mixing, music distribution and other applications, such as noise masking, and provides all the necessary tools to assure everything sounds great and runs smoothly

View full details

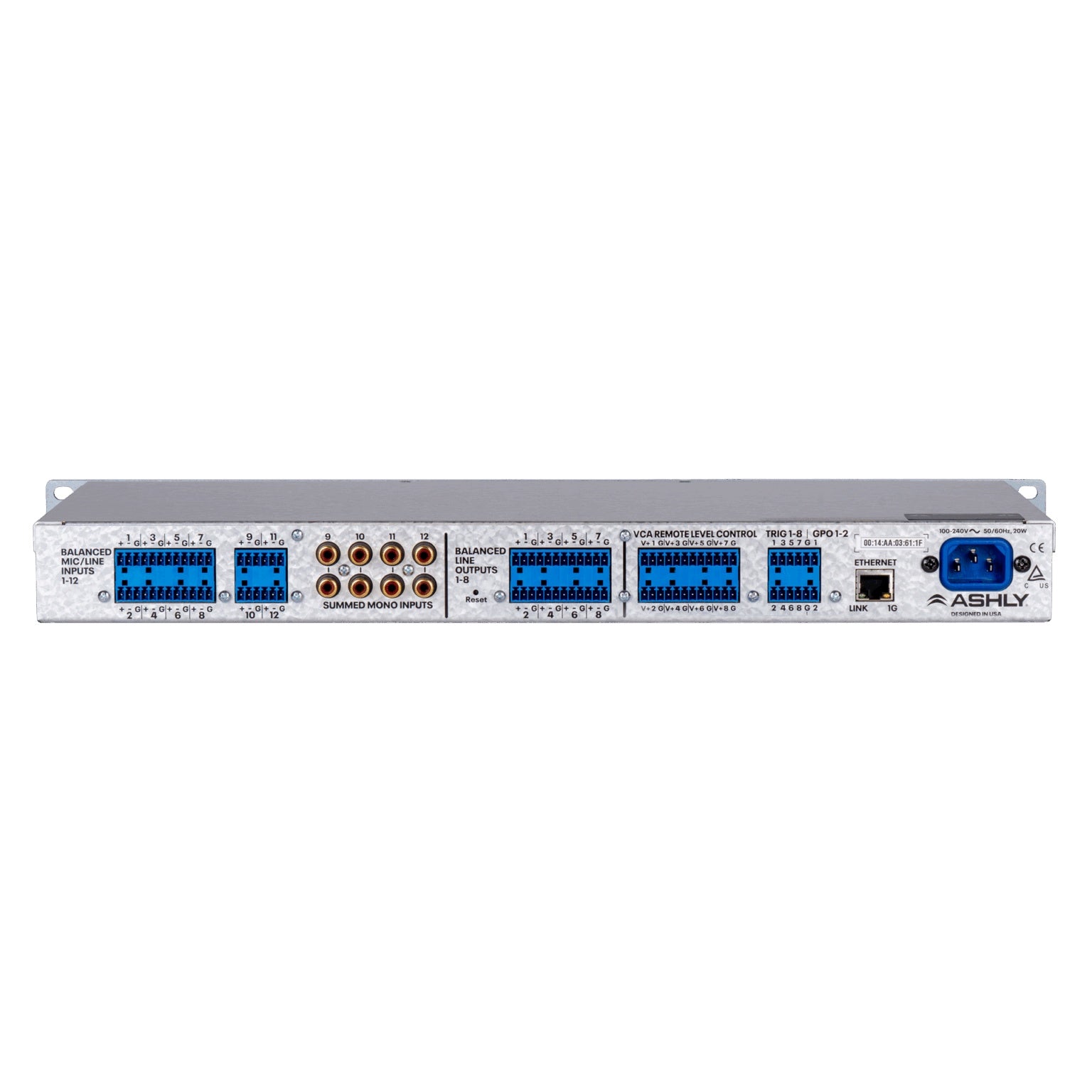

Specifications

AUDIO PROCESSING
Number of Input Channels
12 balanced mic/line inputs; 4 unbalanced summed RCA line inputs (channels 9–12)
Number of Output Channels
8 balanced line outputs
ADC/DSP/DAC Resolution
32-bit
Sample Rate
48 kHz
Propagation Delay
1.08 ms
AUDIO PERFORMANCE
Frequency Response
20 Hz – 20 kHz; ±0.25 dB
Signal-to-Noise
>110 dB; 20 Hz – 20 kHz; unweighted
Distortion (THD+N)
<0.01%; 1 kHz; +20 dBu
Mic Preamp EIN
-126 dB
INPUT SPECIFICATIONS
Balanced Input Connector
Euroblock 3.5 mm
Input Impedance
10 kΩ (RCA); 3 kΩ (Mic/Line)
Phantom Power
21 V; 10.8 mA per channel
OUTPUT SPECIFICATIONS
Line Output Connector
Balanced Euroblock 3.5 mm
Maximum Output Level
+21 dBu
CONTROL & NETWORK
Control Network
RJ-45; 1 Gb Ethernet
Remote DC Level Control
Euroblock 3.5 mm; GND; CV; V+ per each of the 8 VCA inputs
POWER
AC Mains Nominal Voltage
90 – 240 VAC; 50/60 Hz
AC Mains Operating Range
70 – 270 VAC
AC Mains Connector
Detachable NEMA 5-15 (USA)
ENVIRONMENTAL
Operating Temperature
40 °F – 120 °F; 4 °C – 49 °C
Maximum Temperature
150 °F; 65.5 °C (not for long-term use)
PHYSICAL
Unit Dimensions
19 x 1.75 x 8.5 in; 483 x 45 x 216 mm
Unit Weight
6.2 lb; 2.8 kg
SHIPPING
Shipping Dimensions
23 x 4.5 x 12.5 in; 584 x 114 x 318 mm
Shipping Weight
9 lb; 4.1 kg
