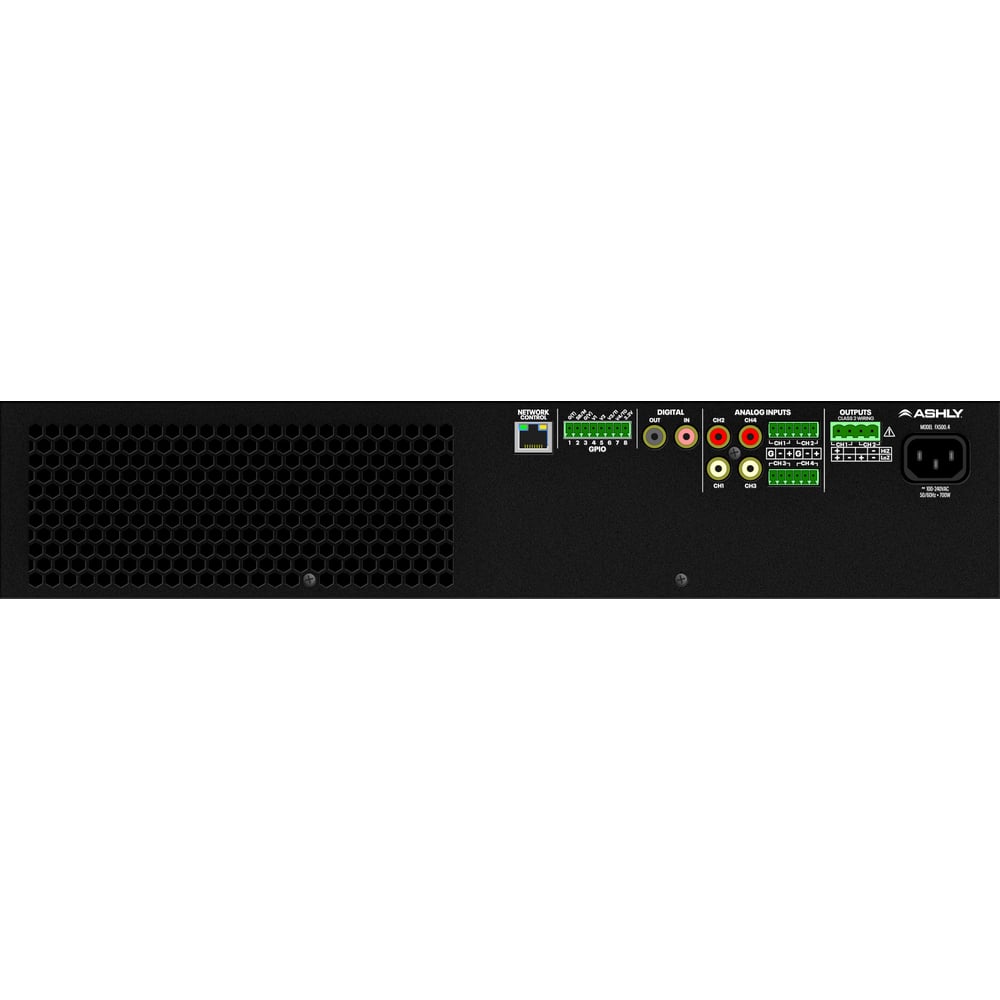

Ashly FX500.4 4-Channel Power Amplifier With Dsp, 4 X 500W At 2/4 Ohms
Ashly FX500.4 4-Channel Power Amplifier With Dsp, 4 X 500W At 2/4 Ohms
SoundPro Item: 135916 | Part Number: FX500.4
Usually ships in 5-7 business days
- 500W x 4 @ 2/4 Ohms, 2 x 1000W @70/100V
- Intuitive Browser-based software Interface
- Comprehensive DSP (4 Input x 4 Output)
- Ethernet & Wi-Fi (WAP) connectivity for DSP control
- Dynamic Power Sharing-up to 2 x 750W (single channel driven @ 2 Ohms)
- Advanced Dynamic Power Sharing distributes power between channels, with 2x channel power
- Networkable via Ethernet or built-in WiFi
- Built-in advanced DSP on all inputs & outputs, including: Sensitivity, Routing, Gain, PEQ, Compressor, Limiter, FIR Filters, X-Over, Polarity & Delay
- Browser-based UI accessed via PC or mobile device. No software to install
- All models have 4 Input channels x 2 or 4 Output channels
- Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software
- Customized Speaker Presets made be created, saved & loaded for each output channel
- Addressable GPIO, Standby/Mute & VC remote ports. VC assignable per channel via software
- 1/2 RU models easy to hide in “non-rack” installations
- Highly efficient Class D and lightweight
- Optional hardware for 1/2 RU models for rack & wall/surface mounting
The Ashly FX500.4 is a 4-channel Class D power amplifier delivering 500W per channel at 2/4 Ohms, housed in a 2U rack chassis, with integrated DSP on all inputs and outputs for versatile installation use.
It supports both Low-Z and Hi-Z (70/100V) operation, features browser-based control via built-in Wi-Fi or Ethernet, and includes dynamic power sharing, parametric EQ, crossover, compression, and delay €” eliminating the need for external signal processors.
