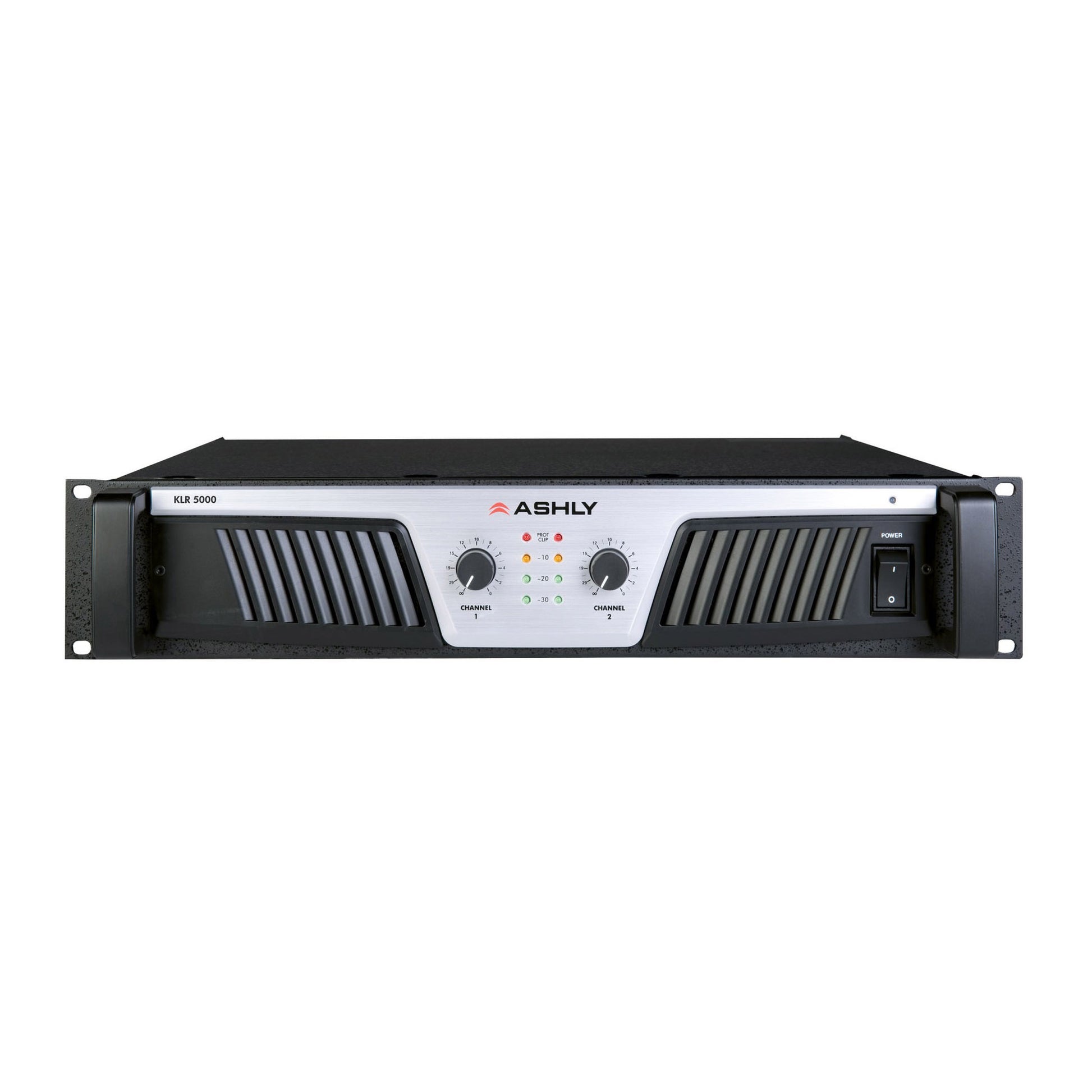

Ashly KLR-5000 Power Amplifier

Ashly KLR-5000 Power Amplifier

SoundPro Item: 47513 | Part Number: KLR5000E-120V-U

Regular price $2,749.00
Regular price $2,749.00 Sale price $2,749.00
Your Price Sold out
MSRP: $2,749.00 | MAP: $2,749.00

Usually ships in 5-7 business days

  • Balanced inputs via 3-pin Euroblock and combo XLR/ ¼" TRS connectors
  • Switch mode power supply provides high efficiency and low weight
  • Forced air cooled (front in, rear out)
  • Removable dust filters
  • Front mounted attenuators
  • Rack ears for permanent installation in a standard 2RU enclosure
  • Speakon type output connectors
  • 3-position gain switch for both channels
  • 3-position mode switch (bridged, stereo or parallel mono)
  • 3-position HPF switch (30Hz, 50Hz or off)
  • On/off limiter switch
  • Permanently attached power cord
  • Extensive protection circuitry
  • Safety/Compliance: cCSAus, CE, FCC, RoHS 2011

The KLR-5000 from Ashly is a high-efficiency, lightweight, two-channel, high power amplifier incorporating the latest technologies delivering quality and value for professional quality performance at an extremely affordable price. Whether your application is professional audio or fixed performance installation, KLR amplifiers are optimized to provide reliable audio performance with sonic perfection.

View full details

Specifications

Dimensions
Dimensions
19" x 3.5" x 16"
Electrical
THD (20Hz - 20,000Hz)
10dB below rated output @ 4 Ohms <0.05%
Power Requirements
120VAC or 240VAC ±10% (factory set) 50–60Hz
Audio
Input Impedance
12 kΩ, balanced
Output Connectors
4-pin SpeakON type (each channel)
Connectivity
Max. Input Level
+21 dBu
Input Connectors (each Ch)
3-pin Euroblock, XLR, 1/4" TRS phone jack
Power Cable Connector
3-prong NEMA 5-15
Construction
Airflow/Cooling
front-to-rear, variable speed fan
Shipping
Weight
28 pounds
General
Damping Factor
>380 (100Hz @ rated power @ 8 Ohms
HPF
30Hz, 50Hz, Off (12dB/Oct)
Amplifier Protection
Output Overcurrent, DC Output, Chassis Temperature, Mains Breaker
Front Panel Indicators
protection/clip, signal, power
Attenuators
front panel (each channel)
Ch
2
2500W
1700W
1000W
4Ω (Bridged)
5000W
