Ashly LX-308B 8 Input Stereo Line Mixer

Ashly LX-308B 8 Input Stereo Line Mixer

SoundPro Item: 41454 | Part Number: LX308B-120V-U

$1,049.00
$1,311.00 $1,049.00
Your Price Sold out
MSRP: $1,311.00 | MAP: $1,049.00

Usually ships in 5-7 business days

  • Eight channel stereo line level mixer
  • Each channel has on/off switches and peak signal detection
  • Eight balanced stereo inputs for line level sources
  • A concentric level and pan control for each input adjusts channel volume and stereo position
  • Submaster inputs and outputs are provided for cascading two or more mixers
  • Ultra low-noise summing amplifiers combine the channel signals for the main outputs
  • A pair of 6-segment LED meter arrays monitor the main output levels
  • Separate level controls are provided for stereo, mono, and headphone outputs
Log in or register for YOUR best price

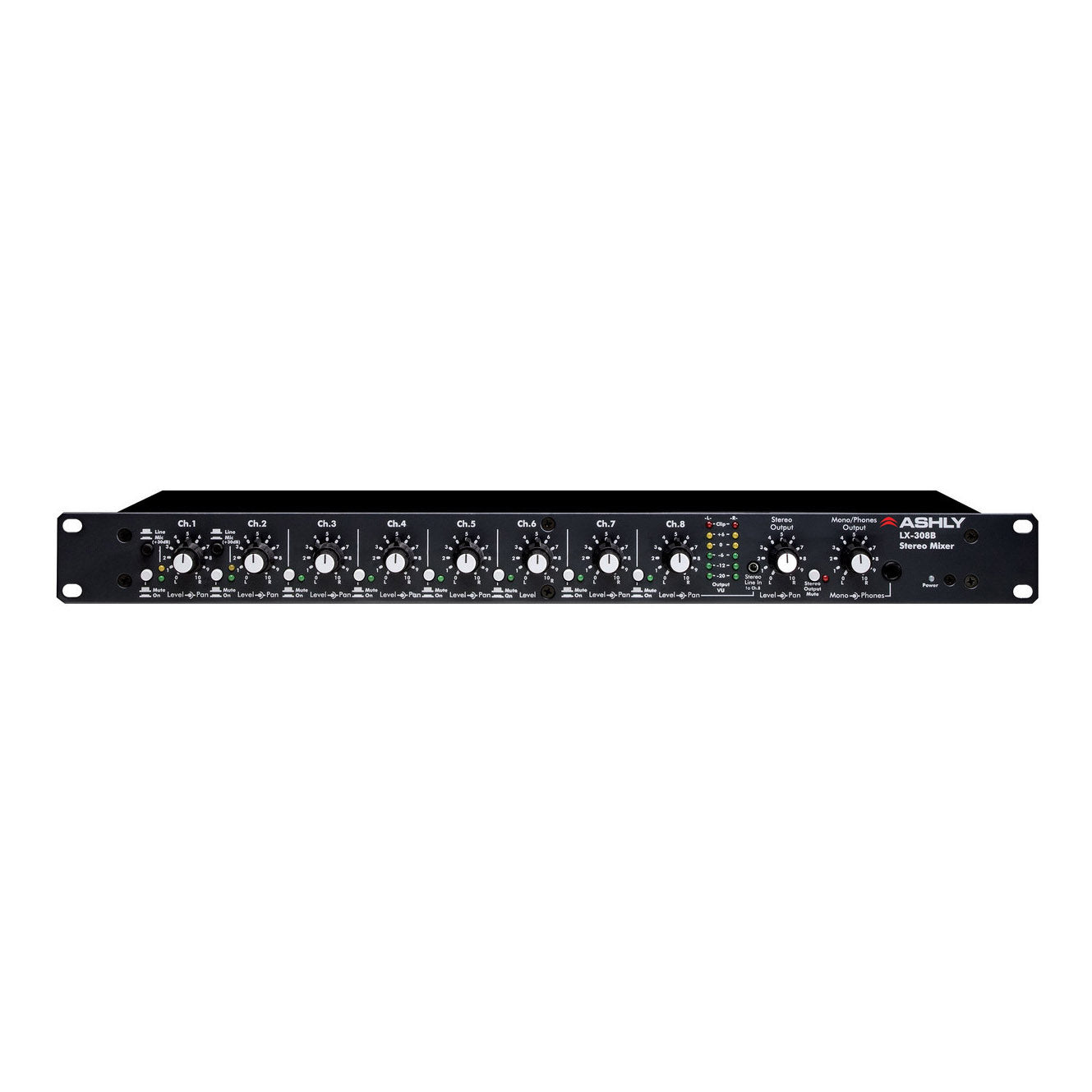

Ashly LX-308B eight channel stereo line level mixer. Each channel has on/off switches and peak signal detection. Other features include eight balanced stereo inputs for line level sources, the first two inputs with switchable 30dB gain for low impedance dynamic microphones. An additional 3.5mm front panel input jack is provided on channel 8 for a walk-up portable audio player input. A concentric level and pan control for each input adjusts channel volume and stereo position. Submaster inputs and outputs are provided for cascading two or more mixers. Ultra low-noise summing amplifiers combine the channel signals for the main outputs. A pair of 6-segment LED meter arrays monitor the main output levels. Separate level controls are provided for stereo, mono, and headphone outputs.

View full details

Specifications

Dimensions
DIMENSIONS
19x1.75x9.4" (483x44x239mm)
Weight
SHIPPING WEIGHT
9 lbs. (4.1kg)
Electrical
THD at +20 Dbu, 20Hz-20KHz
<0.02%
VOLTAGE GAIN (dB±1)
INPUTS or SUB INPUTS to MASTER OUTPUTS (levels at nominal): 0dB, Ch.1 or Ch.2 INPUT in MIC position to, SUB INPUTS to MASTER OUTPUTS (master level at max): 15dB
POWER REQUIREMENTS
100-240 VAC, 50-60 Hz, 30 watts
Audio
INPUT LEVEL at Nominal (unity gain)
<-90dBu
FREQUENCY RESPONSE
20Hz-20KHz: ±0.2dB
Connectivity
Residual Output Noise, All Levels at Minimum
<-100dBu
INPUT to MASTER OUTPUT (levels at max)
30dB
MASTER OUTPUTS
61dB
Adjacent Inputs Or Input to Output at 1KHz
<-80dB
Adjacent Inputs Or Input to Output at 20KHz
<-60dB
General
IMD (SMPTE) at +20dBu
<0.01%
HUM & NOISE (20Hz-20KHz)
MASTER OUT, MASTER LEVEL and one
VU METERS
Two 5-segment LED meters: 0VU=+4dBu
PEAK INDICATORS
activated when internal signal is 3dB below clipping
NOTES
*unless otherwise stated, specification conditions are: 150Ω source, all levels set at nominal, outputs into 2.7KΩ or greater.
