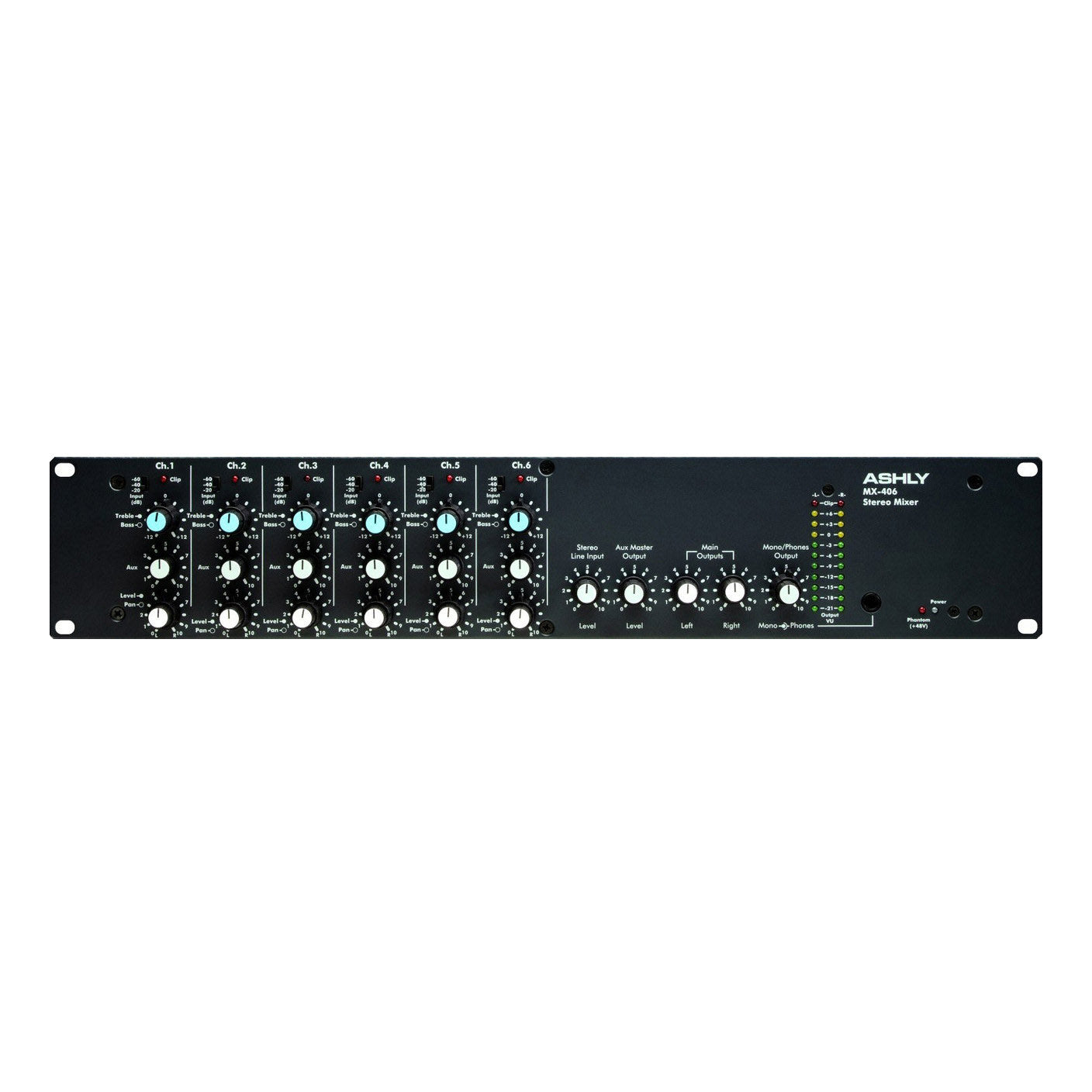

Ashly MX-406 6-Input Mic/Line Mixer

Ashly MX-406 6-Input Mic/Line Mixer

SoundPro Item: 41452 | Part Number: MX406-120V-U

$1,599.00
$1,999.00 $1,599.00
Your Price Sold out
MSRP: $1,999.00 | MAP: $1,599.00

Usually ships in 5-7 business days

  • Six Balanced 1/4” - XLR Inputs
  • Low-Noise Mic Preamp Circuitry
  • High Gain (92dB Channel Input to Program Output) Ensures Full Output with Low Level or Distant Mics
  • Two-Band EQ on Each Input
  • Input Level and Pan Controls on Each Input
  • Clip LED’s on Each Input
  • Eleven-Step LED Output Level Metering
  • 48V Phantom Power for Condenser Mics
  • Six Channel Inserts
  • Aux Send Controls
  • Balanced 1/4” Stereo Outputs
  • Transformer Balanced XLR Mono Output
  • Stereo Headphone Jack with Level Control
  • Auxiliary Line Inputs and Outputs
  • Three Position Input Gain Switch
  • 20dB Microphone Pad Switch
  • Stereo Line Input Control
  • Front Panel 3.5mm Stereo Line Input
  • Aux Master Output Control
  • Internal Power Supply
  • Safety/Compliance: cTUVus/CE, RoHS, FCC
Log in or register for YOUR best price

Ashly's MX-406 stereo mic/line mixer is a professional, studio quality solution to everday mixing needs. MX-406 features include six channels of mic or line inputs with mic input pad, TRS insert points, and +48V phantom power. Each channel has up to 60dB input gain, separate treble and bass controls, an aux send control, level, and a stereo pan control. A stereo line input is provided for a stereo program source such as tape, CD, or MP3 player. Outputs include aux master, stereo line out (pre-master), stereo left and right, transformer balanced mono out, and stereo headphones. A full 11 segment LED array indicates stereo output level.

Stereo main outputs use 1/4" jacks, stereo line input and line out use RCA connectors, and there is an additional 3.5mm jack on the front panel for stereo line in. A transformer isolated 600 ohm mono output uses an XLR connector. Ashly mixers still use professional quality 16mm metal shaft potentiometers for greater accuracy and long life and of course, Ashly products come with a worry-free five year warranty.

View full details

Specifications

Dimensions
DIMENSIONS
19x3.5x9.4" (483x89x239mm)
Weight
SHIPPING WEIGHT
13 lbs. (5.9kg)
Electrical
THD at +4dBu Output, 20Hz-20KHz
<0.05%
THD at +12dBu Output, 30Hz-10KHz
<0.05%
MAXIMUM VOLTAGE GAIN (±2dB)
AUX SENDS Mic Input to Aux Master Output, pre ch. level: 84dBMic Input to Aux Master Output, post ch. level: 97dBStereo Line In to Master Output: 27dB
POWER REQUIREMENTS
100-240 VAC, 50-60 Hz, 30 watt
Audio
HUM & NOISE (20Hz-20KHz at Max Preamp gain)
master levels at nominal all channel levels at minimum: <-90dBu, aux master at nominal all channel aux at minimum: <-90dBu
FREQUENCY RESPONSE
20Hz-20KHz: +0.5/-1.0dB
CROSSTALK
adjacent inputs, 20Hz-20KHz: <-65dB
PHANTOM POWER
+48 VDC applied to all Mic Inputs, switchable on rear panel. Maximum total current draw = 80mA. Maximum single channel current draw = 14mA. Gradual power-up and down to eliminate "pops".
Connectivity
IMD (SMPTE) at +12dBu Output
<0.05%
Equivalent Input Hum and Noise
<-128dBu
Residual Output Noise All Levels at Minimum
<-100dBu
MASTER Mic/Line Input to Master Outputs
+84dBMic/Line Input to Mono Output, 600 ohm load: +84dB
Stereo Outputs
-21 to +6 VU
General
Master Levels and One Channel Level at Nominal
<-68dBu
Bass
±12dB at 70Hz, shelving
Treble
±12dB at 8KHz, shelving
VU METERS
0VU = +4dBu
PEAK INDICATORS
Peak Clip indicator on each input channel and left and right outputs, illuminates 3dB below clipping
NOTES
*unless otherwise stated, specification conditions are: 150Ω source, maximum preamp gain, all other controls set at nominal, XLR output into 600Ω or greater.
