• Ashly nX754 nX Multi-Mode 4 x 75 Watt Power Amplifier
1 1

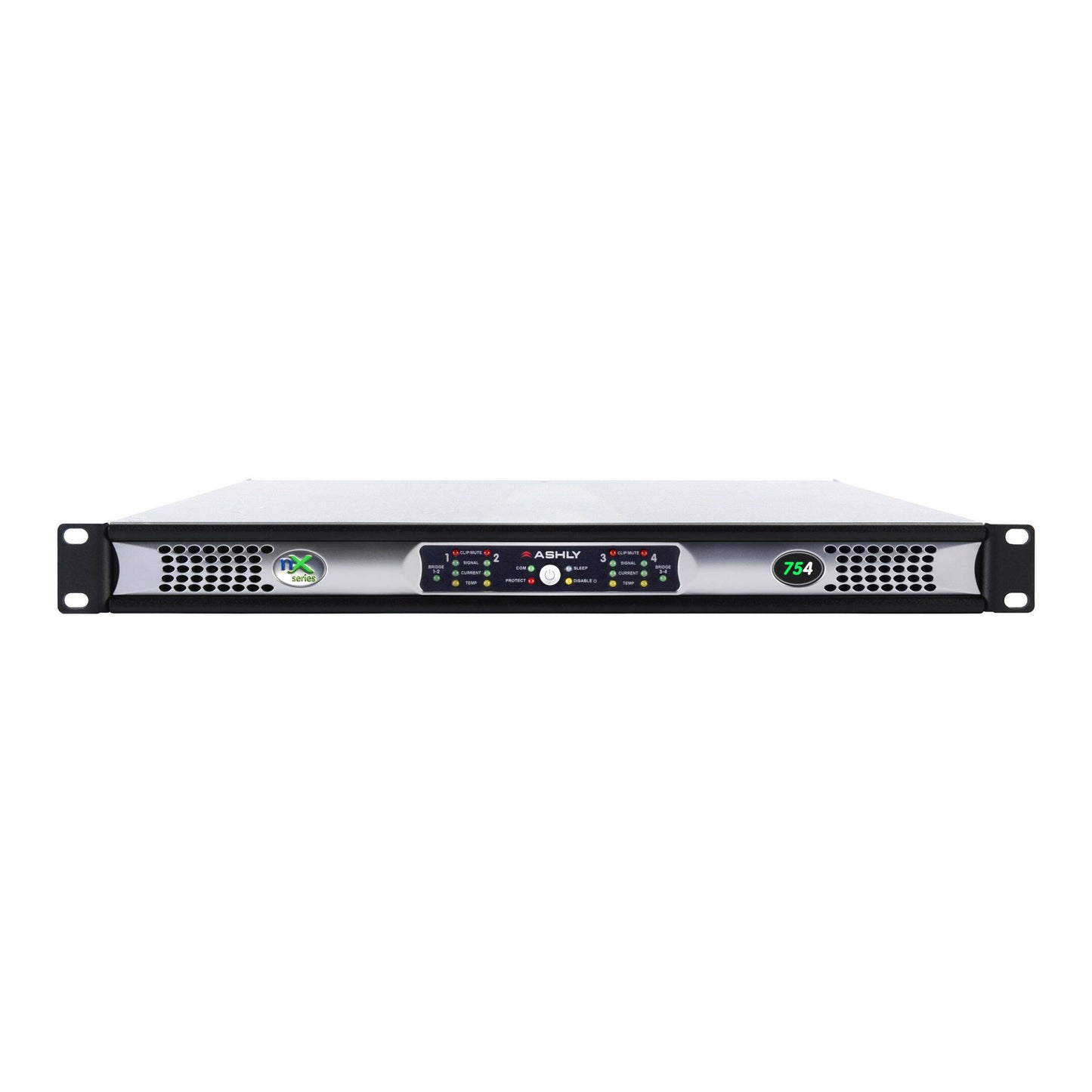

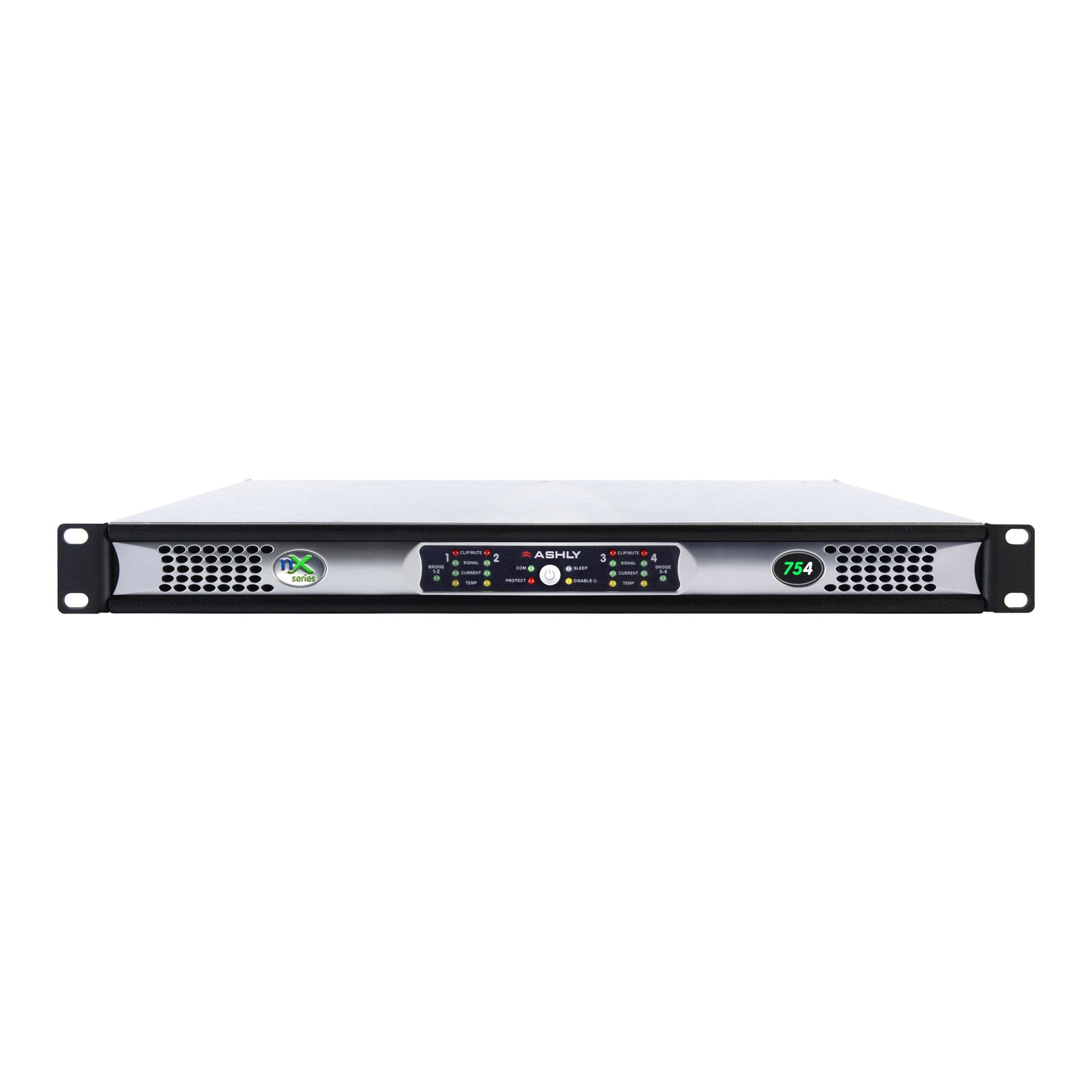

Ashly nX754 nX Multi-Mode 4x75W Power Amplifier

Ashly nX754 nX Multi-Mode 4x75W Power Amplifier

SoundPro Item: 50640 | Part Number: NX754-120V-U

$1,799.00
$1,799.00 $1,799.00
Your Price Sold out
MSRP: $1,799.00 | MAP: $1,799.00

Usually ships in 5-7 business days

  • Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
  • Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
  • Switch mode power supply automatically detects 120V or 240V AC operation
  • Extensive protection circuitry
  • Continuously variable cooling fans
  • Front panel power switch and level controls (can be disabled for security)
  • Multiple internal power supplies provide increased channel separation and reliability
  • Remote DC level control on each input channel (2 RU models only)
  • Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
  • Safety / Compliance: cTUVus, CE, FCC, RoHS
Log in or register for YOUR best price

The nX754 offers 4 channels and has 75 Watts per channel. nX Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V).

View full details

Specifications

Dimensions
Dimensions (WxHxD)
19" x 1.75" x 14.54"
Electrical
Low Impedance Output Mode, Bridged Output
Measured in Watts, All Channels Driven at Rated Load
25V, 70V, 100V Constant Voltage Output Mode
Measured in Watts, All Channels Driven at Rated Load
Current Draw
Measured in Amps, Typical Input, Total for all Channels, 120VAC (divide by 2 for 240VAC)
Audio
Channels
4
Max Output Power
Measured in Watts Per Channel, Low Impedance Output Mode, All Channels Driven
Connectivity
Idle (no Input signl)
0.50
Idle (no Input signal)
180
Shipping
Weight
12.1 pounds
General
2Ω
75
4Ω
75
8Ω
75
25V (per channel)
75
70V (per channel)
75
100V (per channel)
75
Total AC Mains Power Draw
Measured in Watts, Typical Input, All Channels Driven, 120VAC
Sleep Mode
<1
Standby Mode
25
Idle (no signal)
53
1/8 Max Power @ 2Ω
142
Thermal Dissipation
BTU/hr, Typical Input, Total for all Channels
