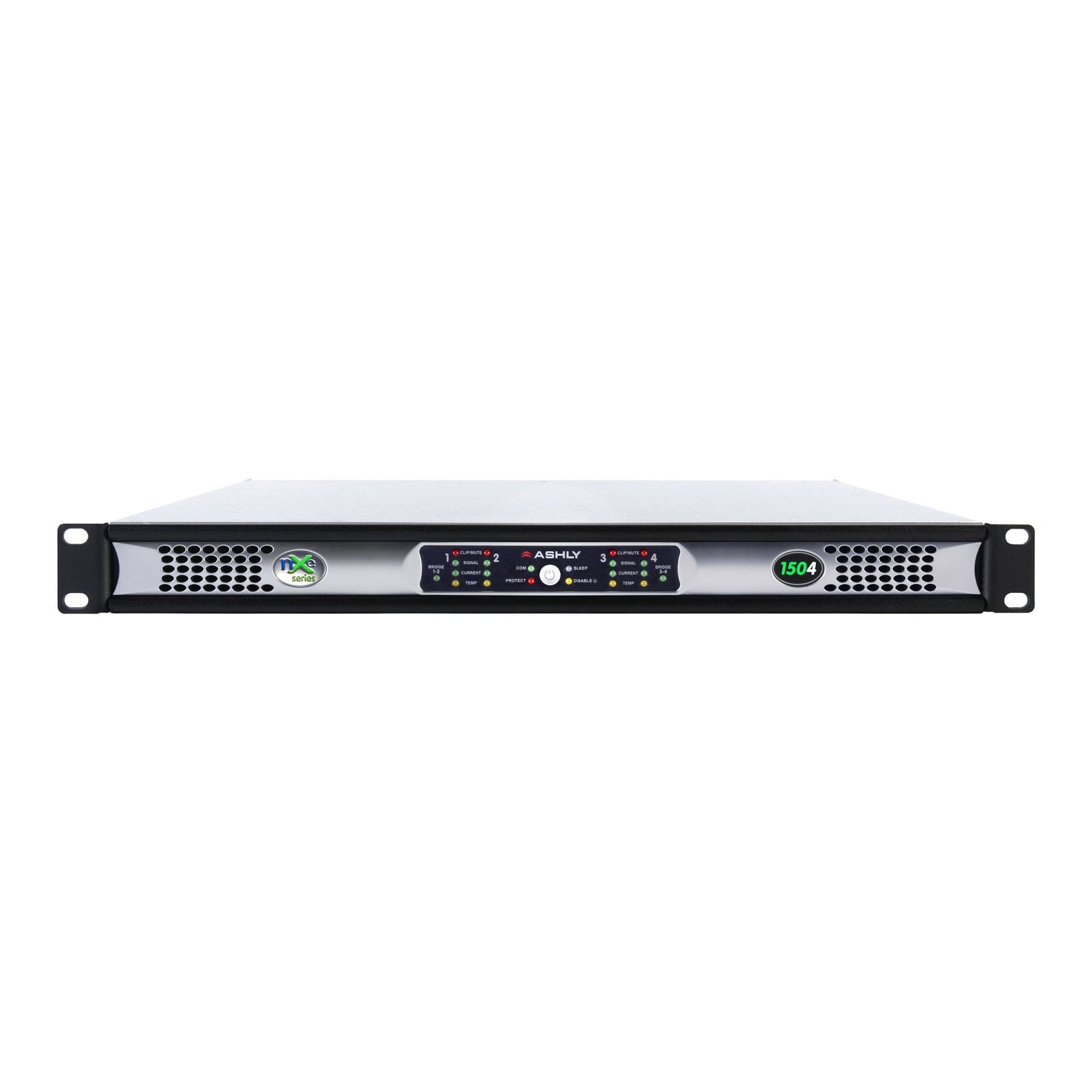

Ashly nXe1504 nXe Multi-Mode 4x150W Power Amplifier

Ashly nXe1504 nXe Multi-Mode 4x150W Power Amplifier

Soundpro Item: 54777 | Part Number: NXE1504

$2,179.00
$2,724.00 $2,179.00
Your Price Sold out
MSRP: $2,724.00 | MAP: $2,179.00

Usually ships in 5-7 business days

  • Ethernet Control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1)
  • Use Protea™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
  • Real-Time Clock with Event Scheduler
  • Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
  • Programmable power-on delay
  • Aux preamp outputs, and fault condition logic outputs
  • Optional Cobranet® or Dante® and AES3 digital audio input with pass thru
  • Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
  • Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
  • Switch mode power supply automatically detects 120V or 240V AC operation
  • Extensive protection circuitry
  • Continuously variable cooling fans
  • Front panel power switch and level controls (can be disabled for security)
  • Multiple internal power supplies provide increased channel separation and reliability
  • Remote DC level control on each input channel (2 RU models only)
  • Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
  • Safety / Compliance: cTUVus, CE, FCC, RoHS
Log in or register for YOUR best price

The Ashly nXe1504 nXe Multi-Mode 4x150W Power Amplifier offers 4 channels and has 150 Watts per channel. nXe Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V).

nXe builds on Ashly's nX series by adding Ethernet control, event scheduler, preset recall, AUX outputs, factory options like Dante® for network audio integration and serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1). Protea™ software can be used to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation.

View full details

Specifications

  • Channels4
  • Max Output Power
    • Measured in Watts Per Channel, Low Impedance Output Mode, All Channels Driven at Rated Load
    • 2Ω: 150
    • 4Ω: 150
    • 8Ω: 150
  • Low Impedance Output Mode, Bridged Output
    • Measured in Watts, All Channels Driven at Rated Load
    • 4Ω: 300
    • 8Ω: 300
  • 25, 70V, 100V Constant Voltage Output Mode
    • Measured in Watts, All Channels Driven
    • 25V (per channel): 150
    • 70V (per channel): 150
    • 100V (per channel): 150
  • Total AC Mains Power Draw
    • Measured in Watts, Typical input, all channels driven, 120VAC
    • Sleep Mode: <1
    • Standby Mode: 25
    • Idle (no signal): 53
    • 1/8 Max Power @ 2Ω: 230
  • Current Draw
    • Measured in Amps, Total for all Channels, 120VAC (divide by 2 for 240VAC)
    • Sleep Mode: 94mA
    • Standby Mode: 0.27
    • Idle (no input signl): 0.50
    • 1/8 Max Power @ 2Ω: 2.2
  • Thermal Dissipation
    • BTU/hr, Typical Input, Total for all Channels
    • Sleep Mode: 2.14
    • Standby Mode: 86.4
    • Idle (no signal): 180
    • 1/8 Max Power @ 2Ω: 505
  • Dimensions (WxHxD)19" x 1.75" x 14.54"
  • Weight13 pounds
