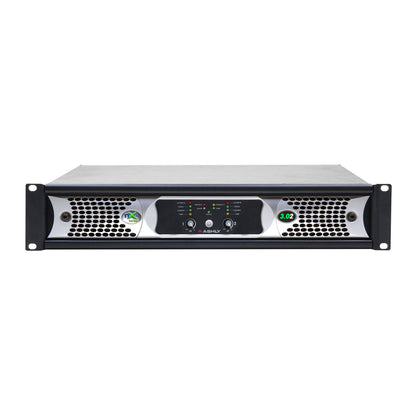

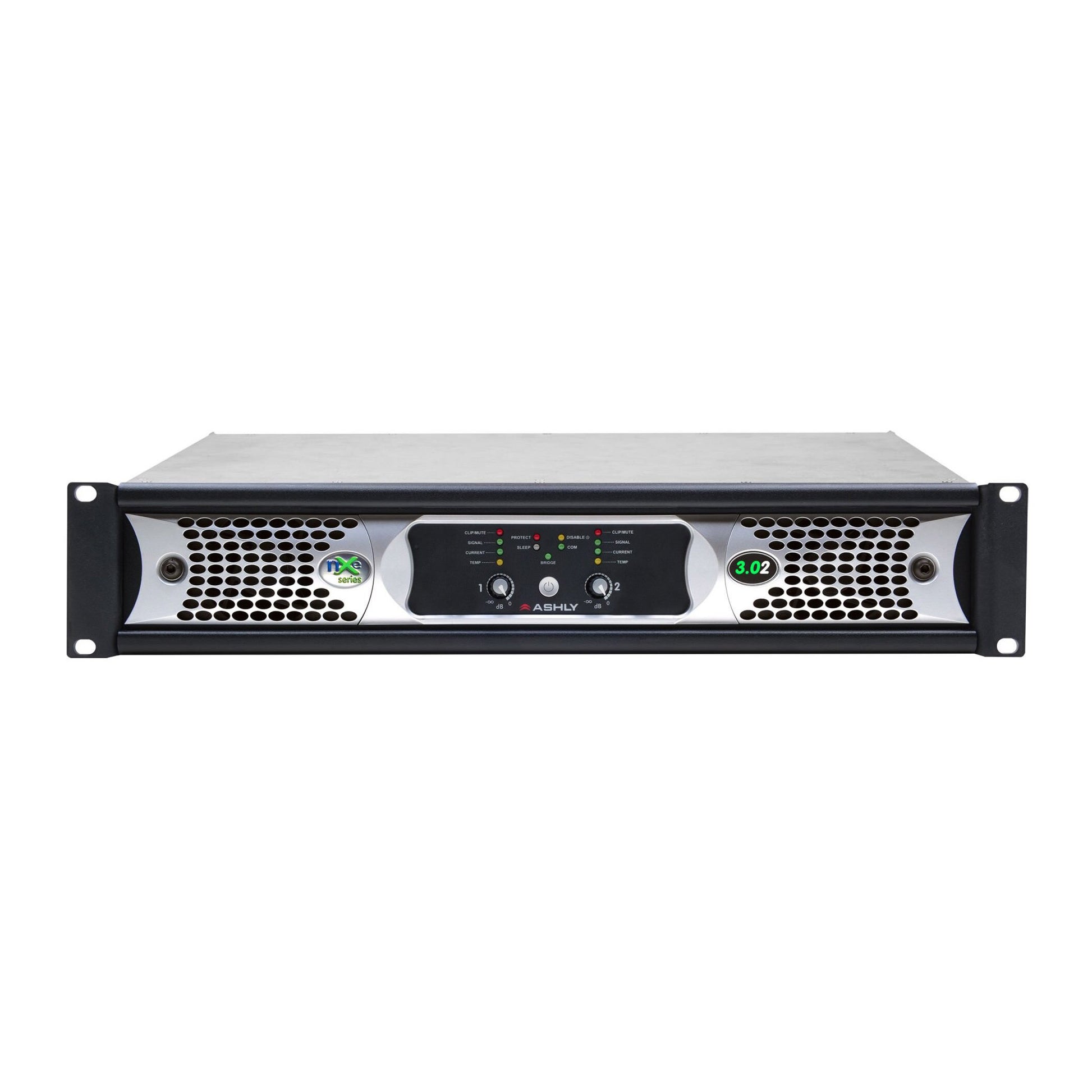

• Ashly nXe3.02bd nXe Multi-Mode 2 x 3000 Watt Power Amplifier with Dante

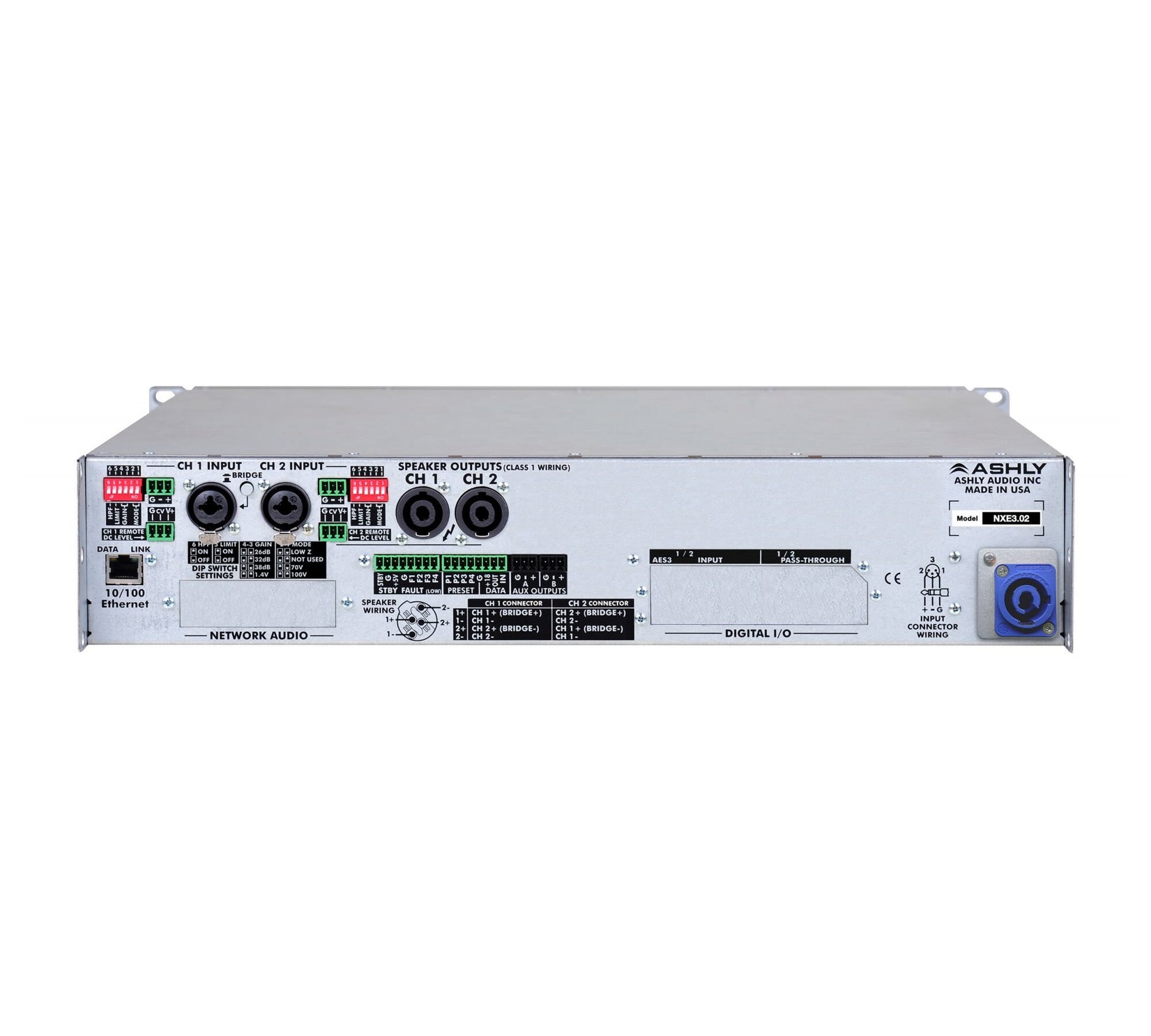

  • Ashly nXe3.02bd nXe Multi-Mode 2 x 3000 Watt Power Amplifier with Dante back
1 2

Ashly nXe3.02bd nXe Multi-Mode 2x3000W Dante Power Amplifier

Ashly nXe3.02bd nXe Multi-Mode 2x3000W Dante Power Amplifier

Soundpro Item: 97700 | Part Number: NXE3.02BD

$4,379.00
$5,474.00 $4,379.00
Your Price Sold out
MSRP: $5,474.00 | MAP: $4,379.00

Usually ships in 5-7 business days

  • Ethernet Control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1)
  • Use Protea™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
  • Real-Time Clock with Event Scheduler
  • Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
  • Programmable power-on delay
  • Aux preamp outputs, and fault condition logic outputs
  • Optional Cobranet® or Dante® and AES3 digital audio input with pass thru
  • Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
  • Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
  • Switch mode power supply automatically detects 120V or 240V AC operation
  • Extensive protection circuitry
  • Continuously variable cooling fans
  • Front panel power switch and level controls (can be disabled for security)
  • Multiple internal power supplies provide increased channel separation and reliability
  • Remote DC level control on each input channel (2 RU models only)
  • Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
  • Safety / Compliance: cTUVus, CE, FCC, RoHS
Log in or register for YOUR best price

The nXe3.02bd offers 2 channels and has 3000 Watts per channel. Comes with OPDante and OPDAC4 Option Cards. nXe Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V).

nXe builds on Ashly's nX series by adding Ethernet control, event scheduler, preset recall, AUX outputs, factory options like Dante® for network audio integration and serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1). Protea™ software can be used to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation.

View full details

Specifications

  • Channels2
  • Max Output Power
    • Measured in Watts, Per Channel, Low Impedance Output Mode, All Channels Driven
    • 2Ω: 3,000
    • 4Ω: 2,000
    • 8Ω: 1,250
  • Low Impedance Output Mode, Bridged Output
    • Measured in Watts, All Channels Driven at Rated Load
    • 4Ω: 6,000
    • 8Ω: 4,000
  • 70V, 100V Constant Voltage Output Mode
    • Measured in Watts, All Channels Driven
    • 70V (per channel): 2,450
    • 100V (per channel): 1,250
  • Total Power Draw
    • Measured in Watts, Total for All Channels
    • Sleep Mode: <1
    • Standby Mode: 40
    • Idle (no signal): 55
  • Current Draw
    • Measured in Amps, Total for all Channels, 120VAC (divide by 2 for 240VAC)
    • Sleep Mode: 0.1
    • Standby Mode: 0.70
    • Idle (no input signl): 1.00
  • Max Current Draw
    • Measured in Amps, Typical Input, All Channels Driven (divide by 2 for 240VAC)
    • 1/8 Max Power @ 2Ω: 14.7
  • Thermal Dissipation
    • BTU/hr, Typical Input, Total for all Channels
    • Sleep Mode: <3.4
    • Standby Mode: 136
    • Idle (no signal): 187
    • 1/8 Max Power @ 2Ω: 1,360
  • Dimensions (WxHxD)19" x 3.5" x 16.84"
  • Weight22.7 pounds
