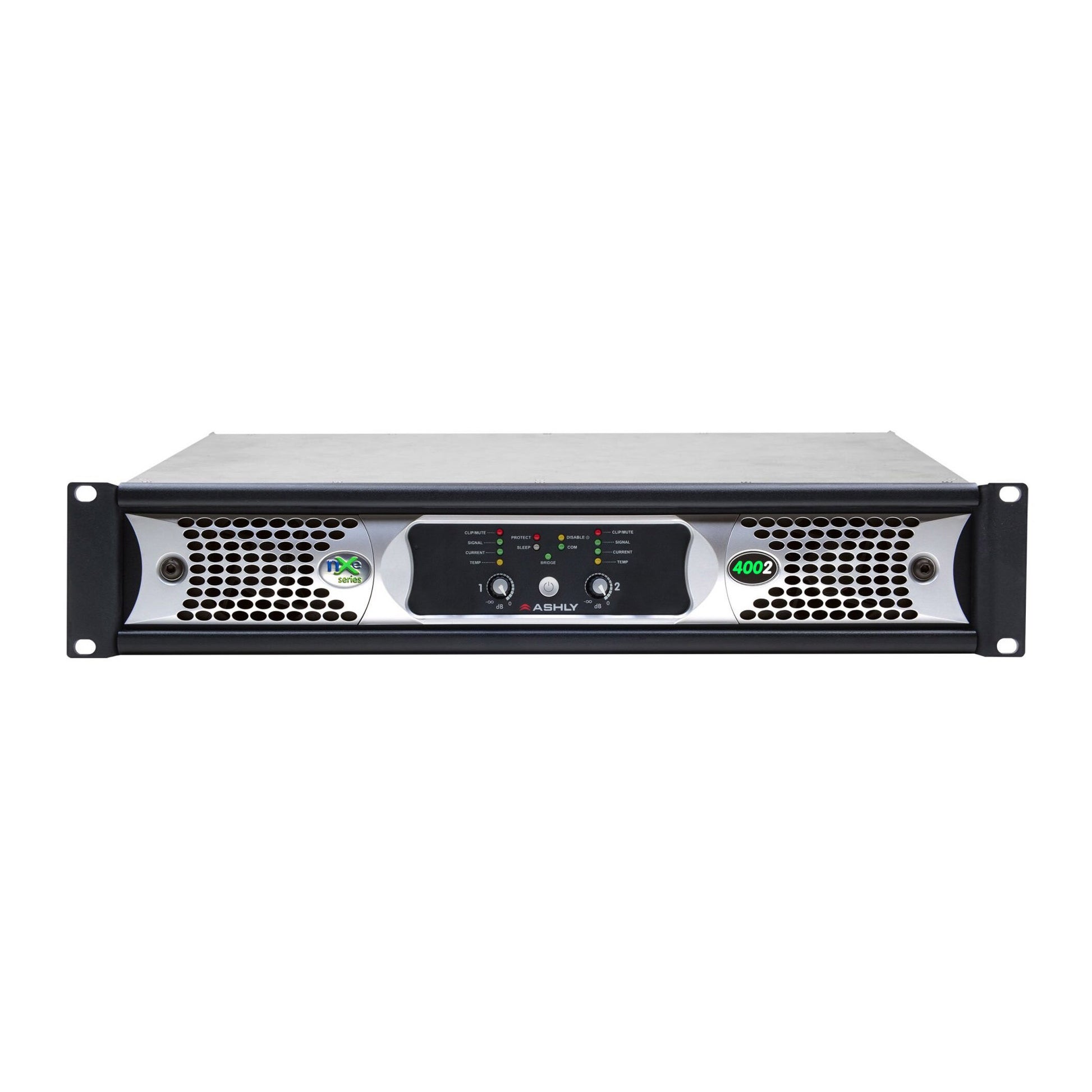

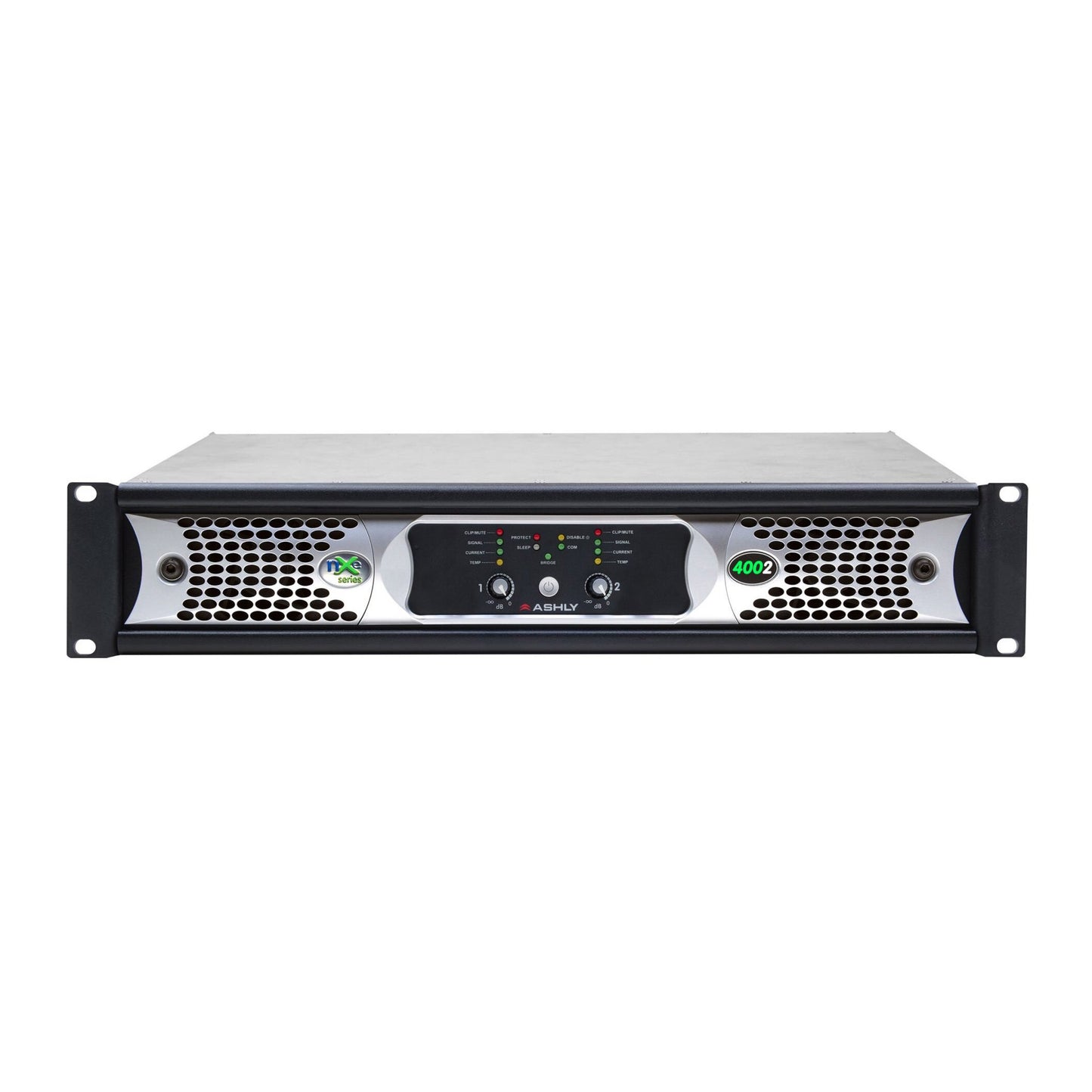

Ashly nXe4002bd nXe Multi-Mode 2x400W Dante Power Amplifier
Ashly nXe4002bd nXe Multi-Mode 2x400W Dante Power Amplifier
SoundPro Item: 97688 | Part Number: NXE4002BD
Usually ships in 5-7 business days
- Ethernet Control and monitoring of amplifier functions, with front panel COM activity LED
- Serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1)
- Use Protea™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
- Real-Time Clock with Event Scheduler
- Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
- Programmable power-on delay
- Aux preamp outputs, and fault condition logic outputs
- Optional Cobranet® or Dante® and AES3 digital audio input with pass thru

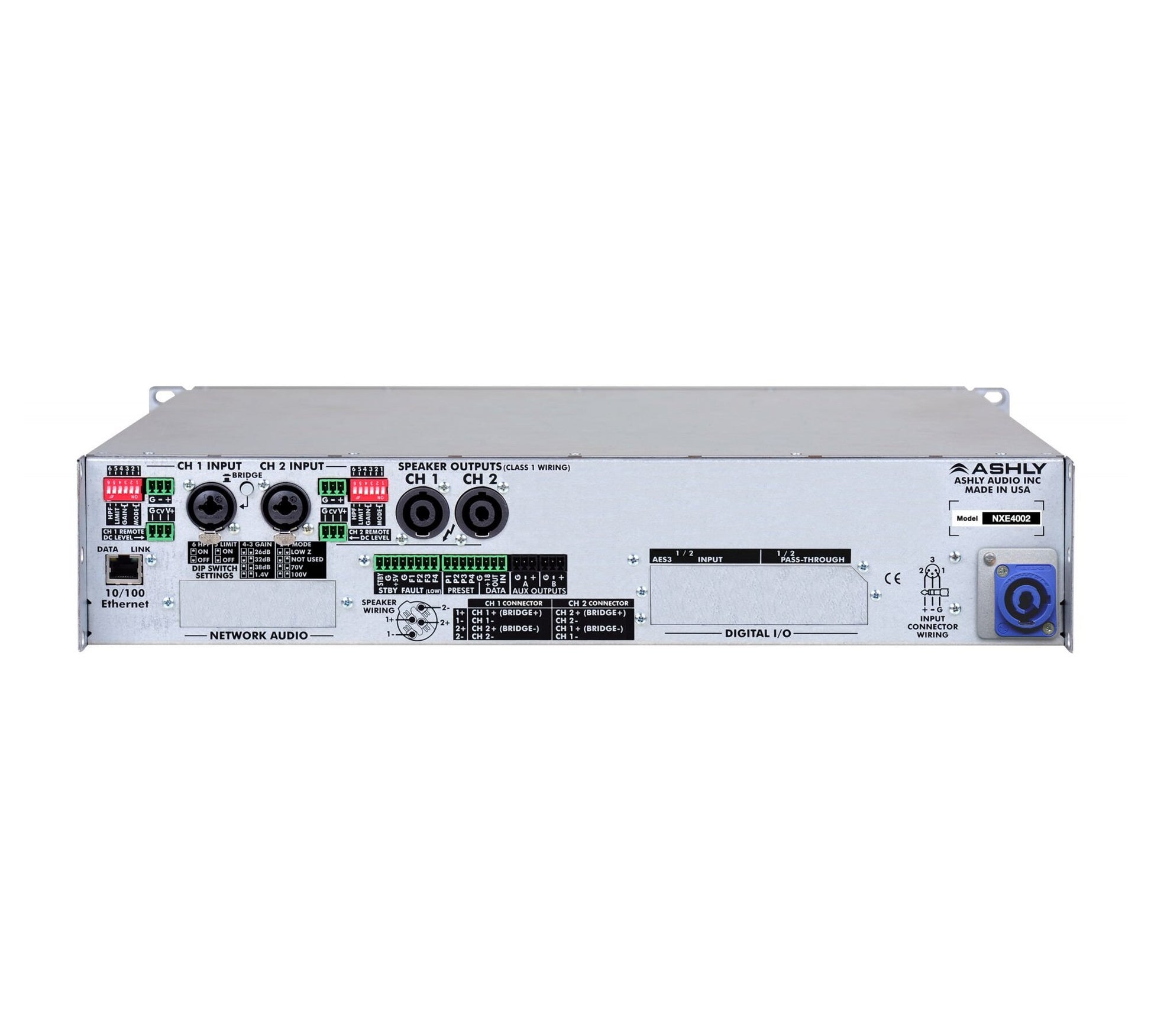

- Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
- Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
- Switch mode power supply automatically detects 120V or 240V AC operation
- Extensive protection circuitry
- Continuously variable cooling fans
- Front panel power switch and level controls (can be disabled for security)
- Multiple internal power supplies provide increased channel separation and reliability
- Remote DC level control on each input channel (2 RU models only)
- Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
- Safety / Compliance: cTUVus, CE, FCC, RoHS
The nXe4002bd offers 2 channels and has 400 Watts per channel. Comes with OPDante and OPDAC4 Option Cards. nXe Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V).
nXe builds on Ashly's nX series by adding Ethernet control, event scheduler, preset recall, AUX outputs, factory options like Dante® for network audio integration and serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1). Protea™ software can be used to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation.
- Channels2
- Max Output Power
- Measured in Watts, Per Channel, Low Impedance Output Mode, All Channels Driven
- 2Ω: 400
- 4Ω: 400
- 8Ω: 400
- Low Impedance Output Mode, Bridged Output
- Measured in Watts, All Channels Driven at Rated Load
- 4Ω: 800
- 8Ω: 800
- 70V, 100V Constant Voltage Output Mode
- Measured in Watts, All Channels Driven
- 70V (per channel): 400
- 100V (per channel): 400
- Total Power Draw
- Measured in Watts, Total for All Channels
- Sleep Mode: <1
- Standby Mode: 25
- Idle (no signal): 40
- Current Draw
- Measured in Amps, Total for all Channels, 120VAC (divide by 2 for 240VAC)
- Sleep Mode: 0.1
- Standby Mode: 0.38
- Idle (no input signl): 0.70
- Max Current Draw
- Measured in Amps, Typical Input, All Channels Driven (divide by 2 for 240VAC)
- 1/8 Max Power @ 2Ω: 2.6
- Thermal Dissipation
- BTU/hr, Typical Input, Total for all Channels
- Sleep Mode: <3.4
- Standby Mode: 85
- Idle (no signal): 136
- 1/8 Max Power @ 2Ω: 305
- Dimensions (WxHxD)19" x 3.5" x 16.84"
- Weight22.2 pounds
