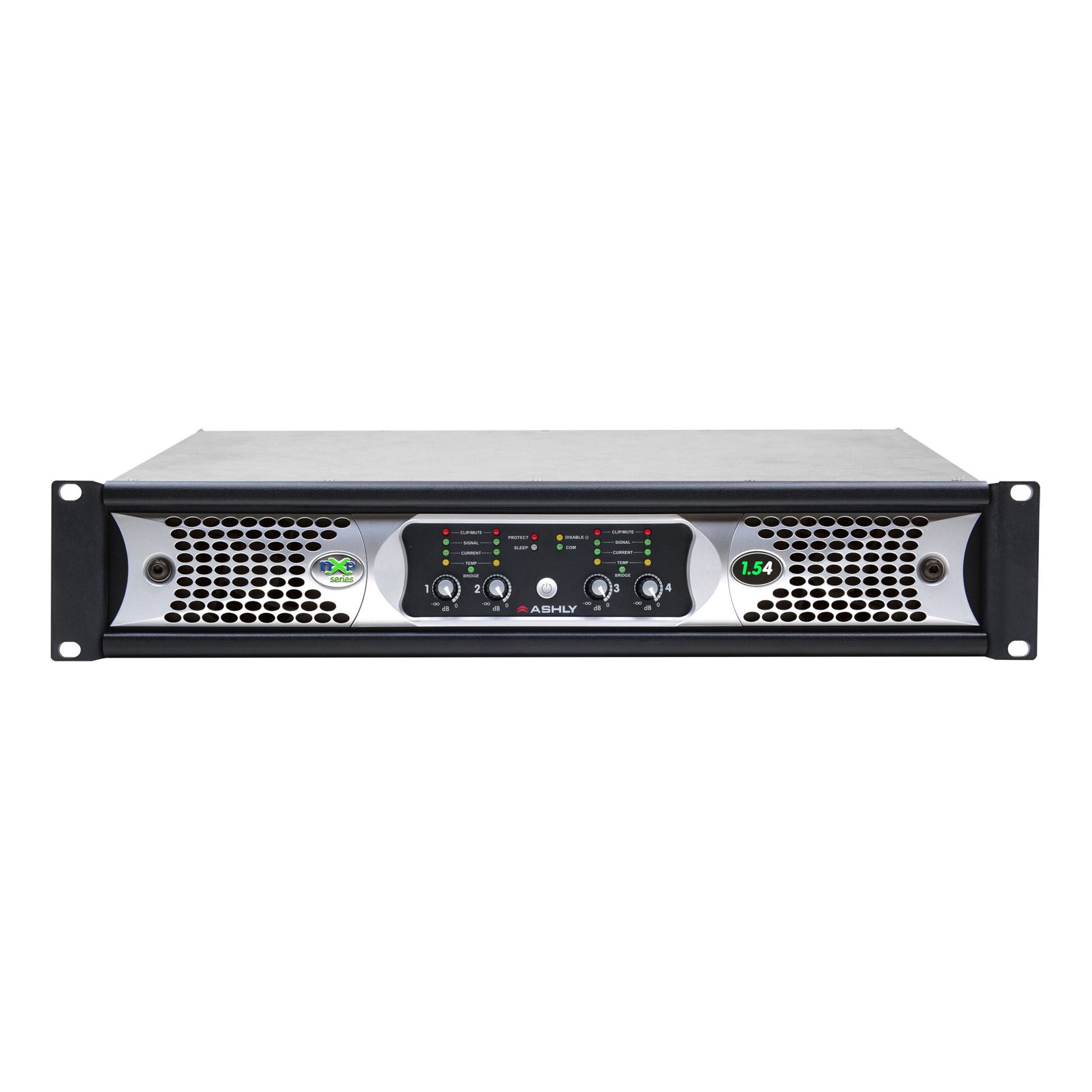

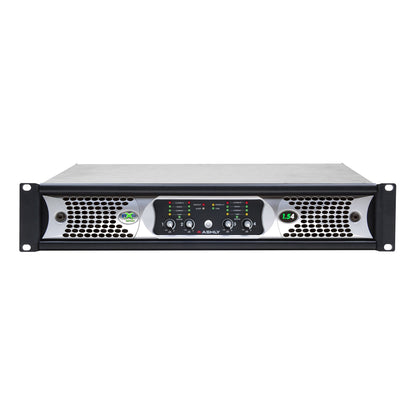

• Ashly nXp1.54d nXp Multi-Mode 4 x 1500 Watt Power Amplifier with Dante

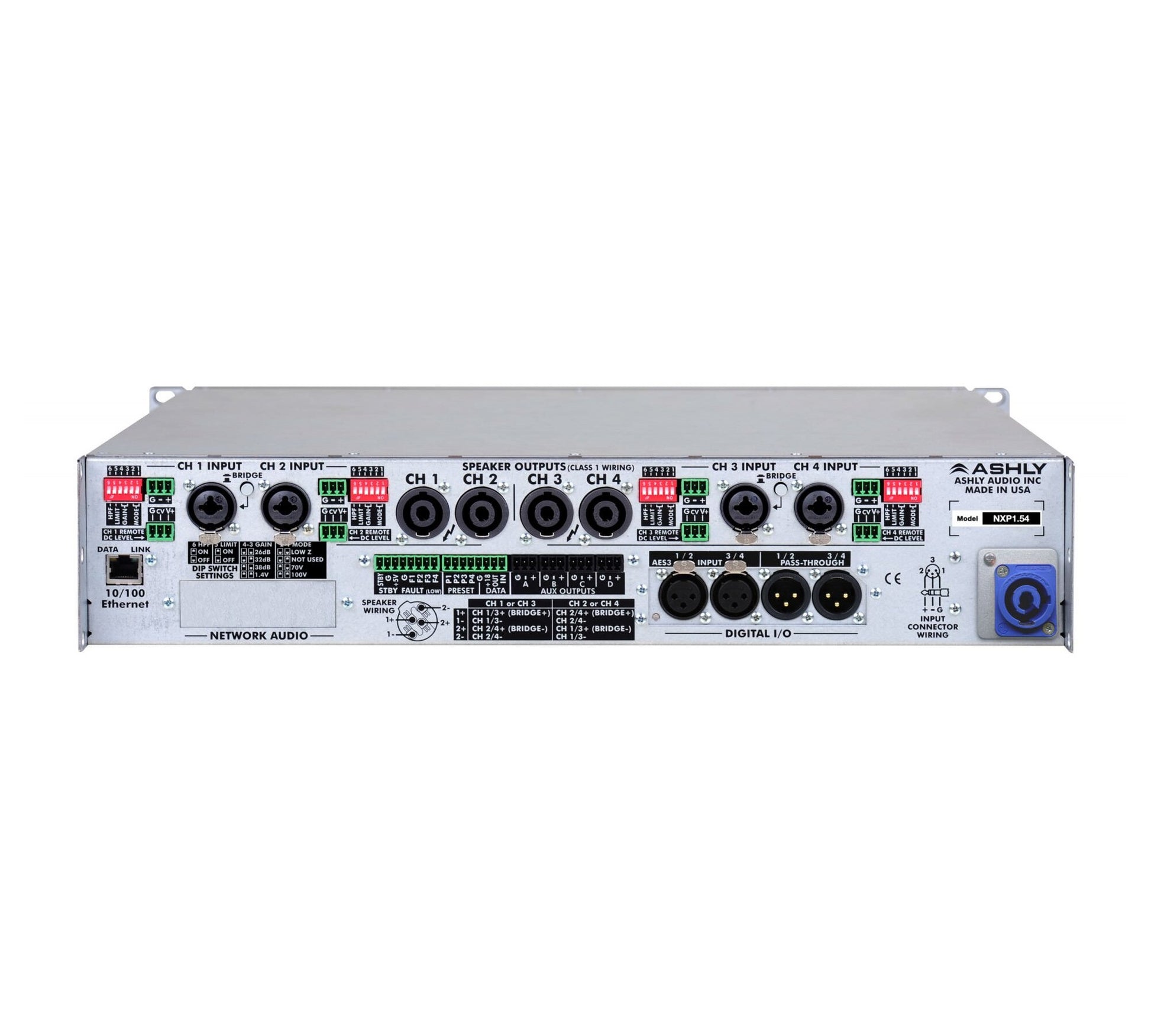

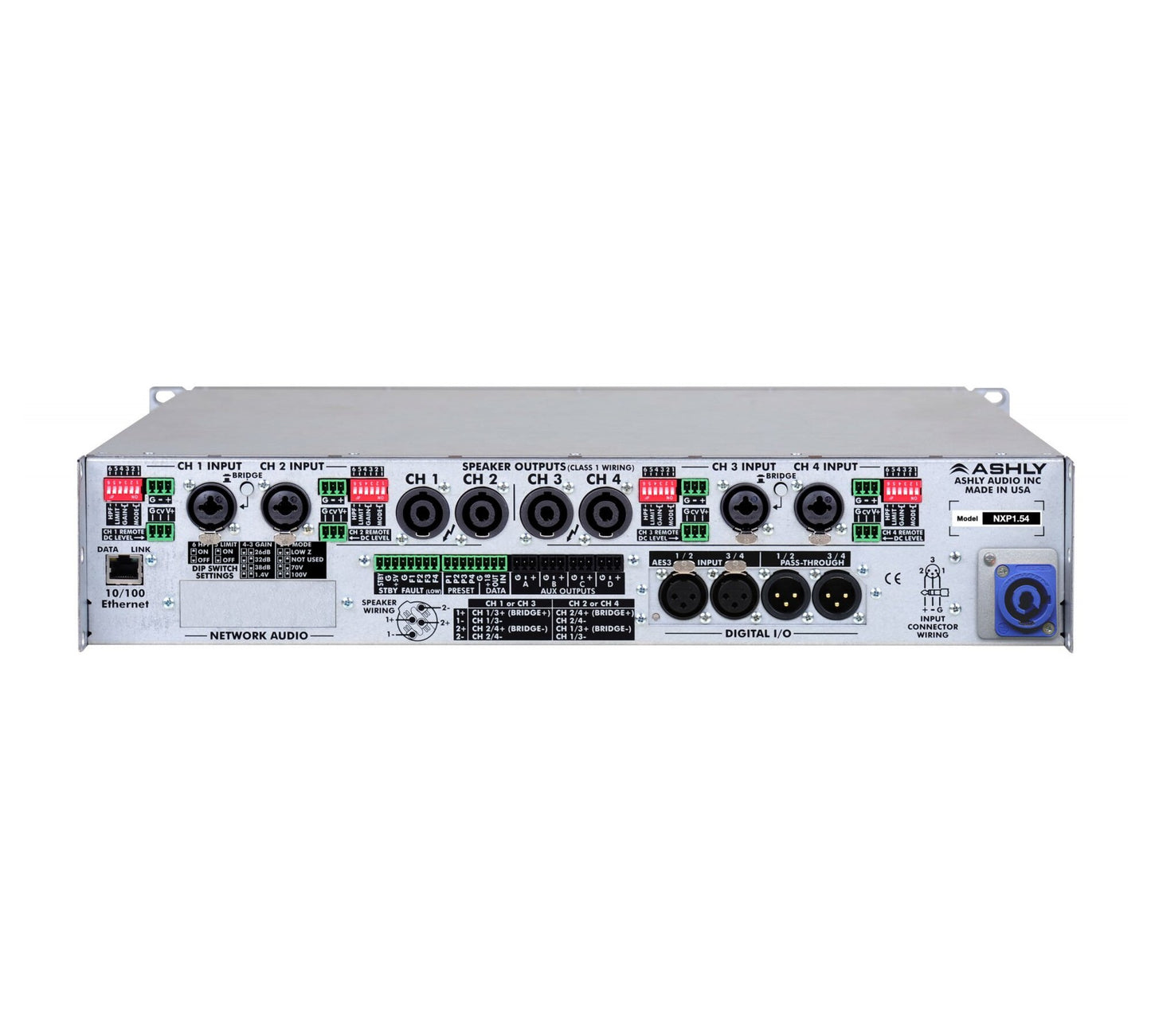

  • Ashly nXp1.54d nXp Multi-Mode 4 x 1500 Watt Power Amplifier with Dante back
1 2

Ashly nXp1.54d nXp Multi-Mode 4x1500W Dante Power Amplifier

Ashly nXp1.54d nXp Multi-Mode 4x1500W Dante Power Amplifier

SoundPro Item: 97699 | Part Number: NXP1.54D

$5,949.00
$7,436.00 $5,949.00
Your Price Sold out
MSRP: $7,436.00 | MAP: $5,949.00

Usually ships in 5-7 business days

  • Protea™ DSP audio processing on inputs and outputs including
    • Automatic Feedback Suppressor
    • Auto-Mixer
    • Ambient Noise Compensation
    • Dynamics processing with auto-ducker
    • EQ & crossovers including FIR filters
    • Time alignment and tower delay
    • Scheduled noise-masking with Real-Time Clock
    • Swept AC load-analysis with baseline logging
    FIR Filter capable, dynamics, gain, equalization, 2×4 or 4×4 matrix mixer, crossover, delay, metering, and signal generator functions for test and noise masking applications
  • Precision swept load impedance monitoring of each amplifier channel
  • Ethernet Control and monitoring of amplifier functions, with front panel COM activity LED
  • Serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1)
  • Use Protea™ Software to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation
  • Real-Time Clock with Event Scheduler
  • Instant Standby Mode 30% reduction in power consumption with on/off and Preset Recall, both via contact closure, software control, or event scheduler
  • Programmable power-on delay
  • Aux preamp outputs, and fault condition logic outputs
  • Optional Cobranet™ or Dante® and AES3 digital audio input with passthru
  • Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
  • Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
  • Switch mode power supply automatically detects 120V or 240V AC operation
  • Extensive protection circuitry
  • Continuously variable cooling fans
  • Front panel power switch and level controls (can be disabled for security)
  • Multiple internal power supplies provide increased channel separation and reliability
  • Remote DC level control on each input channel (2 RU models only)
  • Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
  • Safety / Compliance: cTUVus, CE, FCC, RoHS
Log in or register for YOUR best price

The nXp1.54d offers 4 channels and has 1500 Watts per channel. Comes with OPDante Option Card. nXp Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V).

nXe builds on Ashly's nX series by adding Ethernet control, event scheduler, preset recall, AUX outputs, factory options like Dante® for network audio integration and serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1). Protea™ software can be used to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation.

nXp amplifiers carry all nX and nXe features plus Protea DSP and swept load impedance analysis. These amps are designed to meet the most demanding live sound environments and fixed installation sound systems such as stadiums, arenas, performance venues, worship spaces and convention centers.

View full details
  • Channels4
  • Max Output Power
    • Measured in Watts, Per Channel, Low Impedance Output, All Channels Driven
    • 2 Ω: 1,500
    • 4 Ω: 1,500
    • 8 Ω: 1,250
  • Low Impedance Output
    • Measured in Watts, Bridge Mode, All Channels Driven
    • 4 Ω: 3,000
    • 8 Ω: 3,000
  • 70V, 100V Constant Voltage Output
    • Measured in Watts, All Channels Driven
    • 70V (per channel): 1,500
    • 100V (per channel): 1,250
  • Total Power Draw
    • Measured in Watts, Total for all Channels
    • Sleep Mode: <1
    • Standby Mode: 70
    • Idle (no signal): 100
  • Current Draw
    • Measured in Amps, Total for all Channels, 120VAC (divide by 2 for 240VAC)
    • Sleep Mode: 0.1
    • Standby Mode: 1.30
    • Idle (no signal): 1.85
  • Max Current Draw
    • Measured in Amps, Typical Input, All Channels Driven (divide by 2 for 240VAC)
    • 1/8 Max Power @ 2Ω: 16.0
  • Thermal Dissipation
    • BTU/hr, Typical Input, Total for all Channels
    • Sleep Mode: <3.4
    • Standby Mode: 238
    • Idle (no signal): 340
    • 1/8 Max Power @ 2Ω: 1,700
  • Dimensions (WxHxD)19" x 3.5" x 16.84"
  • Weight28.7 pounds
