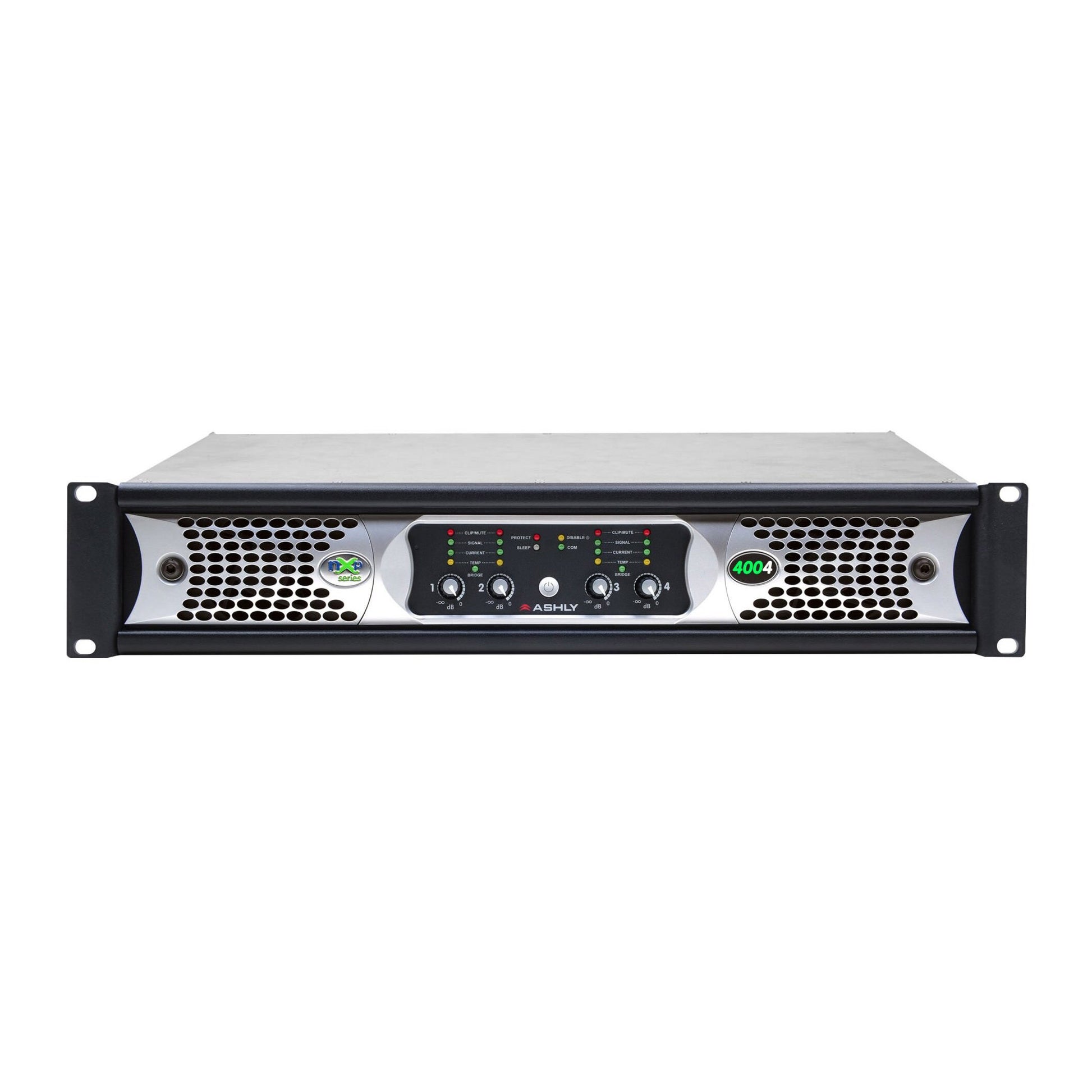

• Ashly nXp4004d nXp Multi-Mode 4 x 400 Watt Power Amplifier with Dante

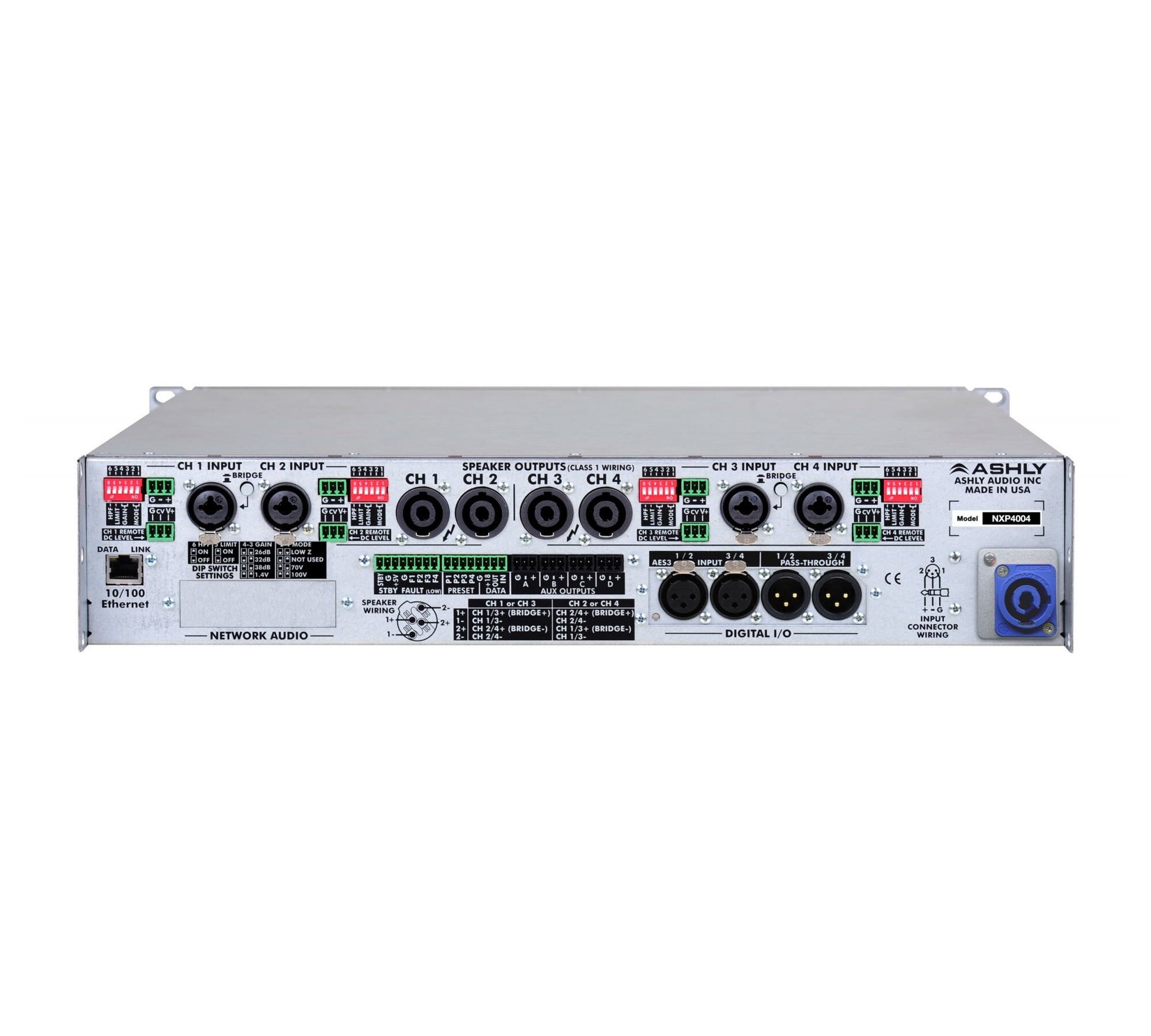

  • Ashly nXp4004d nXp Multi-Mode 4 x 400 Watt Power Amplifier with Dante back
1 2

Ashly nXp4004d nXp Multi-Mode 4x400W Dante Power Amplifier

Ashly nXp4004d nXp Multi-Mode 4x400W Dante Power Amplifier

SoundPro Item: 97691 | Part Number: NXP4004D

$4,179.00
$5,224.00 $4,179.00
Your Price Sold out
MSRP: $5,224.00 | MAP: $4,179.00

Usually ships in 5-7 business days

Log in or register for YOUR best price

The nXp4004d offers 4 channels and has 400 Watts per channel. Comes with OPDante Option Card. nXp Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V).

nXe builds on Ashly's nX series by adding Ethernet control, event scheduler, preset recall, AUX outputs, factory options like Dante® for network audio integration and serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1). Protea™ software can be used to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation.

nXp amplifiers carry all nX and nXe features plus Protea DSP and swept load impedance analysis. These amps are designed to meet the most demanding live sound environments and fixed installation sound systems such as stadiums, arenas, performance venues, worship spaces and convention centers.

View full details
  • Channels4
  • Max Output Power
    • Measured in Watts, Per Channel, Low Impedance Output, All Channels Driven
    • 2 Ω: 400
    • 4 Ω: 400
    • 8 Ω: 400
  • Low Impedance Output
    • Measured in Watts, Bridge Mode, All Channels Driven
    • 4 Ω: 800
    • 8 Ω: 800
  • 70V, 100V Constant Voltage Output
    • Measured in Watts, All Channels Driven
    • 70V (per channel): 400
    • 100V (per channel): 400
  • Total Power Draw
    • Measured in Watts, Total for all Channels
    • Sleep Mode: <1
    • Standby Mode: 40
    • Idle (no signal): 70
  • Current Draw
    • Measured in Amps, Total for all Channels, 120VAC (divide by 2 for 240VAC)
    • Sleep Mode: 0.1
    • Standby Mode: 0.70
    • Idle (no signal): 1.30
  • Max Current Draw
    • Measured in Amps, Typical Input, All Channels Driven (divide by 2 for 240VAC)
    • 1/8 Max Power @ 2Ω: 5.0
  • Thermal Dissipation
    • BTU/hr, Typical Input, Total for all Channels
    • Sleep Mode: <3.4
    • Standby Mode: 136
    • Idle (no signal): 238
    • 1/8 Max Power @ 2Ω: 595
  • Dimensions (WxHxD)19" x 3.5" x 16.84"
  • Weight32.4 pounds
