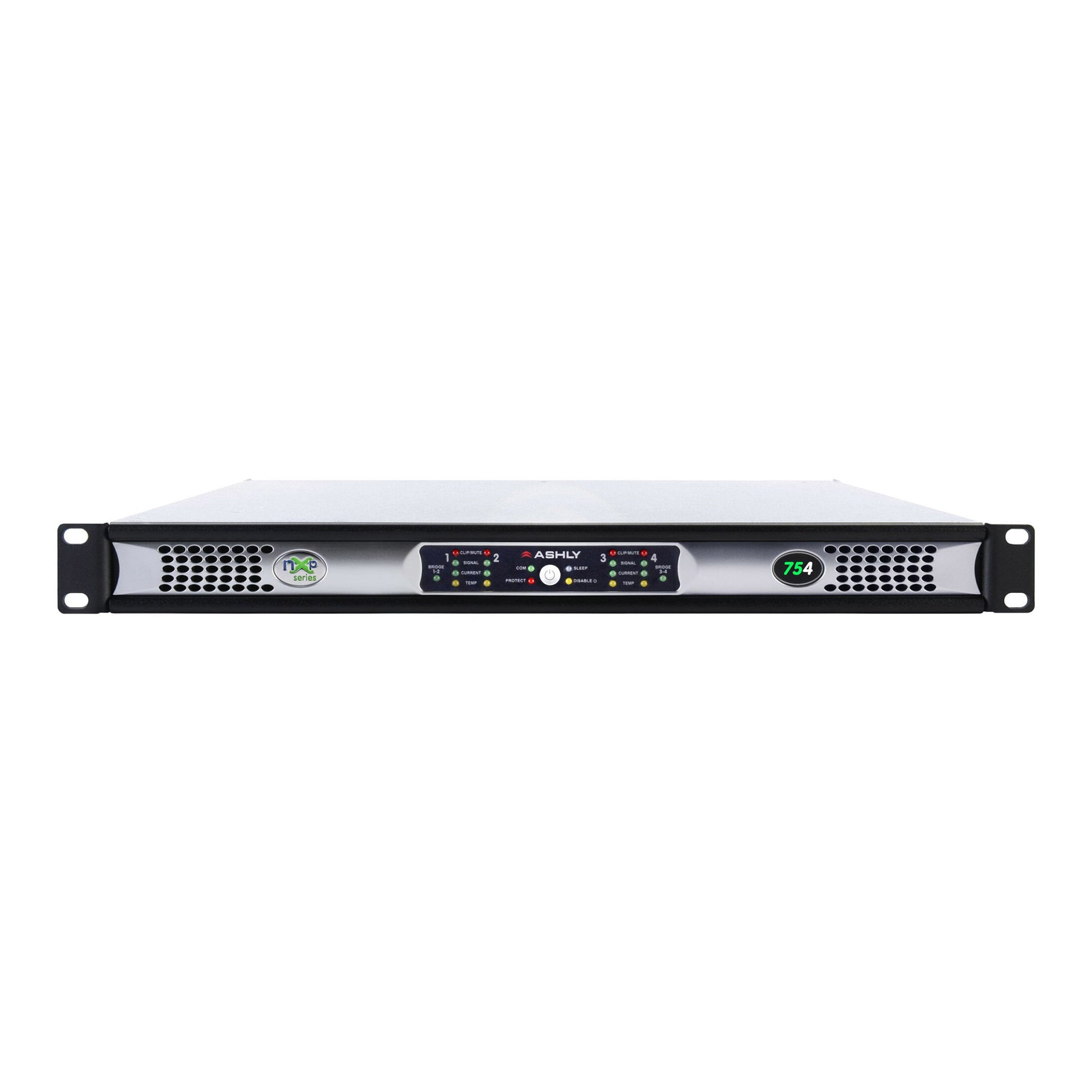

Ashly nXp754 nXp Multi-Mode 4x75W Power Amplifier

Ashly nXp754 nXp Multi-Mode 4x75W Power Amplifier

SoundPro Item: 52531 | Part Number: NXP754-120V-U

$2,139.00
$2,674.00 $2,139.00
Your Price Sold out
MSRP: $2,674.00 | MAP: $2,139.00

Usually ships in 5-7 business days

Log in or register for YOUR best price

The Ashly nXp754 nXp Multi-Mode 4x75W Power Amplifier offers 4 channels and has 75 Watts per channel. nXp Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V).

nXe builds on Ashly's nX series by adding Ethernet control, event scheduler, preset recall, AUX outputs, factory options like Dante® for network audio integration and serial data port for use with Ashly remote control devices, or optional RS- 232 converter for third party controllers (INA-1). Protea™ software can be used to remotely disable all front panel controls, including the on/off switch, for a tamper-proof installation.

nXp amplifiers carry all nX and nXe features plus Protea DSP and swept load impedance analysis. These amps are designed to meet the most demanding live sound environments and fixed installation sound systems such as stadiums, arenas, performance venues, worship spaces and convention centers.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
19" x 1.75" x 14.54"
Electrical
Low Impedance Output Mode, Bridged Output
Measured in Watts, All Channels Driven at Rated Load
25V, 70V, 100V Constant Voltage Output Mode
Measured in Watts, All Channels Driven at Rated Load
Current Draw
Measured in Amps, Typical Input, Total for all Channels, 120VAC (divide by 2 for 240VAC)
Audio
Channels
4
Max Output Power
Measured in Watts Per Channel, Low Impedance Output, All Channels Driven at Rated Load
Connectivity
Idle (no Input signal)
0.50
Shipping
Weight
13.1 pounds
General
2 Ω
75
4 Ω
75
8 Ω
75
25V (per channel)
75
70V (per channel)
75
100V (per channel)
75
Total AC Mains Power Draw
Measured in Watts, Typical Input, All Channels Driven, 120VAC
Sleep Mode
<1
Standby Mode
25
Idle (no signal)
53
1/8 Max Power @ 2Ω
142
Thermal Dissipation
BTU/hr, Typical Input, Total for all Channels
