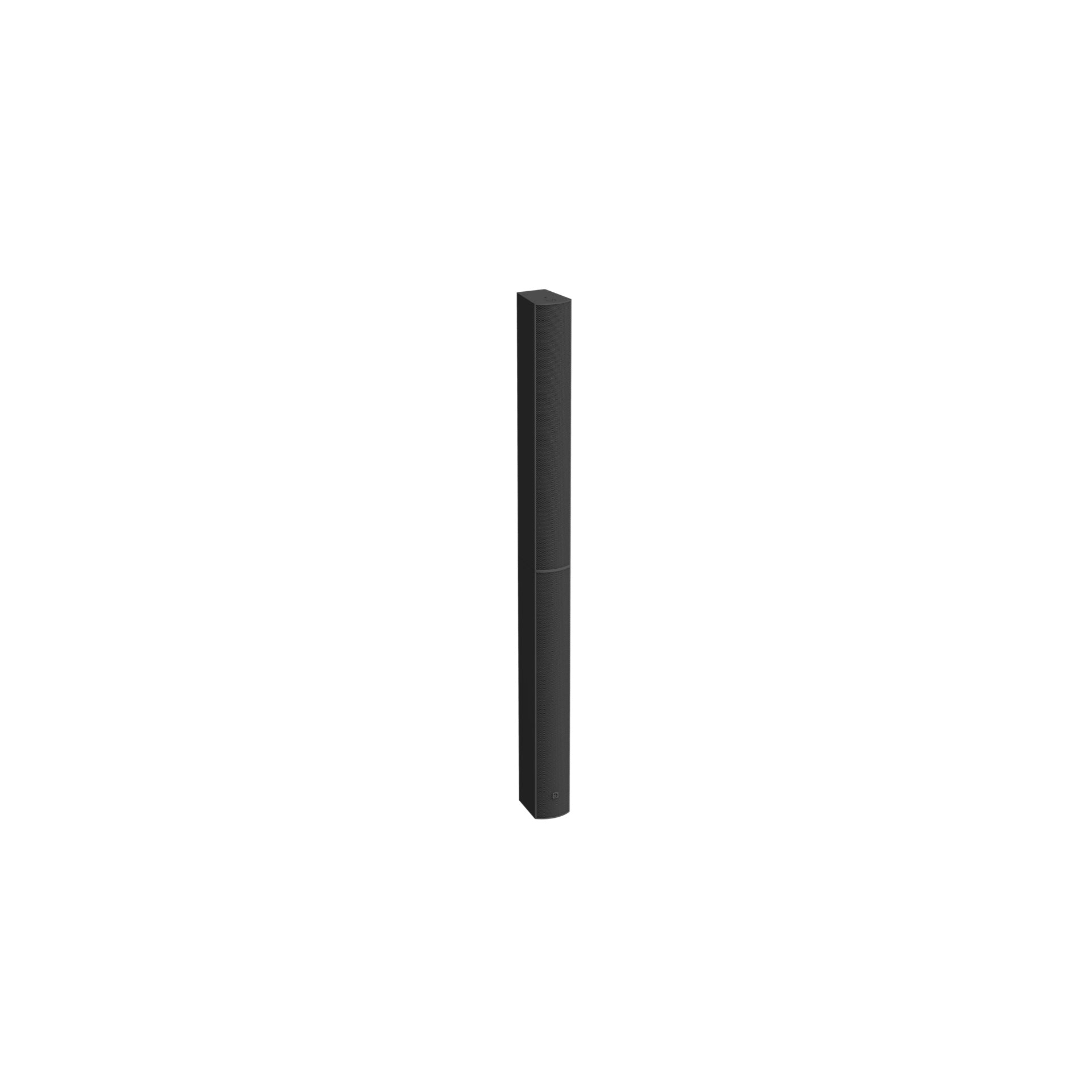

AtlasIED ALX-16D-B Digitally Steerable 16-Speaker Column Array Loudspeaker | Black

AtlasIED ALX-16D-B Digitally Steerable 16-Speaker Column Array Loudspeaker | Black

SoundPro Item: 204768 | Part Number: ALX-16D-B

Regular price $10,943.99
Regular price $13,680.99 Sale price $10,943.99
Your Price Sold out
MSRP: $13,680.99 | MAP: $10,943.99

Usually ships in 5-7 business days

  • Precise Beam Steering For Better Speech Clarity
  • Multieam Control For Complex Coverage Zones
  • Dante And AES67 For Networked Audio Integration
  • Slim Cabinet Suits Discreet Architectural Installs
  • Integrated DSP And Amplification Simplify System Design
  • Wide Horizontal Coverage For Broad Audience Areas

The AtlasIED ALX-16D is a digitally steerable column array designed for commercial installations where speech clarity and coverage control are difficult to achieve. In reverberant spaces such as transportation hubs, houses of worship, and other large public venues, its beam steering architecture helps direct sound toward listeners while reducing energy sent to reflective surfaces. The result is more intelligible paging, announcements, and program audio in environments that typically work against conventional loudspeakers.

With Dante and AES67 networking onboard, the ALX-16D fits modern networked audio workflows without relying on additional external interfaces or network bridges. Multiple input options support flexible integration, while granular control of the acoustic output allows system designers to shape coverage for demanding rooms. The slim enclosure supports use in architecturally sensitive interiors where visual impact matters as much as performance.

This model is part of the Aimline ALX-D range built for precise directivity control, real-time system management, and use in mission-critical audio applications. Independent DSP and amplification channels for each transducer support detailed beam optimization, and spliteam capability adds another layer of deployment flexibility for complex audience areas.

View full details

Specifications

Audio
Frequency Response
60Hz - 18kHz, 100dB @ 30m
Audio Inputs
2 x Dante® / AES67 / 2 x analog line / 2 x AES / EBU
Sensitivity
15dBu RMS for rated output, analog
Low Frequency Beam Control Limit
400Hz
Amplifier
16 x PWM class-D 16 x DSP Channels
Transducers
16 x 4" Neodymium, full range. Coated NRSC fiberglass membrane
Beam Steering
Multi beam
Typical Throw
130ft / 40m
Horizontal Dispersion
120° (- 6dB @ 1kHz – 8kHz)
Vertical Opening Angle
5° - 40° (digitally variable)
Vertical Steering
+40° to -40° (digitally variable)
Physical
Weight
44 lbs (20kg)
Dimensions (HxWxD)
63.9" x 4.7" x 6.6" (1624 x 119 x 167mm)
Power Supply
94 - 264V
Warranty Period
60 months from date of purchase
