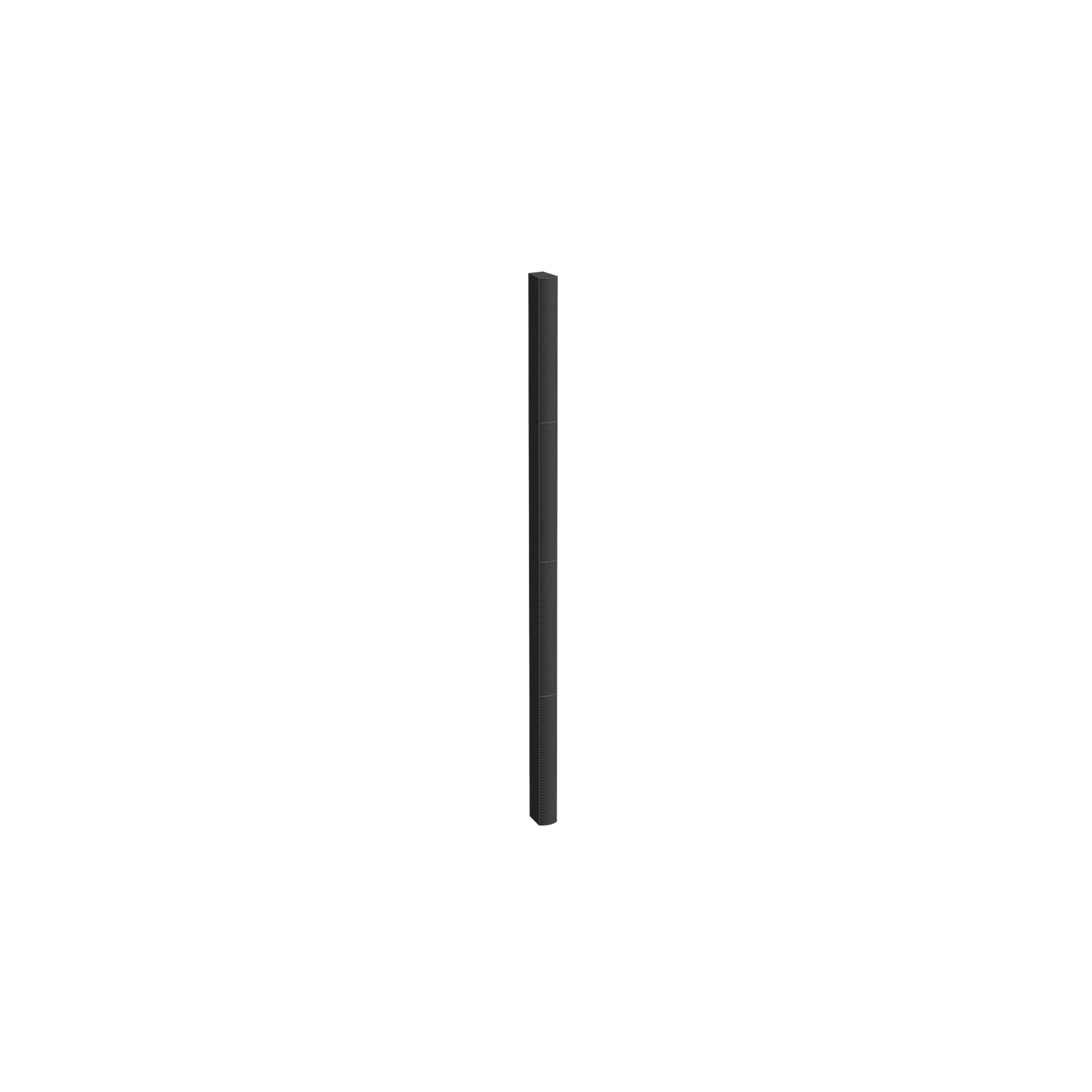

AtlasIED ALX-32D-B Digitally Steerable 32-Speaker Column Array Loudspeaker | Black

AtlasIED ALX-32D-B Digitally Steerable 32-Speaker Column Array Loudspeaker | Black

SoundPro Item: 204772 | Part Number: ALX-32D-B

Regular price $21,887.99
Regular price $27,360.99 Sale price $21,887.99
Your Price Sold out
MSRP: $27,360.99 | MAP: $21,887.99

Usually ships in 5-7 business days

  • Precise Vertical Steering For Difficult Rooms
  • Multibeam Control Supports Complex Coverage Goals
  • Dante And AES67 Enable Networked Audio Integration
  • Narrow Cabinet Suits Discreet Installed Applications
  • Integrated DSP And Amplification Reduce External Gear

The AtlasIED ALX-32D is a digitally steerable column array loudspeaker built for installed audio projects where speech clarity and controlled coverage are difficult to achieve. In large terminals, houses of worship, transportation hubs, and other reflective spaces, it helps system designers place energy on the audience area while reducing unwanted interaction with walls, ceilings, and other hard surfaces. Its narrow form factor also supports integration in architecturally sensitive environments.

Part of the Aimline ALX-D range, this model combines onboard DSP, amplification, IP connectivity, and Dante networking in a single loudspeaker platform. That approach simplifies deployment compared with systems that depend on added network bridges or external processing hardware. With independent DSP and amplifier channels for each transducer, the array supports highly granular beam optimization, adjustable acoustic center positioning, and spliteam operation where venue coverage requires multiple aim points.

The ALX-32D is designed for projects that demand intelligibility, remote management, and consistent performance across challenging listening areas. Integrated software supports real-time control, telemetry, and beam steering optimization, while compatibility with AtlasIED GLOBALCOM-related workflows can benefit critical messaging applications in public spaces. For integrators working on speech-focused systems, this model offers a compact but technically advanced solution for precise vertical directivity control.

View full details

Specifications

Audio
Frequency Response
60Hz - 18kHz, 107dB @ 30m
Audio Inputs
2 x Dante® / AES67 / 2 x analog line / 2 x AES / EBU
Sensitivity
15dBu RMS for rated output, analog
Low Frequency Beam Control Limit
200Hz
Amplifier
32 x PWM class-D 32 x DSP Channels
Transducers
32 x 4" Neodymium, full range. Coated NRSC fiberglass membrane
Beam Steering
Multibeam Capability
Typical Throw
270ft / 80m
Horizontal Dispersion
120° (- 6dB @ 1kHz – 8kHz)
Vertical Opening Angle
5° - 40° (digitally variable)
Vertical Steering
+40° to -40° (digitally variable)
Physical
Weight
88 lbs (40kg)
Dimensions (HxWxD)
127.9" x 4.7" x 6.6" (3248 x 119 x 167mm)
Power Supply
94 - 264V
Warranty Period
60 months from date of purchase
