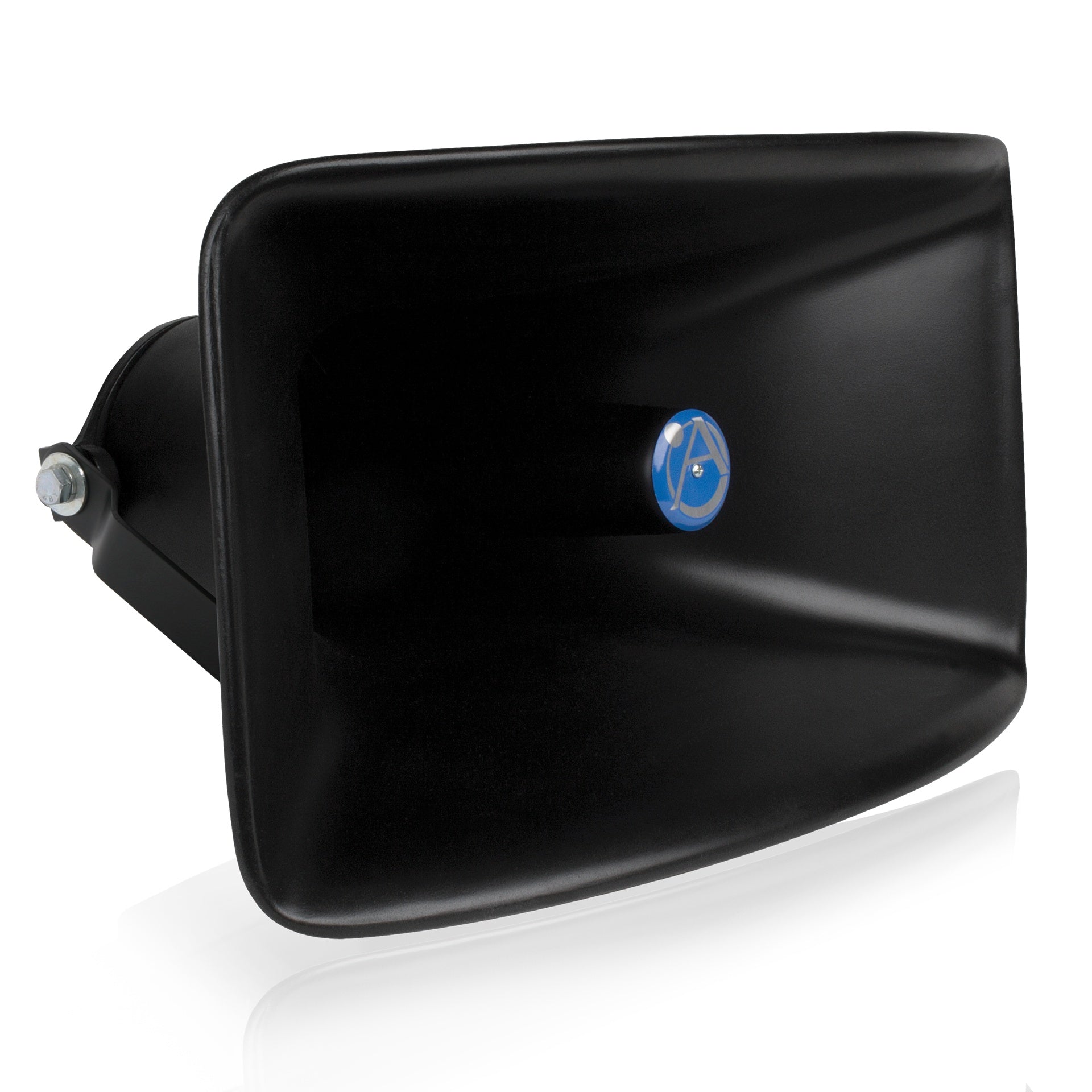

AtlasIED CJ-46 Wide Dispersion Reflex Sound Horn Black
AtlasIED CJ-46 Wide Dispersion Reflex Sound Horn Black
SoundPro Item: 14577 | Part Number: CJ-46
Usually ships in 5-7 business days
- 120° x 60° Dispersion Pattern Targets Wide Coverage With Directional Efficiency
- Fiberglass And Aluminum Construction Resists Environmental Stress Indoors And Outdoors
- Standard 1 3/8"-18 Male Threads Attach To AtlasIED PD And SD Series Drivers
- Rotatable 90° Bell Design Switches Horizontal And Vertical Projection Axes
- Heavy-Duty Steel Bracket With Positive Locking Enables Secure Multi-Unit Stacking
The CJ-46 is a wide-dispersion reflex sound horn engineered for touring, installed sound, and permanent outdoor audio systems where coverage area and penetration matter. It mounts directly to AtlasIED PD and SD Series compression drivers via standard 1 3/8"-18 male threads, giving system integrators a proven path to extended throw and high-directivity sound projection.
Built from non-resonant fiberglass with a spun aluminum re-entrant throat section, the CJ-46 resists environmental stress and maintains consistent tonal character across touring and fixed installations. The included steel mounting bracket locks securely in both horizontal and vertical orientations, and the bell rotates 90° with four 1/4" screws to switch the prime dispersion axis — critical for adapting to variable venue geometry or stacked multi-unit arrays without reconfiguring the driver itself.
Ideal for outdoor venues, sports complexes, and installations where ambient noise demands high-efficiency directional projection. The 120° x 60° pattern balances wide coverage with sufficient directivity to fight through crowd noise and weather.
