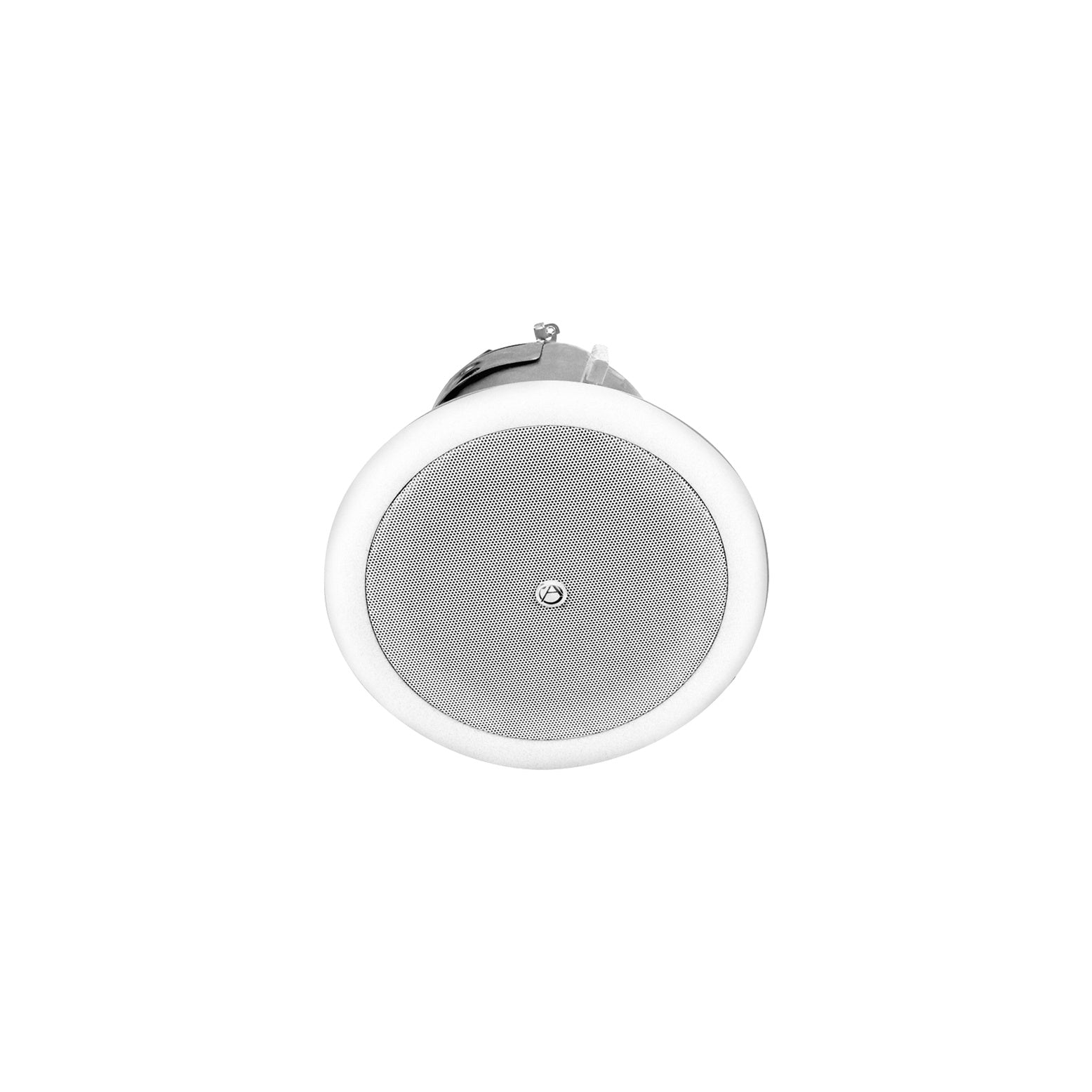

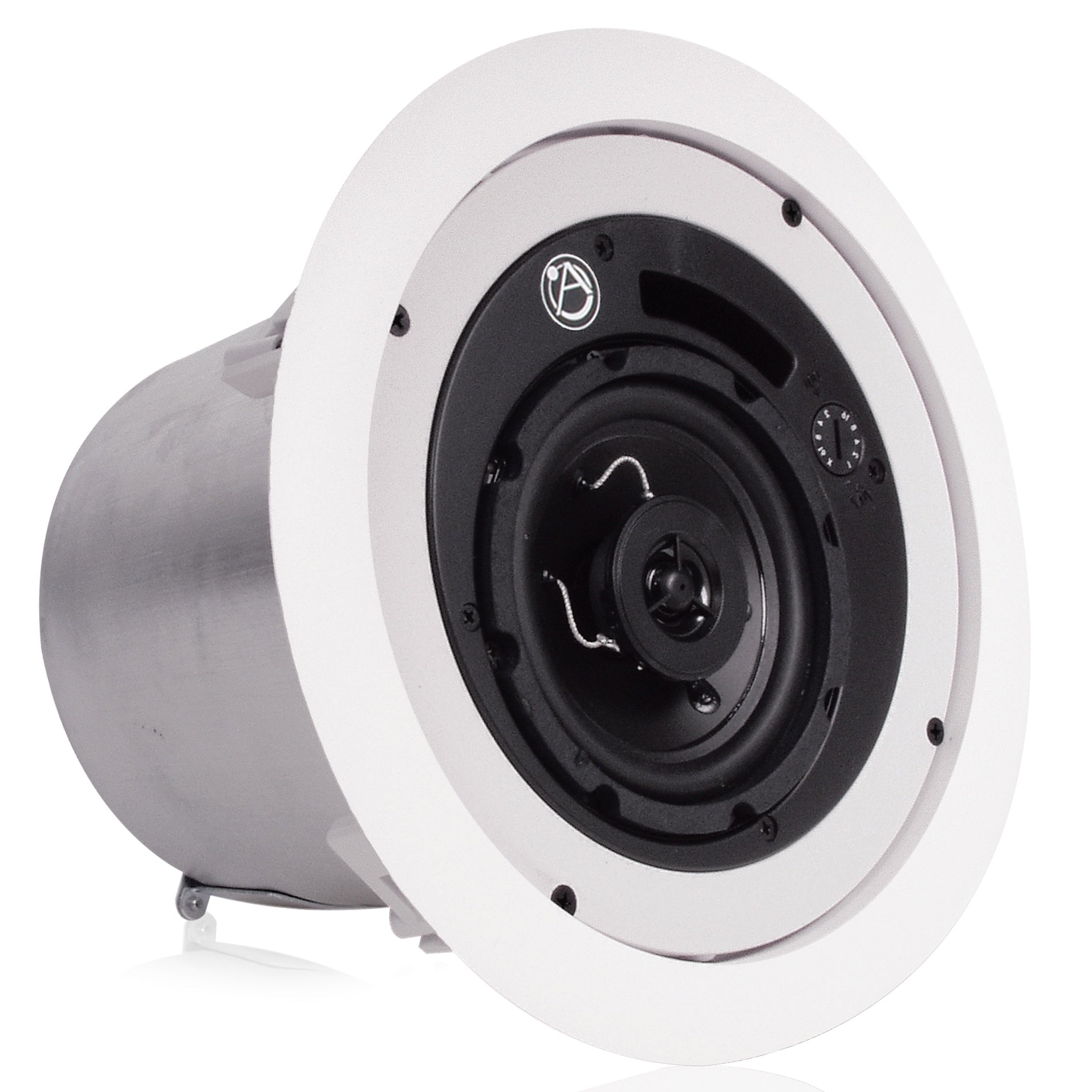

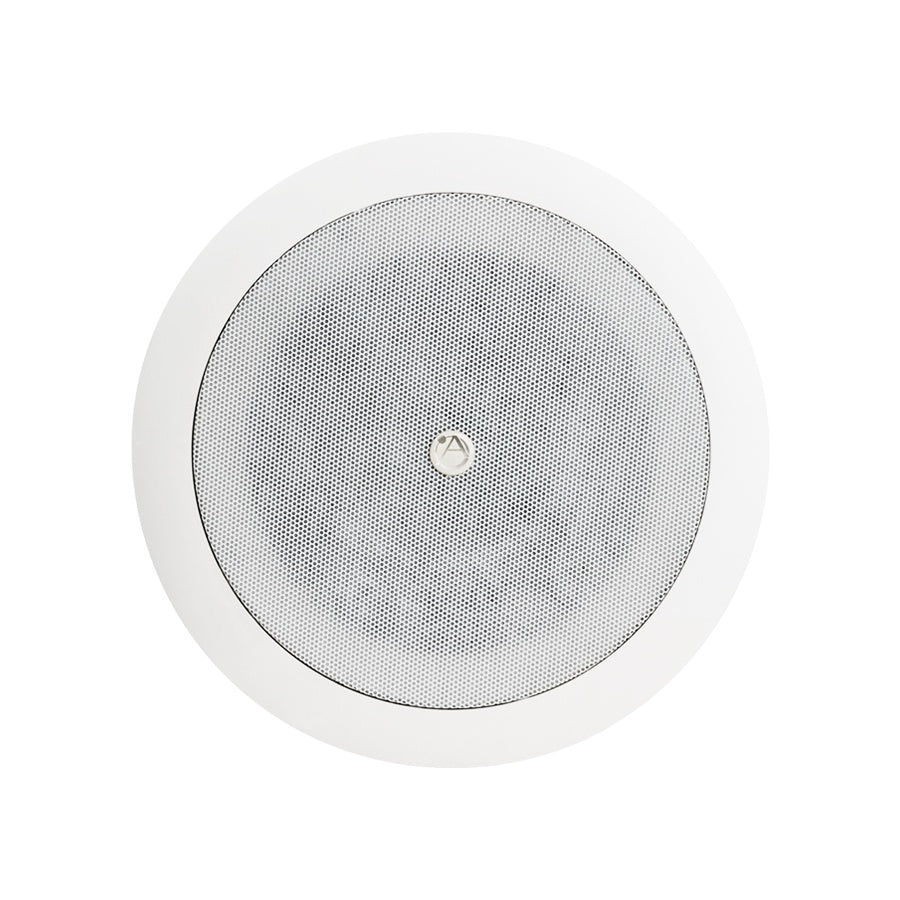

AtlasIED FAP42TEN 70V Ceiling Speaker With 130° Coverage

AtlasIED FAP42TEN 70V Ceiling Speaker With 130° Coverage

SoundPro Item: 204797 | Part Number: FAP42TEN

Regular price $252.99
Regular price $313.99 Sale price $252.99
Your Price Sold out
MSRP: $313.99 | MAP: $252.99

Usually ships in 5-7 business days

  • Wide 130° Dispersion Reduces Speaker Count
  • Front Tap Switch Speeds System Tuning
  • 8 Ohm Bypass Adds Installation Flexibility
  • Phoenix Connector Simplifies Pre-Wiring
  • Included Mounting Hardware Eases Ceiling Install
  • Press-Fit Grille Supports Clean Sightlines
  • EN54-24 Certified For Code-Driven Projects

The AtlasIED FAP42TEN is a ceiling speaker built for distributed audio systems that need wide coverage, flexible line matching, and efficient installation. Its 130° dispersion pattern helps cover low-ceiling spaces with fewer loudspeakers, making it a practical option for commercial paging and background music applications. The factory-assembled deep drawn enclosure is tuned and ported to support balanced performance, while the press-fit grille supports a clean architectural appearance.

For contractors and integrators, the FAP42TEN is designed to simplify field work. A 4-pole detachable Phoenix-style connector supports pre-wiring and daisy chaining, while the included C-ring, V-rail tile bridge, and dog leg mounting system accommodate drop tile and sheetrock ceilings. The front-mounted selector switch allows tap changes from below the ceiling and includes a bypass setting for 8 ohm direct-coupled operation, which is helpful when system requirements change during commissioning.

This model is also suited to projects where code-driven loudspeaker selection matters. EN54-24 and ISO 7240-24 certifications, along with IP21C ingress protection, support use in compliant life-safety and voice evacuation system designs where specified. Its internal 70.7V/100V transformer is engineered to minimize insertion loss and preserve low-frequency performance while supporting higher output demands.

View full details

Specifications

Speaker Type
Coaxial
Sensitivity
(1W/1m): 88dB
Sensitivity (EN54-24)
(1W/4m): 72dB
Power Taps
1, 2, 4, 8, 16 Watts & 8Ω
Frequency Response
83Hz - 20kHz (±5dB)
Dispersion
130°
Depth
8.86" (225mm)
Diameter
10.43" (265mm)
Cut Out Diameter
9" (229 mm)
Shipping Weight
12 lbs (5.44 kgs)
Warranty Period
60 months from date of purchase
