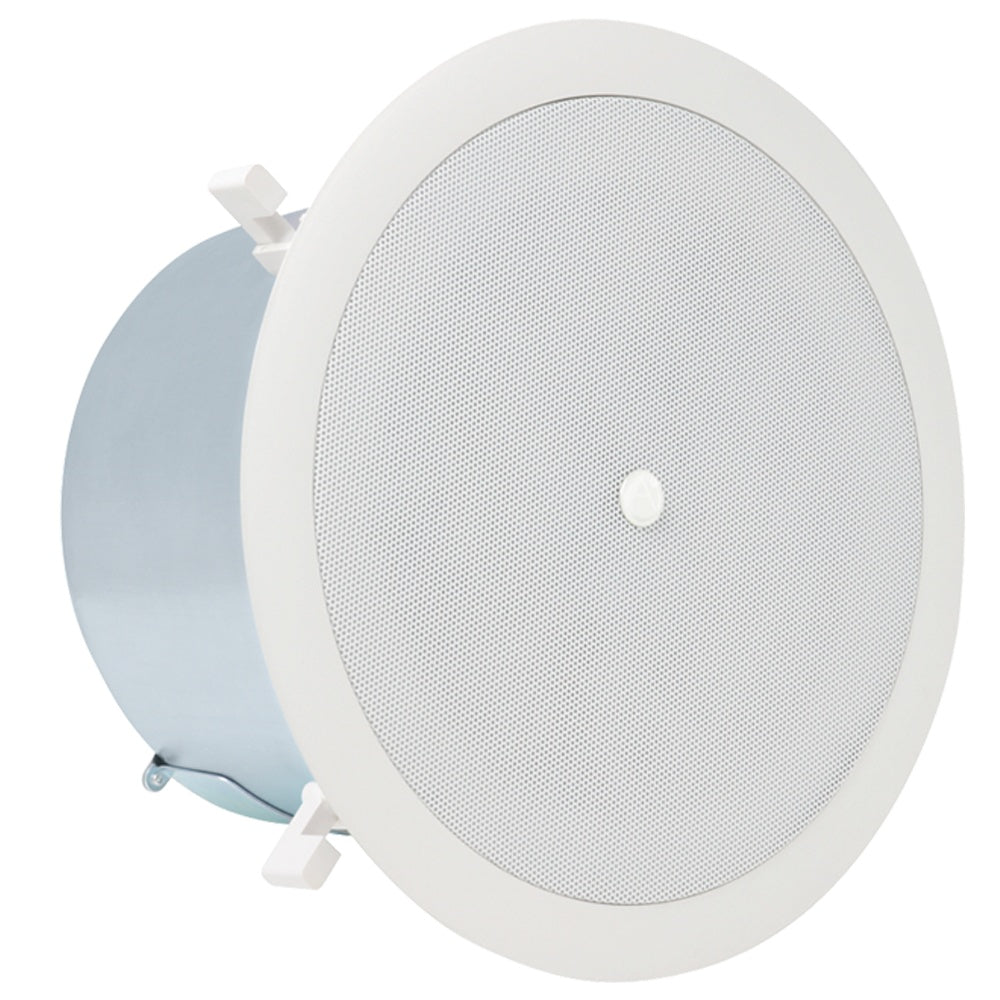

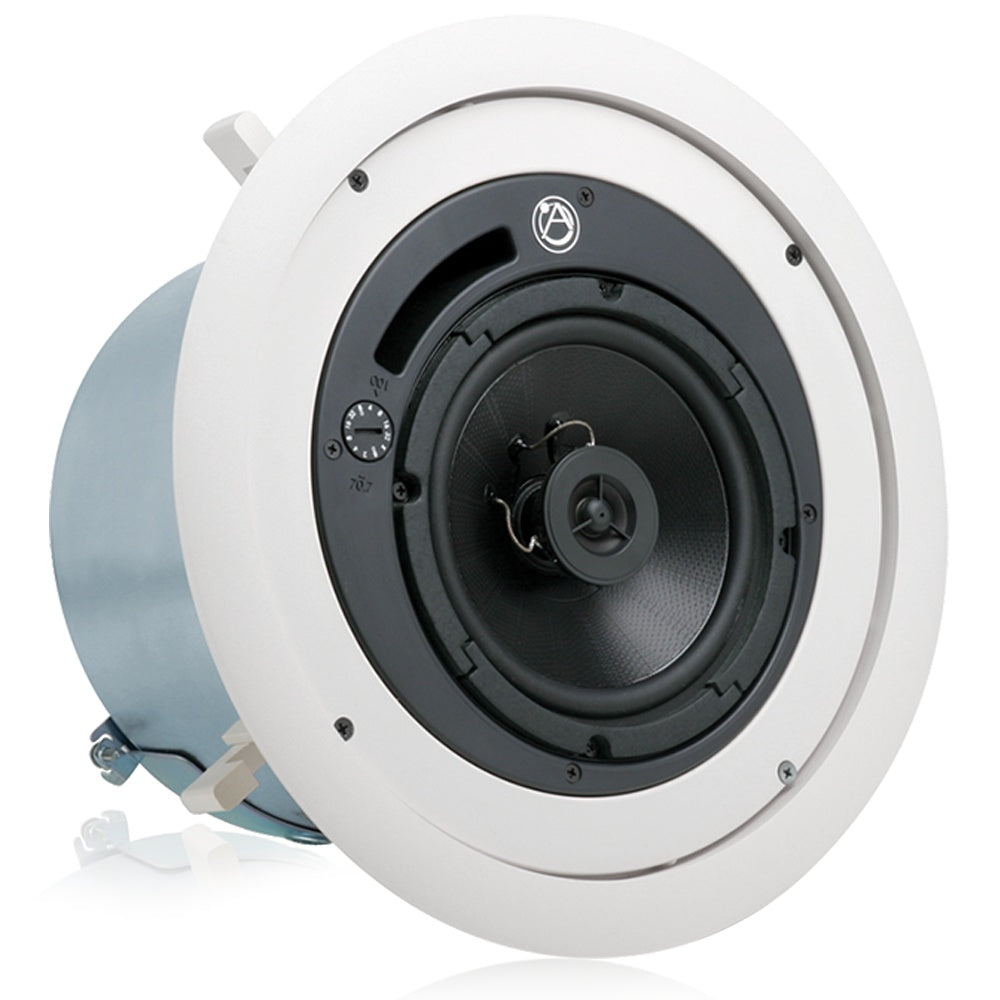

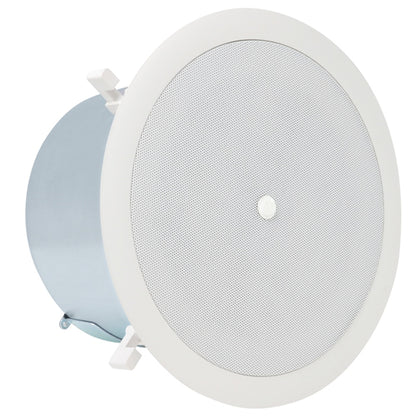

AtlasIED FAP62TEN 70V Ceiling Speaker With EN54-24

AtlasIED FAP62TEN 70V Ceiling Speaker With EN54-24

SoundPro Item: 204800 | Part Number: FAP62TEN

Regular price $312.99
Regular price $388.99 Sale price $312.99
Your Price Sold out
MSRP: $388.99 | MAP: $312.99

Usually ships in 5-7 business days

  • Wide 110° Coverage Helps Reduce Speaker Count
  • Front Tap Switch Speeds System Adjustments
  • 8Ω Bypass Adds Flexible System Integration
  • Phoenix Connector Simplifies Pre-Wiring Runs
  • Included Mounting Hardware Eases Ceiling Installs
  • Trap Door Input Supports Conduit Routing
  • Press-Fit Grille Suits Clean Architectural Finishes

The AtlasIED FAP62TEN is a ceiling speaker designed for distributed audio systems that need wide coverage, straightforward installation, and flexible line matching. Its 110° dispersion helps cover low-ceiling spaces more efficiently, which can reduce speaker count in paging and background music applications. EN54-24 and ISO 7240-24 certifications make it relevant for projects where code-driven fire and life-safety requirements are part of the specification.

For installers, the FAP62TEN is built to simplify field work. A 4-pole detachable Phoenix-style connector supports pre-wiring and daisy chaining, while the included C-ring/V-rail tile bridge and dog leg mounting system assist with drop-tile and sheetrock ceilings. The trap door input section accommodates conduit runs, and the front-mounted selector allows tap changes after installation without removing the unit from the ceiling.

The factory-assembled deep drawn, ported steel enclosure is paired with a 32 watt low saturation transformer for 70.7V/100V systems, plus an 8Ω bypass option for direct-coupled use. This combination makes the speaker suitable for commercial audio zones that require voicing consistency, efficient commissioning, and clean architectural integration.

View full details

Specifications

Speaker Type
Coaxial
Sensitivity (1W/1m)
88dB
Sensitivity (EN54-24)
(1W/4m): 74dB
Power Taps
2, 4, 8, 16, 32 Watts & 8Ω
Frequency Response
83Hz - 20kHz (±5dB)
Dispersion
110°
Depth
8.66" (220mm)
Diameter
12.40" (315mm)
Cut Out Diameter
11" (279mm)
Shipping Weight
14.9 lbs (6.759 kgs)
Warranty Period
60 months from date of purchase
