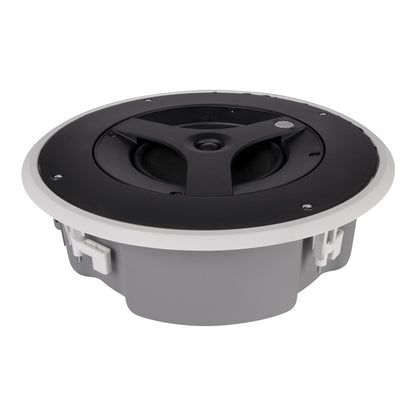

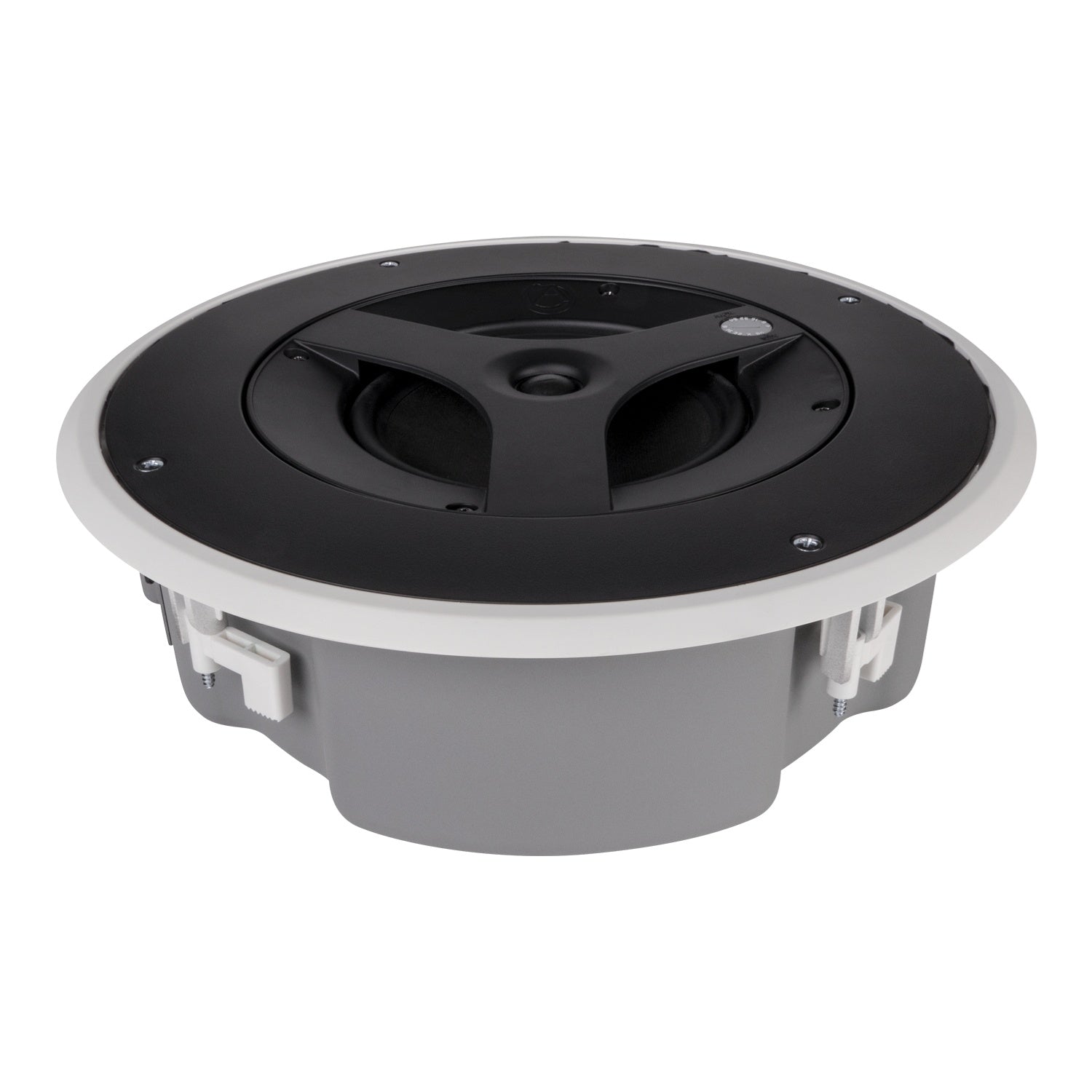

AtlasIED FAP63TC-W 6.5" Shallow Mount Coaxial In-Ceiling Speaker

AtlasIED FAP63TC-W 6.5" Shallow Mount Coaxial In-Ceiling Speaker

SoundPro Item: 115978 | Part Number: FAP63TC-W

Regular price $212.99
Regular price $262.99 Sale price $212.99
Your Price Sold out
MSRP: $262.99 | MAP: $212.99

Usually ships in 5-7 business days

  • Enhanced 70V/100V Transformer Minimizes Signal Loss During Distribution
  • Improved Waveguide Increases Dispersion For Wider Coverage

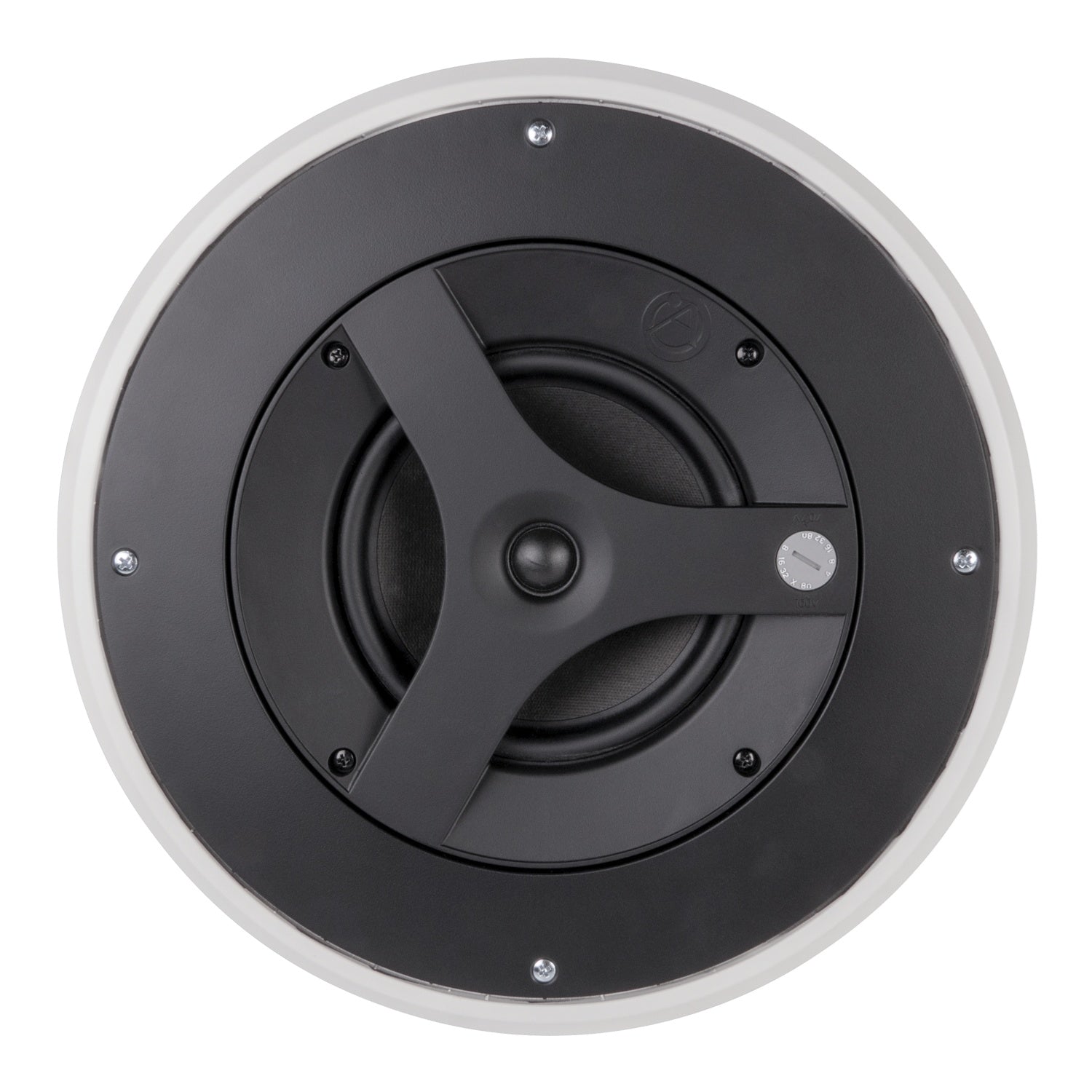

  • Front-Mounted Tap Selector Enables Quick Field Power Adjustments
  • Detachable Phoenix Connector Supports Pre-Wiring And Daisy Chaining

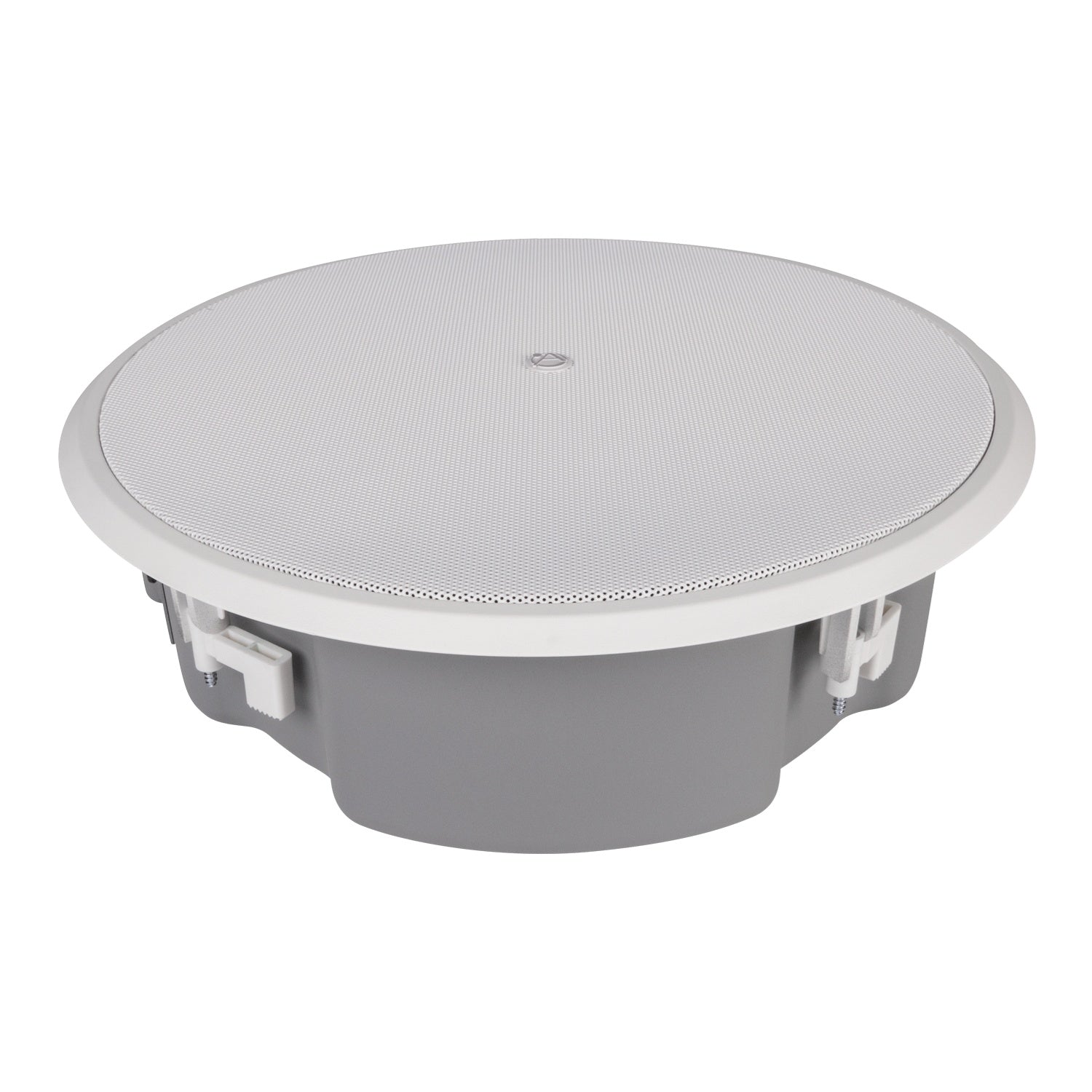

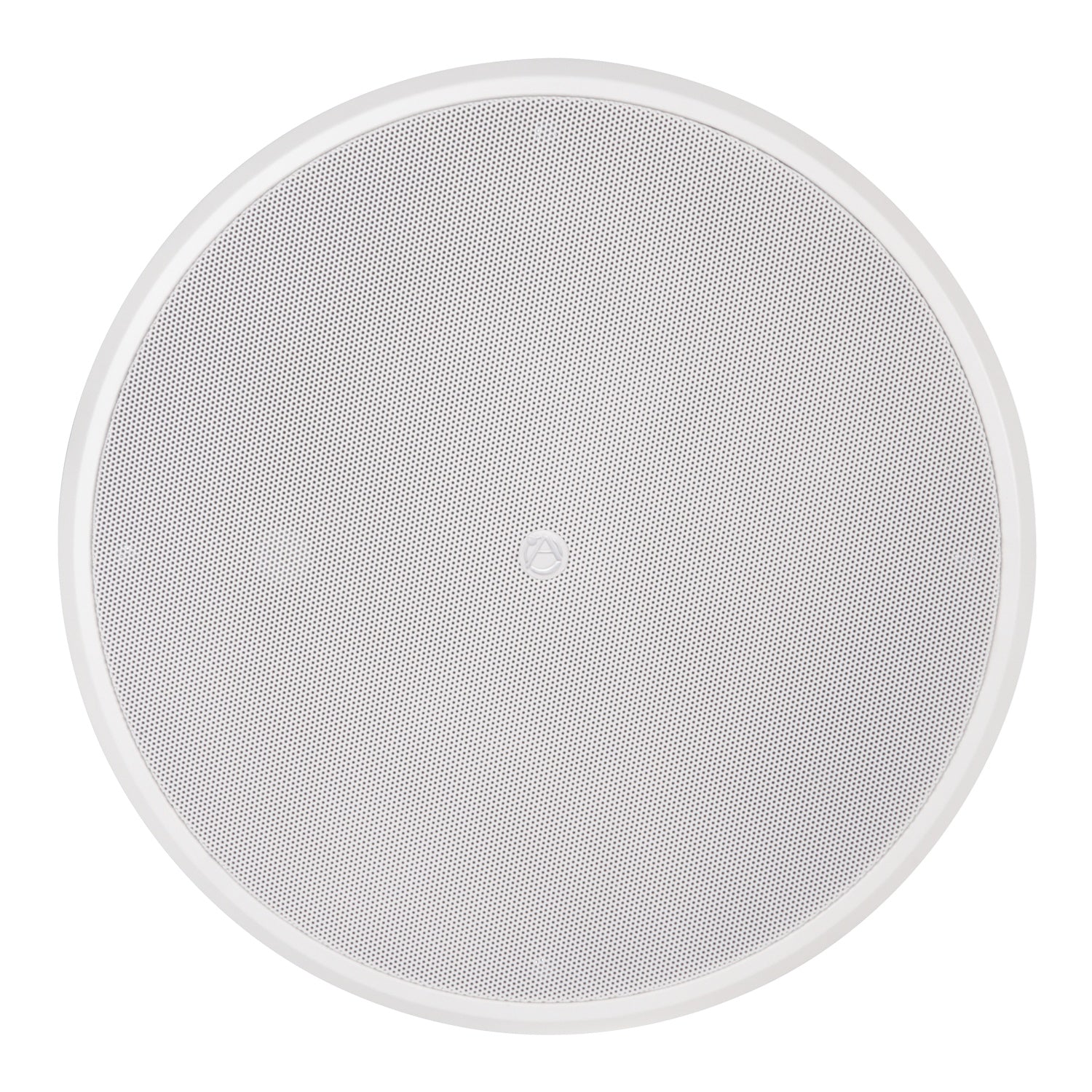

  • Press-Fit Grille Design Integrates Seamlessly Into Contemporary Ceilings

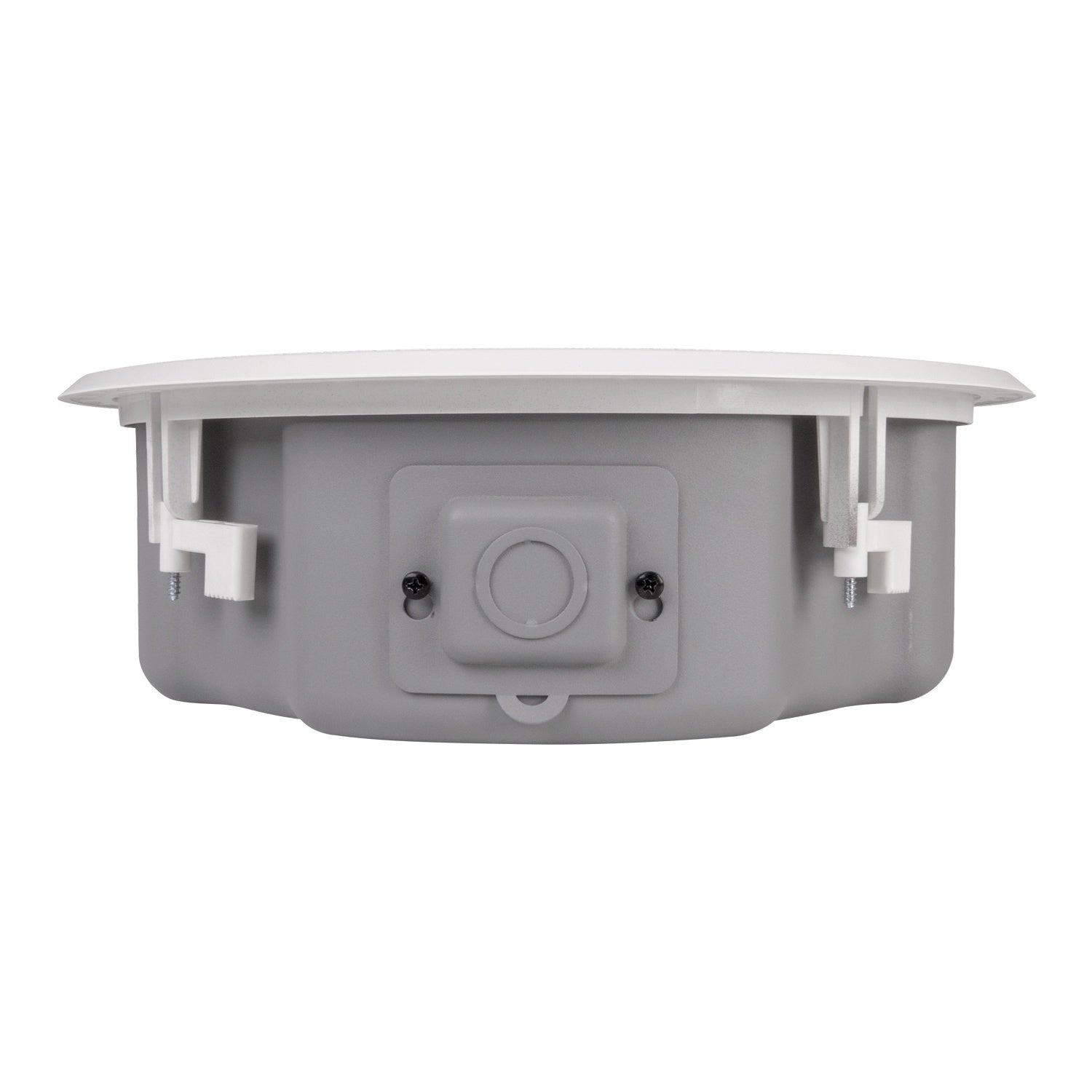

  • Trap-Door Input Section Routes Conduit Without Speaker Removal

The Strategy III FAP63TC-W addresses the modern commercial audio requirement for superior sound quality in shallow-ceiling installations. Its 6.5" coaxial driver and enhanced waveguide provide 110° dispersion, enabling uniform coverage across retail floors, dining venues, hospitality spaces, and convention facilities with fewer speakers than conventional models. The improved design reduces system cost while maintaining consistent acoustic performance throughout the space.

Built for integrators and system designers, this speaker combines professional-grade sound reproduction with practical installation features. The 3.81" shallow mounting depth accommodates tight structural constraints common in retrofit and new construction projects. The front-mounted 70V tap selector enables field adjustment without speaker removal, while the detachable 4-pole Phoenix connector supports pre-wiring and daisy-chaining workflows. A trap-door input section permits through-conduit runs, simplifying rough-in logistics on job sites.

Safety-listed to UL1480a and UL2043, with options for 70V, 100V, or direct 8-ohm operation, the FAP63TC-W serves touring rental integrators, permanent installations, and fixed systems requiring compliance-certified audio solutions.

Downloads

View full details

Specifications

Speaker
Speaker Type
Coaxial
Sensitivity
90dB (1W/1m)
Frequency Response
80Hz - 20kHz
Dispersion
110°
Power
Power Taps
4, 8, 16, 32 Watts & 8Ω
8Ω RMS Power
75 Watts Continuous / 150 Watts Program
Dimensions
Mounting Depth
3.81"
Certifications
Safety Listing
UL1480a & UL2043
Warranty
Warranty Period
60 months from date of purchase
