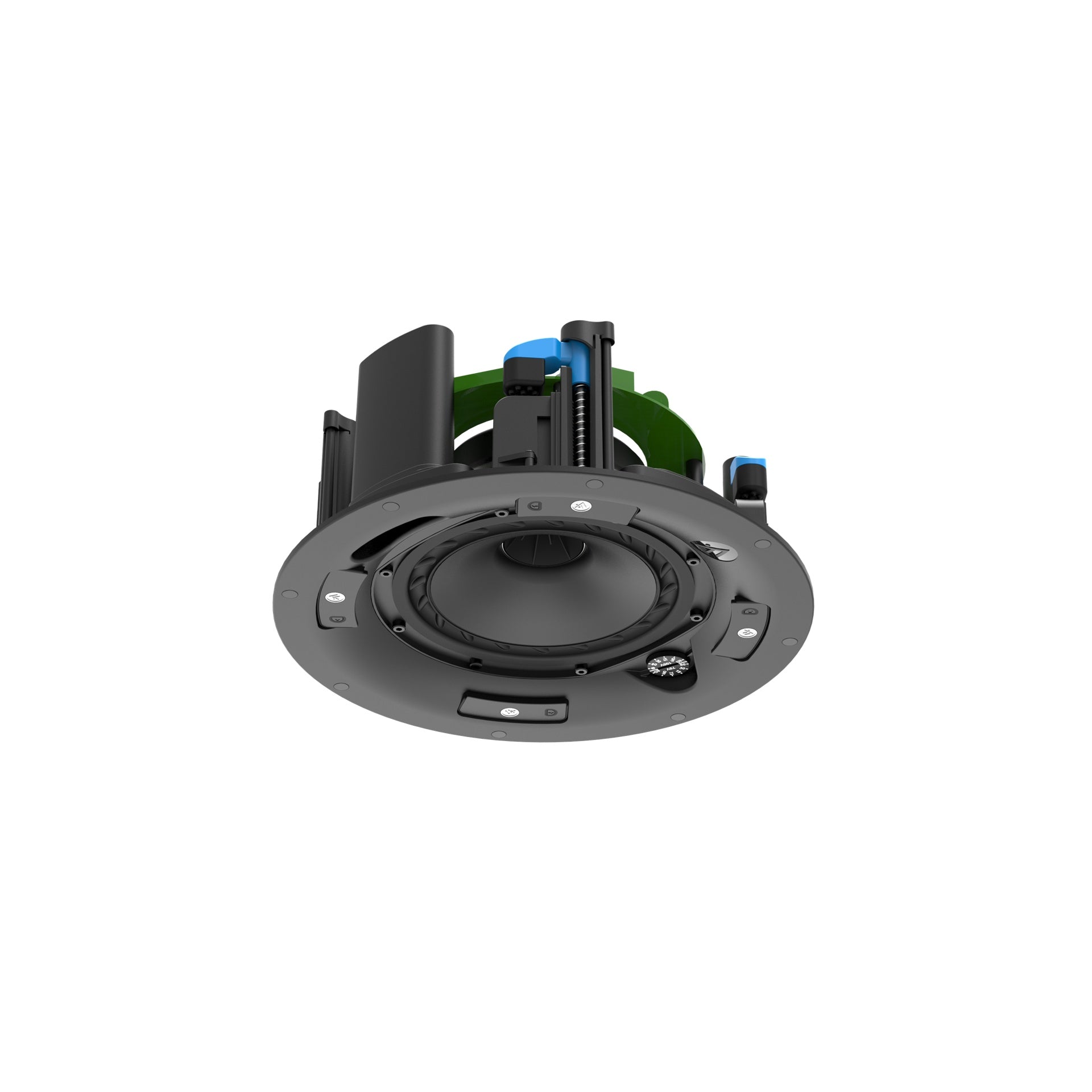

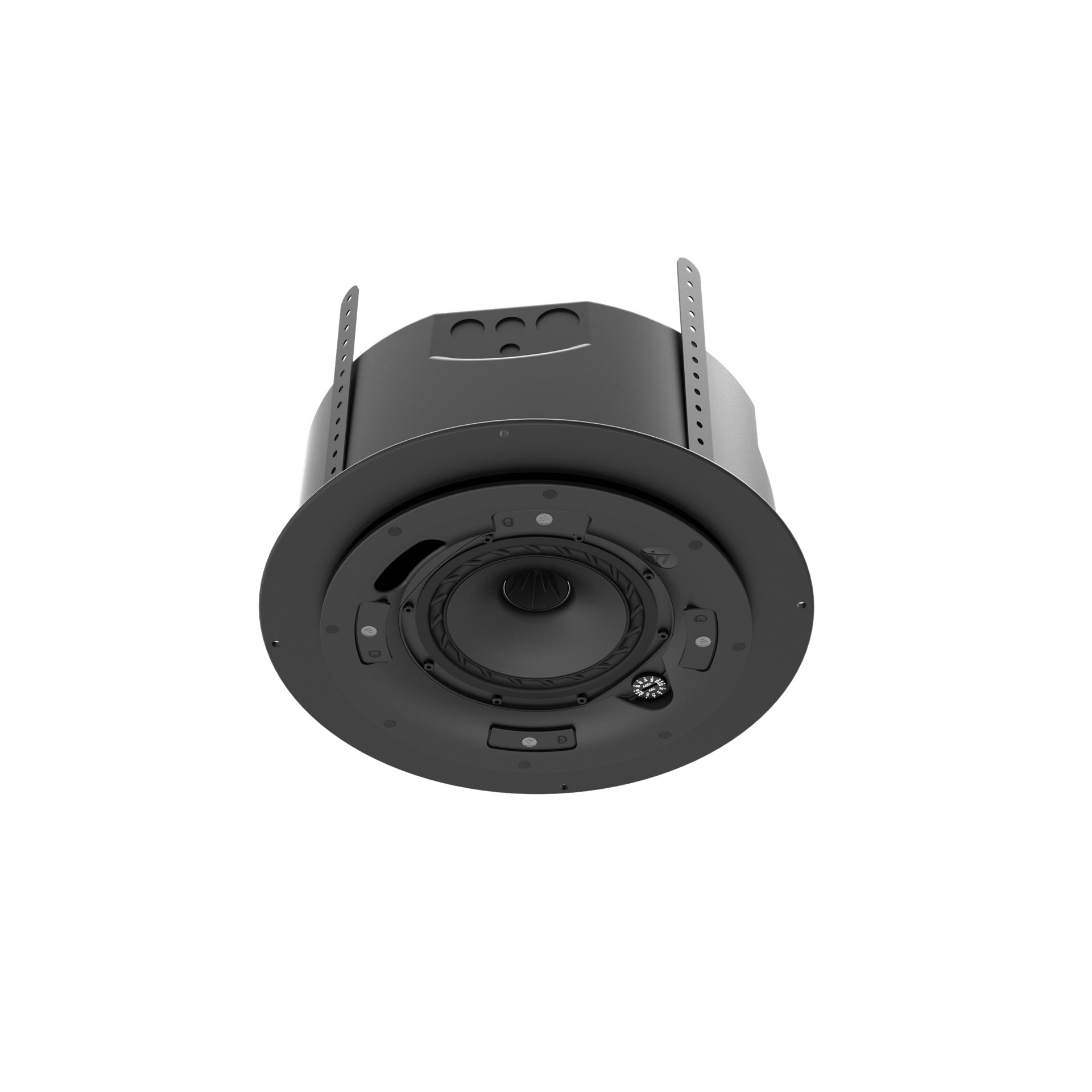

AtlasIED FC-6T 6" Premium Ceiling Speaker (Pre-Install)

AtlasIED FC-6T 6" Premium Ceiling Speaker (Pre-Install)

SoundPro Item: 204918 | Part Number: FC-6TPI

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

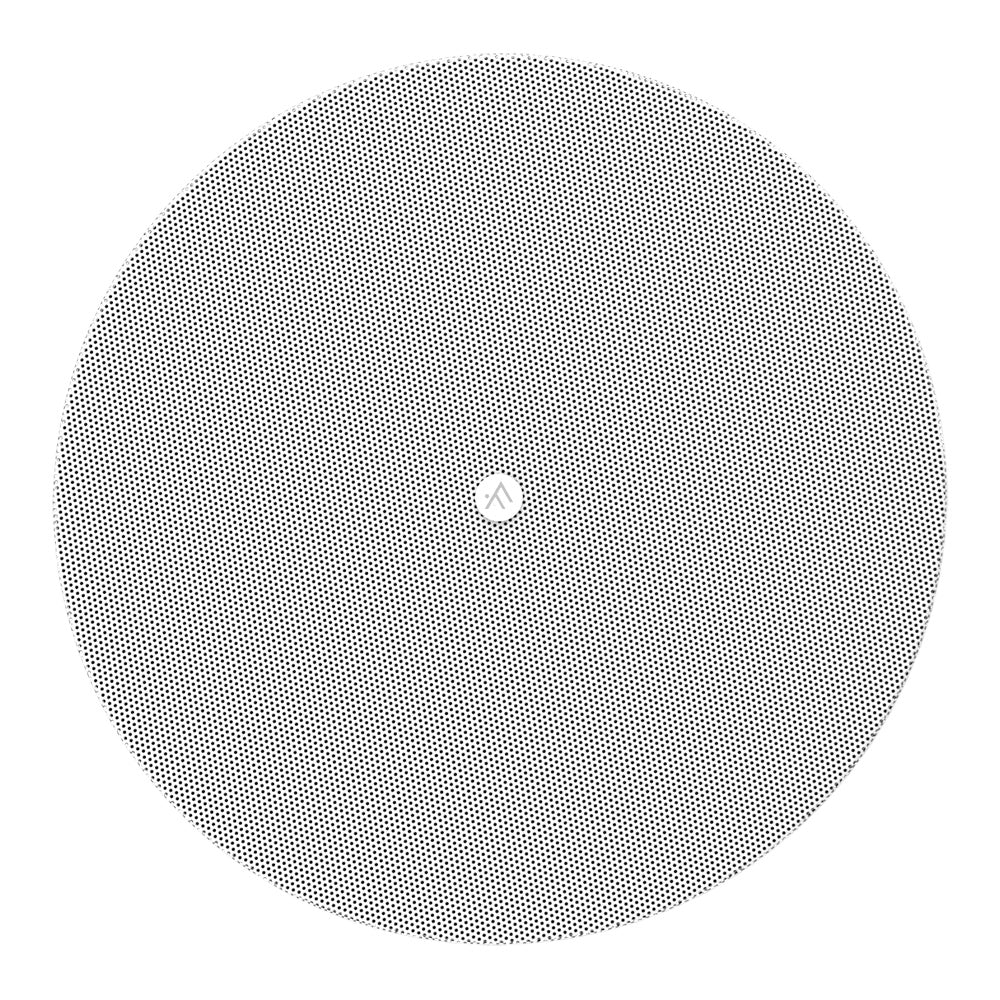

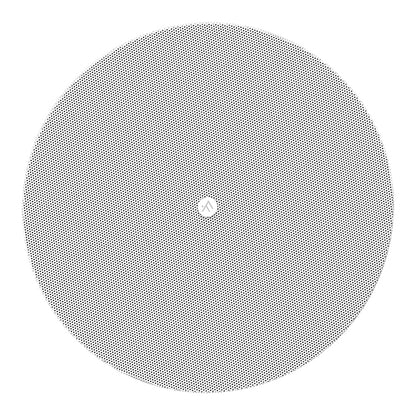

  • Bezel-Less Grille Supports Clean Architectural Finish
  • Magnetic Grille Enables Fast Service Access
  • Rotary Tap Selector Simplifies Distributed Audio Setup
  • Point Source Design Promotes Even Room Coverage
  • Premium Crossover Parts Support Refined Audio Performance

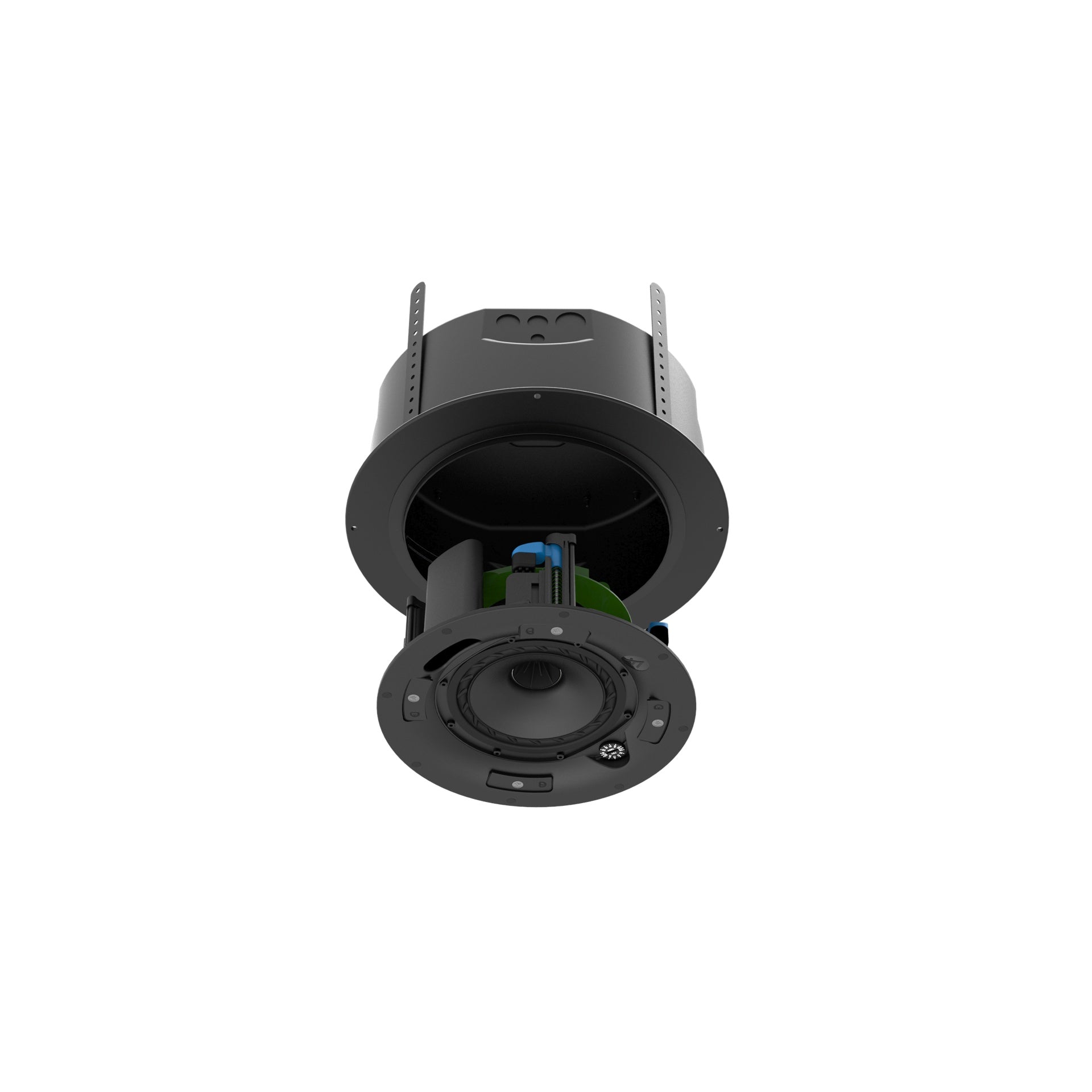

  • Pre-Install Format Protects Components During Construction

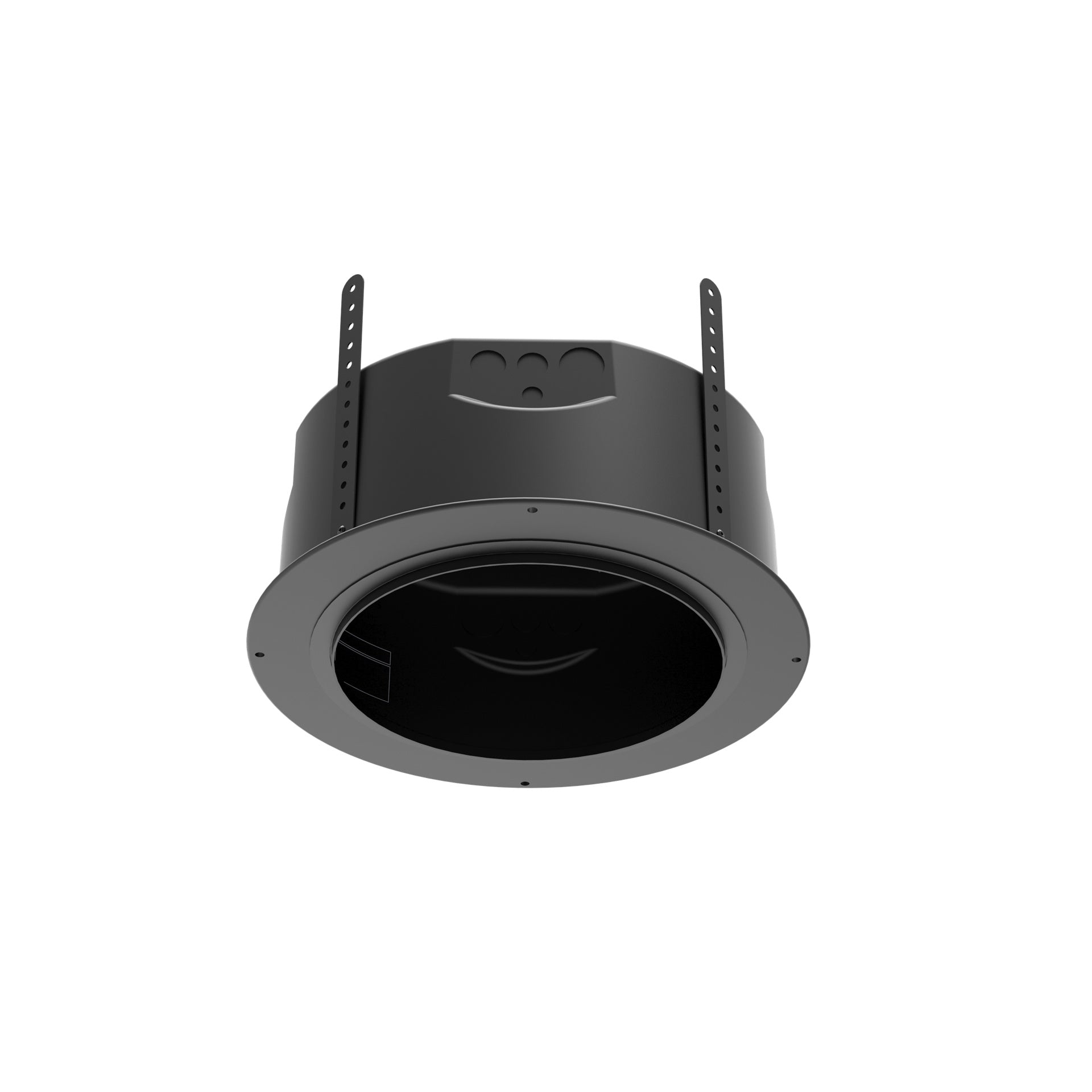

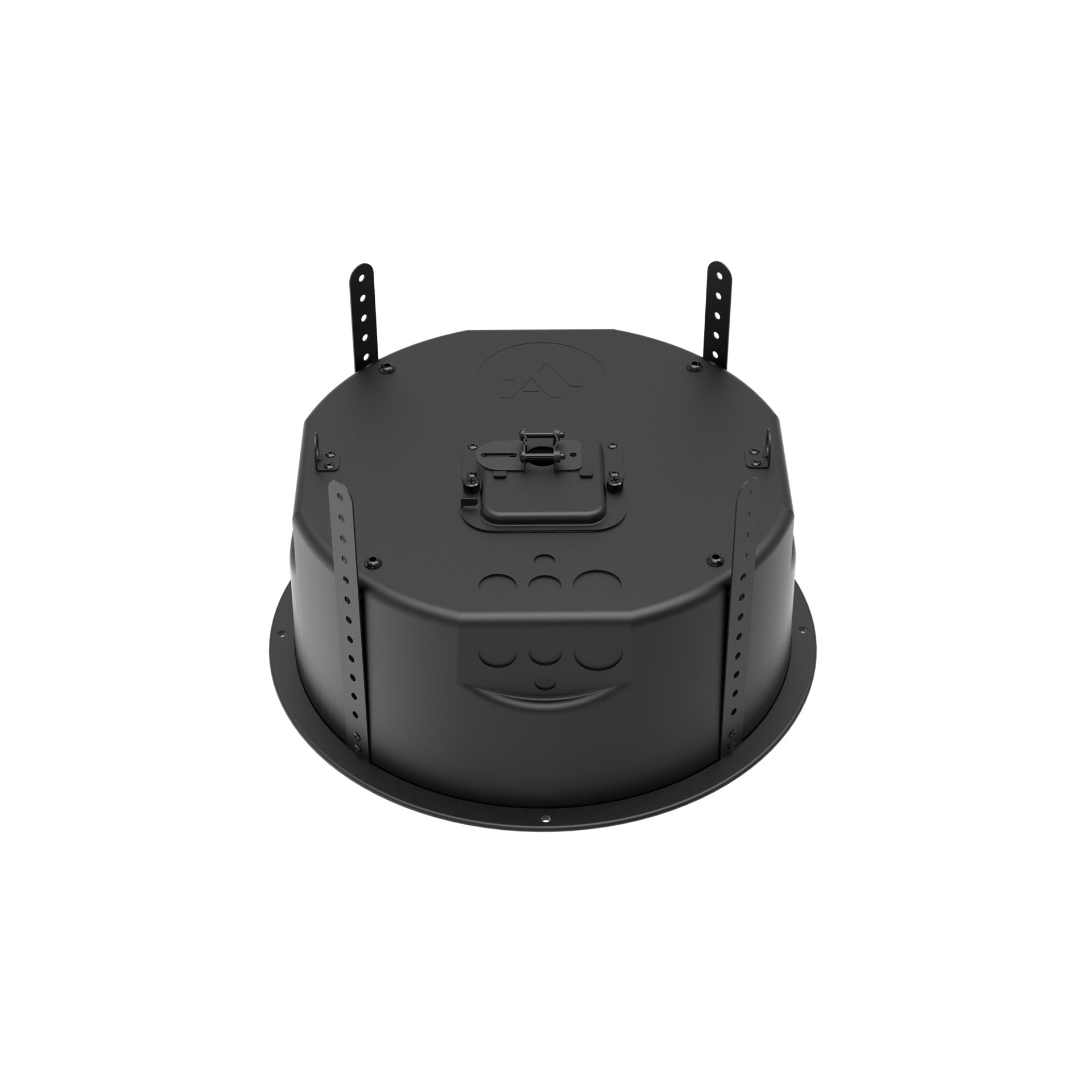

The AtlasIED FC-6T Pre-Install is a two-way full-range ceiling loudspeaker built for projects where the backcan is installed during early construction and the loudspeaker components are added later. This approach helps protect visible and acoustic elements during the rough-in phase while supporting a cleaner workflow for commercial AV installations. With its wide bandwidth design, high sensitivity, and point source architecture, it is well suited for environments that need consistent music playback and clear speech reinforcement.

This model is designed for premium commercial spaces where coverage, tonal accuracy, and appearance all matter. A bezel-less magnetic grille with removable logo supports a refined finish, while the smooth baffle design helps maintain uniform performance across the listening area. The integrated 60W 70/100V transformer with low insertion loss and rotary tap selector gives integrators flexibility for distributed audio systems, with low-impedance operation also available when system design calls for it.

The FC-6T Pre-Install also incorporates a ferrofluid cooled titanium high-frequency section with neodymium magnet system, weather-treated multi-fiber cone construction, and premium crossover components. These design choices support reliable operation and balanced reproduction in architecturally sensitive venues, meeting rooms, hospitality spaces, and other installations where sonic quality and streamlined integration are both priorities.

View full details

Specifications

Performance
Frequency Range (-10dB)
50Hz - 20kHz
Frequency Response (+/- 3dB)
62Hz - 19kHz
System Sensitivity (1W @ 1m)
91dB
Directivity Index (dB)
5.6
Coverage
Noise
100°
Power
Average
80W
Programme
160W
Peak
320W
Recommended Amplifier Power
160W @ 8 Ohms
Nominal Impedance
8 Ohms
Transformer Taps - Via Rotary Selector Switch
60W, 30W, 15W (7.5W 70V) & Low Z operation
Maximum SPL
Average
110dB
Peak
116dB
Width
109dB
Warranty
Warranty Period
60 months from date of purchase
