AtlasIED FC-8T 8" Premium Ceiling Speaker (Pre-Install)

AtlasIED FC-8T 8" Premium Ceiling Speaker (Pre-Install)

SoundPro Item: 204919 | Part Number: FC-8TPI

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Pre-Install Design Helps Protect Components On Site
  • Magnetic Bezel-Less Grille Supports Clean Finishes
  • Rotary Tap Selector Speeds Distributed Audio Setup
  • Point Source Design Promotes Even Room Coverage
  • Titanium HF Driver Supports Detailed Highs
  • Premium Crossover Parts Aid System Accuracy
  • Atmosphere Voicing Presets Expand Tuning Options

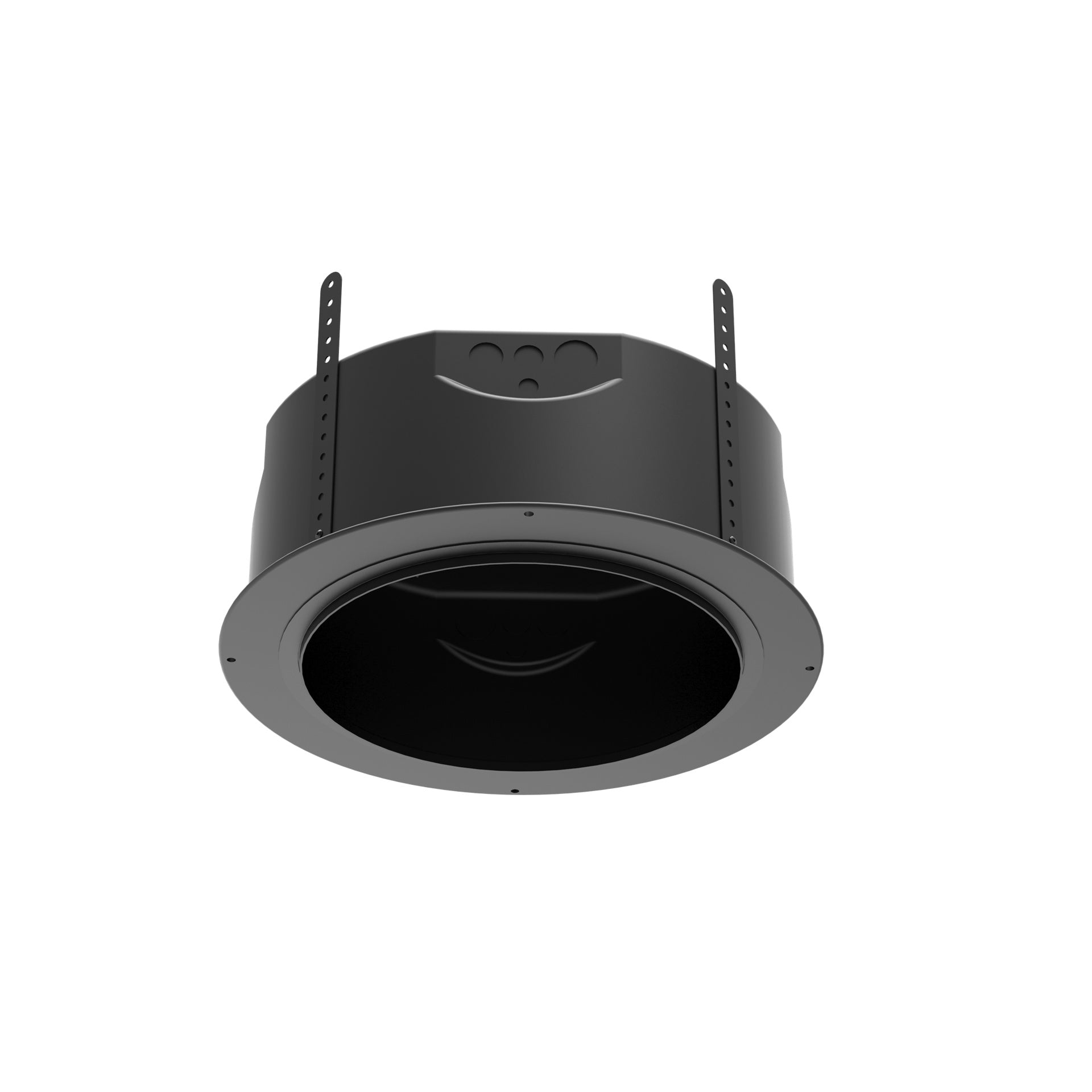

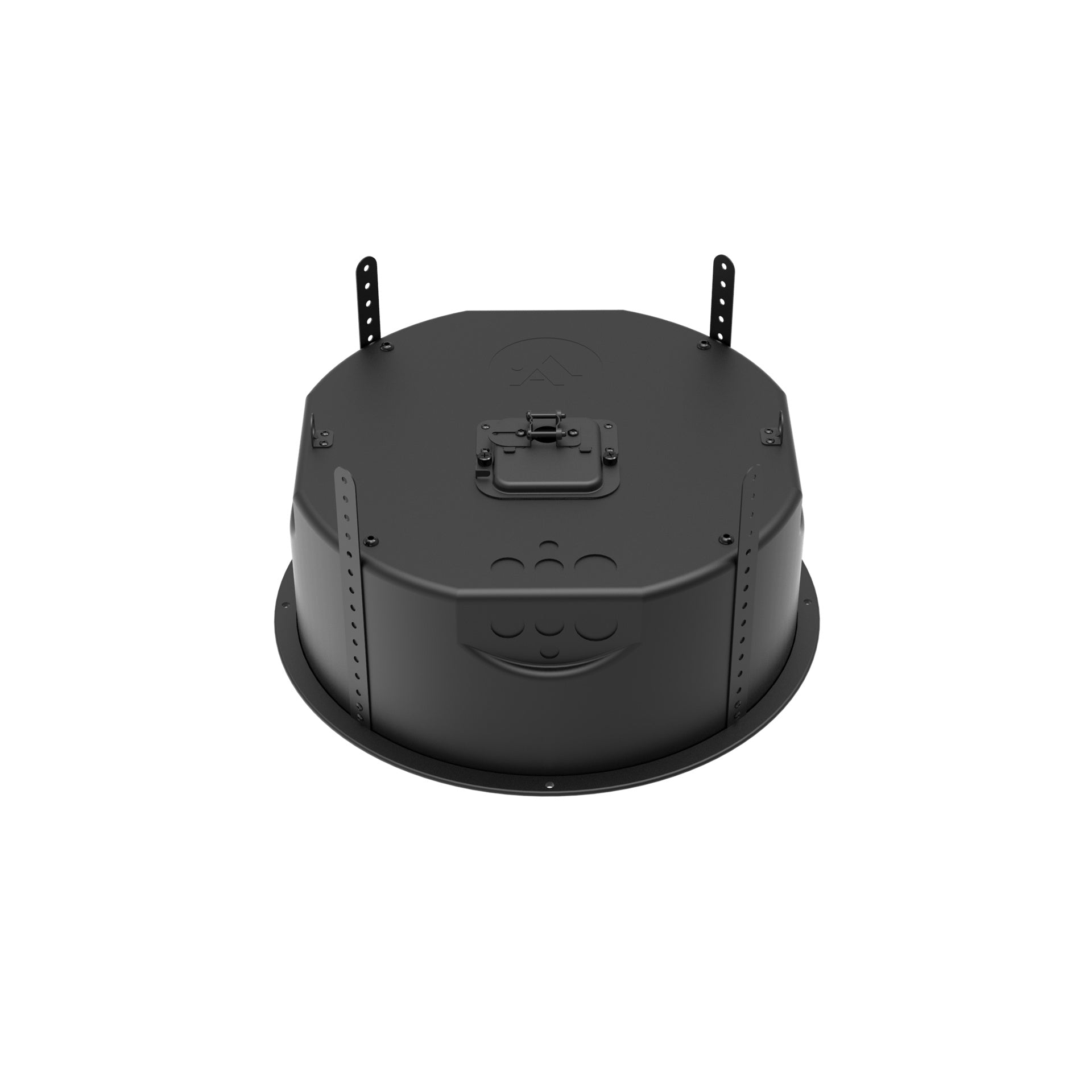

The AtlasIED FC-8T Pre-Install is a two-way full-range ceiling loudspeaker built for projects that require a backcan-first installation approach. It is intended for commercial environments where integrators need to complete the first fix during electrical rough-in, while protecting the loudspeaker components until the final stage of construction. This makes it well suited to premium fit-outs where both installation workflow and finished-room appearance matter.

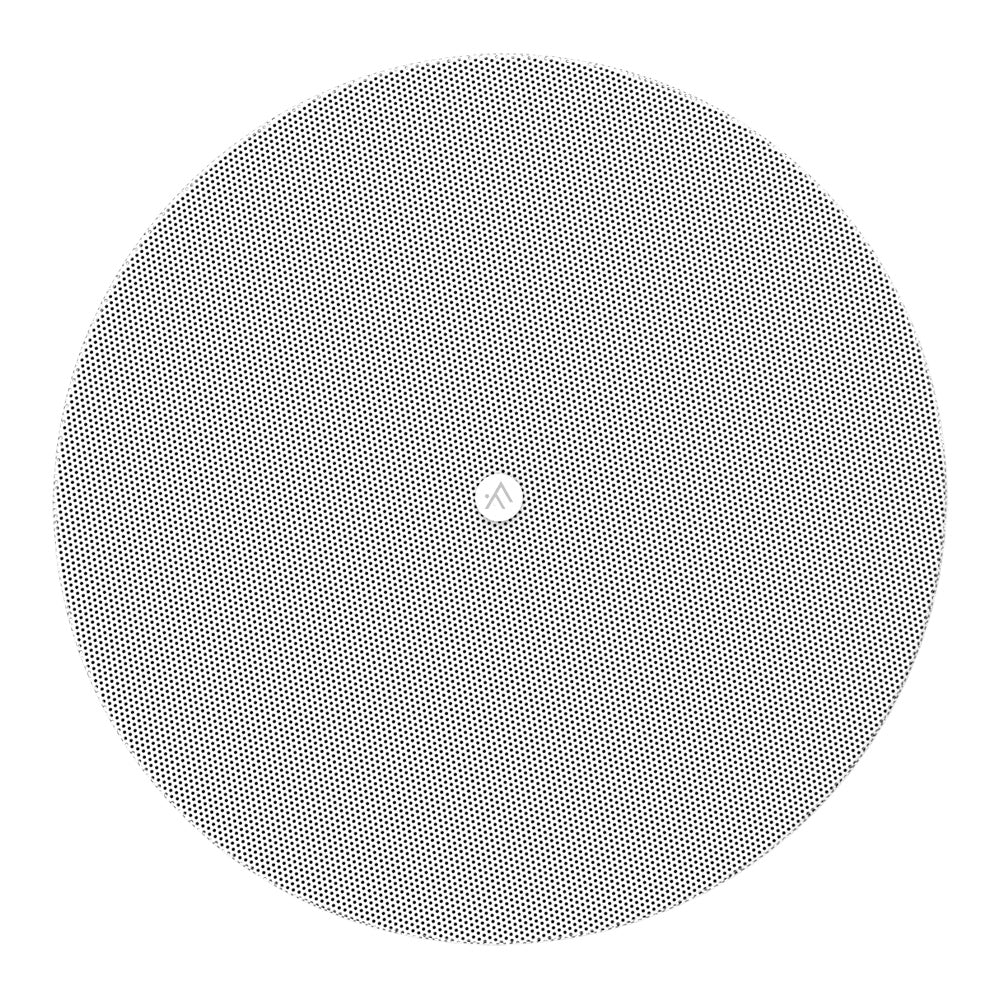

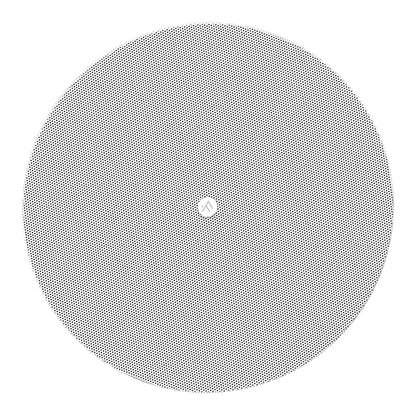

Its IsoFlare point source design is aimed at delivering consistent coverage and natural reproduction across the listening area, helping support both foreground music and clear speech reinforcement. A bezel-less magnetic grille with removable logo supports a clean architectural finish and simplifies painting when needed. The design also avoids the need for adapter hardware when optional square grilles are used, which can help streamline specification decisions in design-driven spaces.

For distributed audio systems, the built-in 60W 70/100V transformer supports multiple tap settings plus low-impedance operation through a rotary selector switch. AtlasIED also notes enhanced voicing presets via the Atmosphere platform, giving system designers another tuning option when deploying the speaker in managed commercial audio environments. For projects needing more low-frequency extension, AtlasIED references the matching FC-8ST ceiling subwoofer.

View full details

Specifications

Performance
Frequency Range (-10dB)
44Hz - 30kHz
Frequency Response (+/- 3dB)
59Hz - 25kHz
System Sensitivity (1W @ 1m)
92dB
Nominal Coverage Angle (-6dB)
90°
Directivity Index (dB)
7.5
Power
Average
90W
Programme
180W
Peak
360W
Recommended Amplifier Power
180W @ 8 Ohms
Nominal Impedance
8 Ohms
Transformer Taps - Via Rotary Selector Switch
60W, 30W, 15W (7.5W 70V) & Low Z operation
Maximum SPL
Average
112dB
Peak
118dB
With Max. Transformer Tap - Average
110dB
Warranty
Warranty Period
60 months from date of purchase
