AtlasIED IED570CDT-H Wired Intercom Touch Screen Station

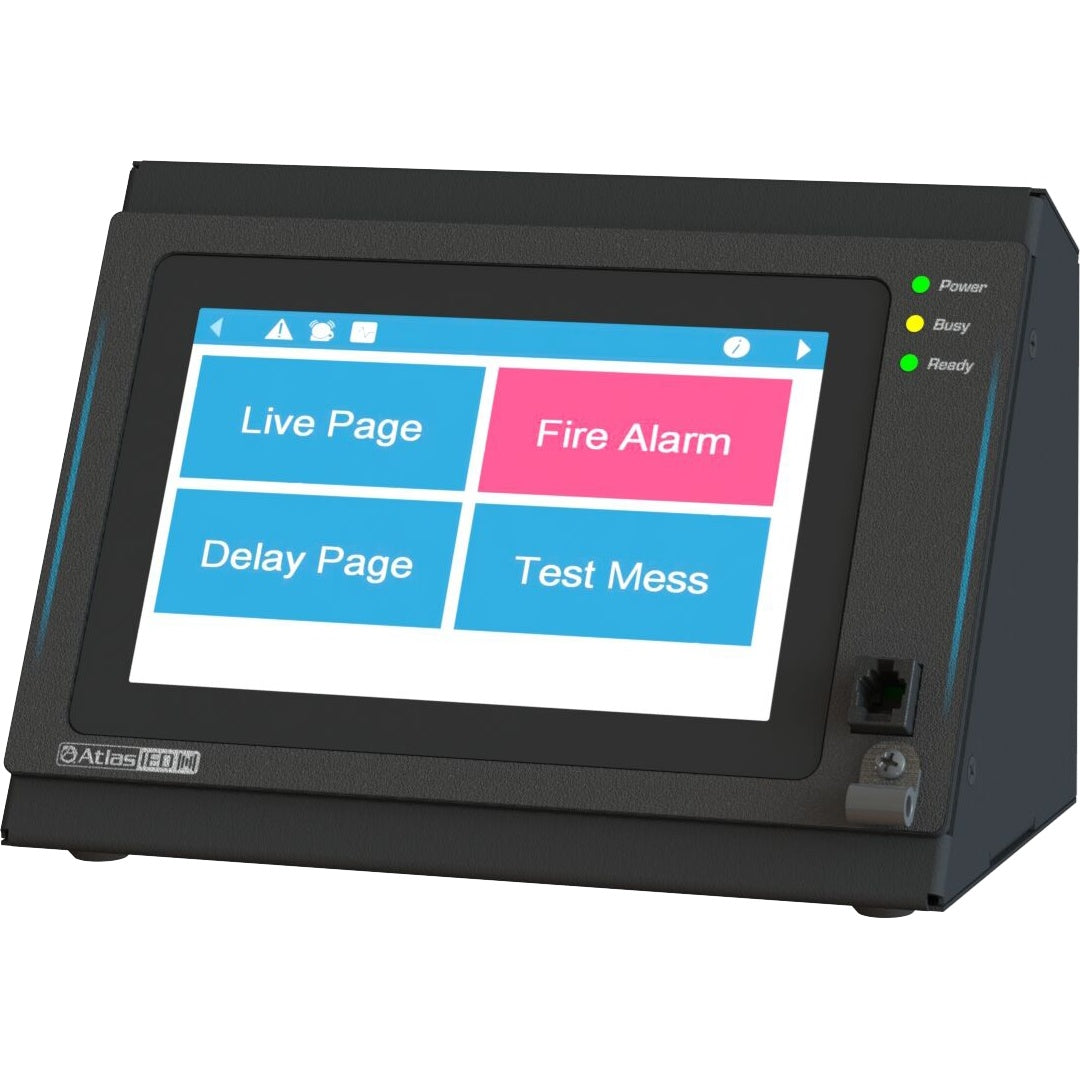

The AtlasIED IED570CDT-H is a wired intercom communication station designed for use with GLOBALCOM Series announcement control systems. Built as a programmable touch screen user interface, it gives operators a practical way to initiate audio and visual announcements, messages, and paging functions from a single station. For installed audio environments where clear communication and dependable daily operation matter, this model is suited to control points in commercial, institutional, and campus-wide paging systems.

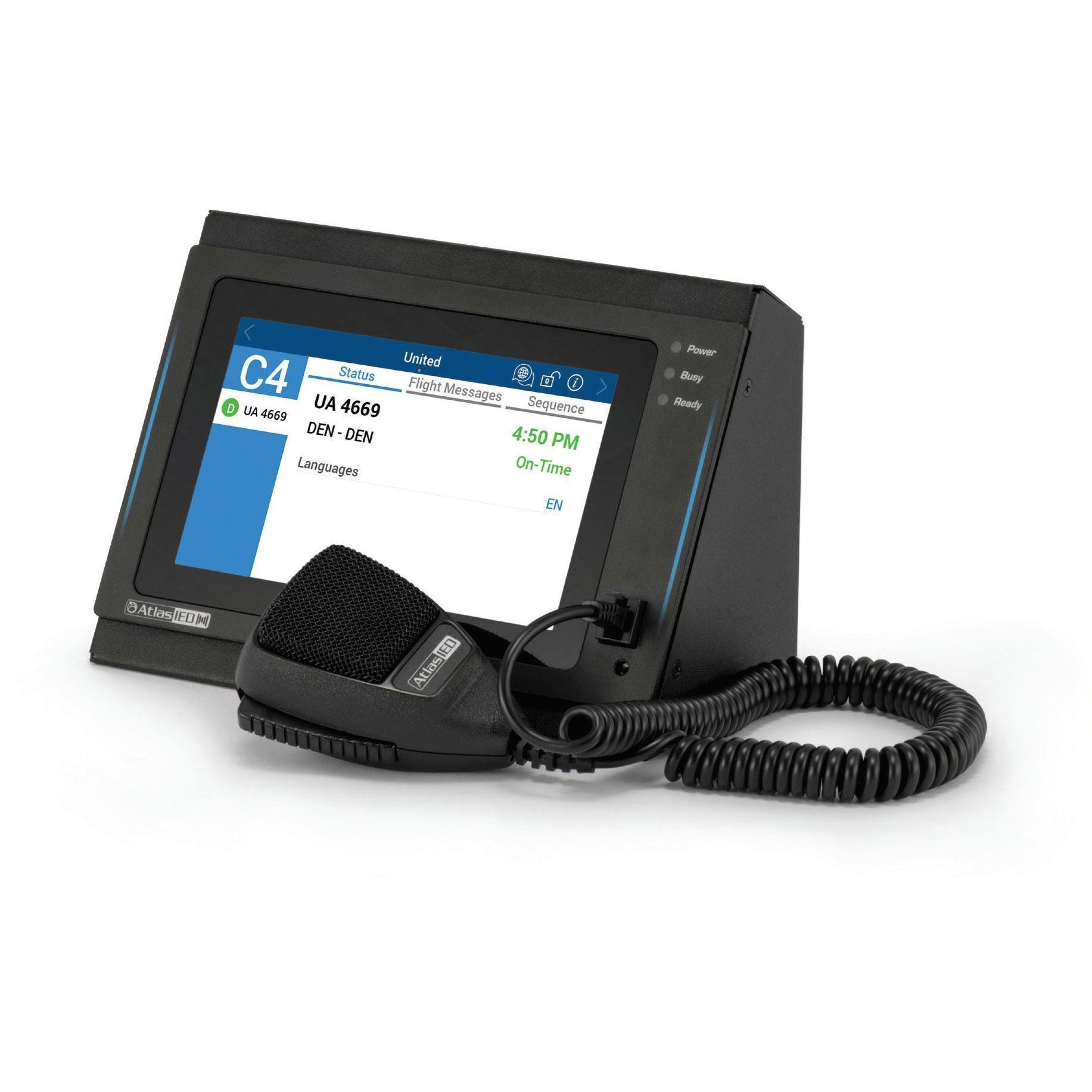

The station includes a handheld microphone assembly with an omnidirectional electret condenser cartridge and integrated preamplifier, supporting intelligible voice pickup without the boomy character often associated with close-talk use. Network-based deployment helps simplify system setup, with support for automatic or assigned IP addressing. PoE power and redundant Ethernet ports support streamlined installation in managed networked audio systems, while flush-mount or desktop placement options provide flexibility for control room, desk, or wall locations.

Additional connectivity includes an auxiliary line level input for local background music and a line level output that can be used as a zone out. Visual status indication is provided through dedicated power, busy, and ready LEDs, and microphone supervision supports system monitoring in mission-critical paging and communication applications.
