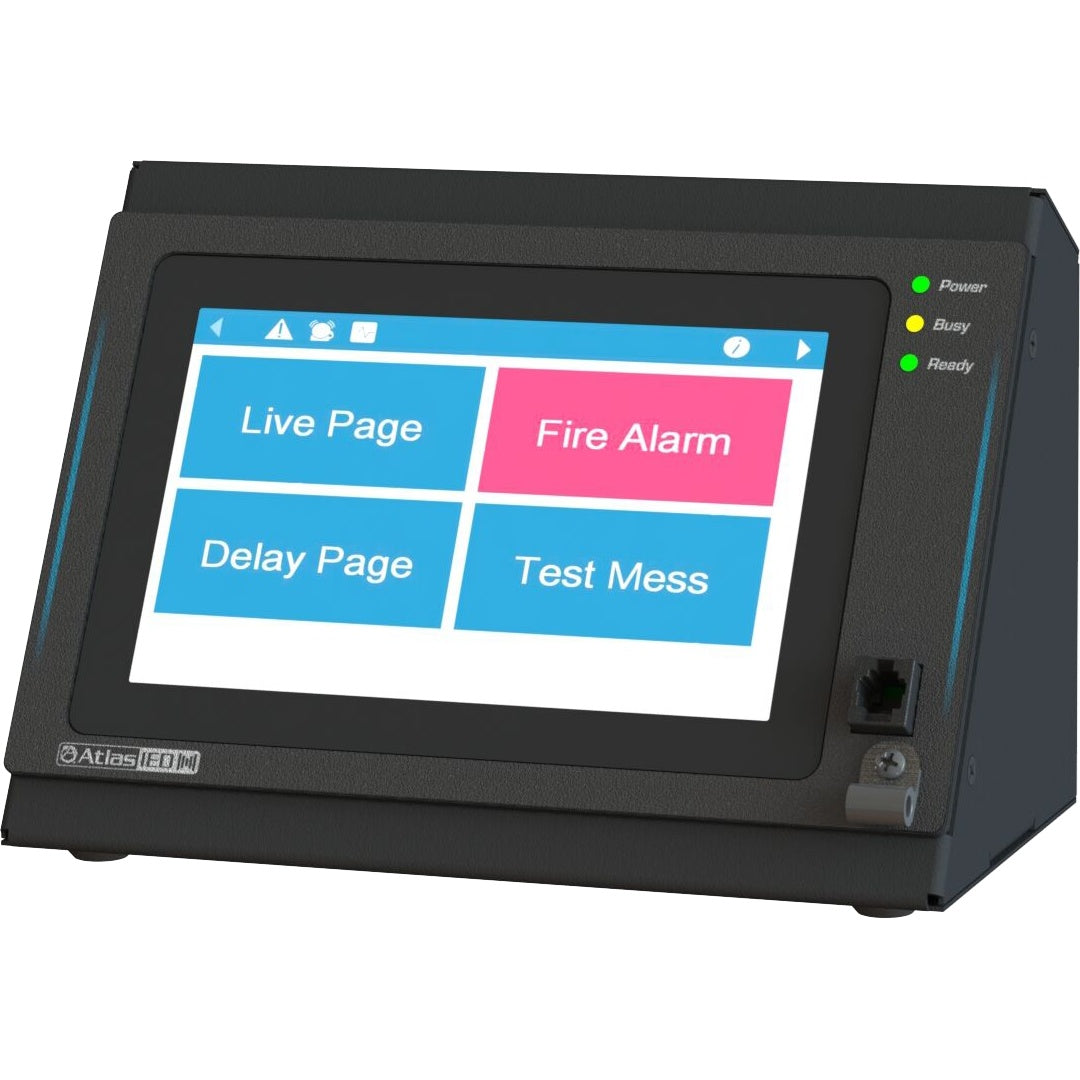

AtlasIED IED570CFM-H Wired Intercom With Touch Screen

The AtlasIED IED570CFM-H is a wired intercom communication station designed for use with GLOBALCOM Series announcement control systems. It provides a programmable touch screen interface for initiating audio and visual announcements, stored messages, and paging functions in coordinated facility communication environments. For integrators and operators managing installed audio systems, this model supports structured paging workflows while keeping station control accessible at the point of use.

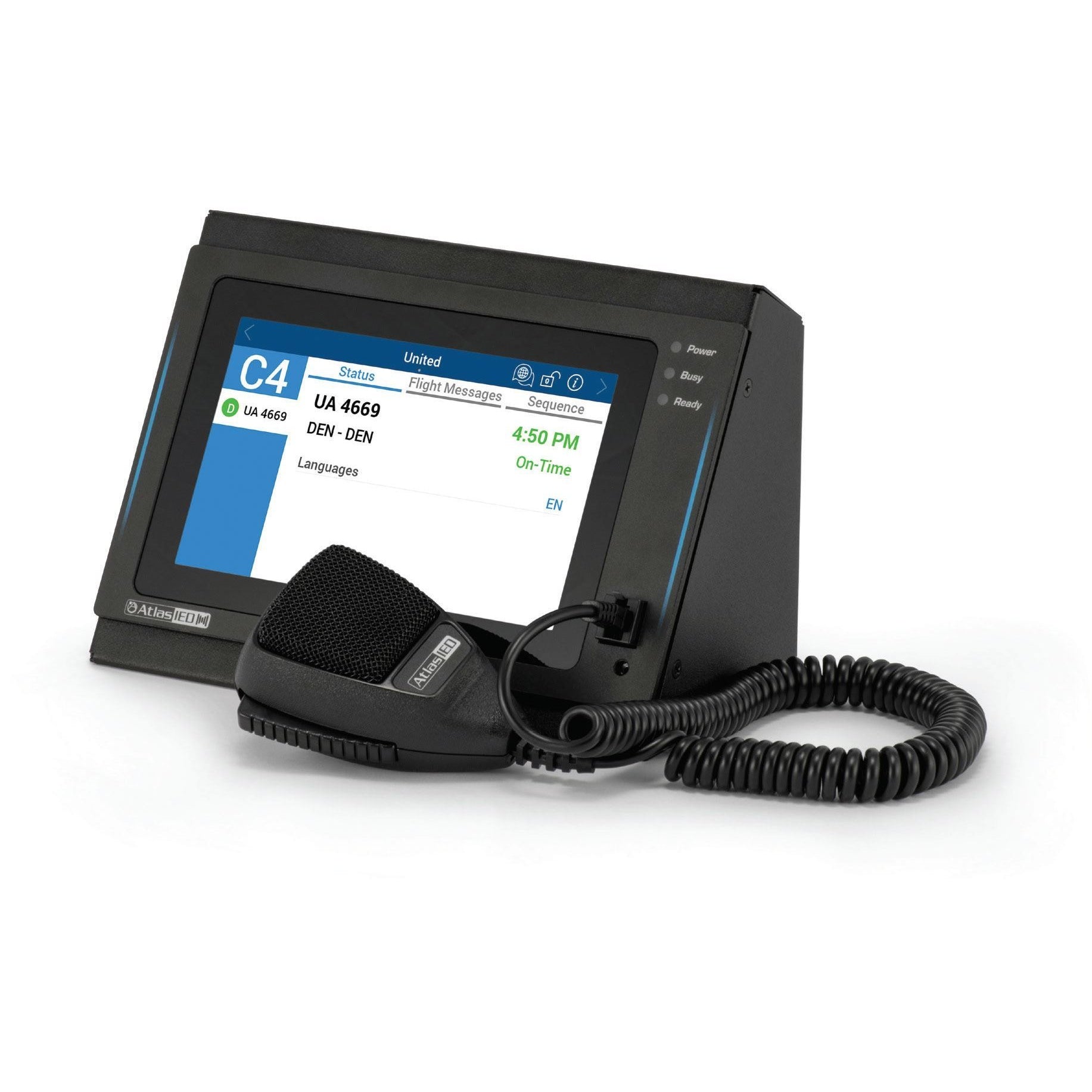

The station includes a handheld microphone assembly built around an omnidirectional electret condenser element with integrated preamplifier and audio line driver. This microphone design is described to support intelligible voice pickup while reducing proximity effect that can make close speech sound overly heavy. The unit also offers a local auxiliary line level input for background music and a line level output that may be used as a zone out, giving system designers more flexibility when building announcement points into larger audio networks.

Installation is supported by network-based deployment with automatic or assigned IP addressing, redundant Ethernet ports, and PoE operation. The IED570CFM-H is offered in flush mount or desktop free-standing versions, making it suitable for control rooms, public facilities, transportation environments, and other installed communication applications where dependable page station access is required.
