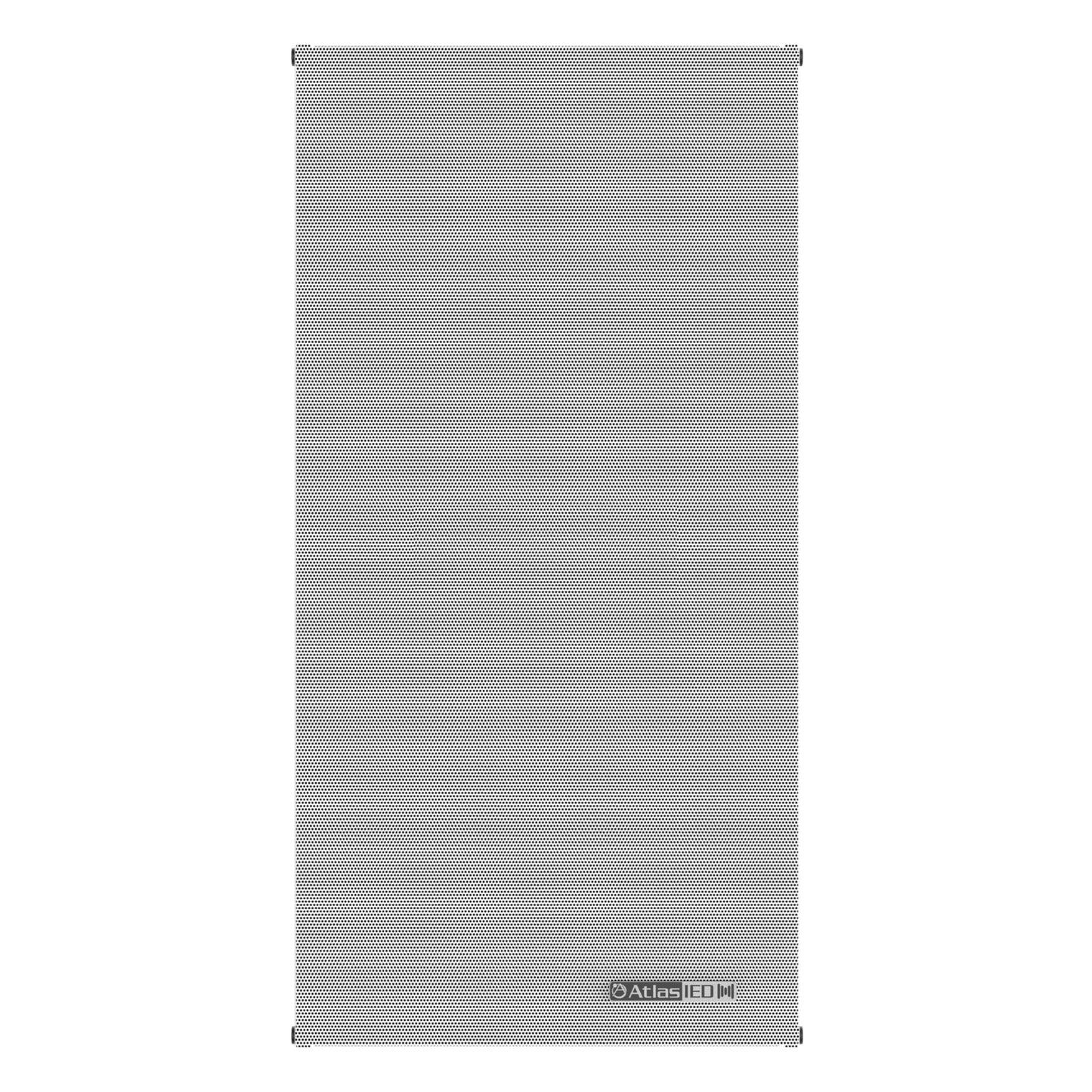

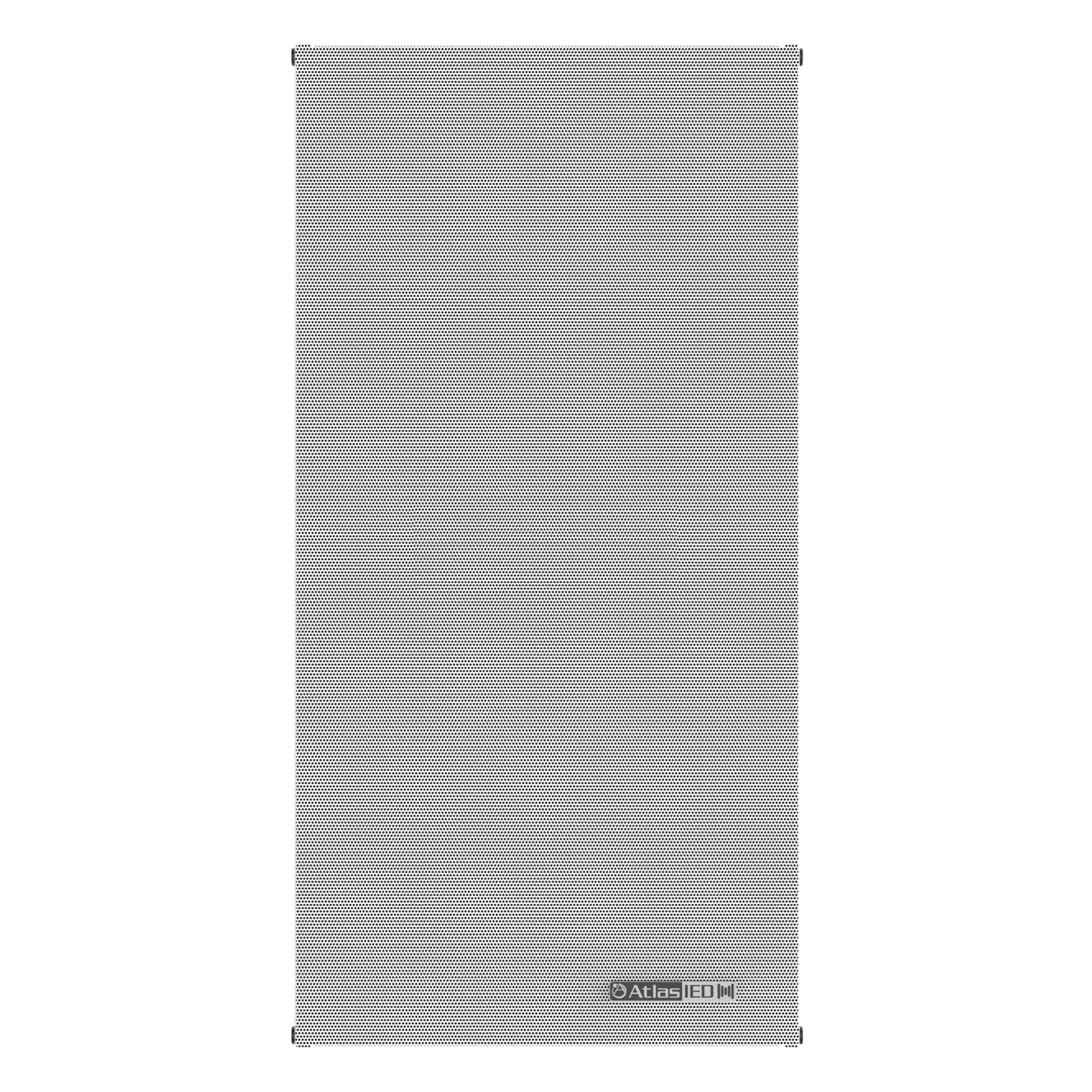

AtlasIED IP-12SYSP Passive Ceiling Speaker For IPX Systems

AtlasIED IP-12SYSP Passive Ceiling Speaker For IPX Systems

SoundPro Item: 204853 | Part Number: IP-12SYSP

Regular price $142.99
Regular price $176.99 Sale price $142.99
Your Price Sold out
MSRP: $176.99 | MAP: $142.99

Usually ships in 5-7 business days

  • Wide Dispersion Helps Cover Large Areas
  • 8Ω Design Avoids 70V System Complexity
  • Metal Backcan Supports Durable Installs
  • Matching Design Keeps Systems Visually Seamless
  • Electrical Box Simplifies Cable Termination
  • UL Certified For Code-Conscious Projects

The AtlasIED IP-12SYSP is a passive 1' x 2' suspended ceiling speaker built for installers expanding coverage with compatible IPX products. It is intended for announcement and background music applications in larger indoor spaces where a matching visual appearance across active and passive loudspeakers matters. Its design aligns with the IP-12SYSM, helping mixed-system deployments maintain a consistent look across the ceiling plane.

This model is configured as an 8Ω speaker, making it a practical choice for systems that do not require the added cost or complexity of traditional 70/100V architecture. A direct-drive 8" loudspeaker, fully perforated grill, and wide dispersion support broad area coverage, while the durable metal backcan and baffle are suited to installed audio environments. The integrated metal electrical box provides a dedicated location for cable termination, supporting cleaner installation workflows.

For contractors, integrators, and facility audio projects, the IP-12SYSP serves as a companion passive loudspeaker within AtlasIED IPX-based deployments. It is appropriate for applications where additional zones or extended coverage are needed while preserving a unified industrial design and using a suspended ceiling mounting format.

View full details

Specifications

Speaker Type
Indoor 1' x 2' Suspended Ceiling Mount Passive Speaker
Frequency Response
110Hz - 6kHz
Sensitivity
95dB SPL
Maximum SPL (1M)
105dB SPL Calculated
Dispersion
120˚ Horizontal x 130˚ Vertical
Connector Type
22 GA. DQSK Bare Wire Leads
Dimensions (HxWxD)
5.01" x 23.69" x 12.10" (127mm x 602mm x 307mm)
Weight
9.25 lbs (4.20kg)
Shipping Weight
13.4 lbs (6.09kg)
Safety Listed
UL1480 / UL2043 Certified
Warranty Period
60 months from date of purchase
