AtlasIED IP-ZCM1RMK Single PoE+ IP-to-Analog Gateway 15W

AtlasIED IP-ZCM1RMK Single PoE+ IP-to-Analog Gateway 15W

SoundPro Item: 141391 | Part Number: IP-ZCM1RMK

$1,193.99
$1,487.99 $1,193.99
Your Price Sold out
MSRP: $1,487.99 | MAP: $1,193.99

Usually ships in 5-7 business days

  • IEEE 802.3at PoE+ Powered Eliminates Dedicated Power Infrastructure
  • Integrated 15-Watt Amplifier Drives 8-Ohm Or 70.7-Volt Speaker Zones Directly
  • Auto-Provisioning And SIP Registration Simplifies Network Deployment
  • Two GPI Inputs And One GPI Output Enable External Device Triggering

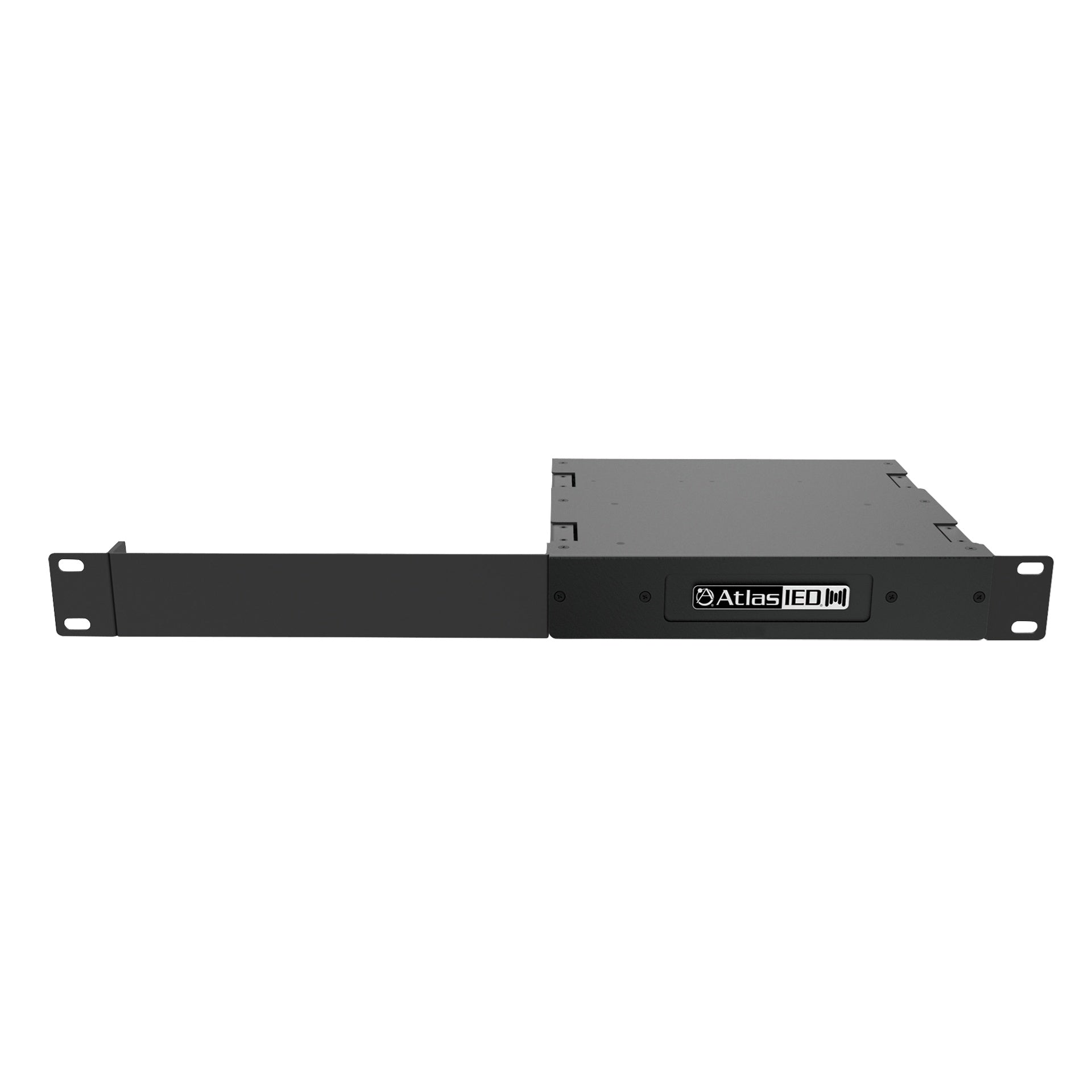

  • Rack Mount Kit Included For Standard Width Equipment Enclosures
  • Microphone Input Supports Talk-Back And Listening Applications
Log in or register for YOUR best price

The AtlasIED IP-ZCM1RMK is a single-channel IP-to-analog gateway purpose-built for integrators and system designers connecting modern unified communication platforms to existing analog third-party infrastructure. Deployed in institutional, campus, and enterprise environments, it registers directly as a SIP endpoint or within InformaCast and SA-Announce notification systems, enabling critical alerts, emergency notifications, scheduled announcements, and fire-alarm integration without replacing legacy speaker zones.

The unit's integrated 15-watt amplifier drives small speaker clusters directly at 8-ohm or 70.7-volt impedance, while its line-level audio outputs connect to larger distributed systems via AA, PA, or CP series amplifiers. Two general-purpose inputs and one output support access-control triggering and two-way audio for video surveillance applications. In Cisco environments, it functions as a Cisco SRST endpoint for redundancy during WAN outages, ensuring communications remain available during emergencies.

Factory auto-provisioning and registration via DHCP, SLP, or IEDNet+ eliminate manual configuration overhead. The 1RU rack-mount form factor integrates seamlessly into network closets and equipment racks, operating via standard PoE+ or optional 24VDC power supply for maximum flexibility in legacy and modern network architectures.

Downloads

View full details

Specifications

Power
Power Rating
15 Watts RMS into 8Ω Load
Power Source
IEEE 802.3af or IEEE 802.3at Compliant POE(+) / Local 24VDC PSU
Dimensions
Height
1.75" (45mm)
Width (IP-ZCM Only)
8.5" (215.9mm)
Width (With Rack Mount Kit)
19" (482.6mm)
Depth
8.85" (224.8mm)
Rack Units
1RU
Connectivity
Network Interface
RJ-45 Female on PCB
Audio Outputs
8Ω, 25V, or 70.7V
Aux Audio Line-In
Unbalanced (2.8Vpp 10K)
Aux Audio Line-Out
Unbalanced (2.8Vpp 10K)
General Purpose Inputs
2
General Purpose Output
1 (2A @ 30 VDC)
Audio
VoIP Standards
G.711 u-law/a-law (64 kbit/s) or G.722 Wideband (64 kbit/s)
Network Features
Dynamic or Static IP, IEEE 802.1q Tagging, Multicast Enabled
Auto Registration
SLP, DHCP Option 72, IEDNet+
Certifications
Safety Standard
IEC 62368-1, CSA C22.2 #62368-1, CB Scheme, FCC
Network Compliance
IEEE 802.3 10/100Base-T Ethernet, IEEE 802.11AT Compliant
Warranty Period
60 months from date of purchase
