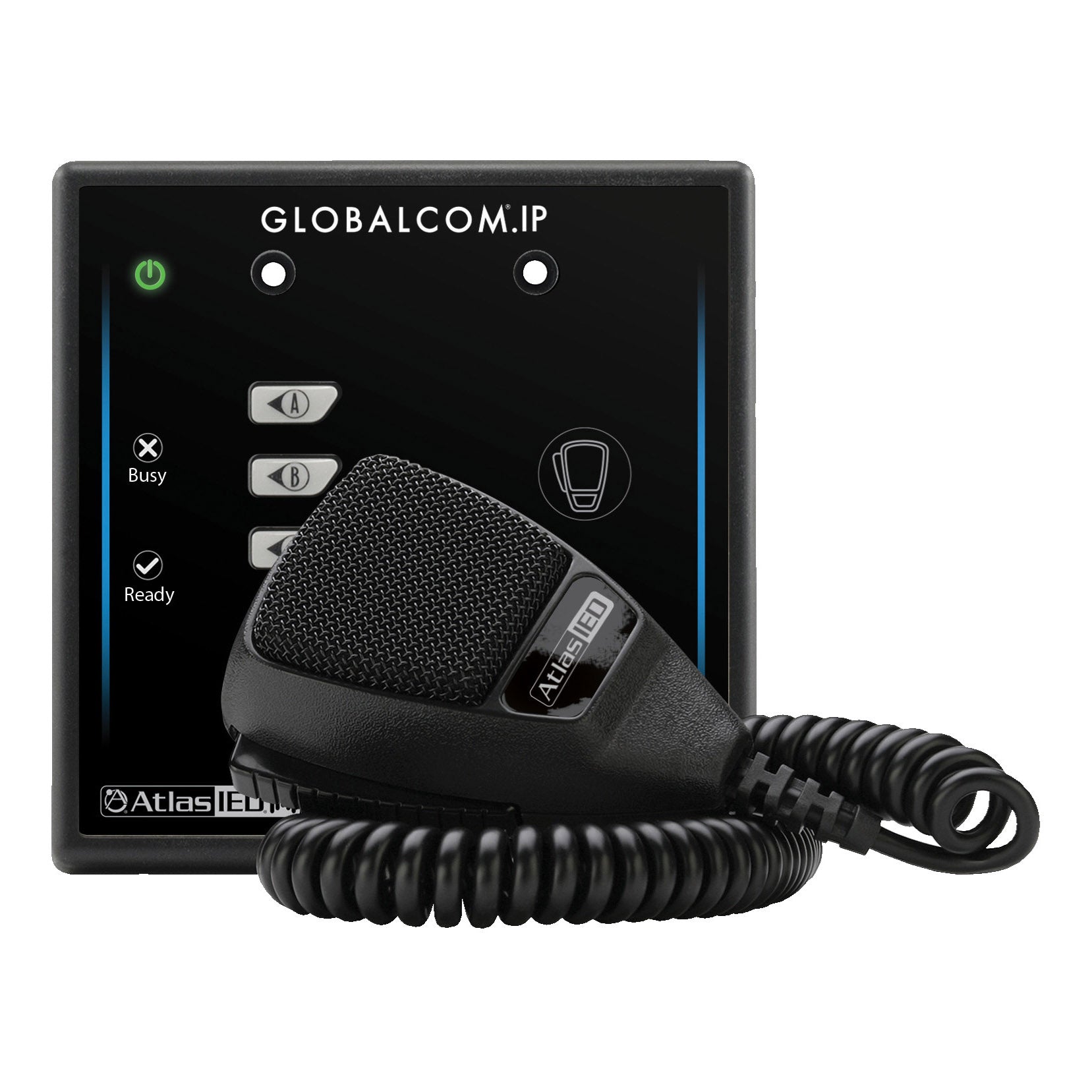

AtlasIED IPCSD4 Dante 4 Button Programmable Microphone Station
AtlasIED IPCSD4 Dante 4 Button Programmable Microphone Station
SoundPro Item: 115884 | Part Number: IPCSD4
Usually ships in 5-7 business days
- Immediate digitization of full bandwidth audio
- Digital audio transmission over standard Ethernet connection
- Mounts using standard 1- or 2-gang electrical box
- Power, busy, and ready LED indicators
The IPCSD4 is a 4-button device for initiating AV announcements, messages and pages with the GLOBALCOM®.IP IP108-D or IP116-D Announcement Control Systems. The IPCSD4 uses a single Ethernet interface for audio and control data. The IPCSD4 is fully compatible with IEEE 802.3af standard for Power over Ethernet (PoE), allowing the microphone station to be powered directly from any standard off-the-shelf PoE switch.
The IPCSD4 utilizes Dante® technology for transporting high-quality, low-latency digital audio over Ethernet. The IPCSD4 microphone station may be used for emergency evacuation and life safety systems. Instead, in a dual-use system, these microphone stations may be used for everyday paging functions. It is compatible with IP108-D or IP116-D ACS™ Controllers with Dante™ capability.
- Frequency Response +2dB, -5dB (22Hz - 22kHz, Input Level)
- Total Harmonic Distortion <1.0% (22Hz - 22kHz, Input Level)
- Signal to Noise Ratio >85dB (22Hz - 22kHz, Input Level)
- Sample Rate 48kHz
- Compression Threshold -14dBu
- Operating Temperature Range +32°F to +104°F (0°C to +40°C)
- Dimensions (W x H x D) 4.95 x 4.95 x 1.9 inches
- Analog-to-Digital Converter, A/D 24 Bit
- Storage Temperature Range –40°F to +158°F (–40°C to +70°C)
- Supply Voltage 48VDC
- Power Consumption < 4W
