AtlasIED SHS-3T2-HD Strategically Hidden 70V Ceiling Speaker

AtlasIED SHS-3T2-HD Strategically Hidden 70V Ceiling Speaker

SoundPro Item: 146579 | Part Number: SHS-3T2-HD

Regular price $327.99
Regular price $478.99 Sale price $327.99
Your Price Sold out
MSRP: $478.99 | MAP: $327.99

Usually ships in 5-7 business days

  • Patented Adaptive Dispersion Lens Eliminates Hot Spots And Uneven Coverage
  • Blind-Mount Design With Micro Trim Ring Resembles A Sprinkler Head
  • Three Interchangeable Lens Configurations For Ceiling Heights Under 10' To Above 14'
  • Sealed Enclosure Optimizes Bass Response For Full-Range Audio
  • Cat5e Daisy-Chain Connectivity With Z-Series System Support
  • Custom Color Matching Via DesignLab For Seamless Ceiling Integration

The SHS-3T2-HD is engineered for integrators and facility managers who need seamless audio without visible ceiling fixtures. Its tunnel waveguide and adaptive dispersion lens eliminate hot spots and uneven frequency response, making it equally effective for background music, intelligible speech reinforcement, and acoustic masking in commercial spaces. The sealed enclosure optimizes bass response across the operating range.

Blind mounting into hard deck ceilings with just 3.5" minimum clearance above the deck, the speaker locks via an expansion ring and disappears behind a 3" micro trim ring that resembles a high-end sprinkler head. Three included lens configurations—4mm, 8mm, and direct-fire—allow field optimization for ceiling height and application. AtlasIED's DesignLab custom color-matching service enables ceiling-seamless installation when standard finishes don't suffice.

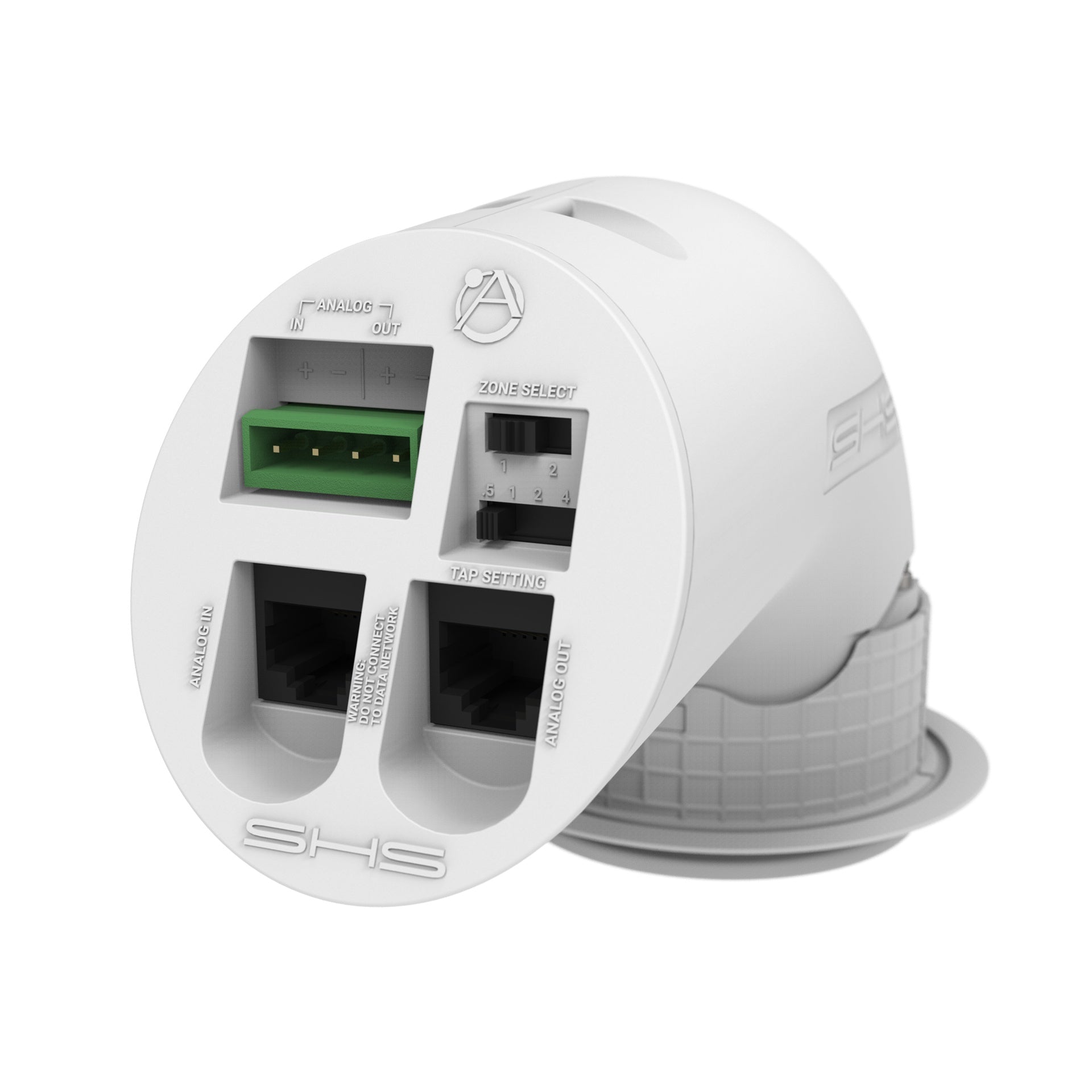

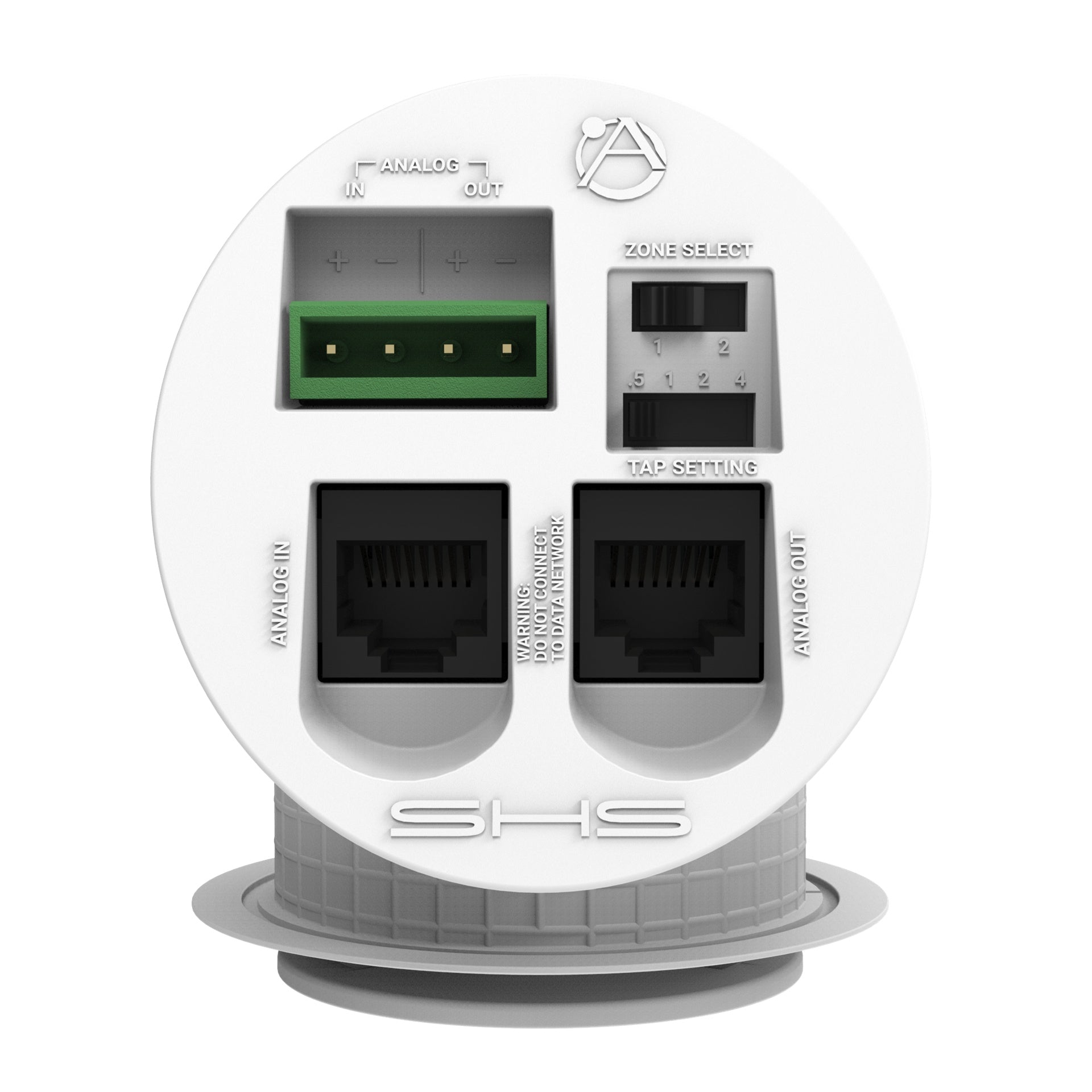

Connectivity includes standard 2-conductor speaker wire with a 4-pole euro connector for any 70V/100V amp, or Cat5e daisy-chain capability when paired with Z-Series high-definition systems. Robust 60-month warranty and stacked power taps (0.5–4W at 70.7V, 1–8W at 100V) support multiple configuration needs across zones.

Downloads

View full details

Specifications

Certifications
Warranty Period
60 months from date of purchase
Dimensions
Height
6.50"
Width
2.77"
Depth
4.05"
Dispersion Lens Diameter
3.00"
Minimum Ceiling Clearance
3.50"
Weight
Product Weight
1.00 lbs
Audio
Driver Type
2.25" Full Range
Frequency Response
180Hz - 10kHz
Operating Range
140Hz - 20kHz
Sensitivity
81.6dB (1W/1m)
Dispersion
130° at 2kHz Octave Band
Electrical
Power Taps (70.7V)
0.5, 1, 2, 4-Watts
Power Taps (100V)
1, 2, 4, 8-Watts
Connectivity
Speaker Connector
4-pole euro style
Cat5e Support
Yes
