AtlasIED T18 60W 70.7V Line Matching Transformer

AtlasIED T18 60W 70.7V Line Matching Transformer

SoundPro Item: 19725 | Part Number: T18

$72.99
$88.99 $72.99
Your Price Sold out
MSRP: $88.99 | MAP: $72.99

Usually ships in 5-7 business days

  • Selectable 2.5W Through 60W Output Taps For Flexible Power Matching
  • Multiple Secondary Impedance Options Including 4 8 And 16 Ohm Terminals
  • Varnish-Impregnated Core Construction Reduces Line Loss On Extended Runs
  • Element-Resistant Components Ensure Durability In Commercial Environments
  • Solder-Connected Terminals Support Permanent Installed System Integration
Log in or register for YOUR best price

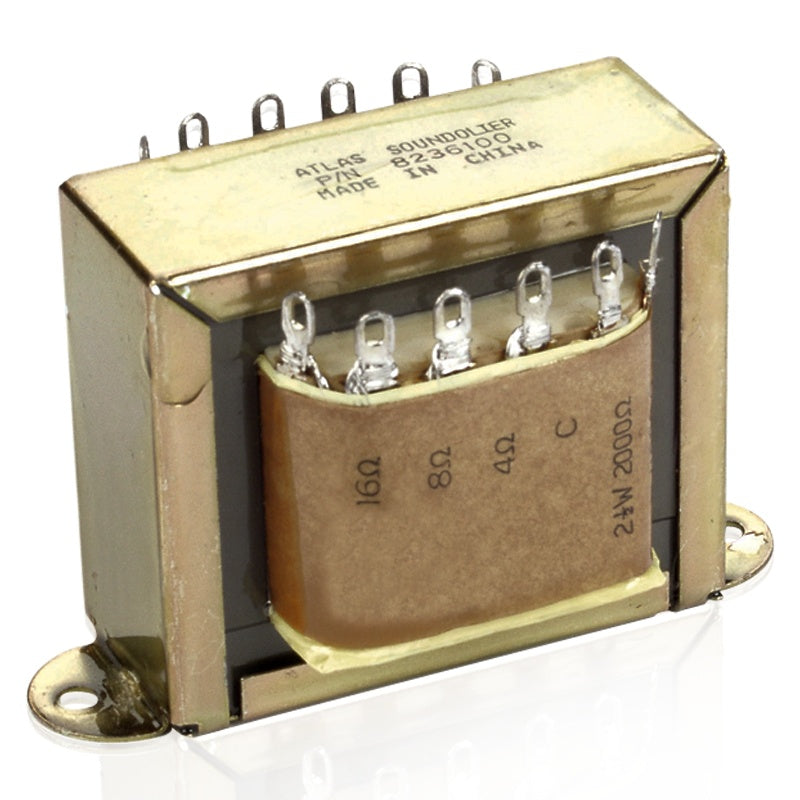

The AtlasIED T18 is a high-efficiency line matching transformer designed for professional AV integrators deploying 70.7V distributed speaker systems. Its varnish-impregnated U-frame construction minimizes core loss and reduces voltage drop over extended cable runs—a critical advantage when amplifiers must feed multiple speakers from a central location or when speaker placement demands long transmission lines.

Engineers and installers select the T18 for compression driver horns, high-SPL paging systems, and background music networks where impedance matching and power staging are essential. Six switchable watt taps (2.5W, 5W, 10W, 20W, 40W, 60W) allow field adjustment of speaker output without rewiring, while three secondary impedance options (4, 8, 16 ohm) accommodate a range of driver types. Element-resistant components and clearly identified solder terminals ensure reliable long-term performance in commercial and institutional installations.

Downloads

View full details

Specifications

Electrical
Primary Impedance
70.7V
Watt Taps
2.5W, 5W, 10W, 20W, 40W, 60W
Secondary Impedance Options
4 ohms, 8 ohms, 16 ohms
Frequency Response
60 Hz–20 kHz
Dimensions
Height
2.25"
Width
2.69"
Depth
1.00"
Weight
Shipping Weight
1.50 lbs
Certifications
Warranty Period
60 months from date of purchase
