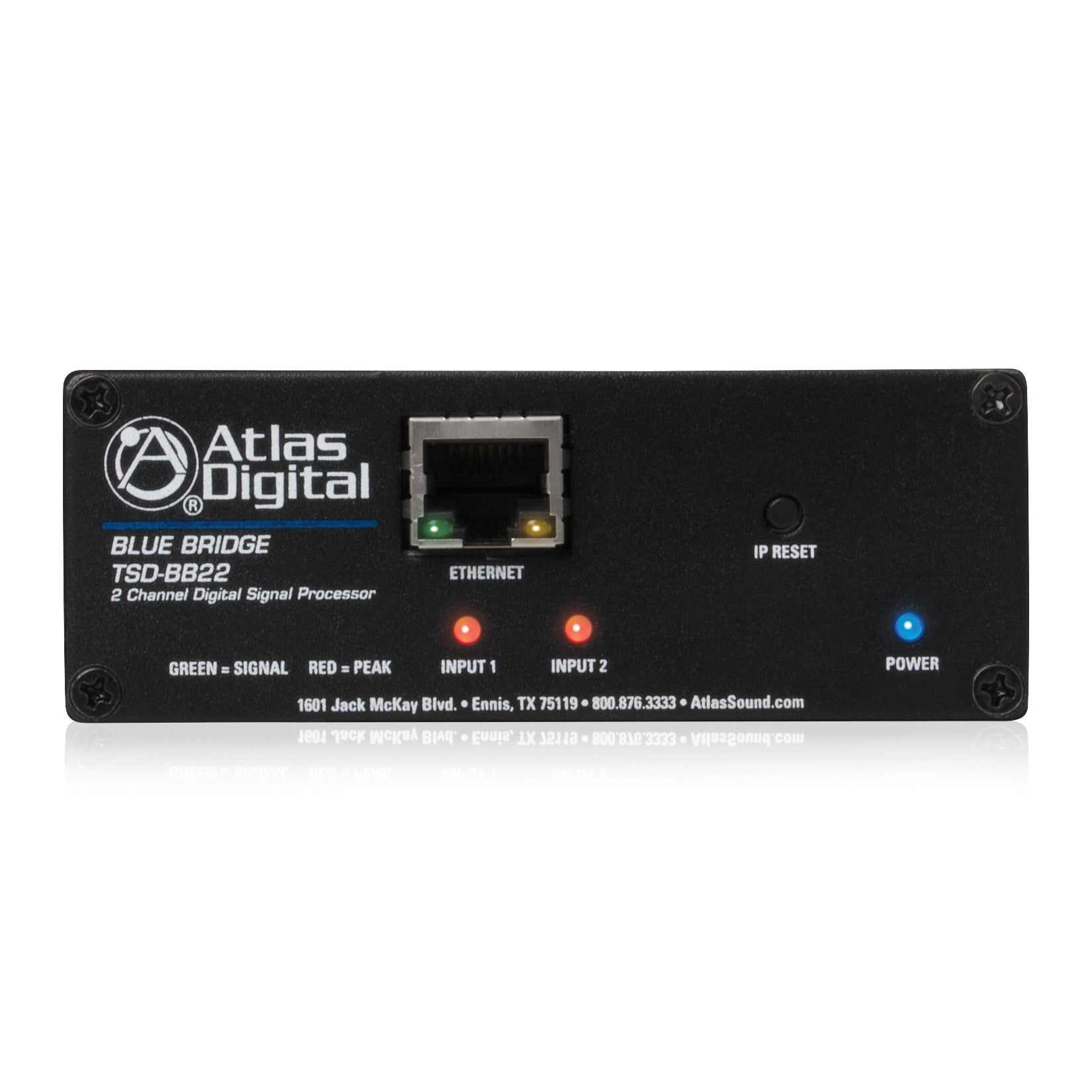

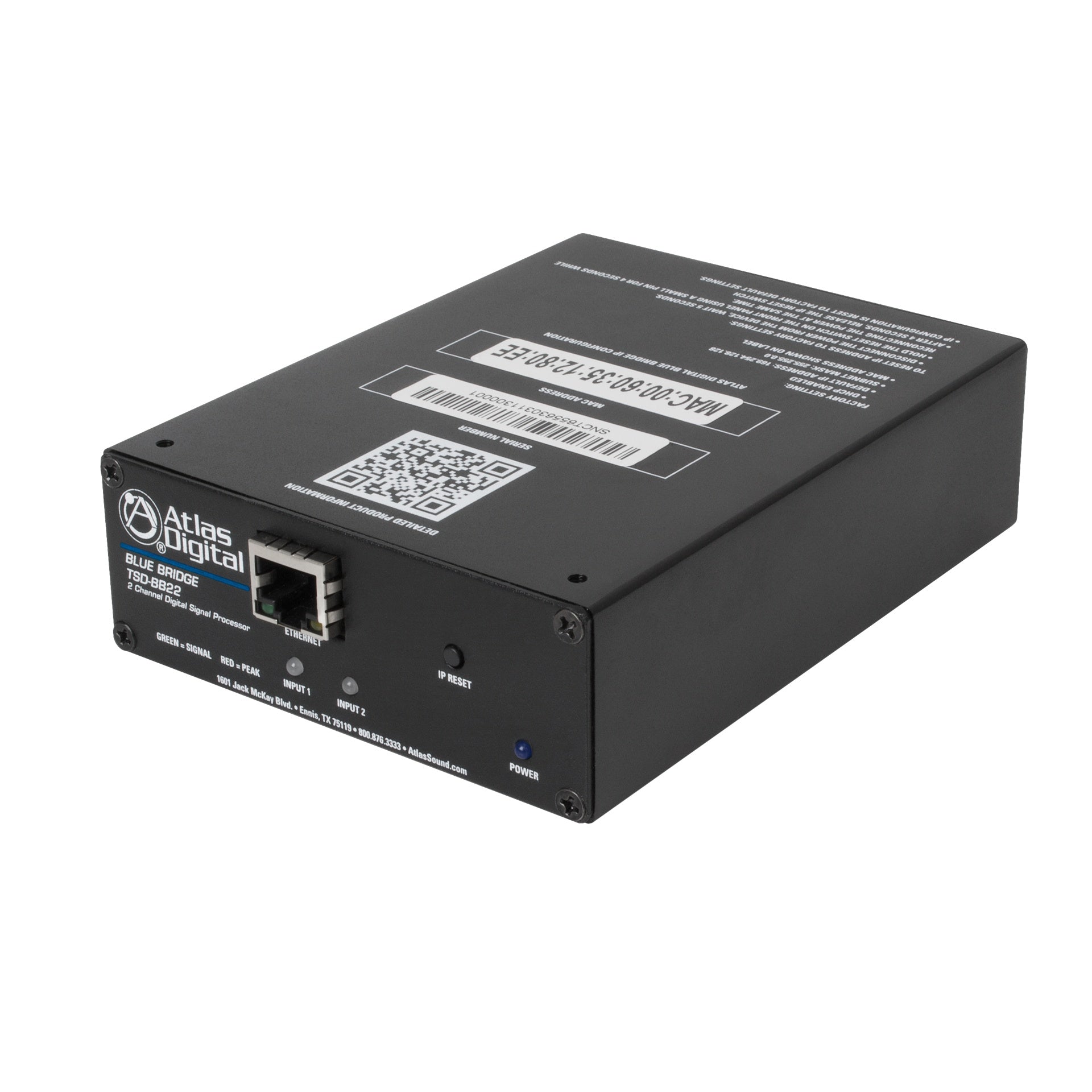

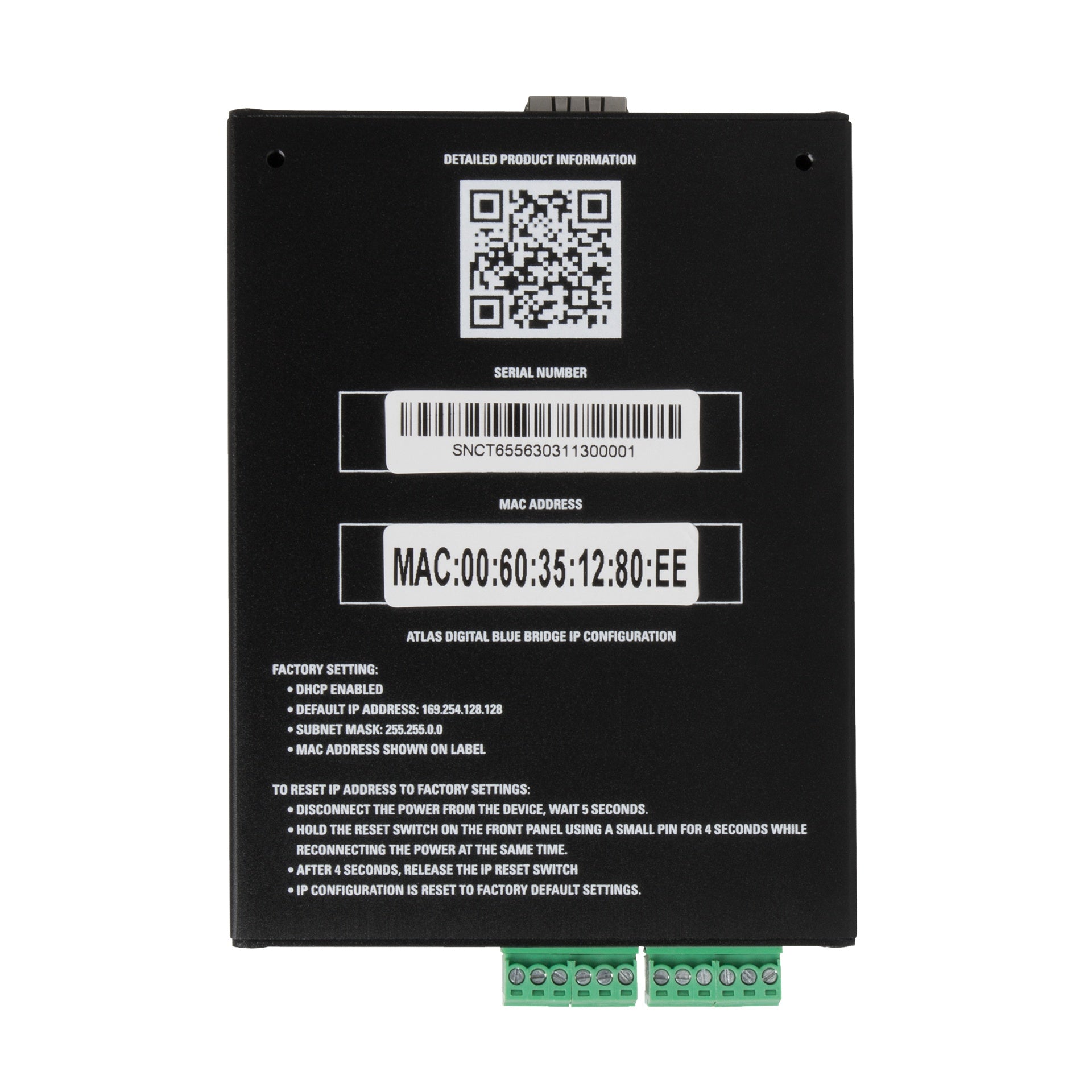

AtlasIED TSD-BB22 2x2 Networkable DSP Mixer

AtlasIED TSD-BB22 2x2 Networkable DSP Mixer

SoundPro Item: 20001 | Part Number: TSD-BB22

$1,312.99
$1,637.99 $1,312.99
Your Price Sold out
MSRP: $1,637.99 | MAP: $1,312.99

Usually ships in 5-7 business days

  • Drag And Drop Open Architecture Enables Fast Configuration And Reprogramming
  • Mic Or Line Selectable Inputs With 48V Phantom Power For Flexible Source Connection
  • Ethernet Network Connectivity With TCP/IP Control Eliminates Dedicated Control Wiring
  • Ultra Low Noise Floor With THAT Microphone Preamps And 24-Bit Converters
  • 40 Bit Floating Point DSP Engine Prevents Digital Clipping In Complex Designs
  • iOS And Android App Control Provides Remote Access To All Processing Functions
  • Electronically Balanced Gain From -40 To +15 dB Enables Precise Level Management
Log in or register for YOUR best price

The AtlasIED TSD-BB22 is a professional-grade networkable DSP device purpose-built for commercial sound reinforcement, video conferencing systems, presentation rooms, house of worship installations, and multi-zone paging applications. Unlike consumer-level mixers, the TSD-BB22 combines 2 balanced inputs with 2 balanced outputs and operates on standard network infrastructure, allowing system designers to centralize control across multiple locations and devices without dedicated analog cabling.

Engineered with THAT microphone preamps, 24-bit converters, and a 40-bit floating-point DSP engine, the TSD-BB22 delivers ultra-low noise performance and prevents digital clipping common in competing platforms. Mic or line inputs are selectable via software, and balanced outputs accept up to +15 dB of gain in 0.25 dB increments. With 48V phantom power, electronically selectable polarity, and 5 ms latency, the device integrates seamlessly into complex AV systems where timing and signal integrity matter.

Network-based control via Ethernet TCP/IP eliminates the need for hardwired control panels while optional wall-mounted touch controllers and the Atlas BluePanel software suite enable custom user interfaces tailored to installation requirements. Drag-and-drop programming, pre-configured design templates, and iOS/Android app access make system setup and ongoing adjustment accessible to integrators and end users alike.

Downloads

View full details

Specifications

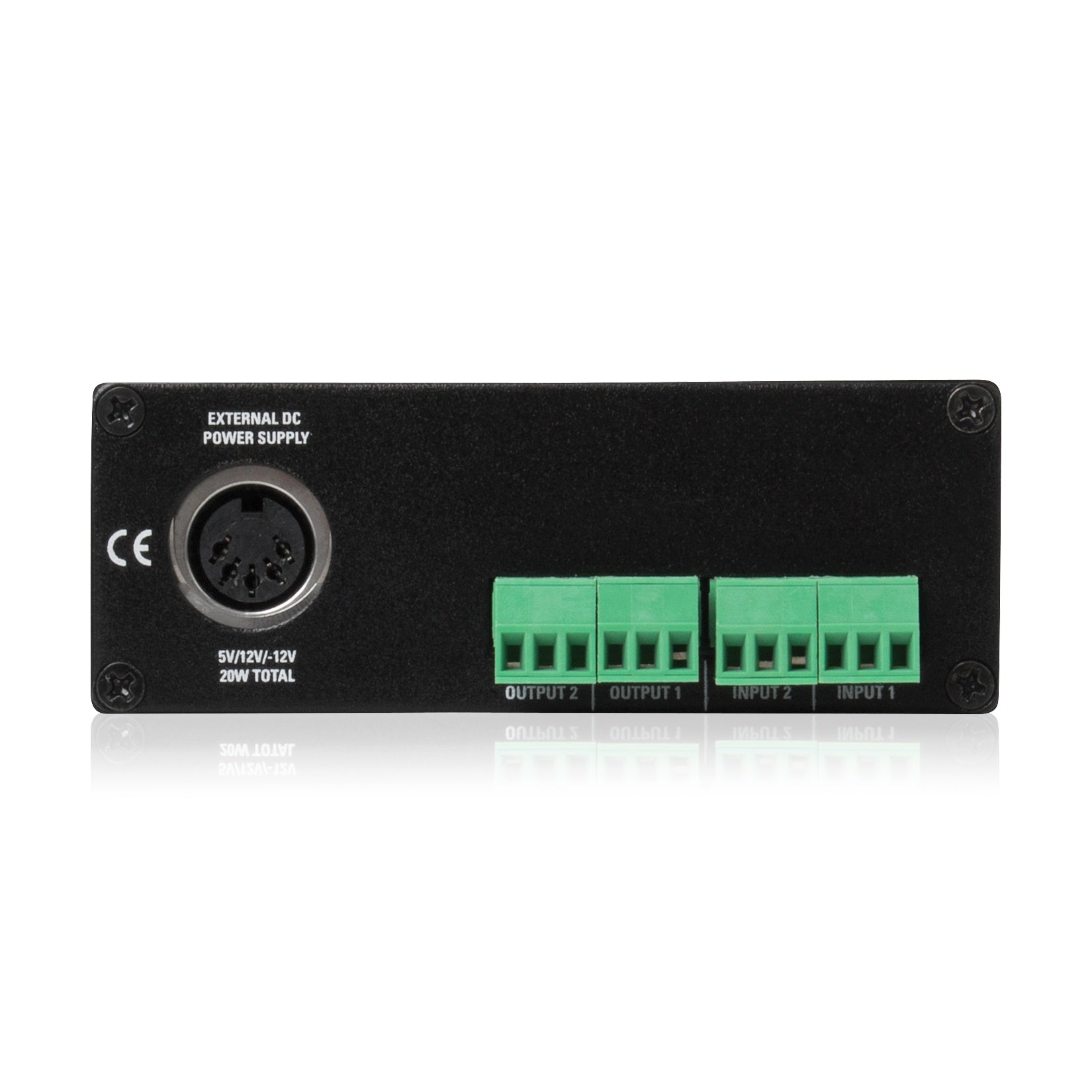

Connectivity
Inputs
2
Outputs
2
Ethernet
Yes
Inputs
Input Type
Mic Or Line, GUI Selectable
Maximum Input Signal
+20 dBu
Phantom Power
48V, GUI Enabled
Outputs
Output Type
Line
Output Impedance
50 Ω
Gain Range
-40 To +15 dB In 0.25 dB Steps
Polarity
+/-, GUI Selectable
Audio
Frequency Response
20 Hz - 20 kHz
CMRR
>100 dB (50 Hz–10 kHz)
Total Harmonic Distortion
0.002% (1 kHz @ +4 dBu)
Latency
5 ms
Processing
DSP Engine
40 Bit Floating Point
Converter Resolution
24 Bit
Sample Rate
48 kHz
Physical
Width
4.00"
Depth
5.20"
Weight
6.00 oz.
Power
External Power Supply
Included
Certifications
Safety And Compliance
cUL, CE, RoHS, TUV
Warranty
36 Months From Date Of Purchase
