AtlasIED WTSD-MIX41K Indoor/Outdoor 4x1 Mic/Line Analog Mixer
AtlasIED WTSD-MIX41K Indoor/Outdoor 4x1 Mic/Line Analog Mixer
SoundPro Item: 57776 | Part Number: WTSD-MIX41K
Usually ships in 5-7 business days
- Four Balanced Mic/Line Inputs With Individual Level Control
- 120Hz Low-Cut Filter Eliminates HVAC And Rumble Noise
- 24VDC Phantom Power With Front Panel ON Indicator
- System Priority Mute And Remote Trigger For Logic Control
- Optional Dante Network Audio Interface For Digital Integration
- Fits Standard 2-Gang Wall Box For Discreet Installation

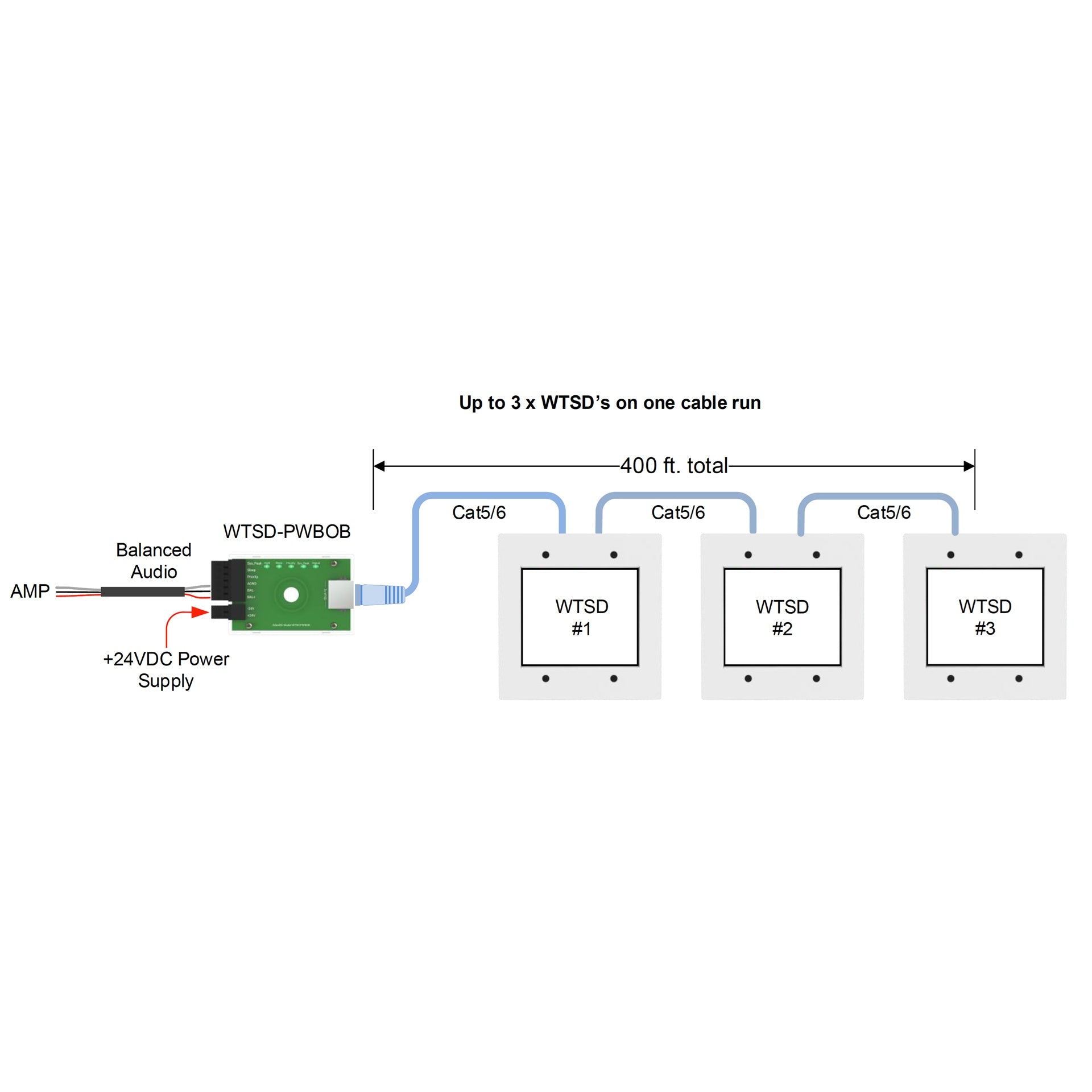

- Works Over Extended Cat5/Cat6 Runs To 400 Feet

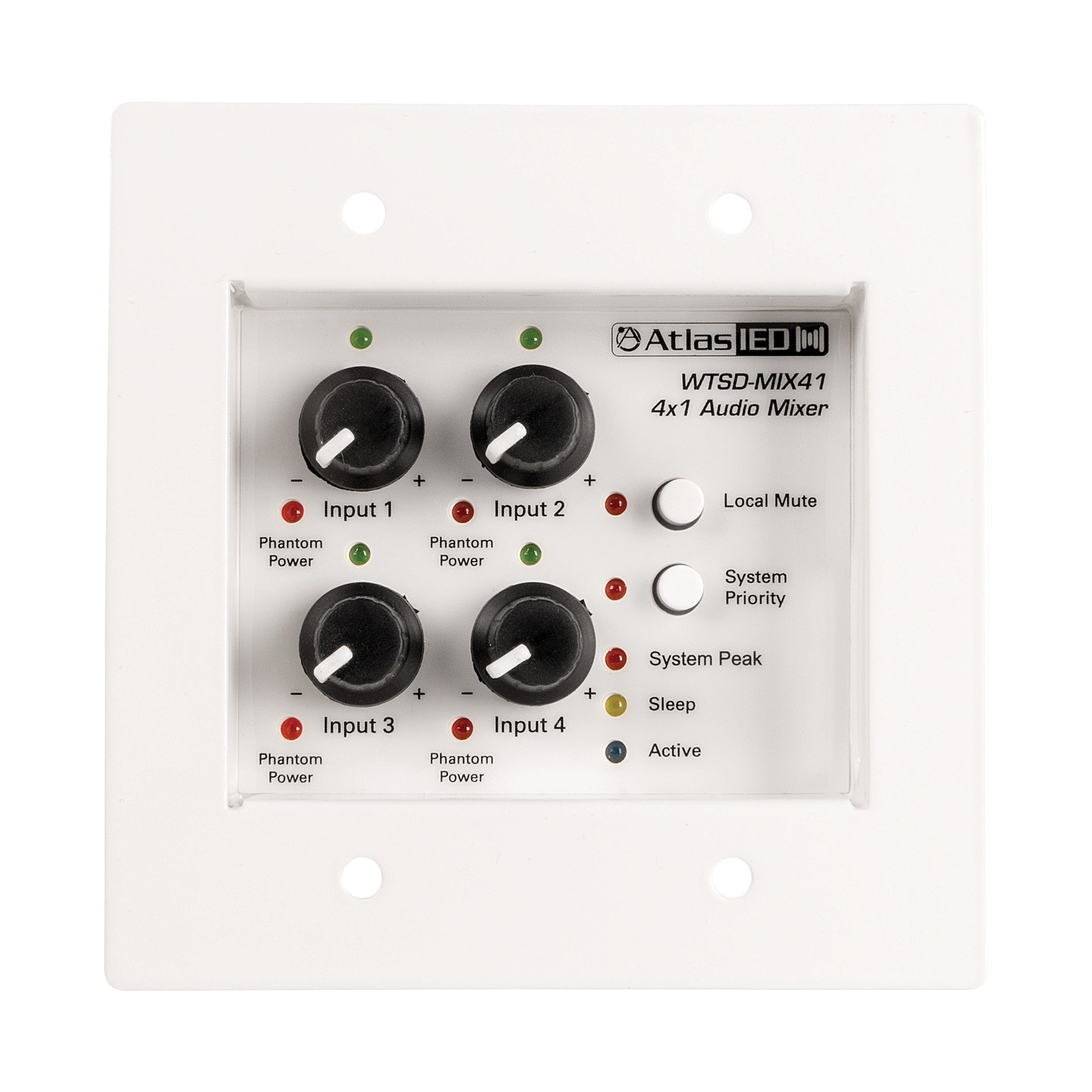

The AtlasIED WTSD-MIX41K is a compact 4x1 analog mixer designed for installed audio systems where space is limited and audio flexibility is required. Built for wall-mount installation in standard 2-gang boxes, it serves live sound reinforcement, distributed audio systems, and emergency communication networks that demand reliable mixing in tight physical envelopes.

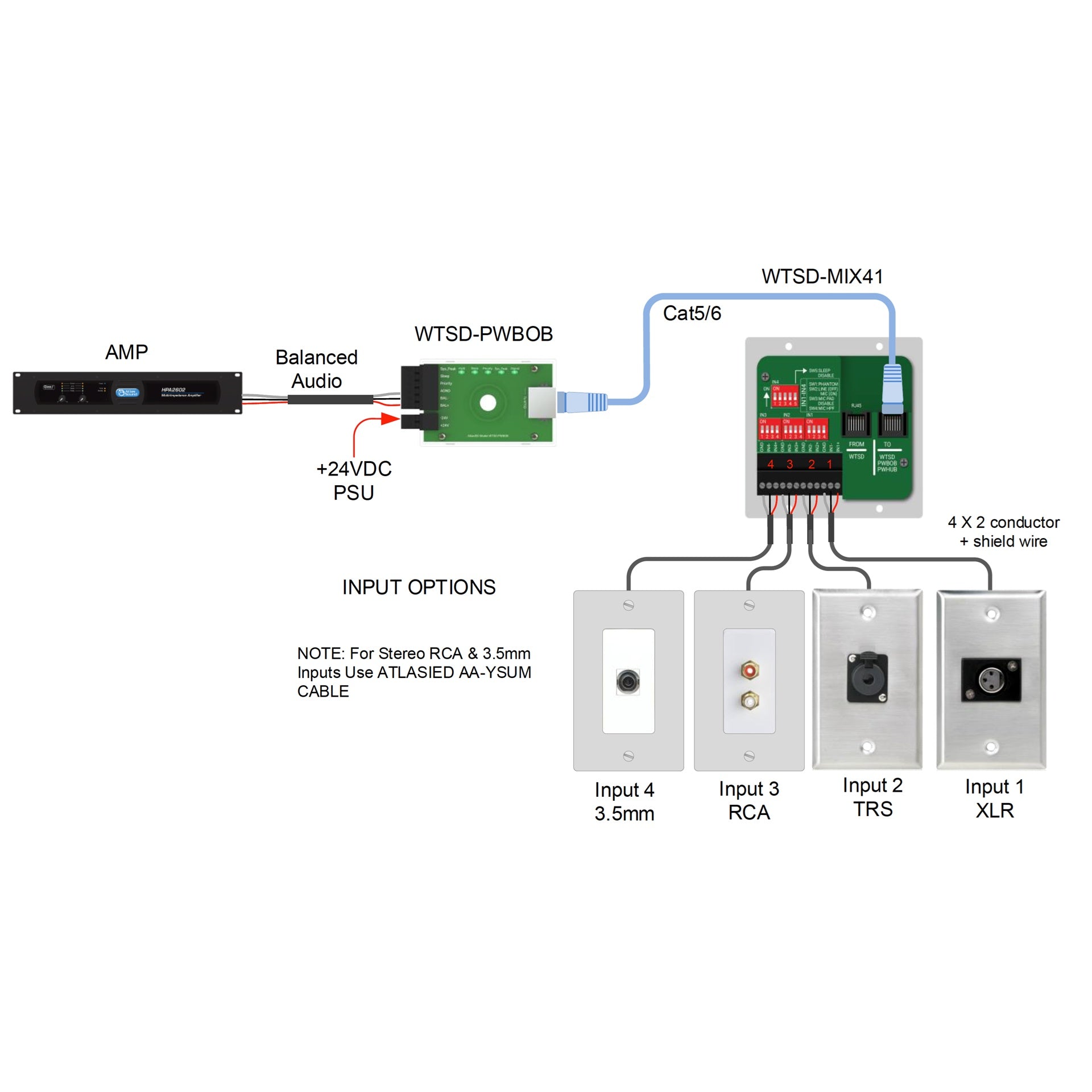

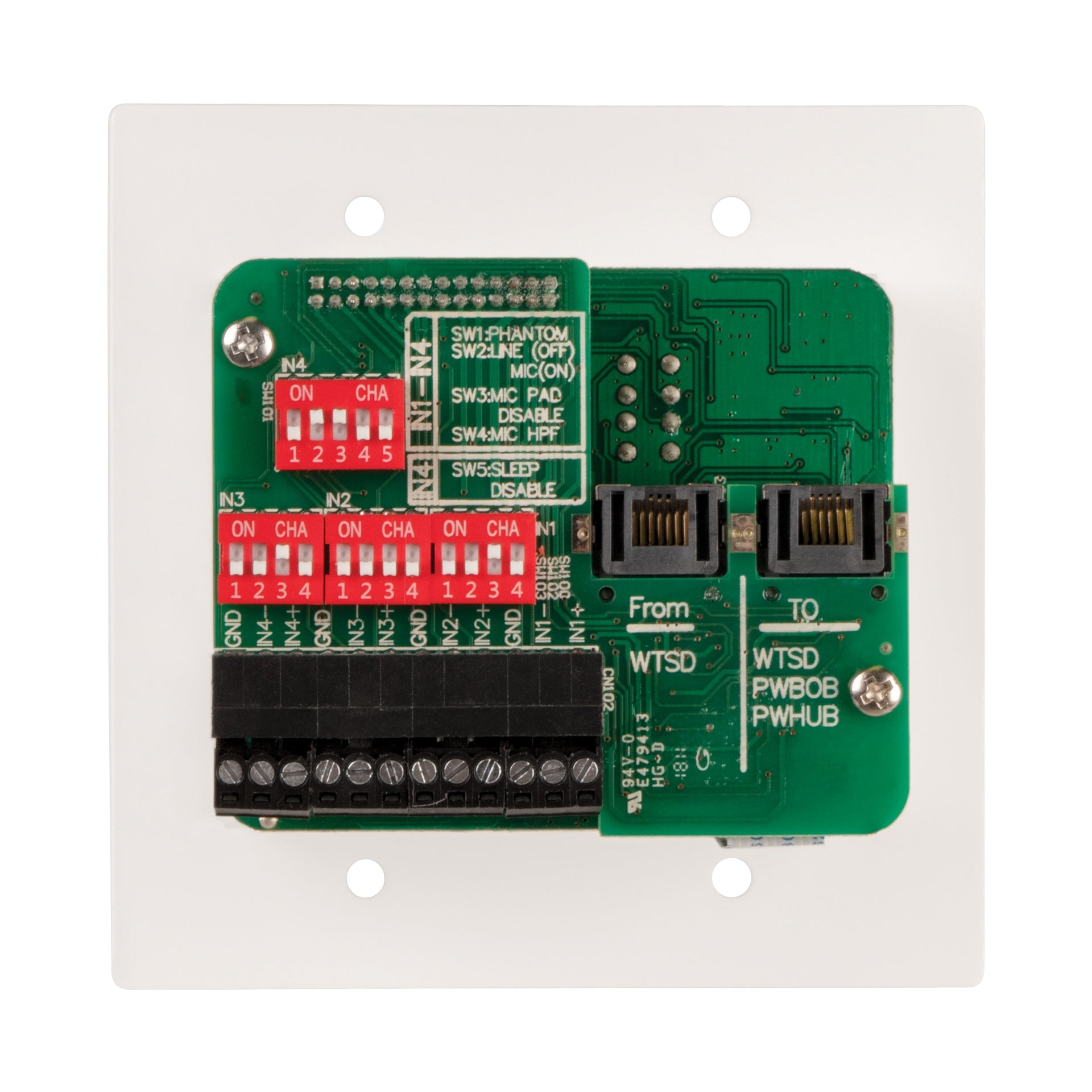

Four balanced mic/line inputs accommodate both microphones and line-level sources, with DIP-switch selectable input impedance and defeatable 24VDC phantom power for condenser microphones. The 120Hz low-cut filter eliminates rumble and HVAC noise, while individual gain controls and input peak indicators enable precise gain structuring. A global mute switch, system priority function, and 12V logic output support coordinated system muting and power sequencing across multiple zones.

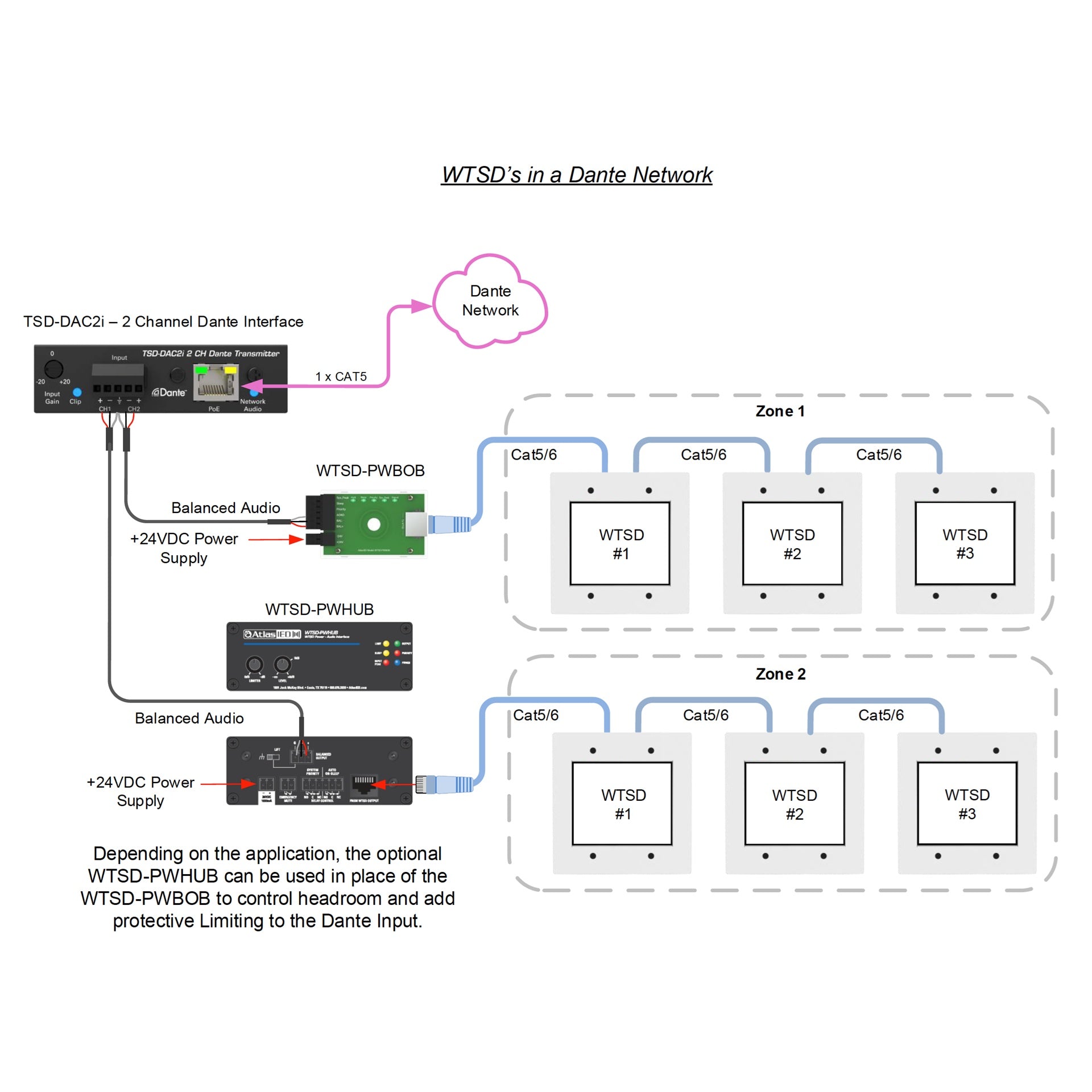

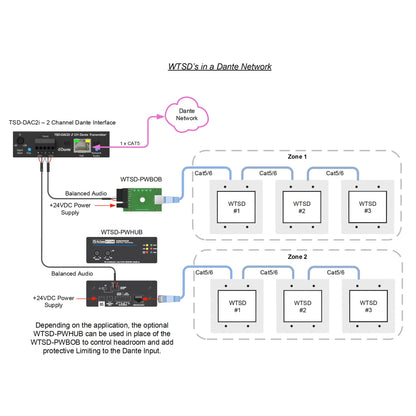

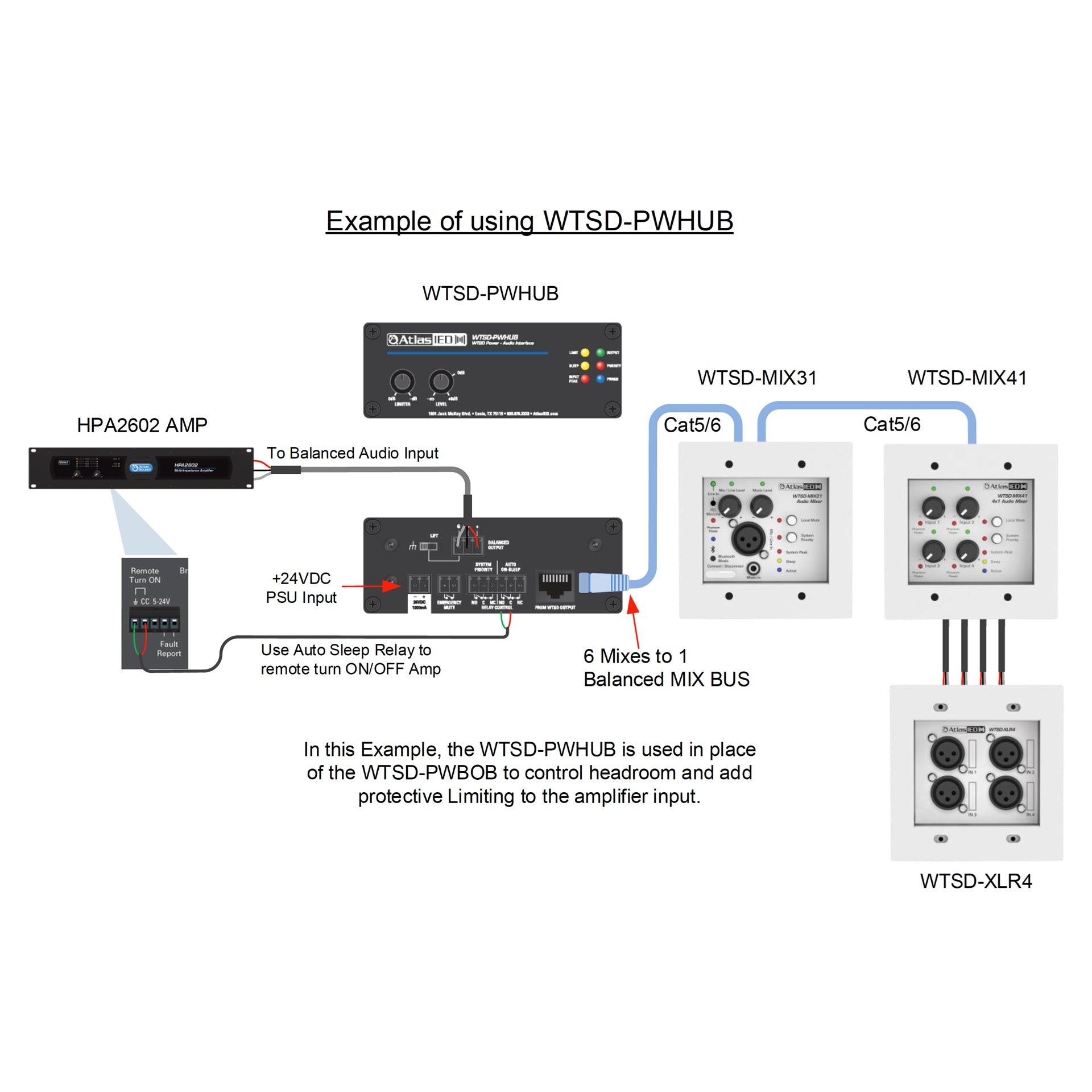

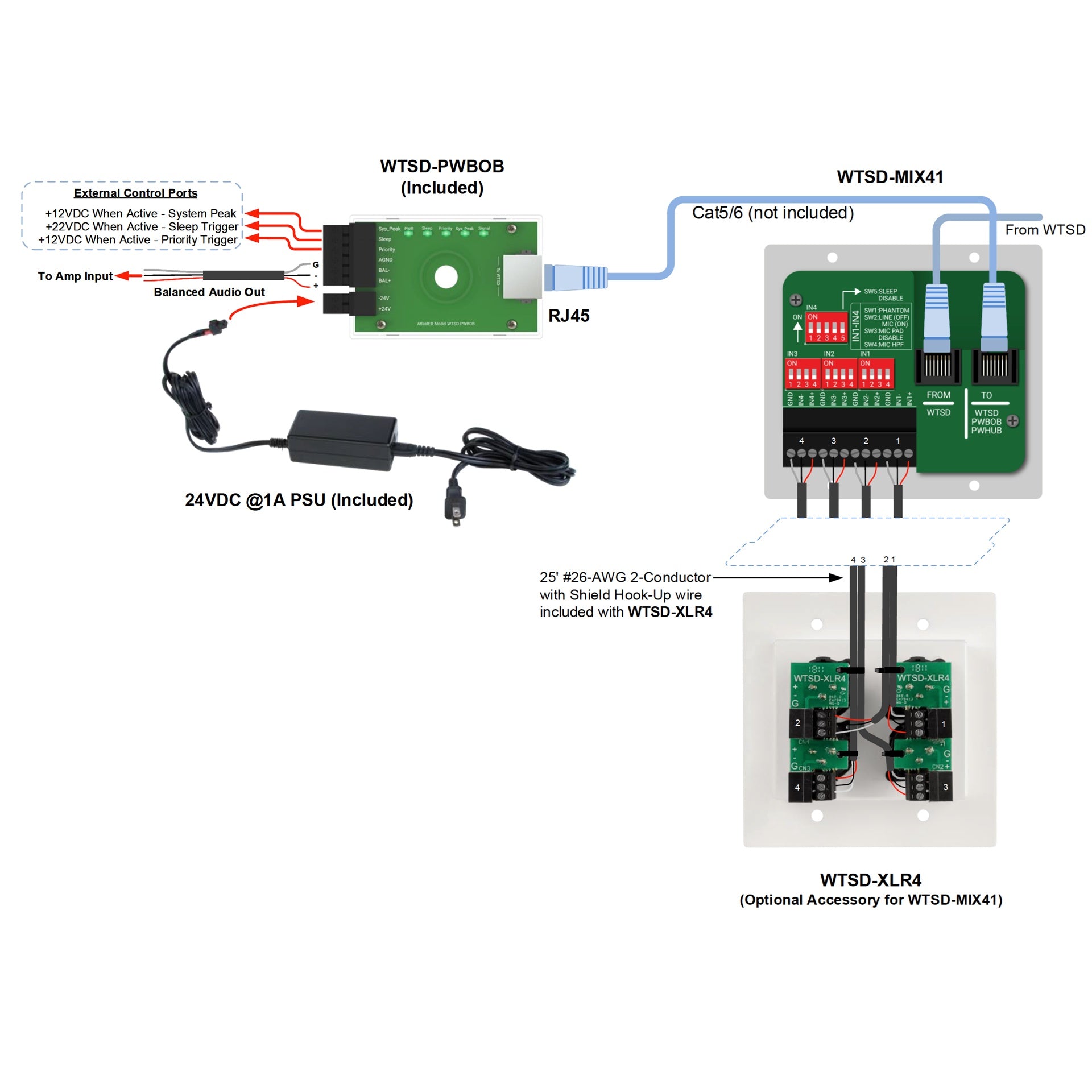

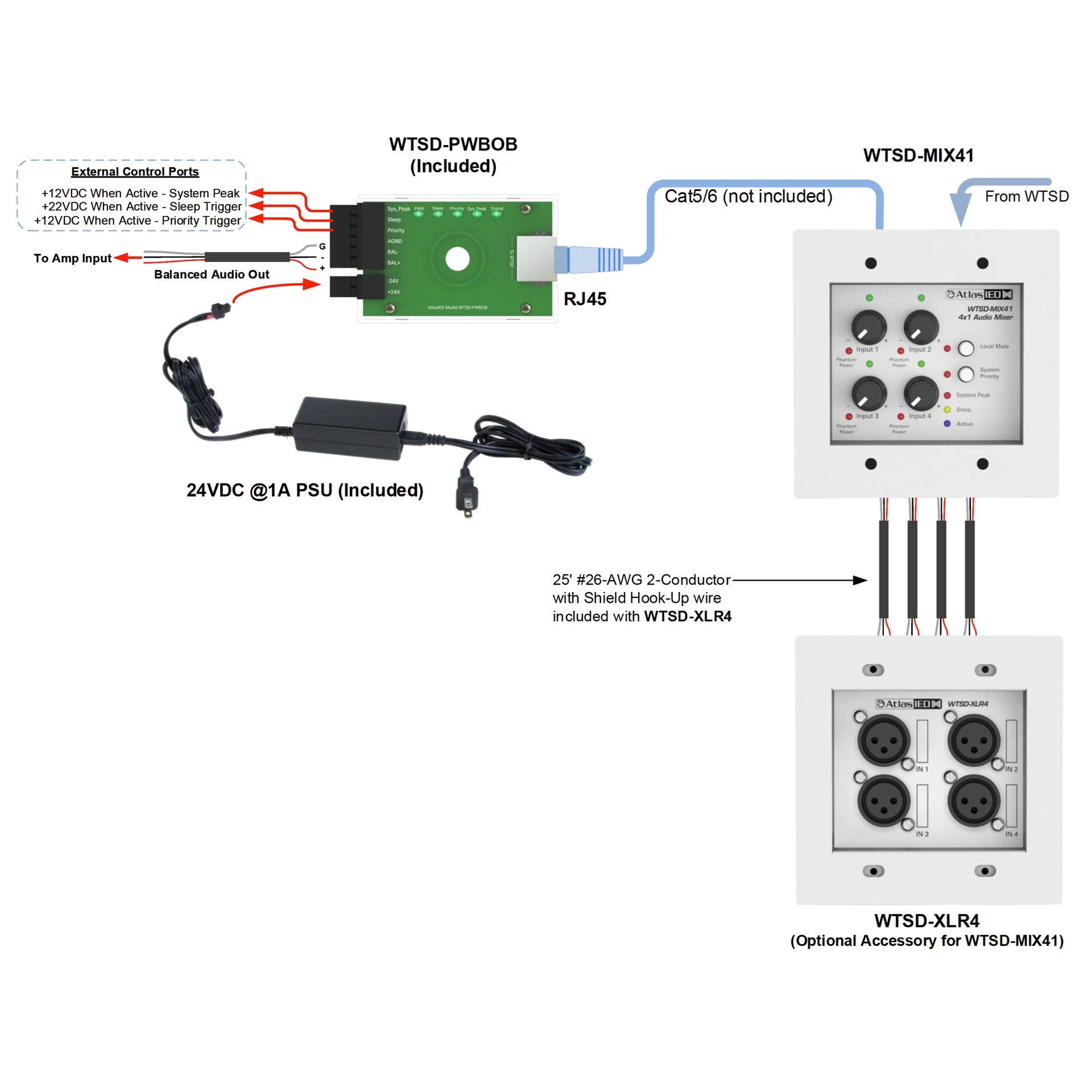

The WTSD-MIX41K integrates with other mixers on the same audio bus for expanded channel count, runs over standard Cat5/Cat6 cabling to remote locations, and supports runs up to 400 feet. When Dante networked audio is required, the optional TSD-DAC2i converter bridges analog I/O to digital network infrastructure. An optional water-resistant stainless steel locking cover enables secure outdoor deployment.
Specifications
