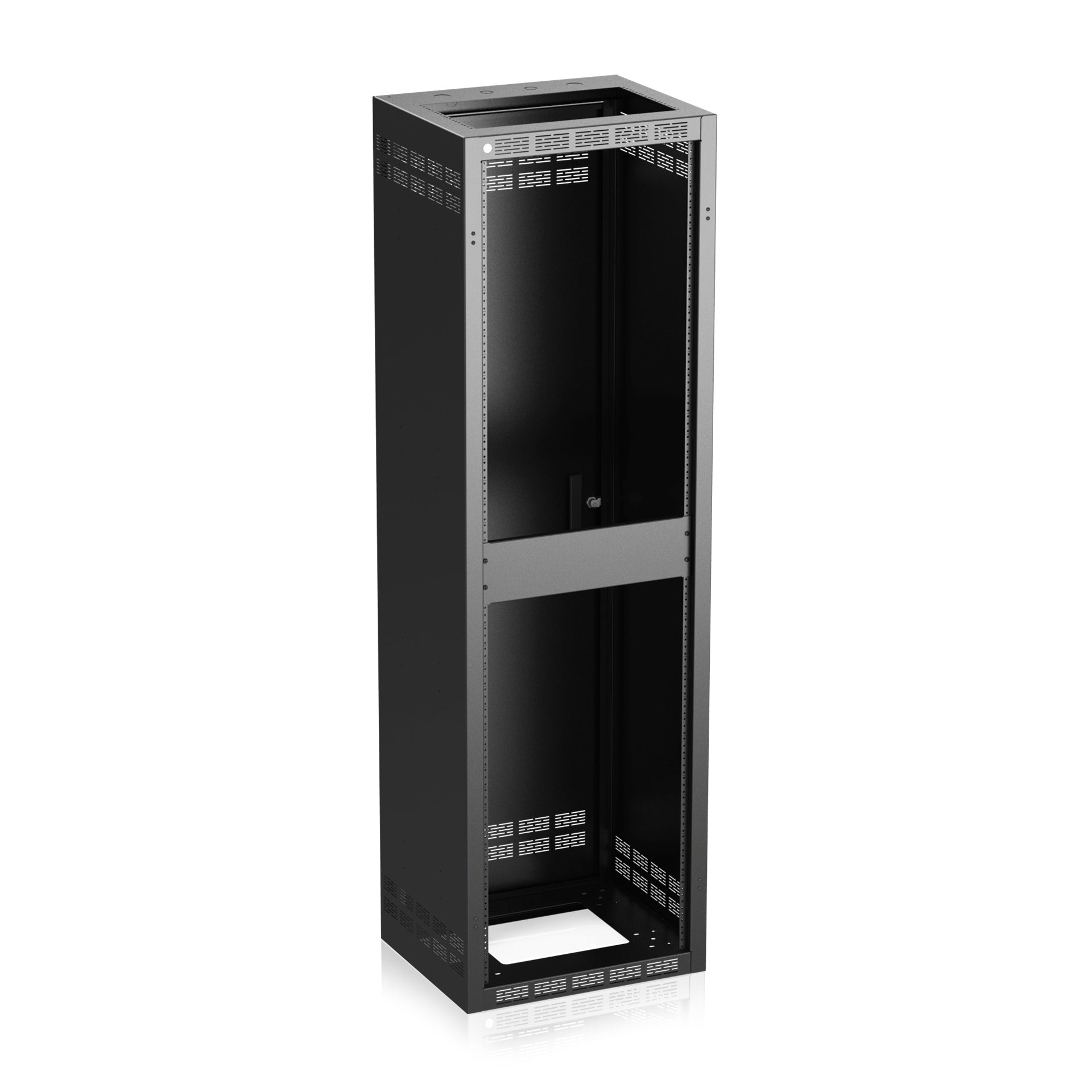

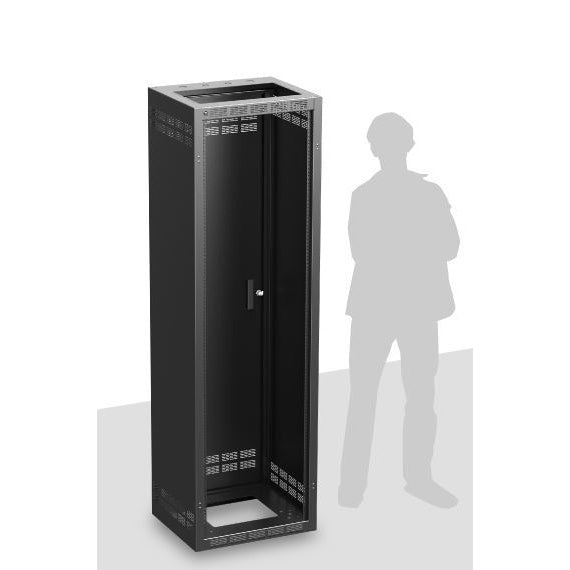

AtlasIED Stand-Alone Floor Rack with Fixed Rails 18.5" Deep | 40RU

The AtlasIED 100 Series stand-alone floor rack is built for AV integrators and systems installers who need a reliable, code-compliant enclosure without overpaying. Welded 16-gauge CRS construction with a phosphate pre-treated, textured black epoxy finish gives the cabinet long-term durability in permanent installs — from equipment rooms and houses of worship to corporate AV closets and broadcast facilities. Available in five RU heights to scale with any system design.

Installer-friendly details separate this series from generic rack enclosures. The expanded 6RU openings at the top and bottom of the cabinet allow conduit runs, floor raceway connections, or ventilation to be handled cleanly without field modification. Rear doors ship with quick-release spring hinges that rotate 180° for right- or left-hand opening, accommodating tight equipment room layouts. An optional front door is keyed separately from the rear cylinder lock, enabling independent access control in multi-technician environments.

Rack rails are precision-tapped 10-32 and recessed 11/16");with standard EIA 5/8"-5/8"-1/2" spacing and RU hash marks for fast, accurate equipment alignment. Perforated vents on all sides and the rear door support passive air convection for thermally dense rack builds. UL 1678 listing confirms the cabinet meets recognized safety standards for installed audio and AV equipment enclosures.
