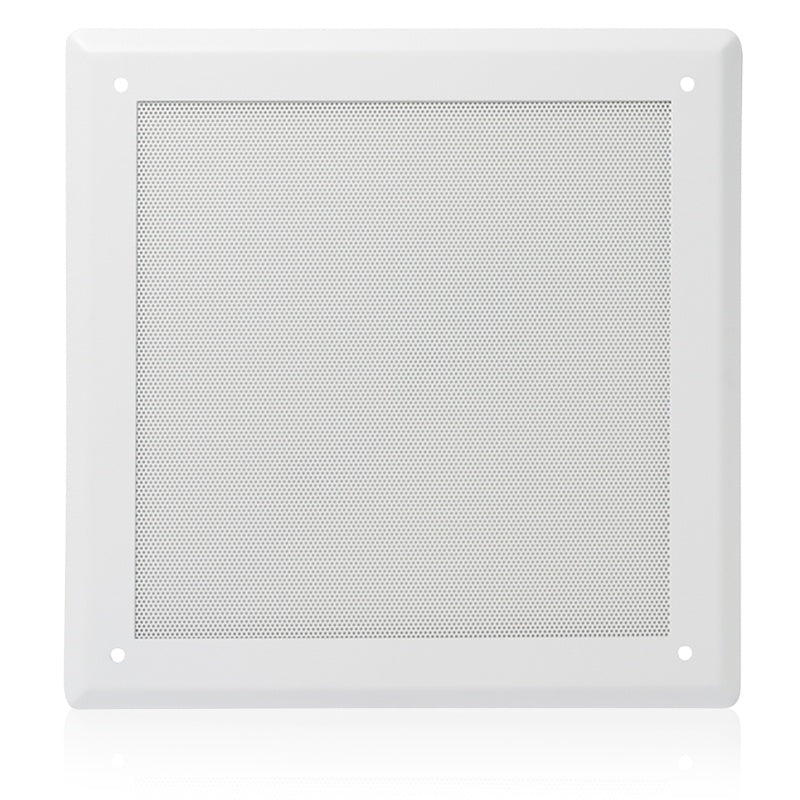

AtlasIED 170-8A Perforated Ceiling Baffle For 8" Speakers
AtlasIED 170-8A Perforated Ceiling Baffle For 8" Speakers
SoundPro Item: 42344 | Part Number: 170-8A
Usually ships in 5-7 business days
- Concealed Loudspeaker Mounting Studs Maintain A Clean, Professional Installation Surface
- Separate Subplate Design Extends Bass Response By Reducing Low-Frequency Leakage
- Heavy-Gauge CRS Construction Guards Against Vibration And Rattle In Installed Environments
- Textured White Epoxy Finish Blends With Standard Commercial Ceiling Aesthetics
- Dual Safety Listings Support Compliance In Air-Handling Space Installations
The AtlasIED 170-8A is a two-piece cold-rolled steel ceiling baffle designed for integrators and installers working with standard 8-inch ceiling speaker systems. Its die-formed frame with shallow bevel and perforated grille maintains a low-profile, finished aesthetic suited to commercial and institutional environments where speaker visibility needs to be minimized.
The separate 20-gauge CRS speaker mounting subplate is engineered to extend bass response by creating a sealed rear cavity that reduces low-frequency leakage — a critical detail in multi-zone distributed audio installations where sound bleed between zones degrades intelligibility. Concealed mounting studs keep the installation surface clean and professional without exposed hardware.
Built from 18-gauge CRS trim and 22-gauge perforated grille stock with a textured white epoxy finish, the 170-8A is durable enough for high-traffic commercial ceilings and suitable for both ceiling and wall-mount configurations. Safety listings under UL 1480 and UL 2043 make it compliant for use in air-handling spaces, a common requirement in commercial AV installations governed by building codes.
Specifications
