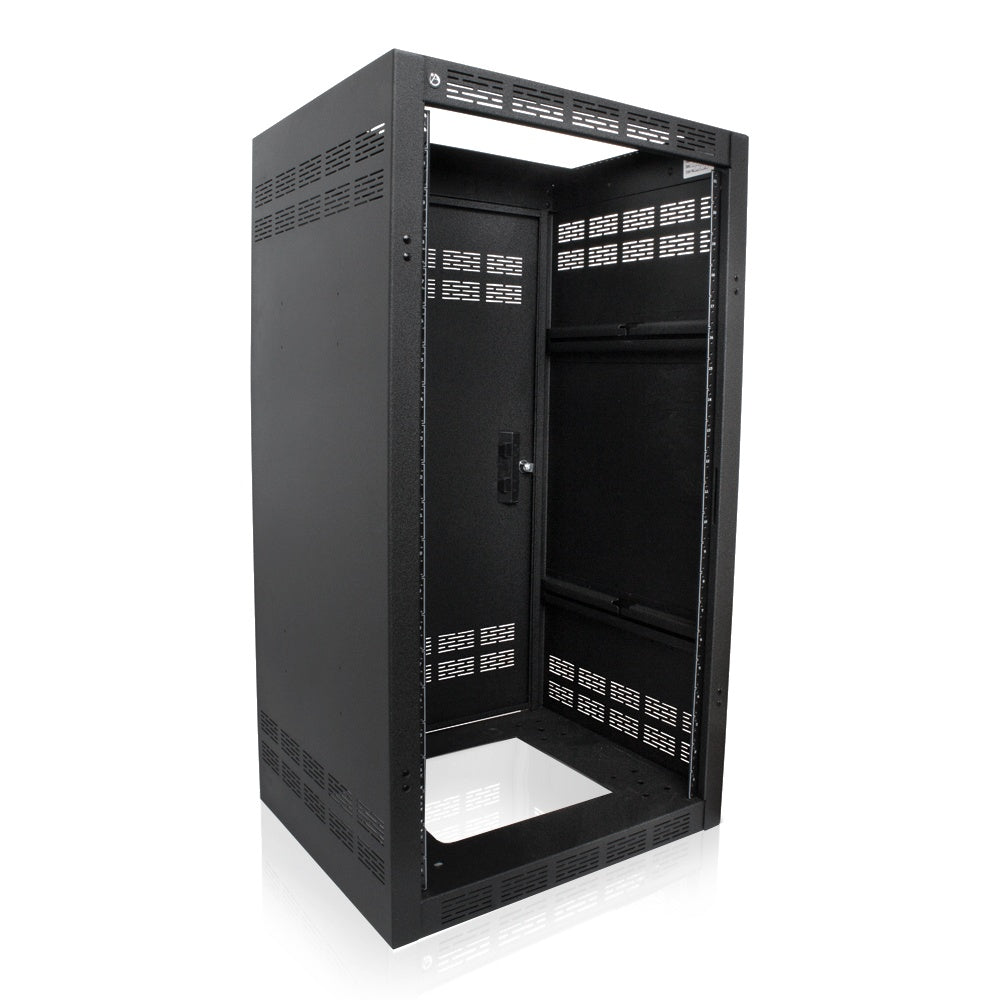

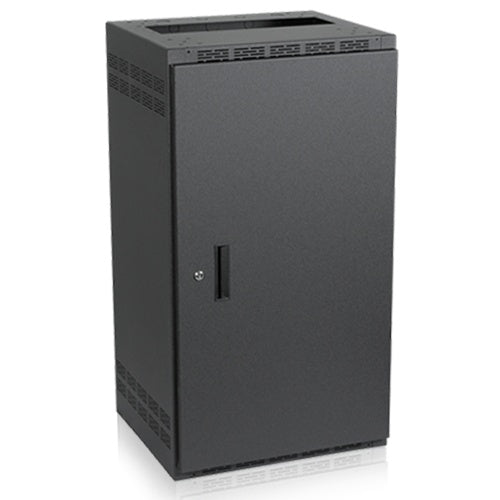

AtlasIED Welded Rack 24RU Steel Cabinet With Adjustable Rails | 18.5"

The AtlasIED 224-18 is built for AV integrators and system installers who need a reliable, cost-effective equipment enclosure for permanent installation environments. The 16-gauge CRS welded construction provides a rigid chassis suitable for housing amplifiers, DSPs, signal processors, and other rack-mount AV components in commercial, educational, and corporate settings.

Installer-friendly design details set this cabinet apart from imported alternatives. The expanded 6RU openings at the top and bottom of the cabinet can be left open for wire routing and convection cooling or sealed with standard vent or solid panels depending on project requirements. Rear doors are mounted on quick-release spring hinges that rotate 180° for right- or left-hand opening, and the cylinder lock keeps equipment secured post-installation. Conduit knockouts on all surface and flange locations simplify structured wiring runs.

Precision-tapped 10-32 rack rails are recessed 11/16" and include RU hash marks for fast, accurate equipment alignment. The standard E.I.A. 5/8"-5/8"-1/2" rail spacing ensures compatibility with the full range of professional rack-mount gear. A phosphate pre-treatment under the textured black epoxy finish ensures long-term paint adhesion in demanding installation conditions.
