AtlasIED 310-15 Wall Mount Rack Cabinet With Adjustable Rails 10 RU

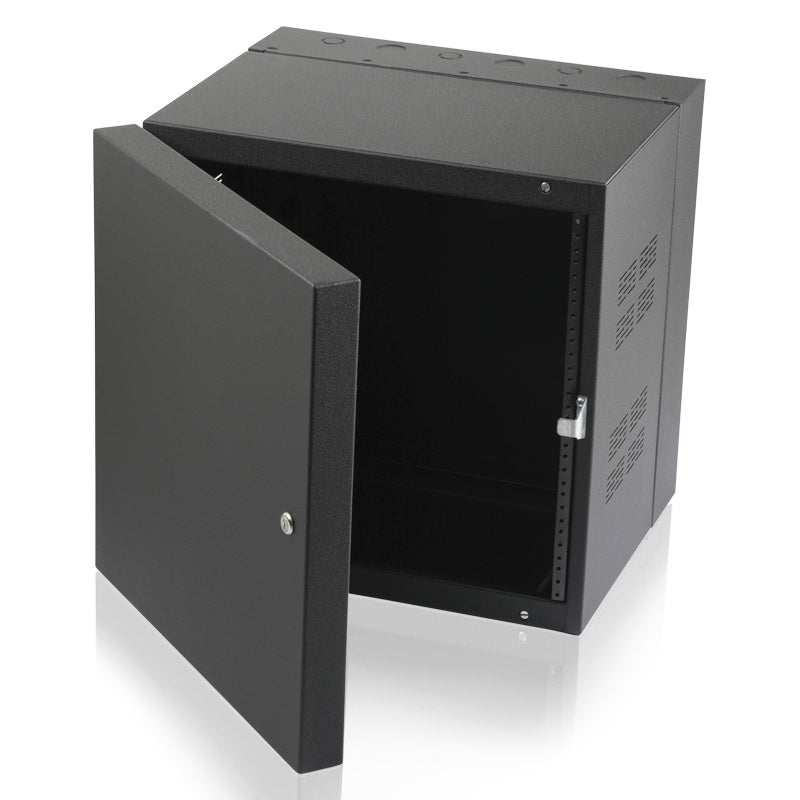

The AtlasIED 310-15 is a 10 RU stand-alone wall cabinet engineered for permanent installed audio and AV system integration in commercial, educational, and institutional environments. Built from 16-gauge CRS steel with electric-welded seams and miters, this enclosure is designed for contractors and integrators who need a structurally reliable rack solution that mounts to a wall and protects gear without consuming floor space.

The three-section architecture — a 2" solid-steel front door, 15" deep center section with adjustable front rails tapped 10-32 to EIA half-inch spacing, and a 4.5" rear door — gives installers the flexibility to mount standard rack equipment while managing cable runs through internal open raceways and corner brace wire access holes. Perforated vents on both sides of the center section provide passive thermal management for active electronics.

A uniquely designed center section guide plate distributes cabinet and equipment weight to the rear section, preventing sag and ensuring proper closure even under full load. Twenty conduit knockouts on the rear section — including standard 1" and concentric half-inch/three-quarter-inch options — accommodate virtually any conduit routing requirement. Boss detents on 12" centers on the rear face allow contractors to field-install custom sub-plates for accessory mounting, making the 310-15 a long-term infrastructure investment rather than a one-size-fits-all enclosure.
