AtlasIED 312-12 300 Series Wall Cabinet with Adjustable Rails 12 RU | 12" Deep
AtlasIED 312-12 300 Series Wall Cabinet with Adjustable Rails 12 RU | 12" Deep
SoundPro Item: 12852 | Part Number: 312-12
Usually ships in 5-7 business days
- Adjustable 10-32 Tapped Front Rails Accommodate Standard EIA Rack Equipment
- Center Section Guide Plate Prevents Sagging Under Heavy Equipment Loads
- Internal Open Raceways And Corner Brace Wire Holes Support Organized Cable Routing
- Perforated Side Vents Promote Passive Airflow For Heat-Generating Rack Electronics
- Boss Detents On Rear Interior Allow Custom Sub-Plate Mounting For Added Flexibility
- 20 Conduit Knockouts In Multiple Sizes Enable Clean Field Wiring Entry
- #962 Black Epoxy Finish Provides A Professional Appearance In Permanent Installs

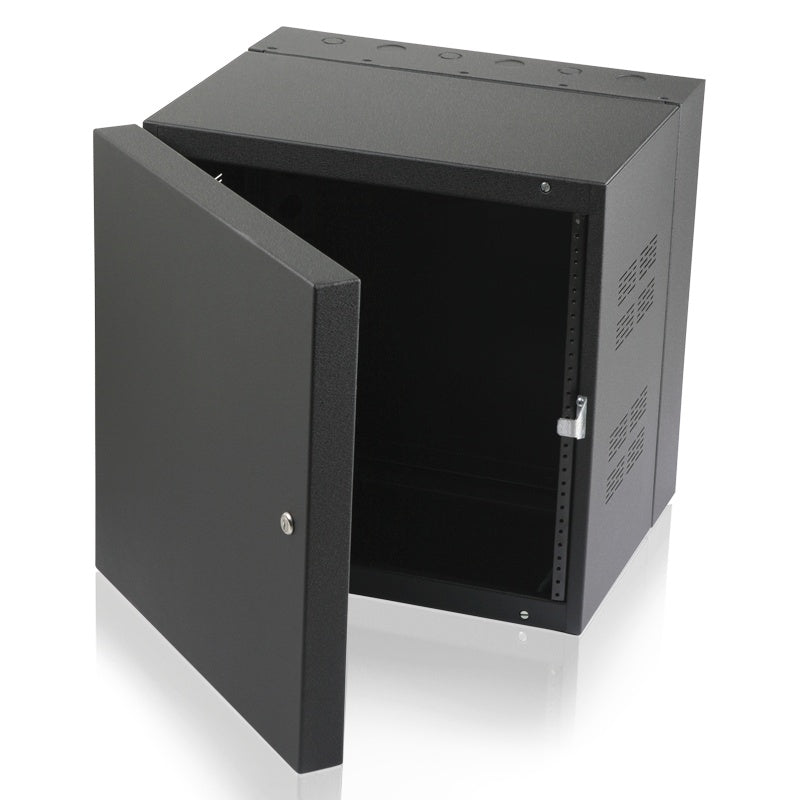

The AtlasIED 312-12 is a 12 RU wall-mount rack enclosure built for AV integrators and contractors who need a permanent, space-efficient equipment housing in commercial installs. Constructed from 16-gauge cold-rolled steel with electric-welded seams and mitered corners, it delivers the structural integrity required for mounting signal processors, amplifiers, DSPs, and other rack gear in classrooms, boardrooms, hospitality venues, and house-of-worship installations where floor space is limited.
Unlike portable rack cases, this cabinet is engineered specifically for fixed installation, featuring a center section guide plate that prevents sagging under equipment load and corner brace supports that reinforce the rear panel against tension. Adjustable front mounting rails are tapped 10-32 to EIA half-inch spacing, accommodating any standard rack-mount equipment. Internal open raceways and corner brace wire access holes keep cable runs organized and serviceable after installation.
The rear section includes 20 conduit knockouts in multiple sizes for clean conduit entry from top, bottom, and rear flanges, while perforated side vents on both the top and bottom of the center section provide passive airflow for heat-generating electronics. Boss detents on the rear interior panel give contractors the option to mount a custom sub-plate for additional accessories, adding field flexibility that comparable wall cabinets in this class rarely offer. Finished in #962 black epoxy for a professional appearance in any install environment.
Downloads
Downloads
Specifications
