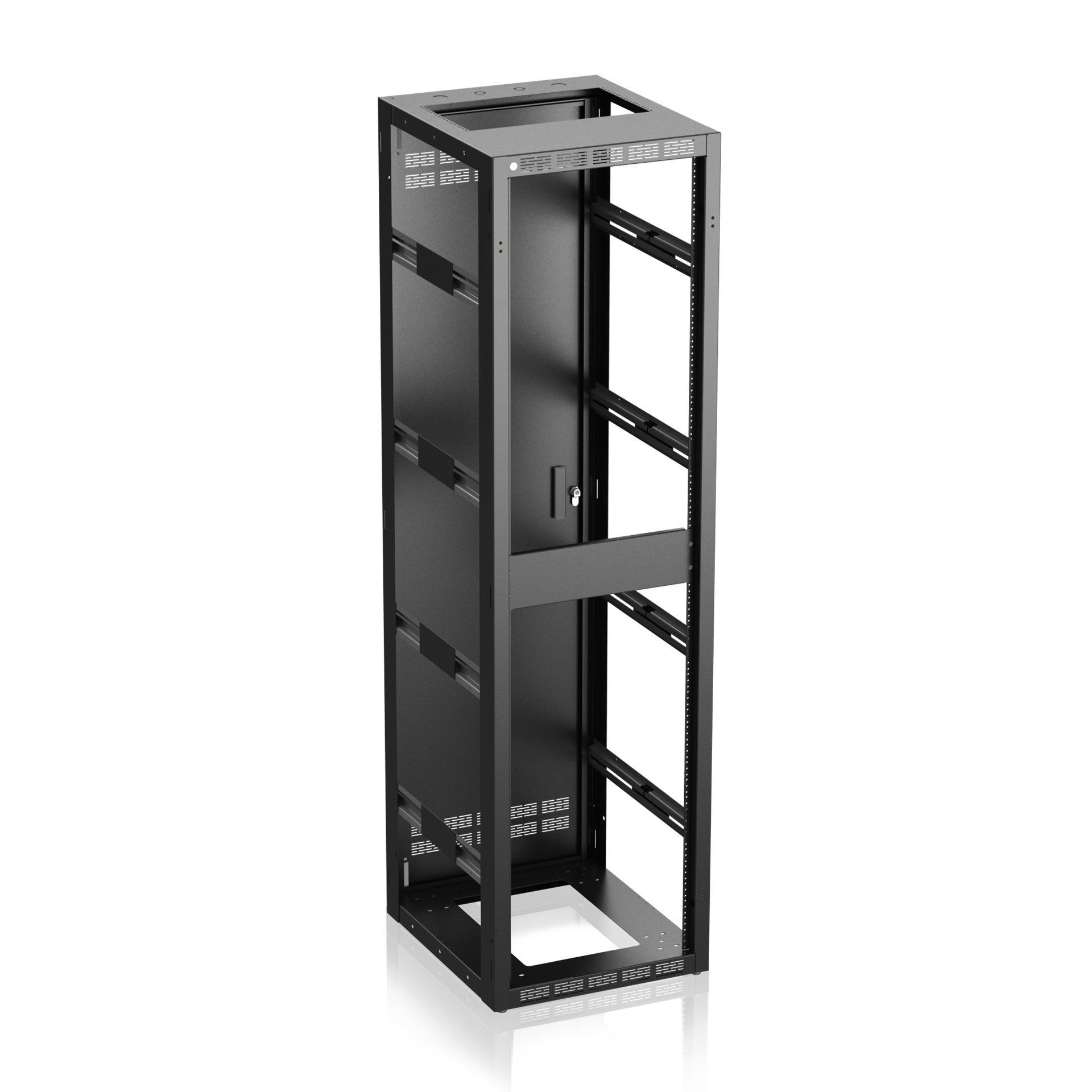

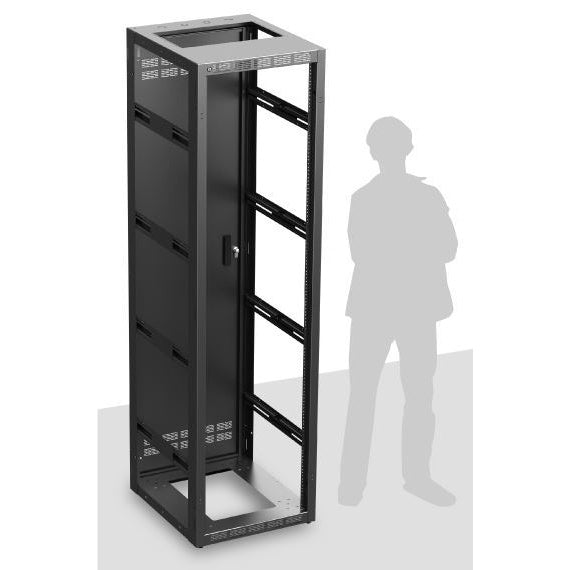

AtlasIED 500 Series Stand Alone or Gangable Rack Steel Cabinet | 44RU

The AtlasIED 500 Series stand-alone and gangable rack cabinets are purpose-built for AV system integrators who need a reliable, field-ready enclosure for permanent installations. The welded 16-gauge CRS construction arrives assembled and ready to populate, cutting rack-build time on the job site. EIA-spaced, 12-gauge CRS adjustable mounting rails tapped 10-32 accommodate standard 19-inch equipment, while front-to-rear rail supports with slotted cutouts let technicians dial in rail depth without removing gear and double as open vertical cable raceways.

The 6RU top panel opening is a standout installer advantage — leave it open for free-air ventilation and wire access, fit the optional ISOPANEL for non-conductive cable pass-through, or close it with standard 3RU panels. Multiple conduit knockout arrays on top, bottom, and rear flanges give structured cabling teams flexible entry points for conduit runs without field drilling. Cabinet frame and rear door are both vented to keep heat-producing equipment within safe operating temperatures.

Security and serviceability are addressed throughout: the removable rear door uses quick-release spring hinges that rotate 180 degrees for right- or left-hand opening, paired with a cylinder lock and flush pull. The cabinet surface is phosphate pretreated before a textured black epoxy finish is applied, ensuring long-term finish adhesion in demanding install environments. Pre-drilled M-1A IR repeater mounting and UL 1678 listing make this series a direct fit for commercial AV infrastructure projects where code compliance and long-term serviceability matter.
