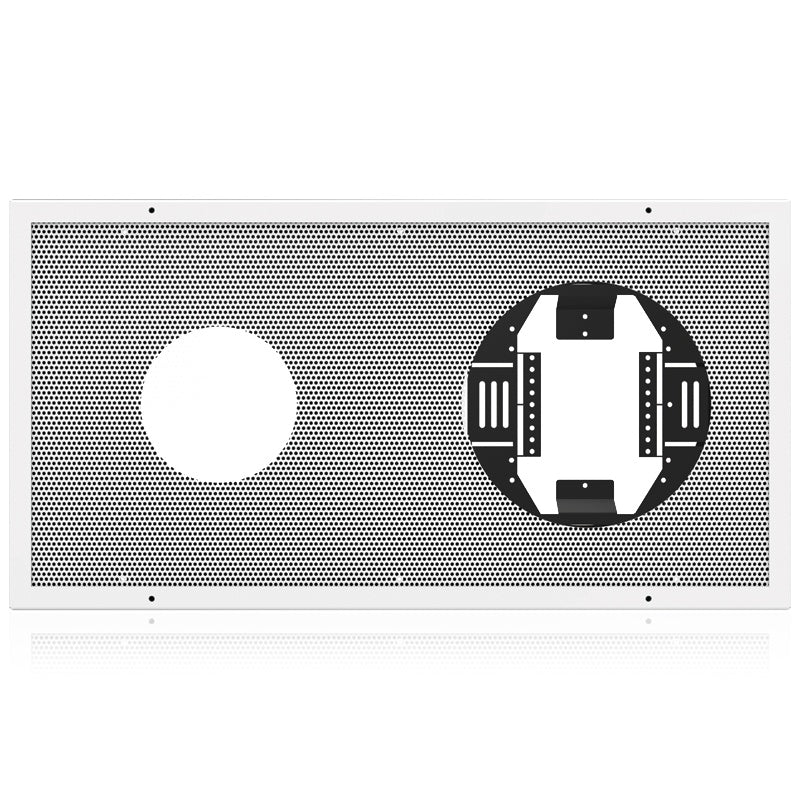

AtlasIED 840-812A Perforated Baffle for 8" Speaker and 12" Clock

The AtlasIED 840-812A is designed for systems integrators and commercial AV installers who need a single, unified baffle solution for co-locating an 8" loudspeaker with a 12" analog clock in ceiling or wall applications. The assembly eliminates visible fasteners through a double-action torsion spring system, making it well-suited for corporate lobbies, educational facilities, healthcare environments, and public address installations where aesthetics are a priority.

Constructed from 18-gauge CRS with a white epoxy finish across the panel, grille, and trim ring, the 840-812A integrates cleanly into both recessed and surface-mounted configurations when paired with 195 Series enclosures. A black gasket conceals the 8" speaker cutout edge, while the included universal clock mounting bracket accommodates virtually any standard 12" analog clock supplied by others. The speaker itself is ordered separately, giving integrators flexibility to match the driver to the system's coverage and power requirements.

With a five-year warranty and compatibility with the 195-812 and SM195-812 enclosures, the 840-812A is a practical, specification-grade component for installed sound projects that demand both function and a finished appearance.
