AtlasIED AA-PPRC Priority Paging Relay Controller For Speaker Lines
AtlasIED AA-PPRC Priority Paging Relay Controller For Speaker Lines
SoundPro Item: 13149 | Part Number: AA-PPRC
Usually ships in 5-7 business days
- Two-Channel Architecture Handles Independent Speaker Zones Simultaneously
- Adjustable Relay Release Timing Prevents Audio Resuming Before Page Completes
- Multiple Trigger Input Types Allow Integration With Any Paging Or Control Source
- Contact Closure Terminals Support Direct Interface With Access Control And Life Safety Systems

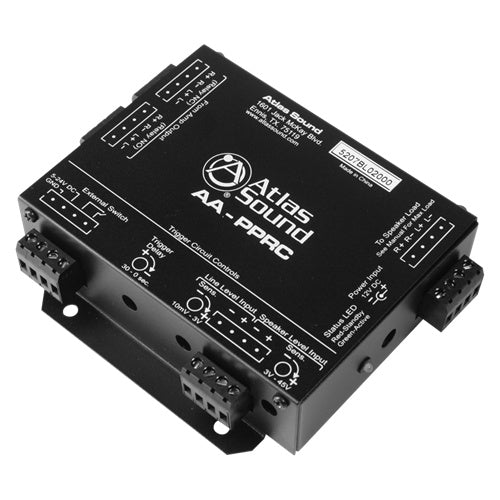

- Detachable Phoenix Connectors Simplify Field Wiring And Future Serviceability
- Compatible With Low-Z And Distributed Voltage Systems For Retrofit Or New Installs
- Included Power Supply Enables Out-Of-Box Deployment Without Additional Components
The AtlasIED AA-PPRC is built for AV integrators and installed sound engineers who need a reliable, code-compliant method to interrupt background audio and deliver priority pages across distributed speaker systems. Positioned between an amplifier output and the speaker load, it handles 25V, 70.7V, 100V, and low-impedance 8Ω systems without requiring infrastructure changes, making it well suited for boardrooms, corporate campuses, retail environments, and multi-zone facilities.
Where competing relay controllers limit trigger options to a single input type, the AA-PPRC accepts high-level audio, line-level audio, contact closure, and DC voltage triggers — giving integrators flexibility to interface with virtually any control system or paging source already on-site. The adjustable relay release timing ensures the background audio source does not resume until the page has fully cleared, eliminating the awkward cut-ins that frustrate end users and installers alike.
For new installations or retrofits, the compact footprint and Phoenix-type connectors simplify rack placement and field wiring. The included 12VDC power supply and wide trigger threshold ranges mean less field calibration and faster commissioning on multi-zone jobs where time on-site is a direct cost.
- Height 1 1/2" (3.81 cm)
- Width 4" (10.16 cm)
- Depth 4 1/2" (11.43 cm)
- Shipping Weight 2 lbs (0.91 kgs)
- Frequency Response 20Hz - 20kHz Flat
- Connector Type Four Position Detachable Phoenix Connector
- Finish Black

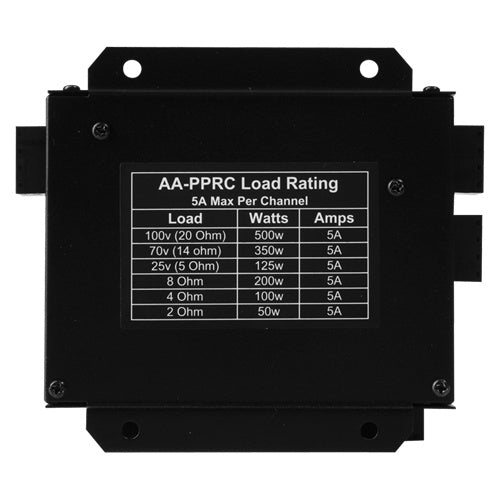

- Load Capacity 5 AMPS
- Compatibility 8Ω, 25V, 70.7V, 100V Systems
