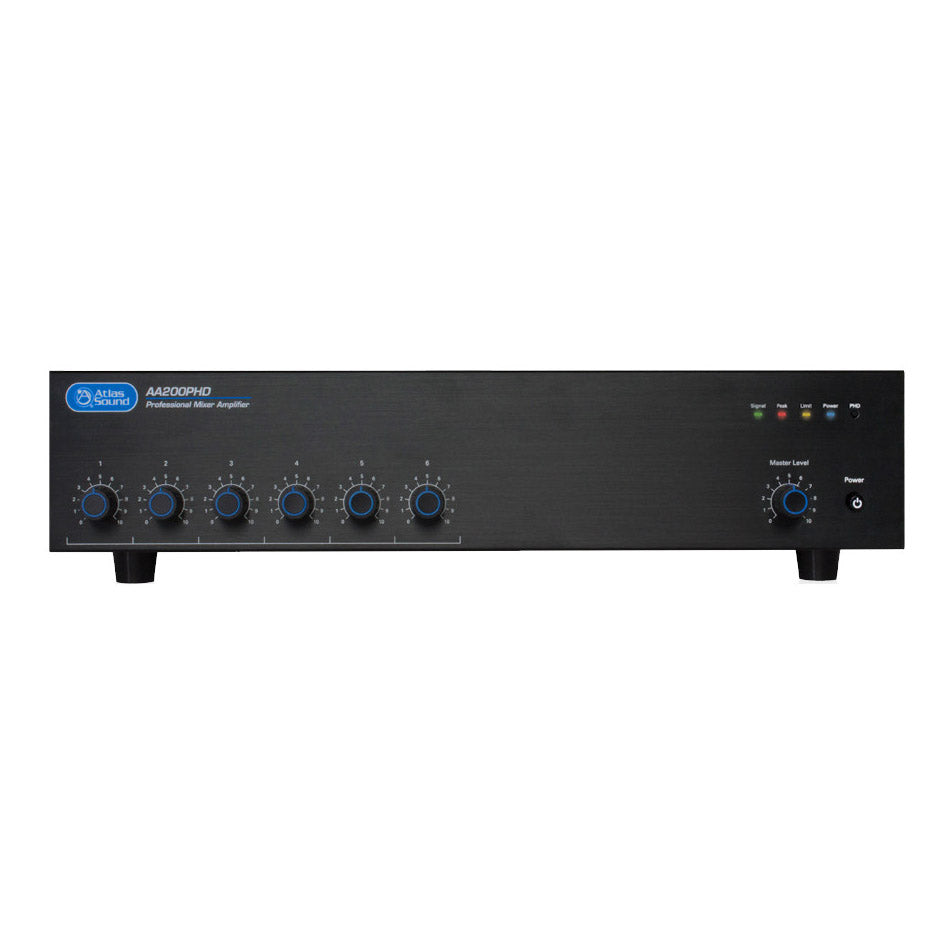

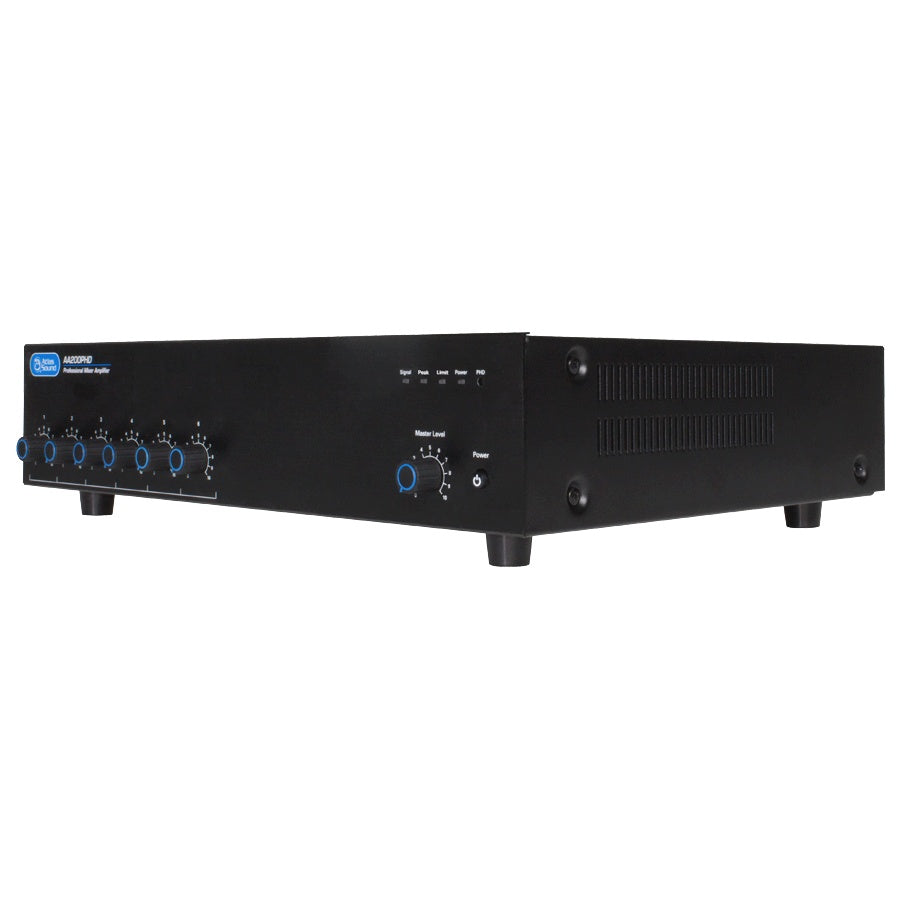

AtlasIED AA200PHD 6-Input Mixer Amplifier With Automatic System Test
AtlasIED AA200PHD 6-Input Mixer Amplifier With Automatic System Test
SoundPro Item: 13141 | Part Number: AA200PHD
Usually ships in 5-7 business days
- Push Here Diagnostic Automates Speaker Line Verification After Installation

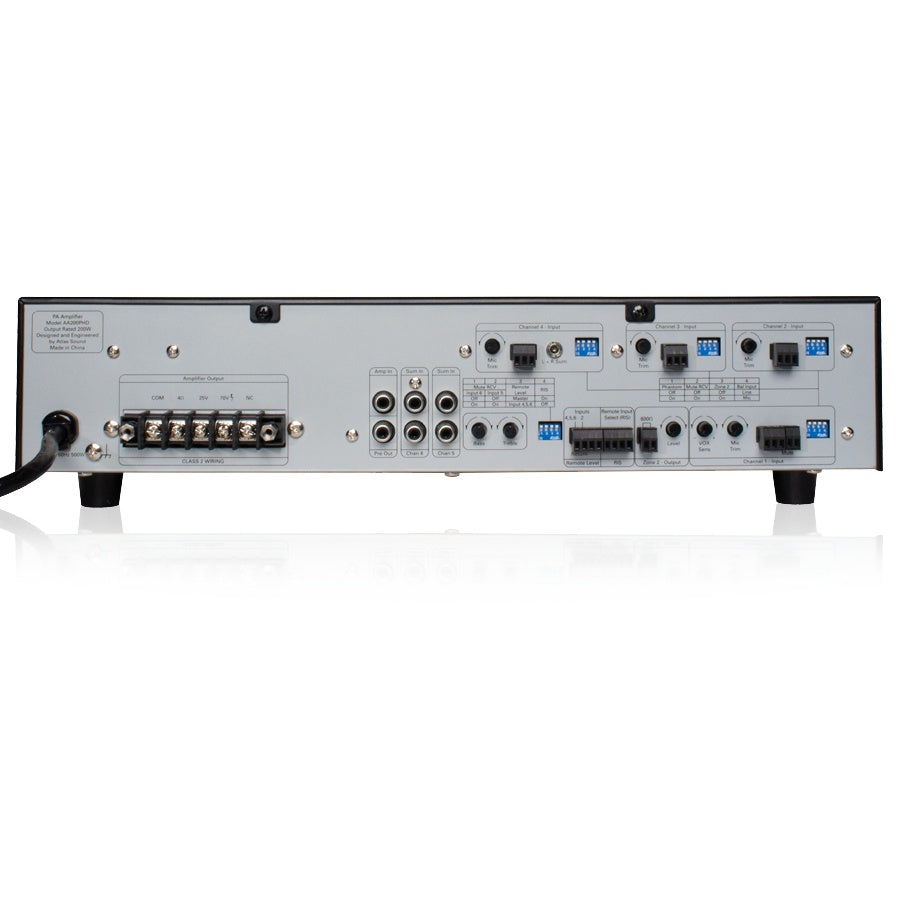

- Supports 25V, 70.7V, And 4Ω Distributed Speaker Systems From One Amplifier
- Four Balanced Mic/Line Inputs With Selectable Phantom Power For Paging Mics
- Remote Input Selection And Level Control Extends Up To 200 Feet Via Wall Plate
- DIP Switch Zone 2 Output Mix Enables Independent Area Coverage Without Extra Hardware
- Input 1 Priority Muting Silences Background Sources Automatically During Pages
- Preamp Input Allows External Signal Processors To Be Inserted Into The Chain
The AtlasIED AA200PHD is engineered for AV integrators and system designers deploying distributed audio in commercial environments — including business paging, background music, sound masking, and music-on-hold with paging overlay. Its six input channels, combining four balanced mic/line inputs and two stereo summing line inputs, accommodate paging microphones, media players, and digital music receivers without requiring external mixing hardware.
What distinguishes the AA200PHD from competing commercial mixer amplifiers is the patent-pending Push Here Diagnostic system. Rather than relying on manual impedance measurement after installation, integrators can trigger an automated check that verifies speaker tap settings do not exceed rated power, flags any speakers mistakenly wired at 8Ω, and confirms speaker wire is free from shorts — reducing commissioning time and costly return visits on distributed speaker runs.
The unit's Remote Input Selection and Remote Level Control feature extends user control up to 200 feet from the rack via AtlasIED model WPD-RISRL wall plates, making it well suited for restaurant, retail, corporate, or house-of-worship installs where end-user volume adjustment is required at a fixed position. Input 1 muting of inputs 2 through 6 supports standard paging priority architectures, while rear-panel DIP switches enable a Zone 2 output mix from any combination of inputs 1 through 4.
