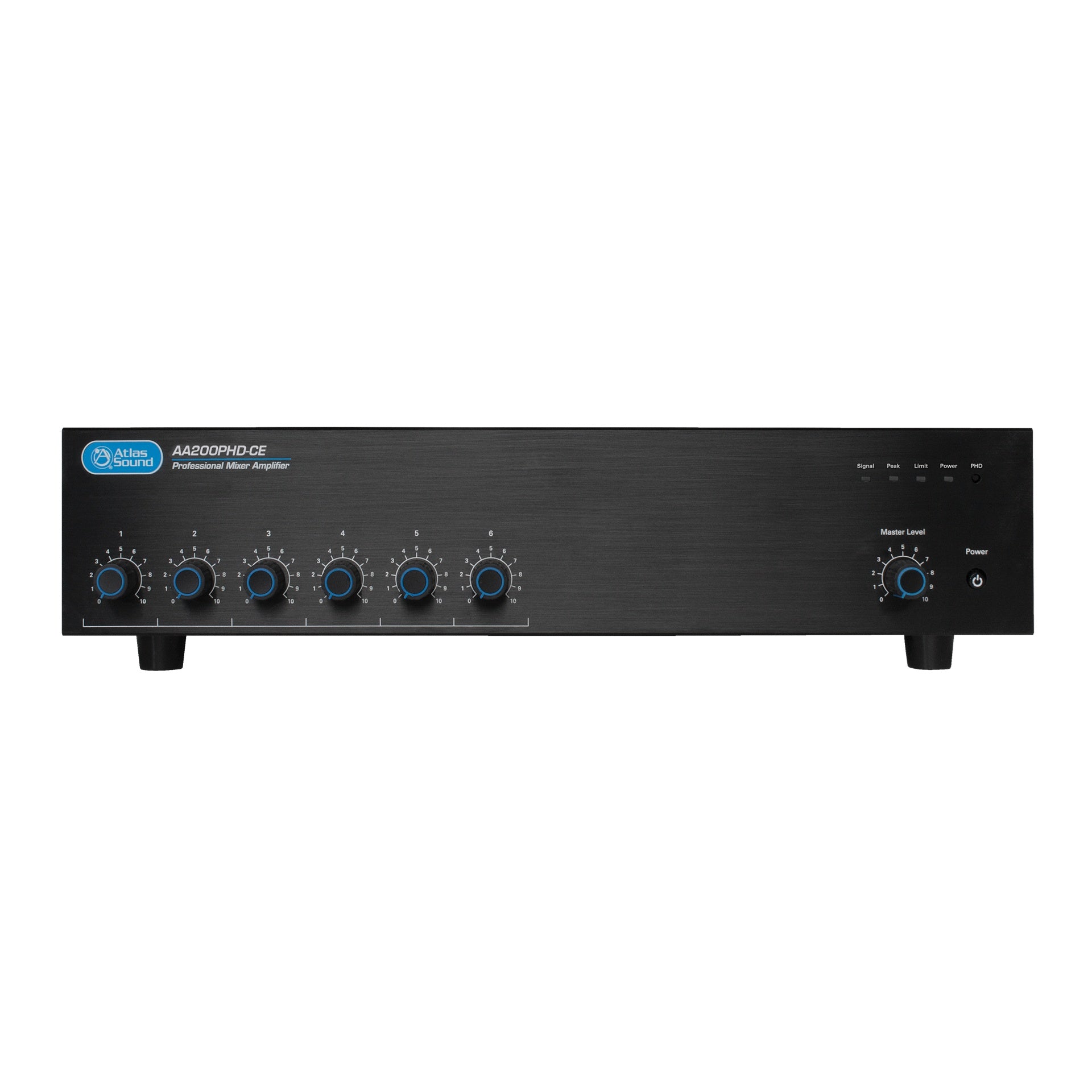

AtlasIED AA200PHD-CE 6-Input 200W Mixer Amplifier With Diagnostic Test
AtlasIED AA200PHD-CE 6-Input 200W Mixer Amplifier With Diagnostic Test
SoundPro Item: 13142 | Part Number: AA200PHD-CE
Usually ships in 5-7 business days
- Push Here Diagnostic Automatically Verifies Speaker Tap Levels, Impedance, and Wiring Integrity
- Remote Input Selection And Level Control Compatible With WPD-RISRL Wall Plate Up To 200 Feet Away
- Input 1 Paging Priority Mutes All Other Input Sources On Signal

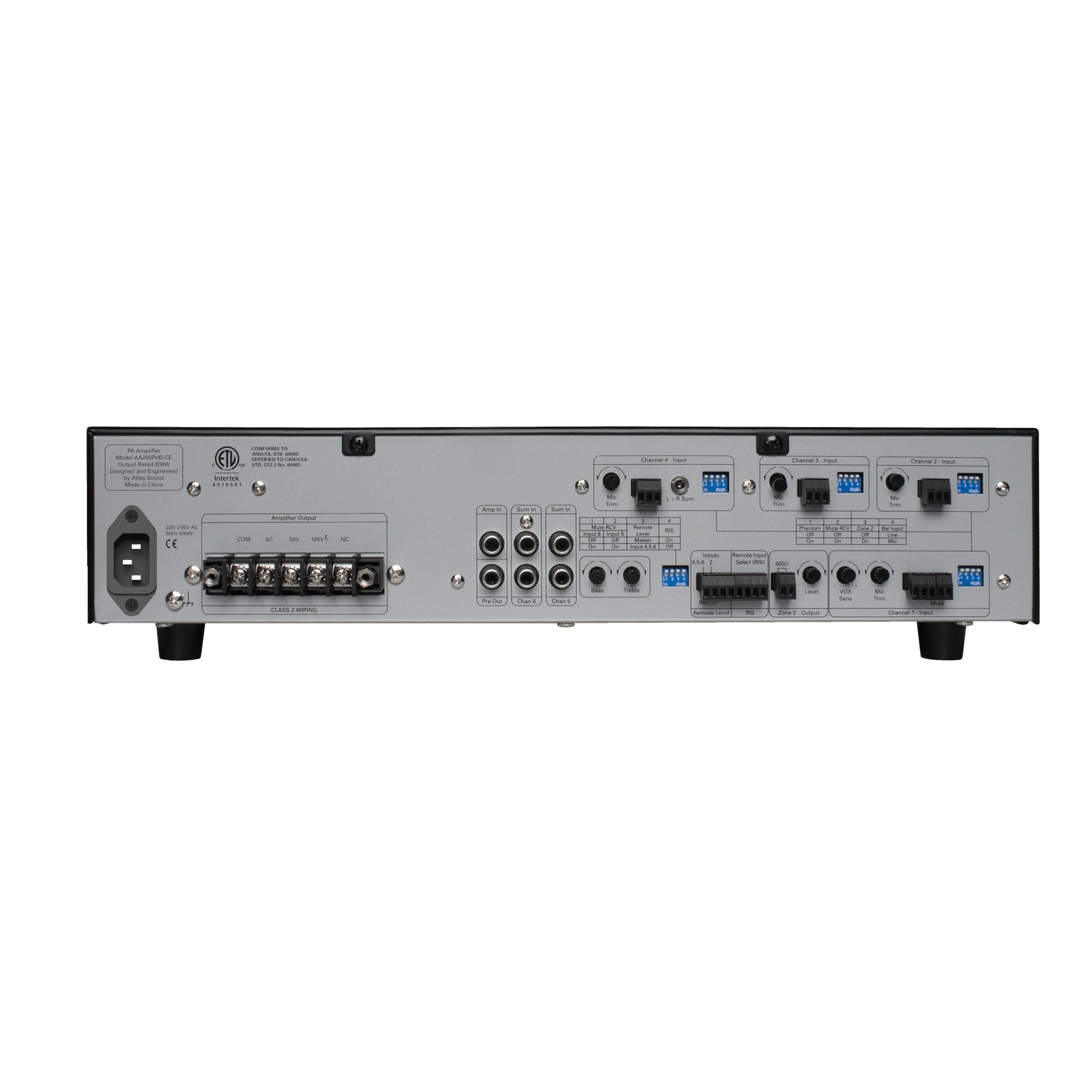

- Rear-Panel DIP Switch Enables Configurable Zone 2 Output Mix From Inputs 1–4
- Phantom Power Available On Balanced Mic/Line Inputs For Condenser Microphone Support
- Preamp Input Allows Integration Of External Signal Processors Into The Signal Chain
- Contact Closure Mute Terminals Enable System-Level Muting From External Control Devices
The AA200PHD-CE is built for integrators designing distributed audio systems in commercial and institutional environments — including medium to large paging networks, speech privacy installations, and music-on-hold plus paging applications. With four balanced mic/line inputs and two stereo summing line inputs, the amplifier accommodates paging microphones, media players, and digital music receivers in a single rackmount unit.
What separates the AAPHD series from conventional mixer amplifiers is the patent-pending Push Here Diagnostic (PHD) system. Once speakers are connected, a single button press automatically verifies that tap settings do not exceed rated power, confirms no speakers are incorrectly tapped at 8Ω, and checks for wiring shorts — eliminating guesswork during commissioning and reducing troubleshooting time in the field. The rear-panel DIP switch enables a Zone 2 output mix from any combination of inputs 1–4, and Input 1 can be configured to mute all remaining inputs during a page.
Remote Input Selection and Remote Level Control support an AtlasIED WPD-RISRL wall plate up to 200 feet from the amplifier, giving end users local volume and source control without additional hardware. The CE listing and 220–240V voltage compatibility make the AA200PHD-CE the appropriate choice for international commercial deployments where compliance and diagnostics both matter.
