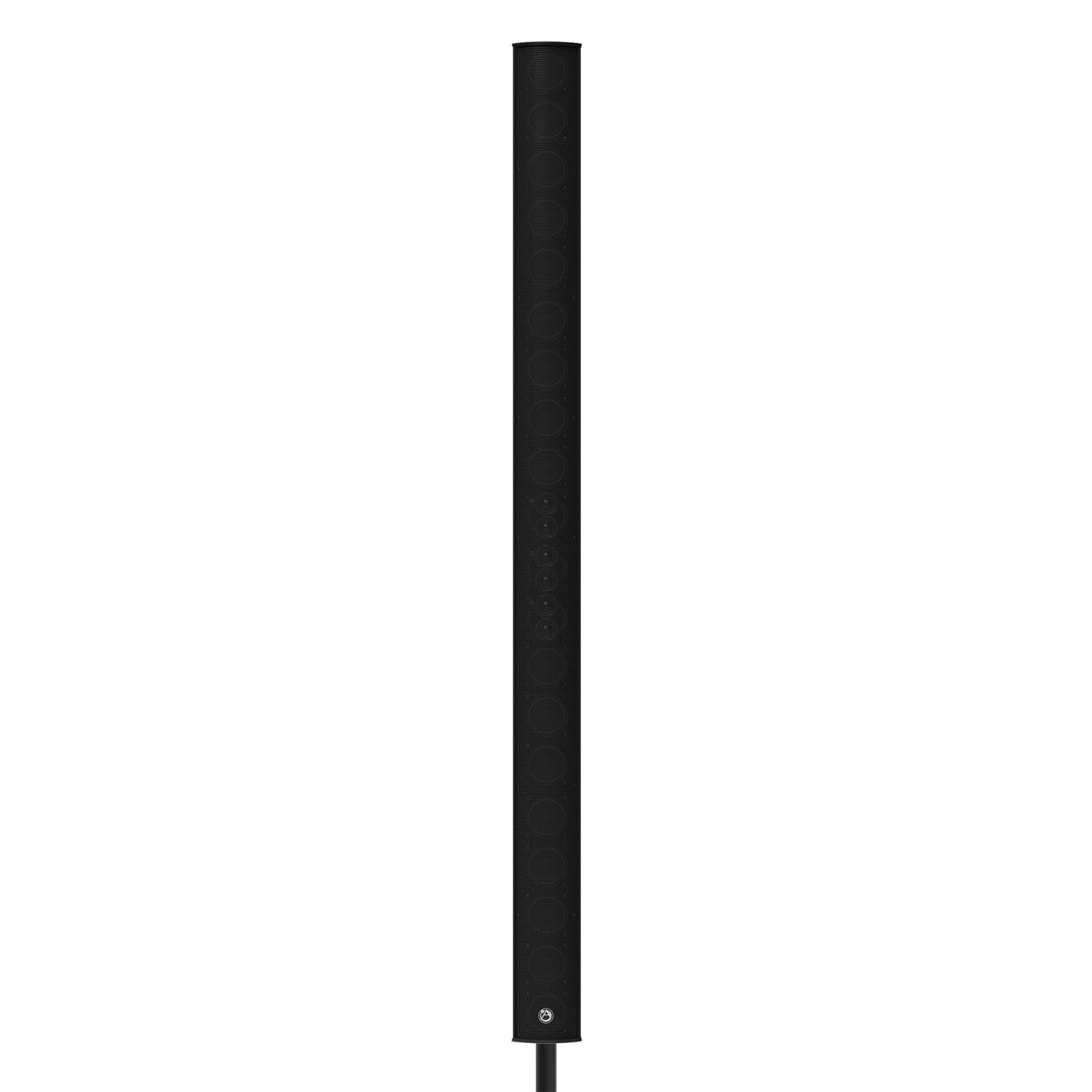

AtlasIED ALA20T Column Line Array Speaker System | Black
AtlasIED ALA20T Column Line Array Speaker System | Black
SoundPro Item: 29320 | Part Number: ALA20T-B
Usually ships in 5-7 business days
- Twenty Tight-Packed Full-Range Drivers Maximize Broadband Coverage Across The Column
- Six High-Frequency Tweeters Extend Clarity Into The Upper Register
- Extruded Aluminum Housing Provides Structural Rigidity With Minimal Weight
- Slide-Adjustable Wall Mount Bracket Allows Post-Install Vertical Tilt Tuning
- Dual Barrier Strip And NL-4 Terminals Support Both Distributed And Low-Z Wiring
- 70.7V Tap Compatibility Enables Integration Into Constant-Voltage Install Systems
- Includes Wall Mount Bracket For Immediate Installation Without Additional Hardware
The AtlasIED ALA20T-B is designed for AV integrators and system designers who need precise pattern control in reverberant or acoustically demanding environments such as houses of worship, conference centers, transportation terminals, and corporate facilities. Its column format inherently narrows vertical dispersion while maintaining wide horizontal throw, making it the right choice wherever speech clarity must be preserved without excessive room excitation.
Twenty proprietary 3-inch full-range drivers combined with six 3/4-inch high-frequency tweeters are housed in an extruded aluminum enclosure that keeps the installation footprint minimal while delivering output levels suited to medium and large venues. Dual input terminal options—Barrier Strip and NL-4—give installers flexibility across 70.7V distributed systems and low-impedance configurations without adapters or additional hardware.

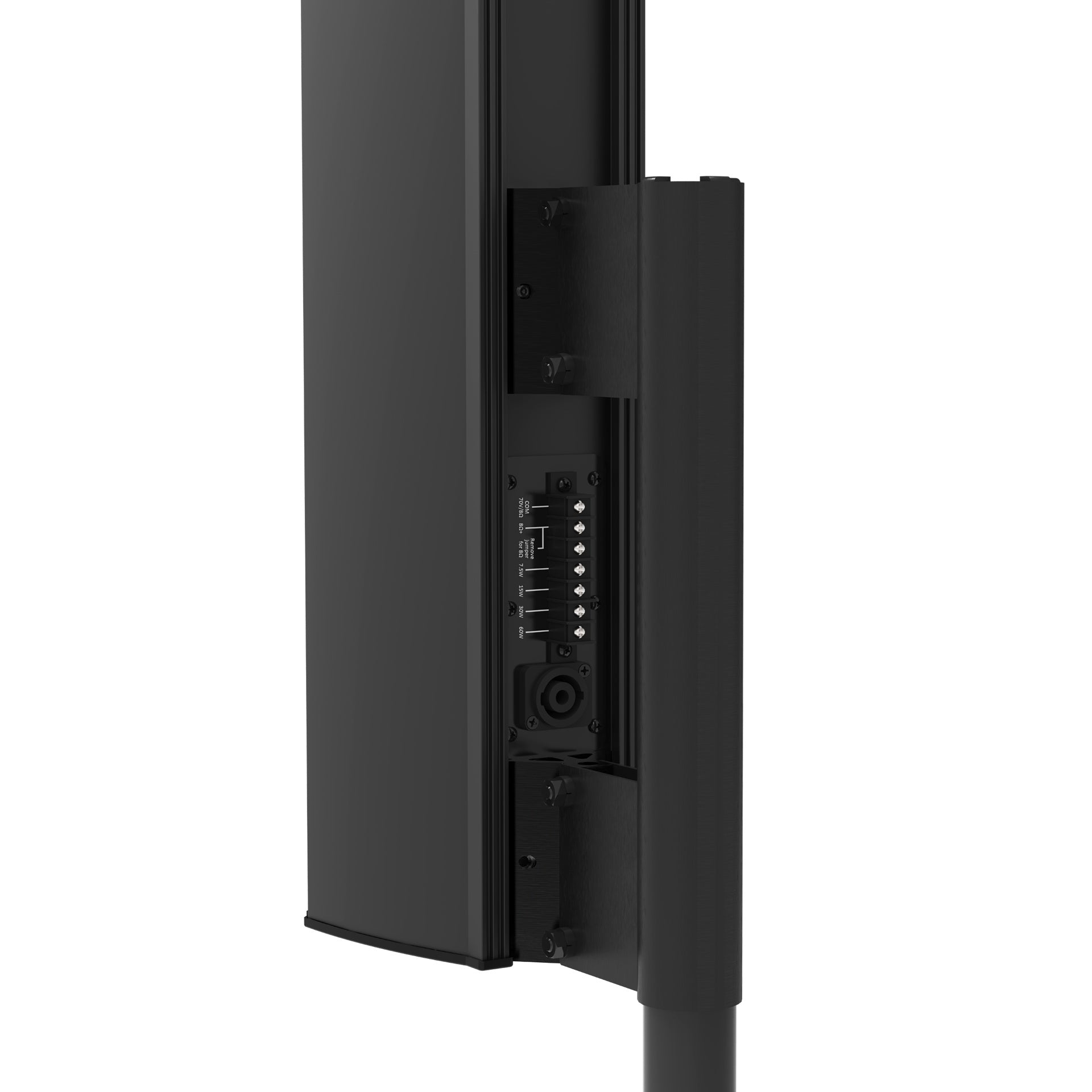

The rear-channel wall bracket system allows vertical tilt adjustment after mounting, giving installers precise aim at the listening plane without specialized hardware. Compared to conventional point-source cabinets, the ALA20T-B's slim profile integrates into architectural environments without visual intrusion, and the 60-month warranty reflects the build quality expected from a product intended for permanent installation rather than portable rental use.
